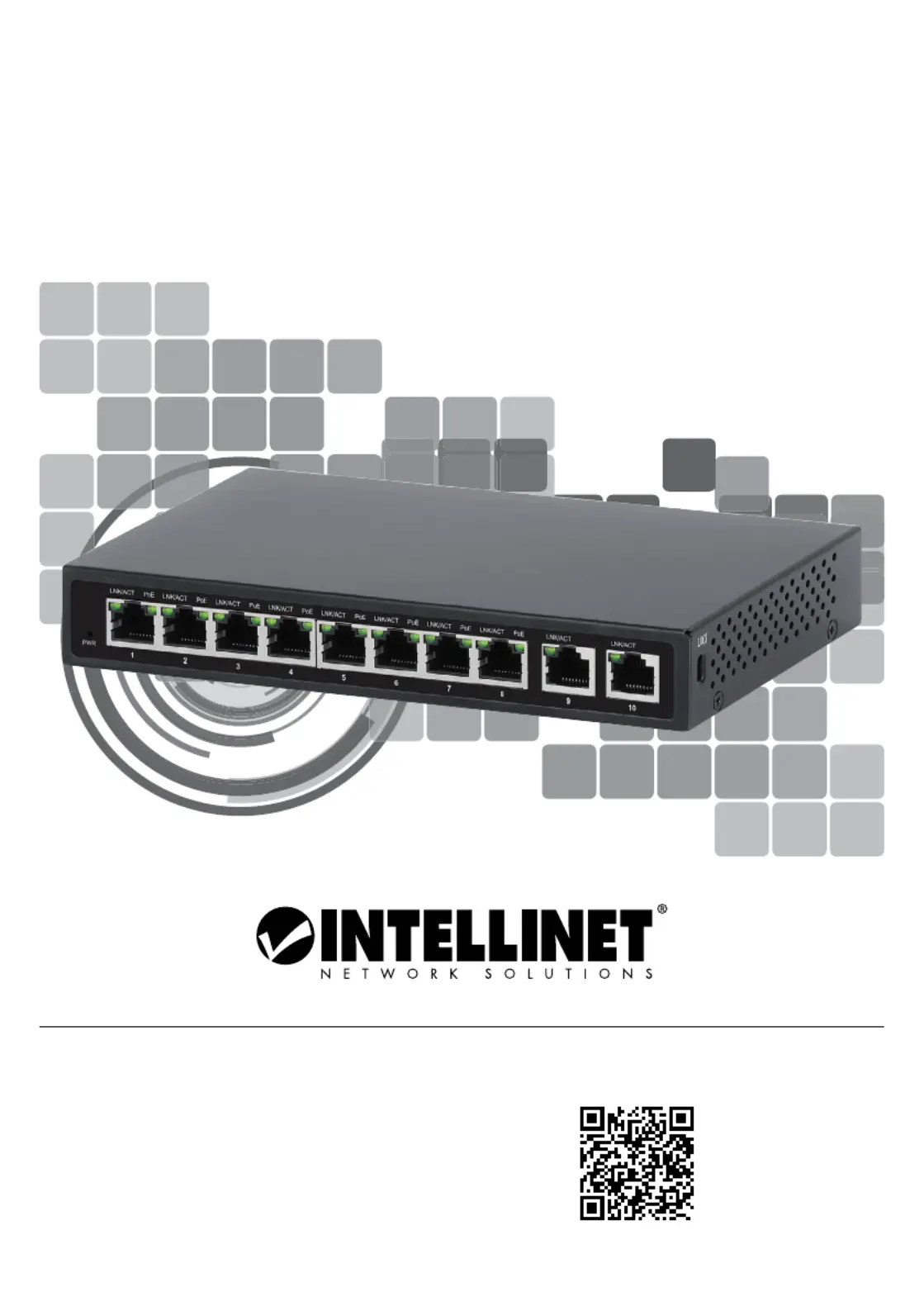

Seite 1/16
Scan to
register your
product warranty
Important: Read before use. • Importante: Leer antes de usar.
For additional benets:
or go to: register.intellinet-network.com/r/562027
10-Port PoE+ Switch with 8 Gigabit
Ethernet Ports and 2 RJ45 Gigabit
Uplink Ports
Instructions Model 562027 (IPS-08G02-58W)
2
Front Panel
LEDs
The LED indicators make it easier to monitor the switch and its connections.
Ports
All ports on the switch support Auto-MDI/MDI-X functionality, so
crossover cables and uplink ports are not needed for connections
to PCs, routers, other switches, etc. Cat5e/6/6a UTP/STP cables
provide optimal performance; if a status LED doesnt indicate a link,
check the corresponding device for proper setup and operation.
Rear Panel
Power
Use the provided power adapter to plug the back of the switch
into a power outlet and make sure the power LED is on.
English
Instructions
This guide presents the basic steps to set up and operate this device.
For the user manual and specifications, visit intellinet-network.com.
Register your product at register.intellinet-network.com/r/562027
or scan the QR code on the cover.
LED Color Status Operation
PWR Green On Power On
Off Power Off
Link/
Act Green
On Valid port connection.
Flashing Sending or receiving data
Off No link established.
PoE Green On The connected powered device is receiving power.
Off No PSE/PoE device is linked.
3
English
Chassis Ground Column
Wire the grounding terminal to an earth-
grounding object to prevent power spikes.
VLAN Mode
The Switch features port isolation, also referred to as
“Private VLAN. It isolates all ports from each other and only allows access
to the uplink port. This is useful, for example, if a private VLAN is a hotel
where each room or apartment has a network port for Internet access.
All ports can all access the Internet, but they cannot access each other.
Placement
Prior to use, it is recommended that the switch be placed/positioned:
on a level surface that can support the weight of the switch
with a minimum of 25 mm (approx.
1) of clearance on the top and
sides for adequate ventilation
away from sources of electrical
noise: radios, transmitters, broadband ampliers, etc.
where it cannot be aected by excessive moisture
Instructions
Mode Operation
Normal All ports can communicate with each other
Flow control Disable flow control, all ports can communicate with each other
VLAN Ports 1 to 8 are isolated from each other but
can communicate with ports 9 and 10
