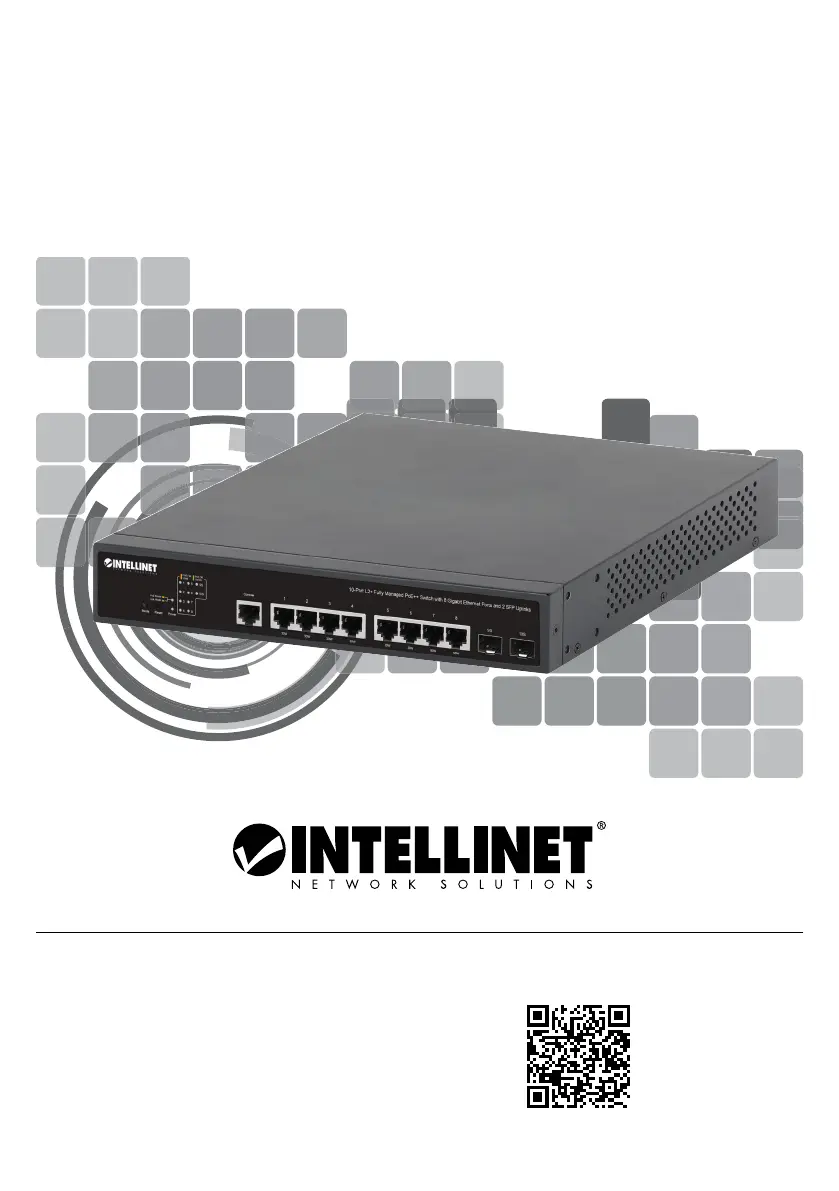

10-Port L2+ Fully Managed
PoE++ Switch with 8 Gigabit
Ethernet Ports and 2 SFP Uplinks
Instructions Model 562003 (IPS-10GM02-242W)
2
This guide presents the basic steps to set up and operate this device.
For the user manual and specifications, visit . Register your product intellinet-network.com
at register.intellinet-network.com/r/562003 or scan the QR code on the cover.
Placement
Prior to use, it is recommended that the switch be placed/positioned:
• on a level surface that can support the weight of the switch
(and any other items that need to be considered);
• with a minimum of 25 mm (approx. 1”) of
clearance on the top and sides for adequate ventilation;
• away from sources of electrical noise: radios, transmitters, broadband amplifiers, etc.;
• where it cannot be affected by excessive moisture;
• within 100 m (approx. 328’) of network devices (RJ45) it’s to be connected to.
The switch includes brackets and screws for optional rack mounting.
1 Disconnect any cables from the switch.
2 Position a bracket over the mounting holes on one side
of the switch and secure it in place with screws.
3 Repeat Step 2 on the other side of the switch.
4 Position the switch in the rack and screw
the brackets to the rack.
5 Reconnect any cables.
Chassis Ground Column
Located on the side of the power supply connector, a grounding
terminal connector is used to provide proper grounding for your switch.
It should be wired to an object that provides earth ground.
Connections
English
Instructions
3
English
• All ports on the switch support Auto-MDI/MDI-X functionality, so
you can use straight or crossover UTP/STP cables to connect the
RJ45 ports to PCs, routers, hubs, other switches, etc.
• Cat5e/6/6a/8.x UTP/STP cables provide optimal performance; if a status LED doesn’t
indicate a link or activity, check the corresponding device for proper setup and operation.
• Use the included power cable to connect the receptacle
on the back of the switch to a power outlet.
• Ports 1 – 8 can provide power to a connected powered device (PoE++ output
up to 90 watts on ports 7 and 8; PoE+ output up to 30 watts on ports 1
through 6); all powered devices should comply with IEEE 802.3bt/at/af.
LED Color Status Operation
PWR Green On Unit is receiving power.
Off Check connection.
Link/Act/
Speed
1-8
10/100M:
Orange
1000M:
Green
On Valid port connection.
Flashing Data is transmitted/received
Off No link established.
PoE 1-8 Green On The connected powered device (PD) is receiving power.
Orange Off No PD device is linked.
9S-10S
(SFP) Green
On Valid port connection.
Flashing Data is transmitted/received
Off No link established.
* NOTE: Press the Mode button to alternate between Link or PoE Status.
Basic Web-Based Browser Management
1 Open your Web browser.
2 http://Enter and the IP address of the switch in the Address field.
The default management IP address is . 192.168.2.1
3 Press to display the login screen. In the Username field, enter ; in the Enter admin
Password field, enter the on the bottom of the switch. Click .serial number OK
Instructions
