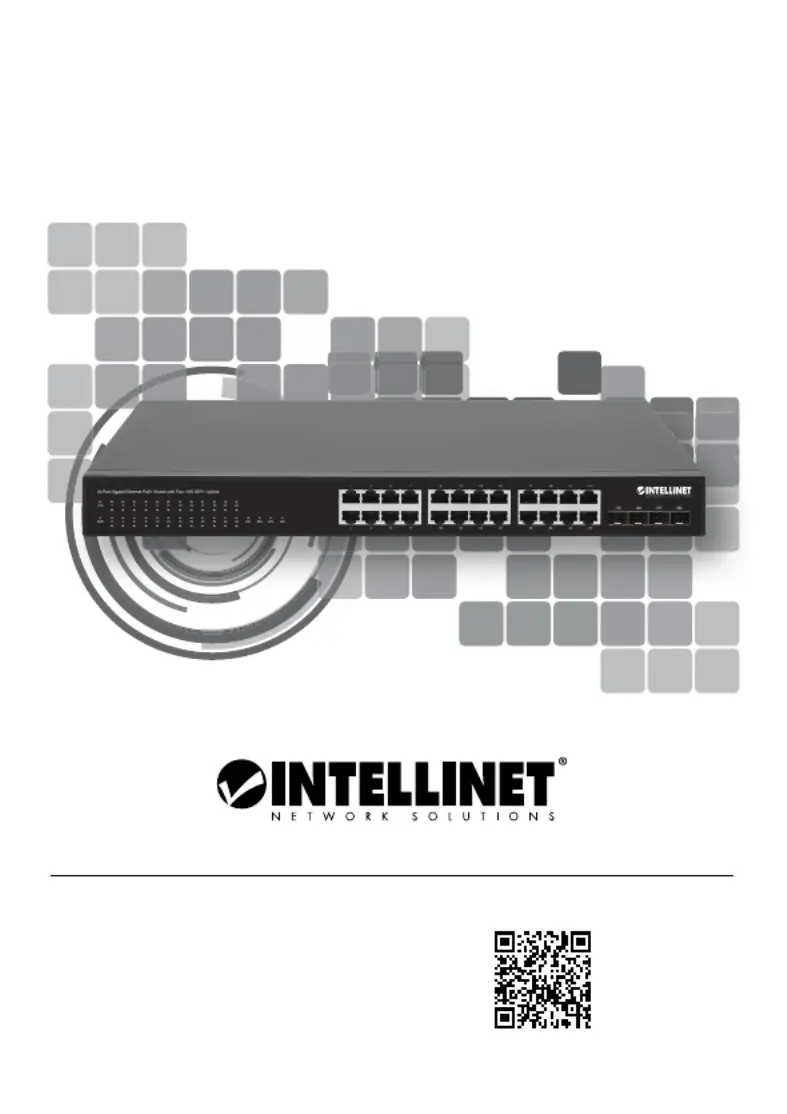

Seite 1/16
Scan to
register your
product warranty
Important: Read before use. • Importante: Leer antes de usar.
24-Port Gigabit Ethernet PoE+ Switch
with Four 10G SFP+ Ports
Instructions
Model 561761 (IPS-28G04-10G-370W)
For additional benets:
or go to: register.intellinet-network.com/r/561761
2
This guide presents the basic steps to set up and operate this device.
For specifications, visit . Register your product at intellinetnetwork.com
register.intellinet-network.com/r/561761 or scan the QR code on the cover.
Placement
Prior to use, it is recommended that the switch be placed/positioned:
• on a level surface that can support the weight of the switch
(and any other items that need to be considered);
• with a minimum of 25 mm (approx. 1”) of clearance on
the top and sides for adequate ventilation;
• away from sources of electrical noise: radios,
transmitters, broadband amplifiers, etc.;
• where it cannot be affected by excessive moisture.
The switch includes brackets and screws for optional rack mounting.
1 Disconnect any cables from the switch.
2 Position a bracket over the mounting
holes on one side of the switch and
secure it in place with screws.
3 Repeat Step 2 on the other
side of the switch.
4 Position the switch in the rack and
screw the brackets to the rack.
5 Reconnect any cables.
Chassis Ground Column
Located on the side of the power supply connector, a grounding terminal
connector is used to provide proper grounding for your Intellinet Network
Solutions switch. If you use the chassis grounding screw, it should be
wired to an object that provides earth ground. In rackmount installations,
English
Instructions
3
English
grounding is typically provided by the metal frame of the mounting rack.
Connections
• All ports on the switch support Auto-MDI/MDI-X functionality, so you can
use straight or crossover UTP/STP cables to connect the RJ45 ports to
PCs, routers, hubs, other switches, etc. Cat5/5e/6 UTP/STP cables provide
optimal performance; if a status LED doesn’t indicate a link or activity,
check the corresponding device for proper setup and operation.
• Use the included power cable to connect the receptacle on the back of
the switch to a power outlet, and confirm that the PWR LED lights.
• The LED indicators make it easier to monitor the switch and its connections.
NOTE: All RJ45 ports provide power to a connected device, and all connected
devices should comply with IEEE 802.3af/at.
№ LED Color Status Description
1 PWR Green On Unit is receiving power.
Off Check connection.
2 SYS Green Blinking System is normal.
Off System not started.
3Link / ACT / Speed
1 – 24
10/100M: Orange;
1000M: Green
On Valid port connection.
Blinking Data transmitted/received.
Off No link established.
4 PoE 1 – 24 Yellow
On The connected device is receiving power.
Blinking Abnormal power supply at the port.
Off No PD device is linked.
5 25S – 28S 1G: Orange;
10G: Green
On Valid port connection.
Blinking Data transmitted/received.
Off No link established.
Instructions
