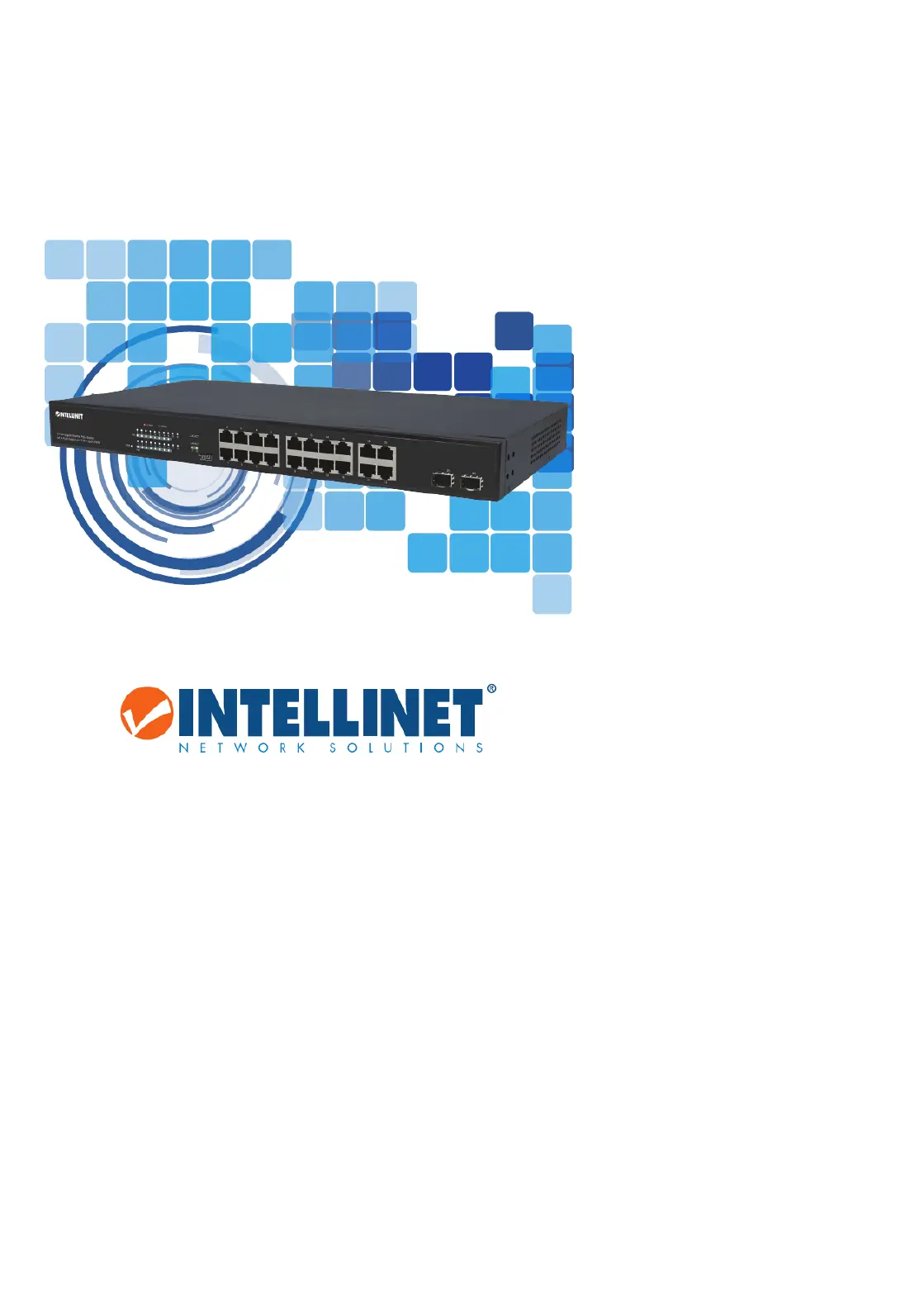

INT-561419_QiG-0918_REV-5.01
16-Port Gigabit Ethernet
PoE+ Switch with 4 RJ45
Gigabit and 2 SFP Uplink Ports
Instructions
Model 561419
intellinetnetwork.com
2
16-Port Gigabit Ethernet PoE+ Switch with 4 RJ45 Gigabit and 2 SFP Uplink Ports
English
The 16-Port Gigabit Ethernet PoE+ Switch with 4 RJ45 Intellinet Network Solutions
Gigabit and 2 SFP Uplink Ports oers an array of time-saving, cost-eective features
while providing superior network throughput. No conguration is required and
installation is plug and play. Thanks to its optional desktop and 19” rackmount design,
superior performance and value, the switch is the perfect choice for your small oce
home or home network. With a backplane speed of 44 Gbps, plenty of performance is
available for your computers, servers and other networking devices. Each of the ports
automatically senses the link speed of the connected network device and adjusts to
10, 100 or 1000 Mbps for compatibility and maximum performance. Designed to give
ample power to compatible devices that need them, this PoE+ switch oers up to 32
watts of power per port until its power budget of 300 watts is reached.
Green Ethernet Technology
More often than not, a network switch does not utilize all its ports at all times. Normally,
when a computer, notebook, network printer or other network-connected device is
powered down, the switch continues to consume the same amount of power as if the
port were still active. Now, thanks to the new, energy ecient IEEE 802.3az technology,
this switch detects link status to all connected devices and Intellinet Network Solutions
reduces the power usage of ports not in use. In addition, the switch can adjust the level
of power output based on the length of the network cable connected to a particular
port. This feature allows for the enjoyment of maximum network performance, and
when things slow down, it automatically scales back power usage to conserve energy
and save money.
10/100/1000 Mbps & PoE 10/100/1000 Mbps
1000 Mbps SFP
LED COLOR STATUS STATUS DESCRIPTION
Power Green O Power O
On Power On
LNK/ACT
Orange
O No device is connected to the port.
On A device is connected to the port at 10/100 Mbps speed.
Flashing Sending or receiving data.
Green
O No device is connected to the port.
On A device is connected to the port at 1000 Mbps speeds.
Flashing Sending or receiving data.
PoE Orange
O No device is connected to the port.
On The connected device is receiving power.
Flashing Abnormal power supply.
Front Panel
3
DIP Switch (Manual restart of switch is required for mode change to take eect.)
• Standard: default mode; allows normal communication between ports 1 – 22.
• VLAN: isolates ports 1 – 16 from each other but can connect to ports 17 – 22;
increases the forwarding rate when broadcast storms occur.
• Extend: allows PoE to be sent over distances up to 250 m (820 ft.); lowers data
transmission speeds to 10 Mbps.
Power
Use the included power cord to connect the device (on the rear panel) to an AC outlet.
The device supports AC 100 – 240 V, 50/60 Hz.
Chassis Ground Column
Located on the right side of the power supply connector, a grounding terminal
connector is used to provide proper grounding for your Intellinet Network Solutions
data switch. If you use the chassis grounding screw, it should be wired to an object that
provides earth ground. In rackmount installations, grounding is typically provided by
the metal frame of the mounting rack.
Desktop Installation
Prior to use, it is recommended that the switch be placed/positioned on a level surface
with at least 25 mm (approx. 1”) of clearance for ventilation; away from sources of
electrical noise: radios, transmitters, broadband ampliers within 100 m (approx. 328’)
of network devices it’s to be connected to. Attach the rubber feet to the bottom of each
corner of the switch to increase stability.
Rackmount Installation
The switch can be mounted in an EIA standard-sized, 19-inch rack. Attach the mounting
brackets on the switch’s side panels (one on each side) and secure them with the
screws provided.
Use the screws provided with the equipment rack to mount the Intellinet Network
Solutions data switch on the rack.
Placement
English
16-Port Gigabit Ethernet PoE+ Switch with 4 RJ45 Gigabit and 2 SFP Uplink Ports
Rear Panel
