Seite 1/16

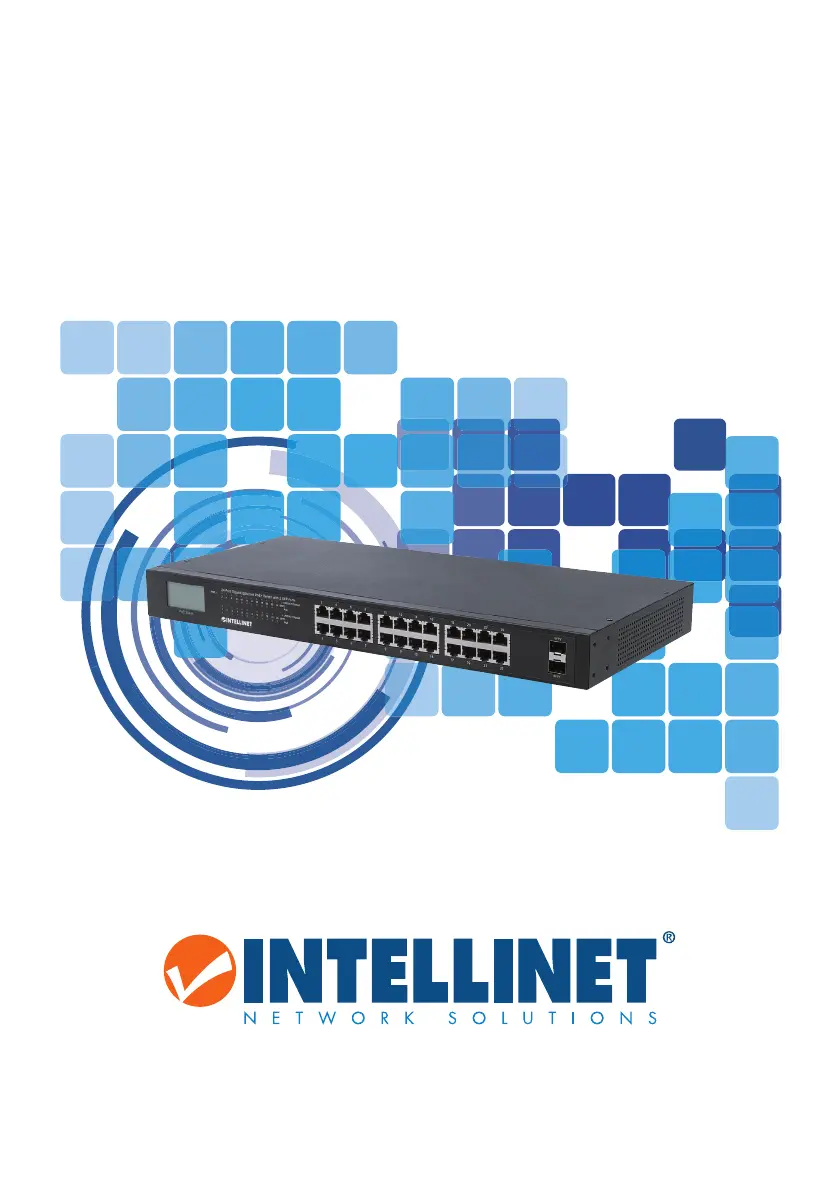

intellinetnetwork.com
24-Port Gigabit Ethernet PoE+
Switch with 2 SFP Ports and
LCD Screen Instructions
Model 561242
Important: Read before use. ‱ Importante: Leer antes de usar.
2
24-Port Gigabit Ethernet PoE+ Switch with 2 SFP Ports and LCD Screen
English
Instructions
LED COLOR STATUS STATUS DESCRIPTION
PWR Green O Power O
On Power On
LNK/ACT/
Speed
O No device connected.
Orange
(1 – 24)
On A device is connected to the port at 10/100 Mbps speed.
Flashing Sending or receiving data.
Green (1 –24,
SFPs 1 & 2)
On A device is connected to the port at 1000 Mbps speeds.
Flashing Sending or receiving data.
PoE Green
O No PSE/PoE device is linked.
On The connected device is receiving power.
Flashing Abnormal power supply.
Front Panel
Rear Panel
The Intellinet 24-Port Gigabit Ethernet Ultra PoE Switch with 2 SFP Ports and LCD Screen offers an array
of time-saving, cost-effective features while providing superior network throughput. No configuration is
required and installation is plug and play. Thanks to its optional desktop and 19” rackmount design, superior
performance and value, the switch is the perfect choice for your small office home or home network.
With a backplane speed of 52 Gbps, plenty of performance is available for your computers,
servers and other networking devices. Each of the ports automatically senses the link speed of the
connected network device and adjusts to 10, 100 or 1000 Mbps for compatibility and maximum
performance. Designed to give ample power to compatible devices that need them, this PoE+
switch offers up to 30 watts of power per port until its power budget of 370 watts is reached.
Green Ethernet Technology
More often than not, a network switch does not utilize all its ports at all times. Normally, when a computer,
notebook, network printer or other network-connected device is powered down, the switch continues to consume
the same amount of power as if the port were still active. Now, thanks to the new, energy efficient IEEE 802.3az
technology, this Intellinet switch detects link status to all connected devices and reduces the power usage of
ports not in use. In addition, the switch can adjust the level of power output based on the length of the network
cable connected to a particular port. This feature allows for the enjoyment of maximum network performance,
and when things slow down, it automatically scales back power usage to conserve energy and save money.
Power
Use the included power cord to connect the device (on the rear panel) to
an AC outlet. The device supports AC 100 – 240 V, 50/60 Hz.
Chassis Ground Column
Located on the right side of the power supply connector, the grounding terminal connector
is used to provide proper grounding for your Intellinet data switch. If you use the chassis
grounding screw, it should be wired to an object that provides earth ground. In rackmount
installations, grounding is typically provided by the metal frame of the mounting rack.
3
Instructions
English
PoE Status
24-Port Gigabit Ethernet PoE+ Switch with 2 SFP Ports and LCD Screen
Placement
Power Usage
PD Light Load Protection
Overload Protection
PoE Shutoff
Short-circuit detected
Total PoE
Output
PoE
Budget
Over-voltage Protection Low-voltage Protection Over-temperature Protection
7
3
C
69.8
Example LED screen
Desktop Installation
Prior to use, it is recommended that the switch be placed/positioned on a level surface with at
least 25 mm (approx. 1”) of clearance for ventilation; away from sources of electrical noise: radios,
transmitters, broadband amplifiers within 100 m (approx. 328’) of network devices it’s to be connected
to. Attach the rubber feet to the bottom of each corner of the switch to increase stability.
Rackmount Installation
The switch can be mounted in an EIA standard-sized, 19-inch rack. Attach the mounting brackets on the switch’s side
panels (one on each side) and secure them with the screws provided.
Use the screws provided with the equipment rack to mount the Intellinet data switch on the rack.
The LCD screen displays the status of each port and provides valuable information
about crucial functions of the switch. See the description below for details.
