Seite 1/16
For additional benets:
or go to: register.intellinet-network.com/r/508834
Scan to
register your
product warranty
Important: Read before use. • Importante: Leer antes de usar.

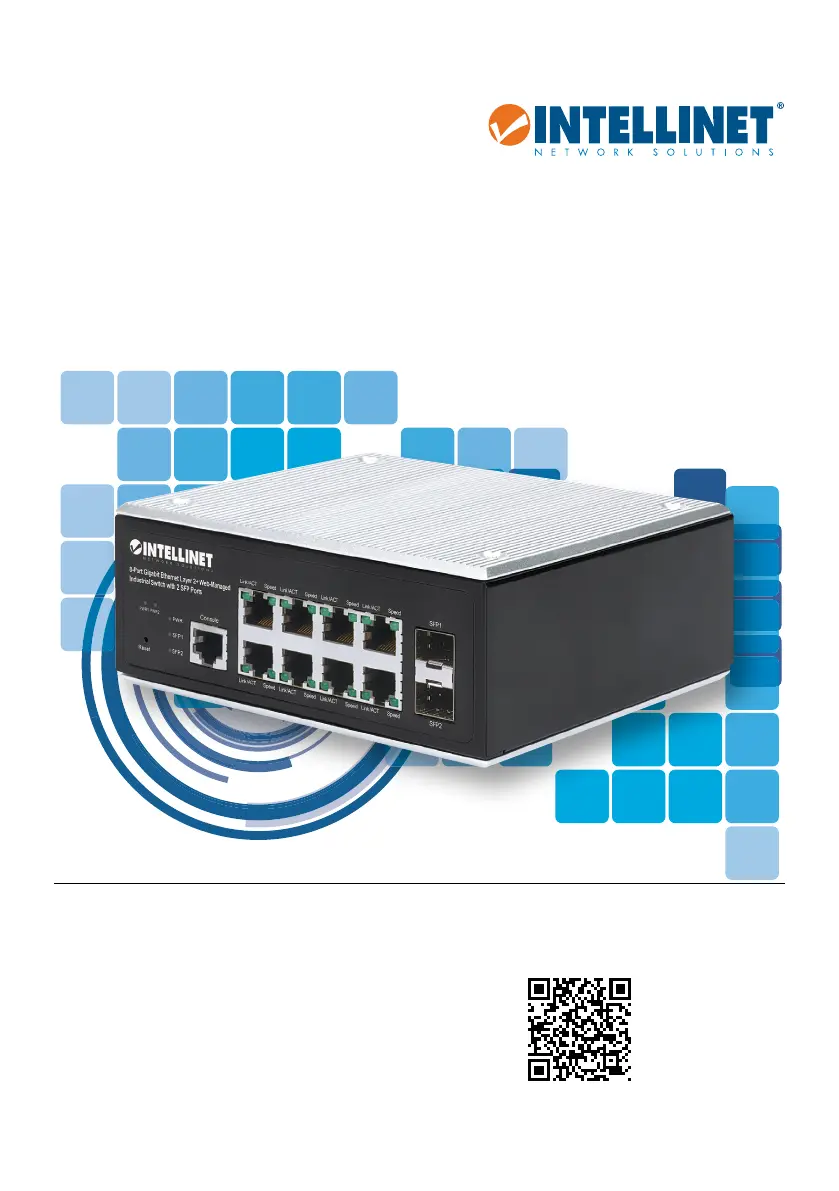

8-Port Gigabit
Ethernet
Layer2+ Web-
Managed Industrial Switch
with 2 SFP Ports Instructions
Model 508834 (IIS-8G02M)
2
The Intellinet 8-Port Gigabit Ethernet Layer 2+ Web-Managed Industrial Switch with 2 SFP Ports offers
an array of time-saving, cost-effective features while providing superior network throughput.
Features
• Provides RJ45 data connections for up to eight network devices
• IP30 slim-type metal housing to withstand harsh industrial conditions
• Wide operating temperature: -40 – 85°C (-40 – 185°F)
• Option for DIN-rail installation
• Two small form-factor pluggable GBIC module slots (SFP)
• Two redundant DC inputs (44 – 57 V) with I/O terminal block
With a backplane speed of 20 Gbps, plenty of performance is available for your computers, servers
and other networking devices. Each of the ports automatically senses the link speed of the connected
network device and adjusts to 10, 100 or 1000 Mbps for compatibility and maximum performance.
For the user manual and specifications, visit intellinetnetwork.com. Register your product
at register.intellinet-network.com/r/508834 or scan the QR code on the cover.
LEDs
LED Color Status Status Description
PWR Green On Power on
Off Power off; abnormal power
PWR1 &
PWR 2 Green On PWR input has power
Off Power is off or is working abnormally
Link/ACT
1 – 8
Green
(10/100 Mbps)
On Valid port connection (10/100 Mbps)
Blinking Sending or receiving data
Off No link established or port is connected at 1000 Mbps speed
Speed Green
(1000 Mbps)
On Valid port connection (1000 Mbps)
Off No link established or port is connected at 10/100 Mbps speed
SFP
1 & 2 Green
On Valid port connection
Blinking Sending or receiving data
Off No link established
Cat5e/6/6a UTP/STP cables provide optimal performance; if a status LED doesn’t indicate
a link or activity, check the corresponding device for proper setup and operation.
Power
Terminal Block Installation
NOTE: Ensure all power is off/disconnected before beginning!
1 Loosen appropriate screws.
2 Insert bare power-supply wires into appropriate terminal slots (positive
wire into positive slot; negative wire into negative slot).
3 Tighten appropriate screws to secure wires. (If desired, repeat steps 1 – 3 on second input pair.)
4 Install block into the device and tighten screws.
English
Instructions
3
Power Off Alarm
You can choose whether to connect the power failure warning device to the
connecting terminal marked “Fault” according to your requirements. When using
power redundancy, if one power source fails, a fault alarm will be generated.
Chassis Ground Column
Located on the side of the power supply connector, a grounding terminal connector is used
to provide proper grounding for your Intellinet Network Solutions switch. If you use the
chassis grounding screw, it should be wired to an object that provides earth ground.
Placement
Desktop Installation
Prior to use, place/position the switch:
• on a level surface that can support the weight of the switch and that offers
at least 25 mm (approx. 1”) of clearance for ventilation;
• away from sources of electrical noise: radios, transmitters, broadband amplifiers;
• within 100 m (approx. 328’) of network devices it’s to be connected to.
DIN-Rail Installation
1 With DIN-rail bracket attached to device with screws, angle bracket onto DIN rail.
2 Push device in till it clicks into place.
Basic Web-Based Browser Management
1 Open your Web browser.
2 http://Enter and the IP address of the switch in the Address field.
The default management IP address is . 192.168.2.1
3 EnterPress to display the login screen. In the Username field, enter ; in the admin
Password field, enter the on the bottom of the switch. Click .serial number OK
1 2
1
PWR 1 PWR 2 Fault
+
–
+
–
2
PWR 1 PWR 2 Fault
+
–
+
–
3
PWR 1 PWR 2 Fault
+
–
+
–
4
Instructions
English
