Seite 1/16
For additional benets:
or go to: register.intellinet-network.com/r/508827
Scan to
register your
product warranty
Important: Read before use. • Importante: Leer antes de usar.

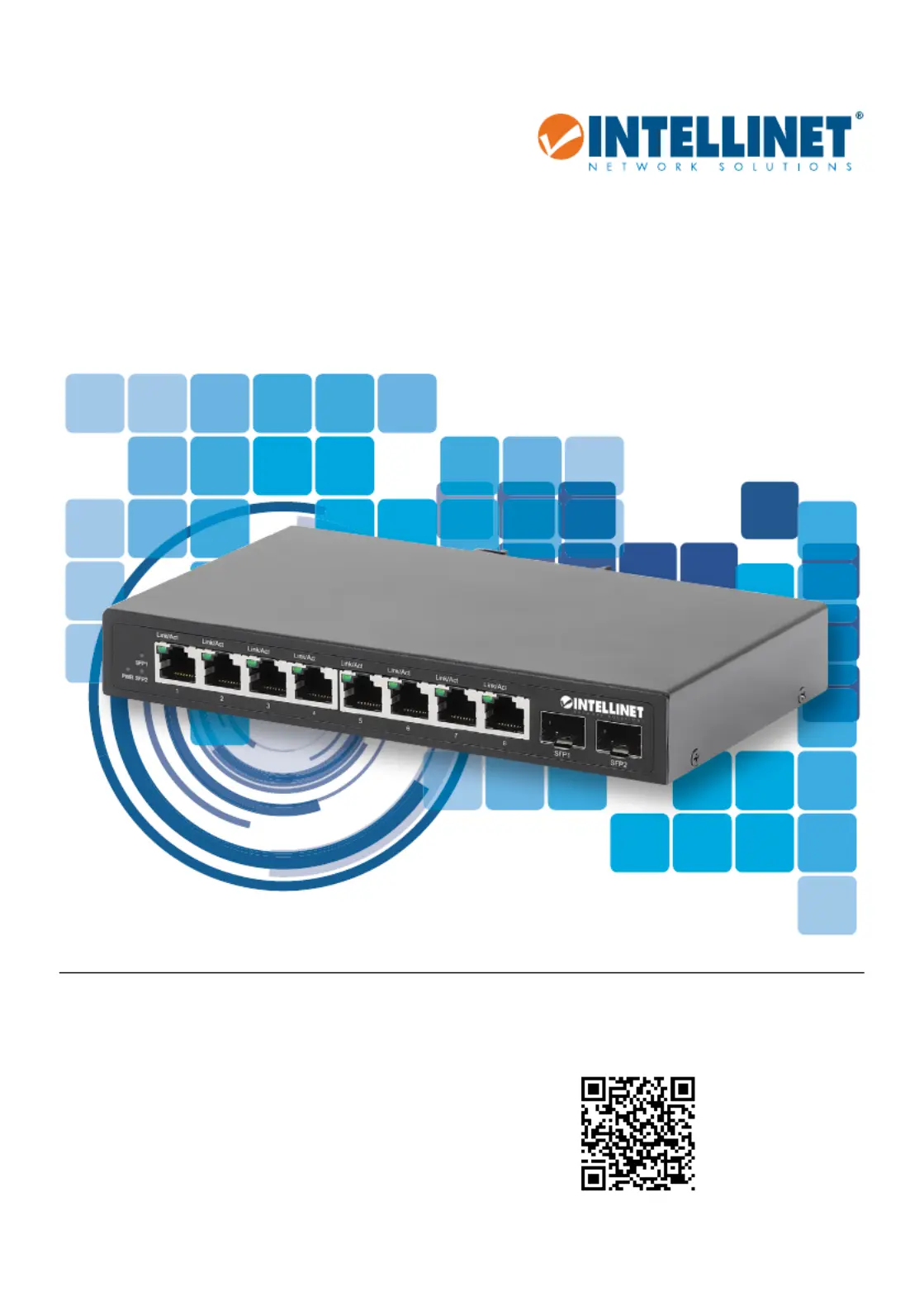

8-Port Gigabit
Ethernet
Industrial Switch
with 2 SFP Ports Instructions
Model 508827 (IIS-8G02)
2
The Intellinet 8-Port Gigabit Ethernet Industrial Switch with 2 SFP Ports offers an
array of time-saving, cost-effective features while providing superior network
throughput. No configuration is required and installation is plug and play.
Features
• Provides RJ45 data connections for up to eight network devices
• IP40 slim-type metal housing to withstand harsh industrial conditions
• Wide operating temperature: -40 – 75°C (-40 – 167°F)
• Option for DIN-rail installation
• Two small form-factor pluggable GBIC module slots (SFP)
• Two redundant DC inputs (12 – 48 V) with I/O terminal block
With a backplane speed of 20 Gbps, plenty of performance is available for
your computers, servers and other networking devices. Each of the ports
automatically senses the link speed of the connected network device and adjusts
to 10, 100 or 1000 Mbps for compatibility and maximum performance.
For specifications, visit . Register your product at intellinetnetwork.com register.
intellinet-network.com/r/508827 or scan the QR code on the cover.
LEDs
LED Color Status Status Description
PWR Green On Power on
Off Power off
Link/Act
1 – 8 /
SFP
1 & 2
Green
On Valid port connection
Blinking Sending or receiving data
Off No link established
Cat5e/6/6a UTP/STP cables provide optimal performance; if a status LED doesn’t indicate
a link or activity, check the corresponding device for proper setup and operation.
Power
Chassis Ground Column
Located on the side of the power supply connector, a grounding terminal
connector is used to provide proper grounding for your Intellinet Network
Solutions switch. It should be wired to an object that provides earth ground.
English
Instructions
3
Terminal Block Installation
NOTE: Ensure all power is off/disconnected before beginning!
1 Loosen appropriate screws.
2 Insert bare power-supply wires into appropriate terminal slots (positive
wire into positive slot; negative wire into negative slot).
3 Tighten appropriate screws to secure wires. (If desired, repeat steps 1 – 3 on second input pair.)
4 Install block into the device and tighten screws.
Power Off Alarm
You can choose whether to connect the power failure warning device to the
connecting terminal marked “Fault” according to your requirements. When using
power redundancy, if one power source fails, a fault alarm will be generated.
Placement
Desktop Installation
Prior to use, place/position the switch:
• on a level surface that can support the weight of the switch and that
offers at least 25 mm (approx. 1”) of clearance for ventilation;
• away from sources of electrical noise: radios, transmitters, broadband amplifiers;
• within 100 m (approx. 328’) of network devices it’s to be connected to;
• where it cannot be affected by excessive moisture.
DIN-Rail Installation
1 With DIN-rail bracket attached to device with screws, angle bracket onto DIN rail.
2 Push device in till it clicks into place.
1 2 3 4
1 2
Instructions
English
