Are you completely satisfied with this product?
Please contact your
INTELLINET NETWORK SOLUTIONS
dealer with comments or questions.
Copyright © INTELLINET NETWORK
SOLUTIONS
All products mentioned are trademarks or registered trademarks
of their respective owners.
www.intellinet-network.com

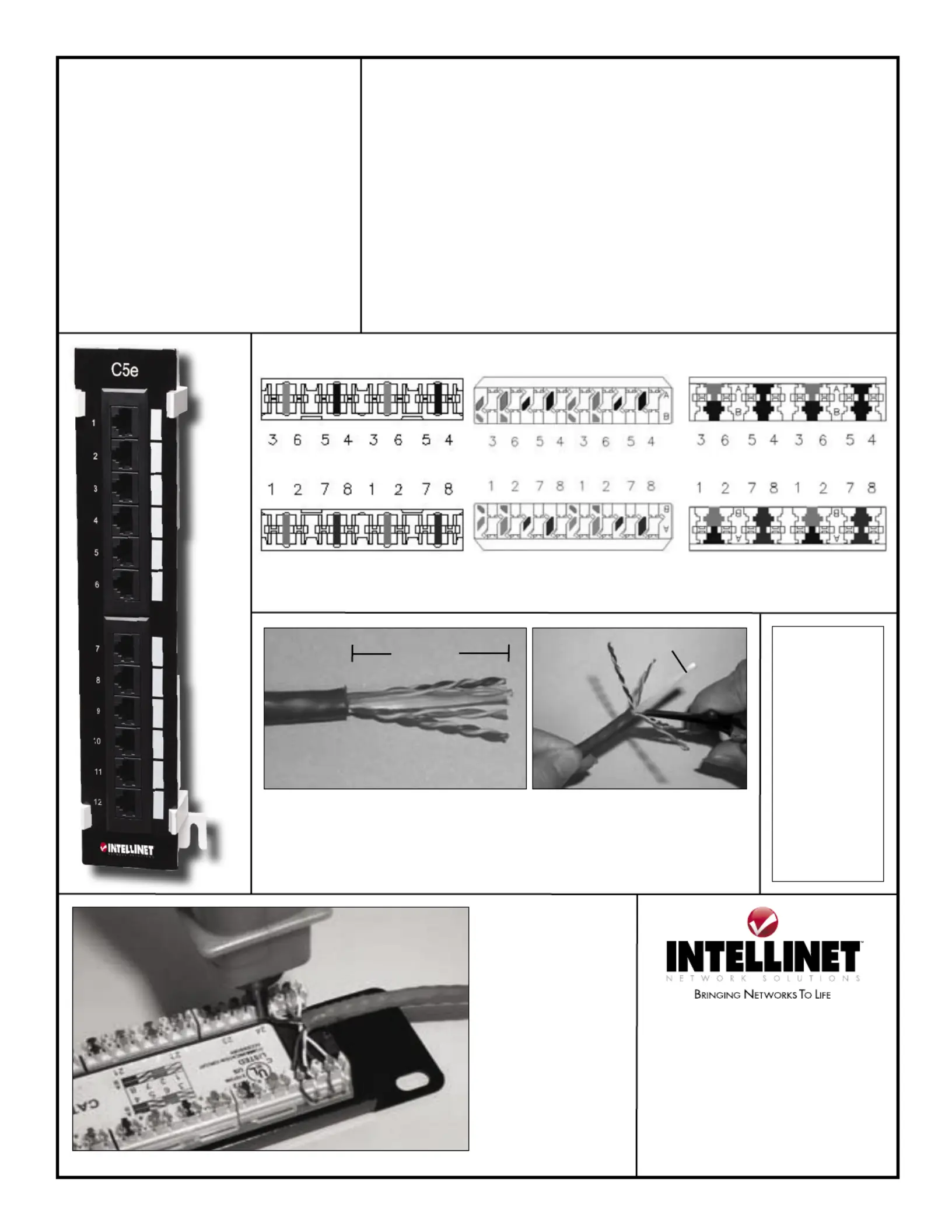

WALL
MOUNT
PATCH PANEL
QUICK
START
GUIDE
INT-PPWM-QSG-1206-02
Thank you for purchasing this INTELLINET NETWORK SOLUTIONS Wall Mount
Patch Panel.
Follow the steps on this quick start guide for easy installation and use of either the
Cat5e or Cat6 version of this product.
T568A
PIN 5 WHITE/BLUE
P 4 BIN LUE
P 1 WIN HITE/GREEN
P 2 GIN REEN
P 3 WIN HITE/ORANGE
P 6 OIN RANGE
P 7 WIN HITE/BROWN
P 8 BIN ROWN
T568B
PIN 5 WHITE/BLUE
P 4 BIN LUE
P 1 WIN HITE/ORANGE
P 2 OIN RANGE
P 3 WIN HITE/GREEN
P 6 GIN REEN
P 7 WIN HITE/BROWN
P 8 BIN ROWN
1. Carefully strip away approximately 30 mm of the cable jacket(s) (above
left) to be connected to the Patch Panel, separating the wires into four
pairs. Using a wire cutter, cut the wire holder (above right) flush with the
cable jacket.
2. Follow the IDC
color-code chart
above to position
the wires, then use
a Krone punch-
down tool to crimp
and connect them.
approx. 30 mm wire holder
IDC (3 options)
Krone
type
110D
type
110D & Krone
IDC compatible
12-port
Cat5e
UTP
model
shown
