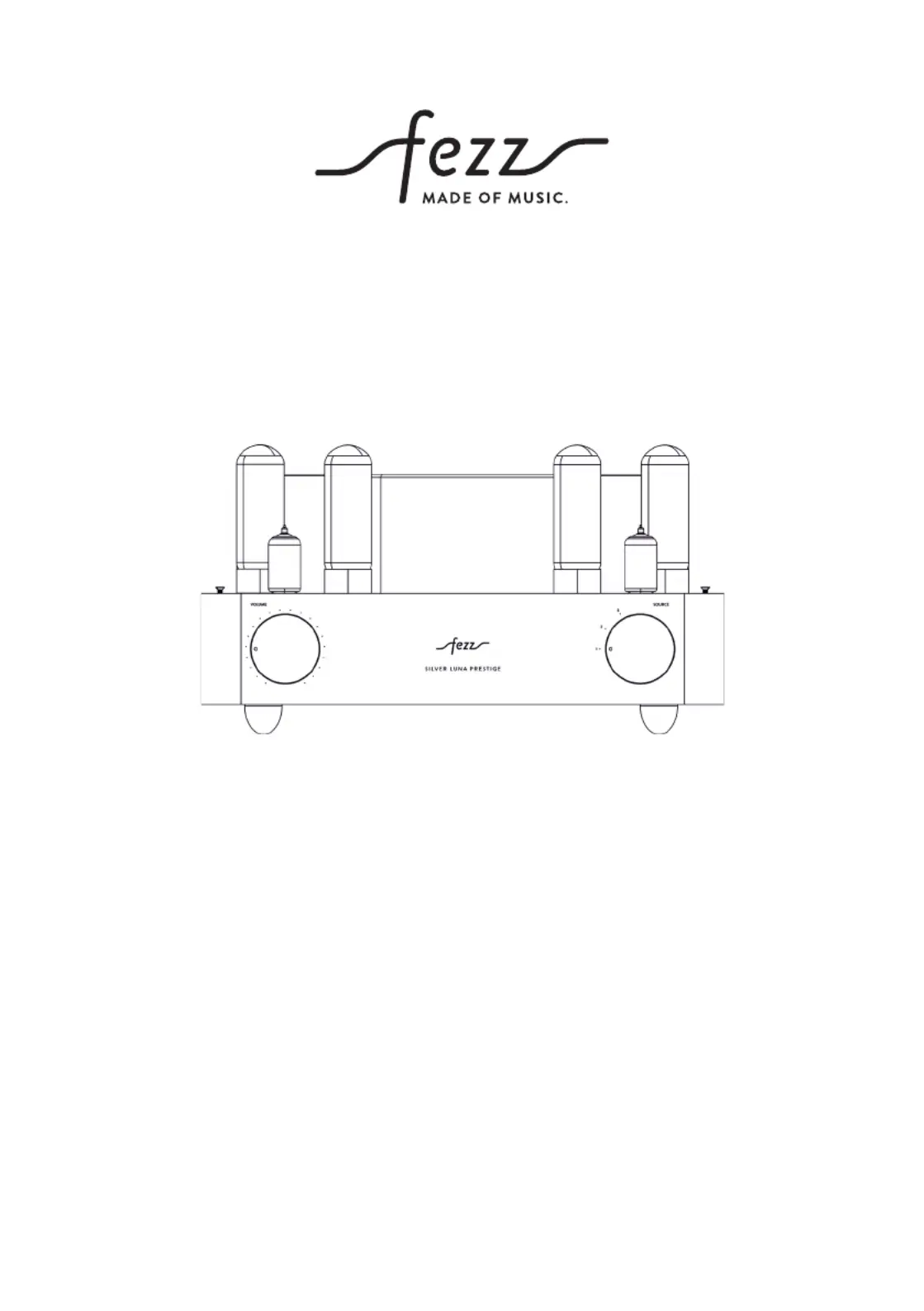

W W W .F E ZZA U DI O .C OM
U SER `S M AN U A L
S ILV E R LU NA PRE S T I GE
2
ξ˜’
ξ˜‘

ξ˜ξ˜™

ξ˜ξ˜™
ξ˜Œξ˜™
ξ˜‹

ξ˜”ξ˜‰ξ˜ˆξ˜‡ξ˜†ξ˜…ξ˜ˆξ˜„ξ˜ƒξ˜™ξ˜‚ξ˜„ξ˜ξ˜„ξ˜™
–
2
ξ˜Ÿξ˜„ξ™Ώξ˜‰ξ˜ξšξ˜™ξ˜ξ˜…ξšξšξ˜™
–
3
ξ˜žξ˜†ξ˜ξšξšξ˜‚ξš ξ˜ˆξ˜ξ˜…ξšξ˜†ξ˜™
–
3
ξ˜žξ˜†ξšξ˜ξ˜„ξ˜ƒξ˜ƒξ˜„ξ˜ξ˜…ξšξ˜†ξ˜™ξšξ™Ώξ˜™ξ˜ξ˜‡ξ˜‰ξ˜™ξ˜‚ξ˜‰ξš­ξ˜…ξ˜ˆξ˜‰ξ˜™
–
3
Unpackingξ˜™
–
3
Content of packageξ˜™
–
3
Vacuum tubes installationξ˜™
–
4
Where to place the amplierξ˜™
–
4
Description of the elementsξ˜™
–
4
ξ˜žξ˜†ξ˜ξ˜‰ξšξ˜ˆξšξ˜†ξ˜†ξ˜‰ξ˜ˆξ˜ξ˜…ξšξ˜†ξšξ˜™
–
5
Speaker connectionsξ˜™
–
5
Source connectionsξ˜™
–
5
Power cord connections
–
5
ξš€ξ˜…ξšξšξ˜ξ˜™ξšξšξš‚ξ˜‰ξšξšƒξš ξšξ˜™ξ˜„ξ˜†ξ˜‚ξ˜™ξš„ξ˜‰ξ˜ξ˜ξ˜…ξ˜†ξš„ξ˜™ξšξ˜ξ˜„ξš…ξ˜ξ˜‰ξ˜‚ξ˜™
–
6
Buring-in process
–
6
Vacuum tubes replacement
–
6
ξš€ξš ξšξ˜‰ξšξ˜™ξšξ˜‰ξšξ˜ƒξ˜„ξ˜ˆξ˜‰ξš†ξ˜‰ξ˜†ξ˜ξ˜™
–
6
ξš‡ξšξ˜ξ˜…ξšξ˜†ξ˜„ξ˜ƒξ˜™ξ˜‰ξšˆξš ξ˜…ξšξš†ξ˜‰ξ˜†ξ˜ξ˜™
–
6
Protective tube cage
–
6
HT (pre-in) input
–
6
Sub out (pre-out)
–
7
Bluetoothξ˜™
–
7
Remote control
–
7
Premium tubes set
–
7
ξ˜”ξšξšξš ξš‰ξ˜ƒξ˜‰ξšƒξšξ˜‡ξšξšξ˜ξ˜…ξ˜†ξš„ξ˜™ξš„ξš ξ˜…ξ˜‚ξ˜‰
–
7
ξ˜”ξ˜›ξšŠξš‹ξ˜—ξ˜žξšŠξ˜–ξ˜ξ˜™ξšŒξ˜–ξ˜”ξ˜–
TA B L E OF C O NT E N TS
Type: stereo vacuum tube amplier
Model: Silver Luna Prestige, Evolution
Max output power: 2x35W
Circuit type: push-pull AB1 class
Output impedance: 4Ξ©/8Ξ©
Inputs: 3xRCA + optional 1xRCA (pre-in)
Harmonic distortions THD: <1%
Frequency response 15Hz-77kHz (-3dB)
Power consumption: 170W
Main AC fuse: 3,15AT, Vacuum tubes fuses: m100mA
Net weight: 20,7 kg
Dimensions (with tubes): 355x380x195mm
Tubes : EL34 p2-x4 (power output), ECC83/6n2p x2 (pre-amp & drivers), automatic bias
ξ˜’
3
- Never turn on the amplifeir without installed tubes and without hooked-up spekers.
- Never place the Fezz Audio Sliver Luna Prestige amplier near heat sources, such as radiators, heaters or direct sunlight.
Ensure adequate ventilation and airow
- We also warn against exposure of the amplier to conditions such as very low temperatures and/or high humidity.
- During normal operation, the vacuum tubes radiate signicant amounts of heat - there is a risk of burns.
- The amplier should be plugged directly into a wall socket. If you must use an extension cord, please make sure that it
has load parameters sucient to ensure proper handling of current delivery to the device.
- When cleaning, always disconnect the Titania amplier from the power source. Use a dry, soft cloth. Do not use water or
cleaning agents.
- If your amplier starts to misbehave or to work incorrectly, if it’s temperature gets too high or you start feeling smoke -
immediately disconnect the device from the mains.
- Due to the risk of exposure to high voltages – please do not open the lid of the amplier.
ATTENTION: This warning remains in force also in a situation where the device is already disconnected from the wall outlet.
- Always replace fuses in accordance with the original, intended specication.
- Do not make repairs on your own, or adjustments beyond those as described in this manual. Execution of any
unauthorized repairs or modications of the device result in a loss of warranty.
Nowadays HiFi audio world becomes increasingly digital, Fezz does not forget about analog lovers.
Fezz Silver Luna Prestige is a Polish, series produced integrated vacuum tube amplier, which is designed for both people
starting out in their audio adventure, but also for those experienced with the β€œvacuum tube sound” before.
Silver Luna Prestige is equpped with additional 6n2p EW Voskhod tubes set and tetrode / pentode mode switch.
INTRODUCTION
SAFETY TIPS
3
2
In order to obtain the highest possible sound reproduction quality and for the sake of your own safety,
please kindly refer to the following.
Please kindly check if the packaging of the amplier has not been damaged during transit. If you nd any damages, please
immediately contact your dealer. Remove the amplier and accessories from the packaging. Make sure that the content is not
damaged.
Do not connect the device to the power supply if it has visible signs of damage.
INSTALLATION
U N PA C K I N G
4
The package should contain:
β€’ Fezz Audio Silver Luna Prestige vacuum tube amplier
β€’ vacuum tube of type EL34 - 4 pcs.
β€’ vacuum tube of type 12AX7 - 2 pcs.
β€’ vacuum tube of type 6N2P – 2 pcs.
β€’ power cord
β€’ user’s manual
β€’ cotton gloves
β€’ optional: remote control, vacuum tube protective cage
If any of the above items are missing in your package, contact your dealer immediately.
P A CK AG E C O NT E NT
