Seite 1/8
W W W .F E ZZA U DI O .C OM
U SER `S M AN U A L

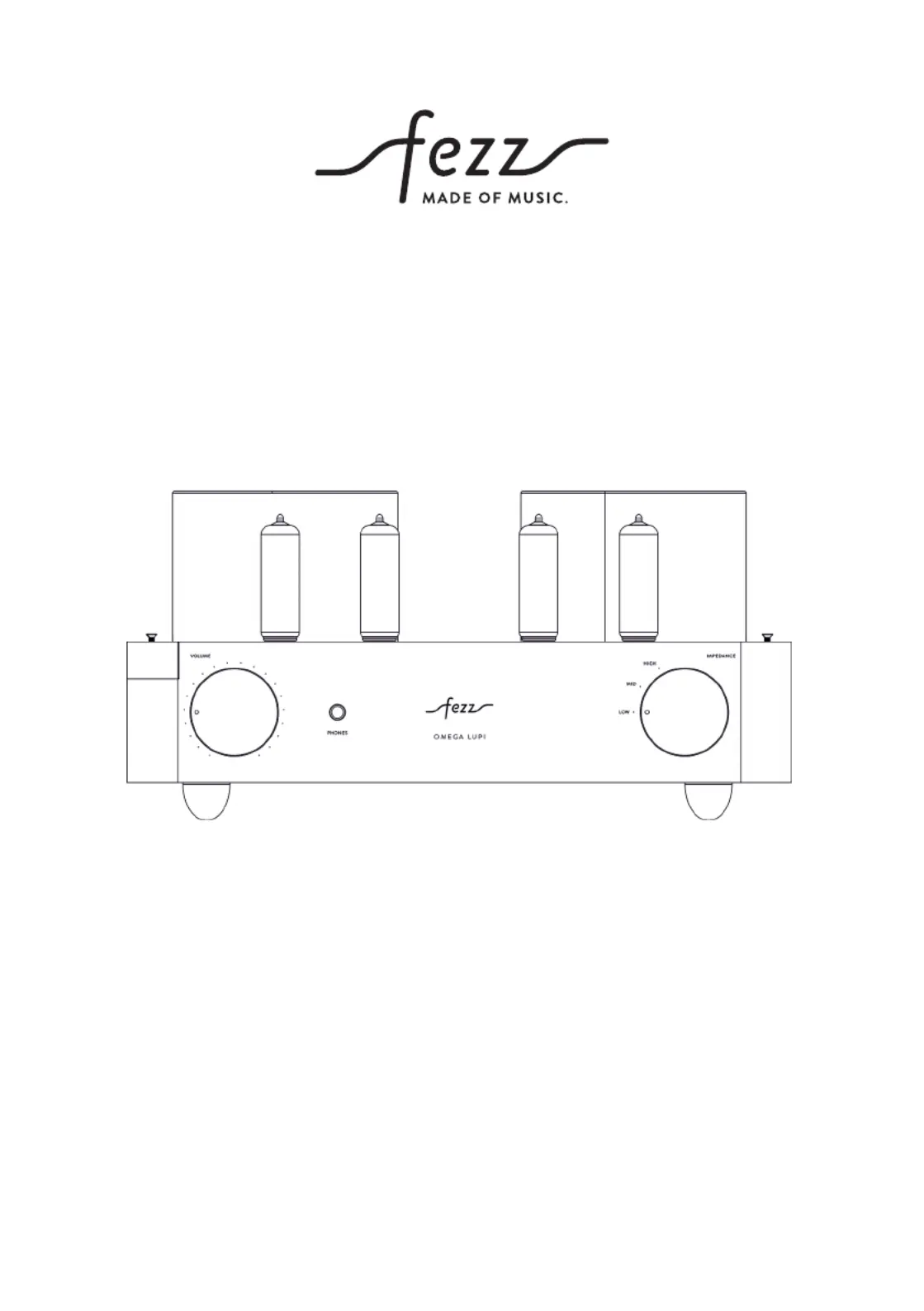

OM E GA LU PI
2
ξ˜•
ξ˜”
ξ˜“
ξ˜’ξ˜š
ξ˜‘



ξ˜ξ˜Œξ˜‹ξ˜Šξ˜‰ξ˜ˆξ˜‹ξ˜‡ξ˜†ξ˜šξ˜…ξ˜‡ξ˜„ξ˜‡ξ˜š
–
2
ξ˜ƒξ˜‡ξ˜‚ξ˜Œξ˜„ξ˜ξ˜šξ˜„ξ˜ˆξ™Ώξšξ˜š
–
3
ξ˜–ξ˜‰ξ˜„ξšξšξ˜…ξšξ˜‹ξ˜„ξ˜ˆξšξ˜‰ξ˜š
–
3
ξ˜–ξ˜‰ξšξ˜„ξ˜‡ξ˜†ξ˜†ξ˜‡ξ˜„ξ˜ˆξšξ˜‰ξ˜šξšξ˜‚ξ˜šξ˜„ξ˜Šξ˜Œξ˜šξ˜…ξ˜Œξšξ˜ˆξ˜‹ξ˜Œξ˜š
–
3
Unpacking
–
3
Content of package
–
3
Vacuum tubes installation
–
4
Where to place the amplier
–
4
Description of the elements
–
4
ξ˜–ξ˜‰ξ˜„ξ˜Œξšξ˜‹ξšξ˜‰ξ˜‰ξ˜Œξ˜‹ξ˜„ξ˜ˆξšξ˜‰ξšξ˜š
–
5
Speaker connections
–
5
Source connections
–
5
Power cord connections
–
5
ξš ξ˜ˆξšξšξ˜„ξ˜šξ™Ώξšξš­ξ˜Œξšξš€ξšξ™Ώξ˜šξ˜‡ξ˜‰ξ˜…ξ˜šξš‚ξ˜Œξ˜„ξ˜„ξ˜ˆξ˜‰ξš‚ξ˜šξšξ˜„ξ˜‡ξšƒξ˜„ξ˜Œξ˜…ξ˜š
–
6
Buring-in process
–
6
Vacuum tubes replacement
–
6
ξ˜Ÿξ™Ώξ˜„ξ˜ˆξšξ˜‰ξ˜‡ξ˜†ξ˜šξ˜Œξš„ξšξ˜ˆξ™Ώξš…ξ˜Œξ˜‰ξ˜„ξ˜š
–
6
Protective tube cage
–
6
Remote control
–
7
Premium tubes set
–
7
ξ˜ξšξšξšξš†ξ˜†ξ˜Œξš€ξšξ˜Šξšξšξ˜„ξ˜ˆξ˜‰ξš‚ξ˜šξš‚ξšξ˜ˆξ˜…ξ˜Œ
–
7
ξ˜ξ˜ξš‡ξšˆξš‰ξ˜–ξš‡ξ˜›ξ˜™ξ˜šξšŠξ˜›ξ˜ξ˜›
TA B L E OF C O N T E N TS
Type: stereo vacuum tube headphone amplier
Model: Omega Lupi Evolution
Max output power: 2x250mW
Circuit type: Push-pull AB1 Class
Output impedance: 32-600Ξ©
Inputs: 1xRCA , Output: 1x RCA
Harmonic distortions THD: <0,3%
Frequency response 20Hz-120kHz(-3dB)
Power consumption: 90W
Main AC fuse: 3,15T, 120V - 8A T
Net weight: 15,2 kg
Dimensions (with tubes): 355x380x175mm
Tubes : PCL86, automatic bias
ξ˜•
3
- Never turn on the amplifeir without installed tubes and without hooked-up hedphones
- Never place the Fezz Audio Omega Lupi amplier near heat sources, such as radiators, heaters or direct sunlight. Ensure
adequate ventilation and airow
- We also warn against exposure of the amplier to conditions such as very low temperatures and/or high humidity.
- During normal operation, the vacuum tubes radiate signicant amounts of heat - there is a risk of burns.
- The amplier should be plugged directly into a wall socket. If you must use an extension cord, please make sure that it
has load parameters sucient to ensure proper handling of current delivery to the device.
- When cleaning, always disconnect the Titania amplier from the power source. Use a dry, soft cloth. Do not use water or
cleaning agents.
- If your amplier starts to misbehave or to work incorrectly, if it’s temperature gets too high or you start feeling smoke -
immediately disconnect the device from the mains.
- Due to the risk of exposure to high voltages – please do not open the lid of the amplier.
ATTENTION: This warning remains in force also in a situation where the device is already disconnected from the wall outlet.
- Always replace fuses in accordance with the original, intended specication.
- Do not make repairs on your own, or adjustments beyond those as described in this manual. Execution of any
unauthorized repairs or modications of the device result in a loss of warranty.
New version of Omega Lupi tube headphone amplier. In standard equipped with anti-vibration feet, adapted to the weight
of the device. Backlight logo. Omega Lupi can handle even the most demanding of headphones. The natural and artistic
presentation, as oξ˜›ered by the Omega Lupi, leaves no doubts that this is a highest class device. Check what Your headphones
are really capable of. From now on Your amplier will not be a limiting factor.
INTRODUCTION
SAFETY TIPS
3
2
In order to obtain the highest possible sound reproduction quality and for the sake of your own safety,
please kindly refer to the following.
Please kindly check if the packaging of the amplier has not been damaged during transit. If you nd any damages, please
immediately contact your dealer. Remove the amplier and accessories from the packaging. Make sure that the content is not
damaged.
Do not connect the device to the power supply if it has visible signs of damage.
INSTALLATION
U N PA C K I N G
4
The package should contain:
β€’ Fezz Omega Lupi vacuum tube headphone amplier
β€’ vacuum tube of type PCL86 - 4 pcs.
β€’ power cord
β€’ user’s manual
β€’ cotton gloves
β€’ optional: remote control, vacuum tube protective cage
If any of the above items are missing in your package, contact your dealer immediately.
P A CK AG E C O NT E NT
