Manual Pull- Down Projection Screen
Elite Manual Series
USER’S GUIDE
Pre-installation
1. Carefully unpack the screen.
2. Always handle the screen in a leveled position on a clean surface.
INSTALLATION

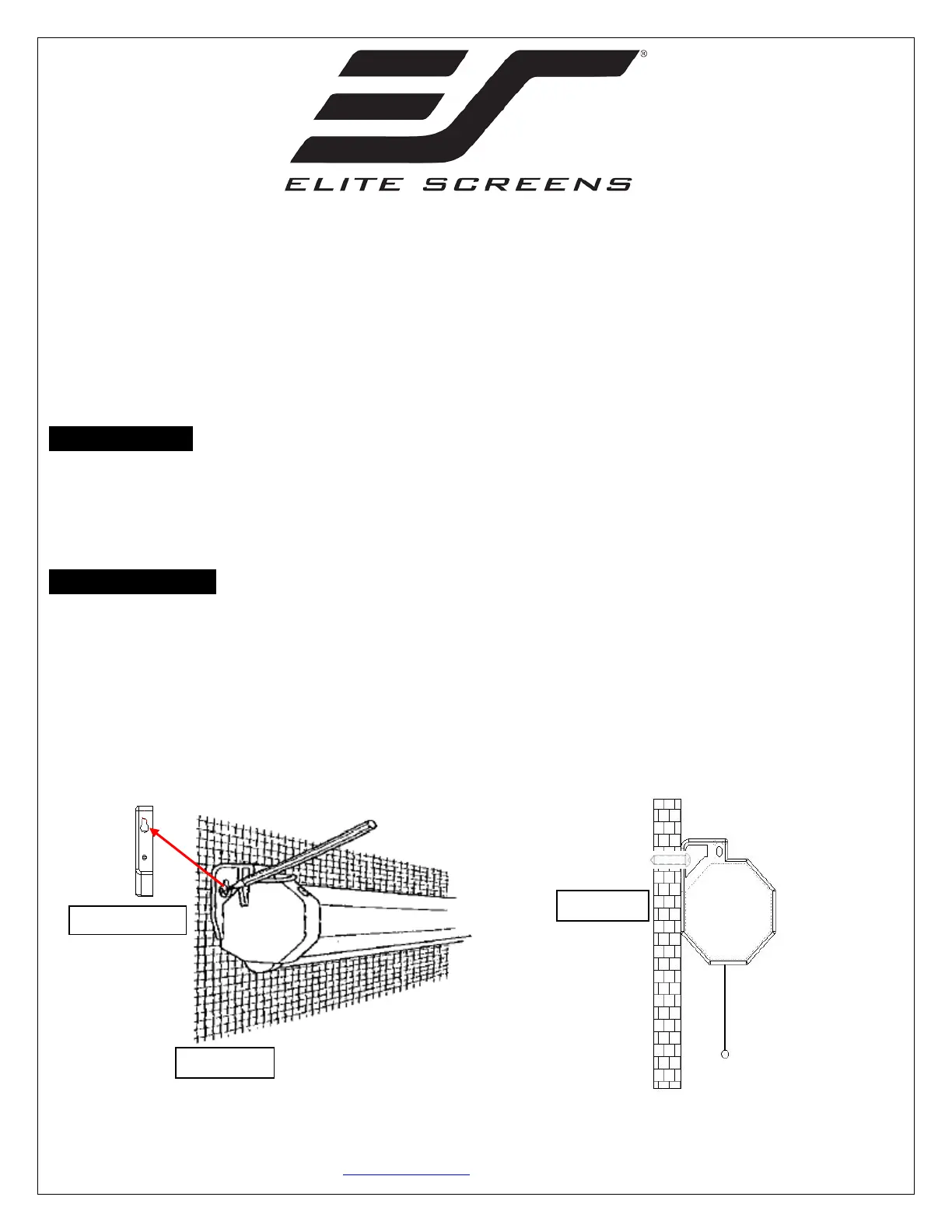

Flush Wall Mounting
1. Measure the distance between the keyholes located on the back of the end cap
2. stalled for the pre- Mark the location of where the screen is to be in drilled hole.
3. the area and drilling the hole, insert the proper After marking screw into the drilled hole and leave
about 1/8” of an inch from the wall to mount the screen.
4. Mount your screen from the keyhole located on back of screen’s left and right end cap.
Back of end cap
Front view
Side view
060817- 2 DR www.elitescreens.com
Flush Ceiling Mounting
1. Measure the distance between the top screw holes located on
the top of the end caps.
2. Mark the location of where the screen is to be installed
for the pre-drilled hole.
3. Drill your hole, use a hollow wall anchor if needed
4. Insert the proper screw into the drilled hole and the secure
screen to the ceiling.
Ceiling Suspended Mounting (additional hardware required)
Optional installation using a chain to hang the screen from the ceiling.
1. You can also hang the screen on a ceiling by using a chain and hang it by the two loops (models 71-120)
located on ea (models 135-170).ch end of the case or by the end cap’s ears
SCREEN OPERATION
Note: Always pull the screen down or let it up in a 90-degree vertical angle. Do not allow the screen to touch
the screen case when the screen goes up or comes down to avoid damaging the screen material.
Note: Chain and U bolt/D ring not included.
060817- 3 DR www.elitescreens.com
1. Pull the screen down from the lanyard or from the handle only in a 90-degree angle. Do not attempt to pull
the screen down by the surface or touch the screen, as it will damage the screen and void the warranty.
Note: An internal auto- en to stop and lock on the position at lock mechanism system will cause the scre
intervals.
2. If you want to the screen to retract back, simply pull the screen down more than 2 inches and retract the
screen back by quickly and smoothly releasing it up gently.
Note: Always release at a 90-degree angle and do not let go until the screen is entirely inside the case
If ever the screen feels stuck, keep in mind that the screen’s mechanism is new and needs to be run
up/down a few times to loosen up. If this happens, carefully with a little force yank the screen straight
down to unlock the screen.
Note: Improperly bringing the screen up/down will damage the screen material or rolling system.
RETRACTION TIP: If you are not able to pull the screen down two inches when attempting to retract it, give
the screen a quick yank downwards with a little bit of force. Please be sure to not stand directly under the
housing of the unit when yanking down on the screen.
MAINTENANCE
Clean matte white screen material with a soft cloth and mild soap with water.
When not in use, retract screen in its housing to keep the screen material surface clean.
N : OTE
Regardless of mounting method, the screen should be securely supported so that vibration or even abusive
pulling on the viewing surface will not cause the case to work loose or fall. The installer must insure that the
fasteners used are of adequate strength and suitable for the mounting surface chosen.
