Rev121517BR www.elitescreens.com 1
ezCinema Series
Portable Floor Pull Up Screen-
USER’S GUIDE

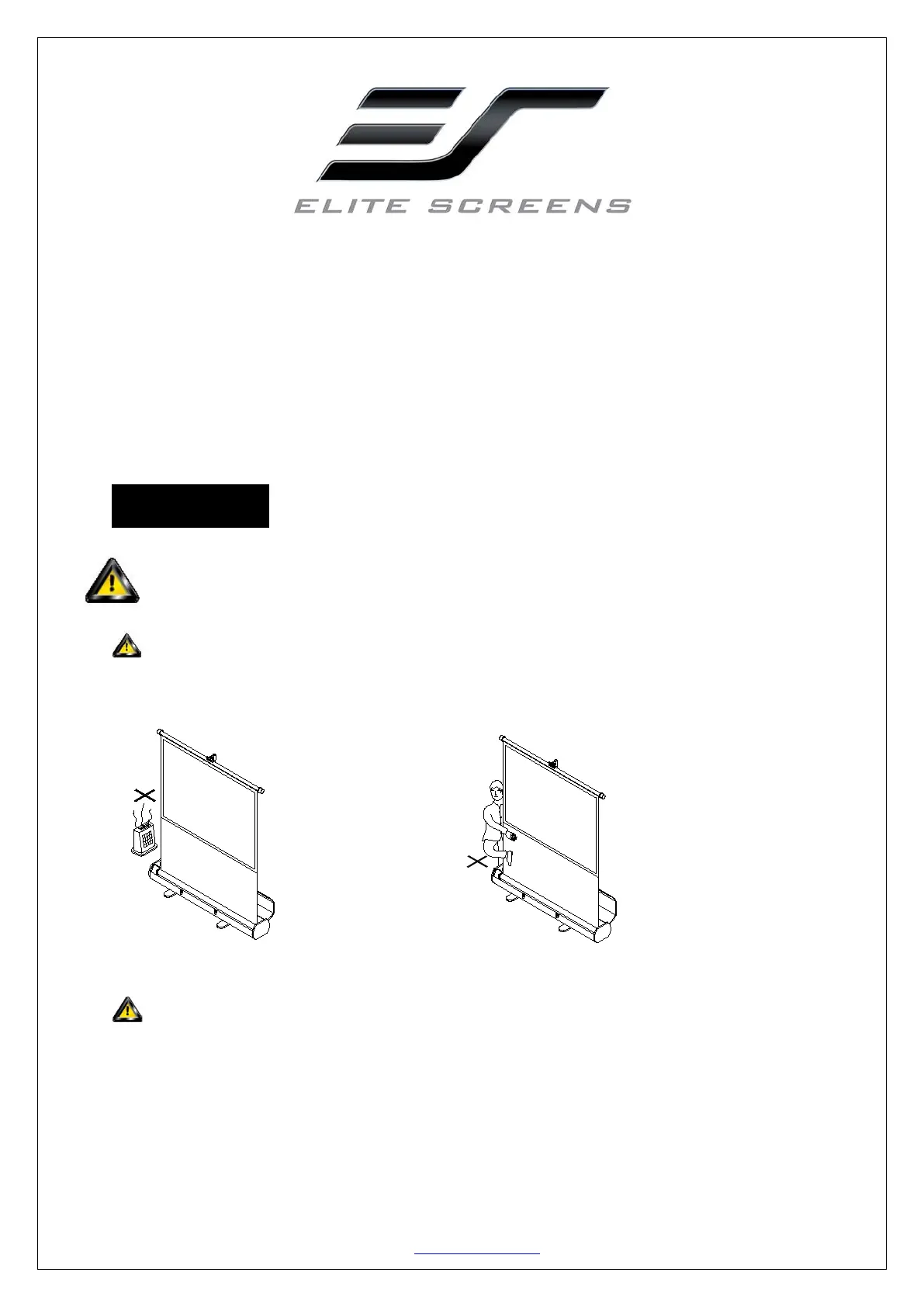

Precautions:
Warning! Screen damage can result from product mishandling if the following
precautions are not followed.
In accordance with practicing home fire safety and to avoid screen damage, do not place the
screen near or beside a fireplace or high temperature appliances such as a gas stove, BBQ or
heater. (Fig. 1)
Fig.1 Fig.2
Place the screen beyond the reach of children. (Fig.2)
Rev121517BR www.elitescreens.com 2
PARTS IDENTIFICATION:
For models 100”, 120”, 135” and 150”
Refer to the table below for information regarding quantity of the base feet and cup
Diagonal Size
QTY (Base foot)
QTY (Short Foot Cup)
QTY (Long Foot Cup)
100" 1 pcs 2 pcs 2 pcs
120" 1 pcs 2 pcs 2 pcs
135" 3 pcs 6 pcs 0 pcs
150" 2 pcs 4 pcs 0 pcs
Attention:
- Please install the two telescoping support rods simultaneously when pulling up and retracting
the screen material.
- Do not use the screen in a very strong windy environment
- not use on uneven surfaces Do
New Functions and features of F100 and above models:
1. foot allows screen to be adjusted up to 1 inch to level the screen to the ground Base
2. 40” bottom black border of F120 and above models for better viewing for people in the back
Lock
Back
Note: Second telescoping
rod available on 150”
models only.
Box Cover
Big support rod
Locking sleeve
Small support rod
Bracket Hook
Upper scroll bar
Pull hook
Adjustable
up to 1"
Base foot
(available on
models 100" above only)
Adjustment screw for leveling
Front
Black Masking
Border Edge
Long Foot Cup
Box
Bottom Black Masking
White projection surface
S hort Foot Cup
Rev121517BR www.elitescreens.com 3
Setting up the screen
Installation:
The ezCinema screen is designed to be used as an easy to operate portable screen for a variety of
presentation environments. Its design enables it to be versatile for use in either classroom,
conference room, home or patio presentations. When packed, the unit carries with ease and opens up
for projection presentations within seconds. As a general rule, portable projector screens should be
installed in an area free from wind and heat or open flame sources such as a heater, BBQ grill or
fireworks display.
Extend the base feet:
For sizes below 100”
Locate the base feet on the bottom of the box cover at each end and rotate the base foot until it forms
a right angle between the footboard and the cover box.
For sizes 100” – 150”
All models including 100” utilize the short and long feet cups. Locate each screw hole on the bottom
of the case of the screen and screw in a short foot cup on the base feet and the long foot cup on the
ends. Short cups included only in the 135” and 150” models.
Open the box cover:
Unlatch the buckles on both ends of the box and open the box cover. Next, secure the box with one
hand while removing the telescopic support rod with your other hand.
Long foot cup
Short cup
