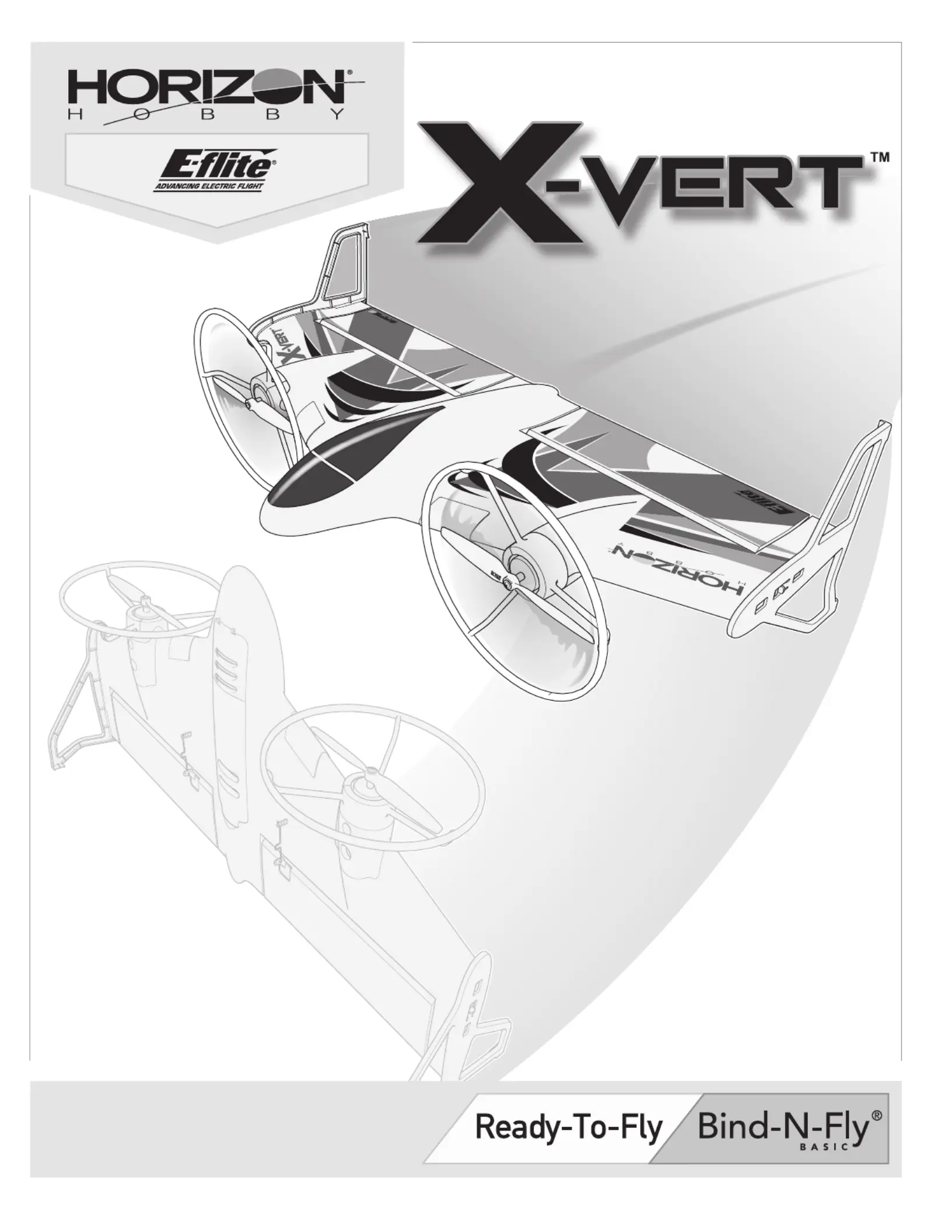

Seite 1/24
Instruction Manual
Bedienungsanleitung
Manuel d’utilisation
Manuale di Istruzioni
EN
2
As the user of this product, you are solely responsible for operating in a manner
that does not endanger yourself and others or result in damage to the product or
the property of others.
• Always keep a safe distance in all directions around your model to avoid
collisions or injury. This model is controlled by a radio signal subject to
interference from many sources outside your control. Interference can cause
momentary loss of control.
• Always operate your model in open spaces away from full-size vehicles, traffi c
and people.
• Always carefully follow the directions and warnings for this and any optional
support equipment (chargers, rechargeable battery packs, etc.).
• Always keep all chemicals, small parts and anything electrical out of the reach
of children.
• Always avoid water exposure to all equipment not specifi cally designed and
protected for this purpose. Moisture causes damage to electronics.
• Never place any portion of the model in your mouth as it could cause serious
injury or even death.
• Never operate your model with low transmitter batteries.
• Always keep aircraft in sight and under control.
• Always use fully charged batteries.
• Always keep transmitter powered on while aircraft is powered.
• Always remove batteries before disassembly.
• Always keep moving parts clean.
• Always keep parts dry.
• Always let parts cool after use before touching.
• Always remove batteries after use.
• Always ensure failsafe is properly set before fl ying.
• Never operate aircraft with damaged wiring.
• Never touch moving parts.
NOTICE
All instructions, warranties and other collateral documents are subject to change at the sole discretion of Horizon Hobby, LLC. For up-to-date product literature,
visit www.horizonhobby.com and click on the support tab for this product.
Meaning of Special Language:
The following terms are used throughout the product literature to indicate various levels of potential harm when operating this product:
NOTICE: Procedures, which if not properly followed, create a possibility of physical property damage AND little or no possibility of injury.
CAUTION: Procedures, which if not properly followed, create the probability of physical property damage AND a possibility of serious injury.
WARNING: Procedures, which if not properly followed, create the probability of property damage, collateral damage, and serious injury OR create a high
probability of superfi cial injury.
WARNING: Read the ENTIRE instruction manual to become familiar with the features of the product before operating. Failure to operate the product correctly
can result in damage to the product, personal property and cause serious injury.
This is a sophisticated hobby product. It must be operated with caution and common sense and requires some basic mechanical ability. Failure to operate this
Product in a safe and responsible manner could result in injury or damage to the product or other property. This product is not intended for use by children without
direct adult supervision. Do not use with incompatible components or alter this product in any way outside of the instructions provided by Horizon Hobby, LLC.
This manual contains instructions for safety, operation and maintenance. It is essential to read and follow all the instructions and warnings in the manual, prior to
assembly, setup or use, in order to operate correctly and avoid damage or serious injury.
Safety Precautions and Warnings
14+AGE RECOMMENDATION:
Not for children under 14 years. This is not a toy.
EN
3
To receive product updates, special offers and more,
register your product at www.e-fl iterc.com
Multirotor mode should only be used in light to no wind conditions. Hand launching
in stability or acro mode is recommended in moderate to windy conditions.
* See the Flight Modes section for information concerning the availability of Acro
mode in the RTF version of the X-VERT.
Box Contents
Quick Start Information
Transmitter Setup
Set up your transmitter
using the transmitter setup table
Center of Gravity (CG)
126-136mm
(measured forward from the trailing edge of the wing)
Flight Timer Setting
4 minutes with the 450mAh fl ight battery
8 minutes with the 800mAh fl ight battery Table of Contents
6.4-7.0 oz
(182-200 g)
10.4 in (264mm)
19.85 in (504mm)
Specifi cations
Motors:
(2) 280 Brushless Outrunner 2600Kv
(EFLM1809)
Installed Installed
Servos:
(2) 4 g Servos (SPMSA220) Installed Installed
Receiver/ESC:
RX/ESC/Flight Controller (EFLAS1810) Installed Installed
Battery:
2S 7.4V 450-800mAh LiPo Included Required
Battery Charger:
2-cell Li-Po battery balancing charger
and power supply
(EFLUC1009 and EFLC4002 included with RTF only)
Included Required
Transmitter:
Full-Range 6 channel 2.4GHz with Spektrum™
DSMX® technology
(SPMR1000, Spektrum DXe included with RTF only)
Included Required
Included with the RTF only
Flight Mode (switch pos) SAFE®AS3X®
Multirotor (0) Yes No
Stability (1) Yes No
Acro (2*) No Yes
Prefl ight .............................................................................................................. 4
Charging Warnings.............................................................................................. 4
Battery Charging ................................................................................................. 4
Installing the DXe Transmitter Batteries (RTF) ...................................................... 5
DXe Transmitter Control (RTF) ............................................................................. 5
BNF Transmitter Setup ....................................................................................... 6
Model Assembly ................................................................................................. 6
Transmitter and Receiver Binding ........................................................................ 7
Battery Installation and ESC Arming .................................................................... 7
Center of Gravity (CG) ........................................................................................ 8
Control Horn and Servo Arm Settings .................................................................. 8
Control Centering ............................................................................................... 8
Flight Control Direction Tests ............................................................................... 8
Flight Modes ....................................................................................................... 9
Understanding the Primary Flight Controls ........................................................ 10
Flying Your Aircraft ............................................................................................ 12
In Flight Trimming ............................................................................................. 13
Post Flight......................................................................................................... 13
Motor Service ................................................................................................... 13
FPV System Installation (Optional) ..................................................................... 14
Troubleshooting Guide ...................................................................................... 16
AMA National Model Aircraft Safety Code .......................................................... 17
Limited Warranty .............................................................................................. 18
Contact Information .......................................................................................... 19
FCC Information ............................................................................................... 19
IC Information ................................................................................................... 19
Compliance Information for the European Union ................................................ 19
Decal Placement Options / Aufkleber Optionen /
Options de décalcomanie / Opzioni di decalcomanie ......................................... 72
Exploded View / Explosionszeichnung / Vue Éclatée / Vista Esplosa ................... 74
Replacement Parts / Ersatzteile / Pièces de rechange / Pezzi di ricambio .......... 75
Optional Parts / Optionale Bauteile / Pièces optionnelles / Pezzi opzionali .......... 75
