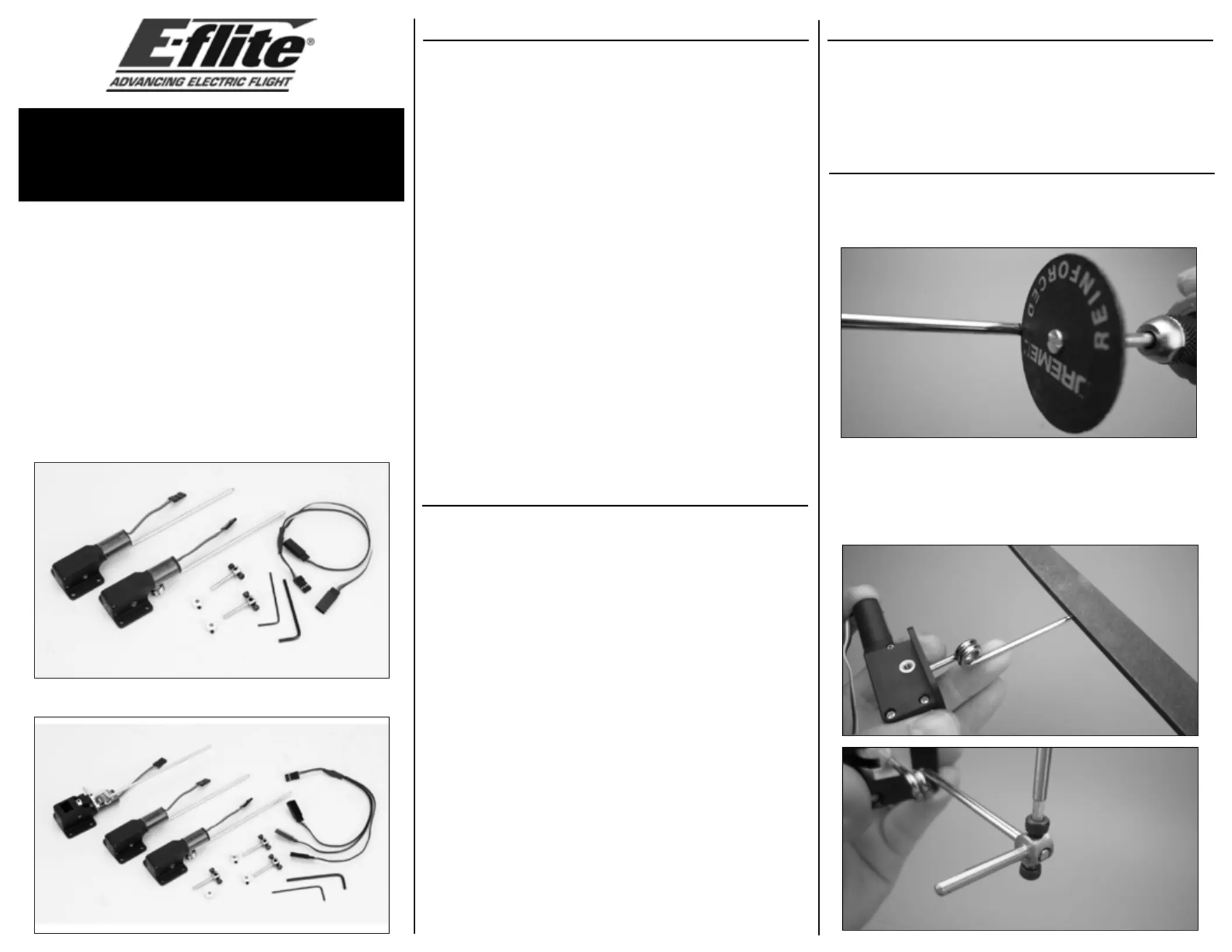

10- to 15-Size
Electric Retract
Instructions
Thank you for purchasing the E-ite® 10- to 15-Size
Electric Retracts. These self-contained units are
powered from your model’s receiver and do not require
separate servos.
The retracts are supplied with coil struts installed, plus
adjustable axles, wheel collars, Allen wrenches and a
3-into-1 wire harness (for the tricycle set) or 2-into-1
wire harness (for main gear set). The nose gear unit is
steerable and has a slot in the sliding steering arm to
prevent binding of the steering cable when retracted.
Specications
Current draw
Idle 5mA
Operating 150mA (maximum)
Pulse width trigger points
Down 1.331ms
Up 1.690ms
Operation with FM and DSM
FM 22ms frame rate, 5V signal
DSM 20ms frame rate, 3.3V signal
Sequence time
@ 4.8V 1.25sec
@ 6.0V 1sec
@7.4V 0.8sec
Operating voltage range 4.8 – 7.4V
Aircraft weight: 2.0 - 4.5 lb (0.9 – 2.0 kg)
Unit weight: Nose gear 1.6 oz (45 g)
Main gear 1.3 oz (37 g) each
Parts Available
EFLG101 10 - 15 Main Electric Retract Unit
EFLG102 10 - 15 Left Main Wire Strut
EFLG103 10 - 15 Right Main Wire Strut
EFLG104 10 - 15 Adjustable Axles
EFLRYH9 10 - 15 Dual Plug Y-harness
EFLG111 10 - 15 Nose Electric Retract Unit
EFLG112 10 - 15 Nose Gear Wire Strut
EFLG113 10 - 15 Nose Gear Steering Arm
EFLRYH9TR 10 - 15 Triple Plug Y-harness
Tools Required
Pencil Screwdriver
1.5mm hex wrench 2.5mm hex wrench
Flat le Threadlock
Rotary tool with cutoff wheel
Installation
1. Test t the retract unit in the wing or fuselage to
determine the strut length and axle location. Cut the
strut to length using a cutoff wheel in a rotary tool.
2. Make two at spots on the end of the strut with a le
and use a 2.5mm hex wrench to secure the axle to the
strut. Apply threadlock to the threads of the retaining
screws so they do not loosen from vibration.
EFLG100
EFLG110
3. Install the wheels on the axles. Slide the brass wheel
collar onto the axle and secure it using a 1.5mm hex
wrench. Apply threadlock to the setscrew to prevent it
loosening due to vibration.
4. Mark the retract mounting hole locations on the rails
using a pencil and drill appropriately sized holes for the
hardware you intend to use.
Radio Connections and Operation
1. Plug the connector from each of the retract units into
the 3-into-1 wire harness supplied with the retracts.
2. Plug the single lead from the wire harness into the
gear channel of your receiver. An auxiliary channel can
be used if the gear channel is occupied.
3. Before operating the retracts in the model for the rst
time check that there are no obstructions in the wheel
wells that could impede operation of the gear.
4. Turn on your transmitter and receiver. Use the gear
or other assigned switch to activate the landing gear
and check that it operates correctly.
5. If the switch direction is opposite of that desired, use
the reversing function in the transmitter to change the
retraction direction.
6. If using a 2.4GHz radio, once you have set the
correct servo direction be sure to rebind the system
before ight.
5. Install the retracts in the model using the screws
provided with the kit or those of your own choice. A #4 x
1/2-inch wood screw works well. You will nd the main units
require the use of a 100 degree countersunk woodscrew
while the nose unit requires a button head woodscrew.
Nosegear Steering
Connect the steering pushrod to the steering arm on the
nosegear.
Warranty Information
Warranty Period
Exclusive Warranty- Horizon Hobby, Inc., (Horizon)
warranties that the Products purchased (the “Product”)
will be free from defects in materials and workmanship
for a period of 1 year from the date of purchase by the
Purchaser.
Limited Warranty
(a) This warranty is limited to the original Purchaser
(“Purchaser”) and is not transferable. REPAIR OR
REPLACEMENT AS PROVIDED UNDER THIS
WARRANTY IS THE EXCLUSIVE REMEDY OF
THE PURCHASER. This warranty covers only those
Products purchased from an authorized Horizon
dealer. Third party transactions are not covered by this
warranty. Proof of purchase is required for warranty
claims. Further, Horizon reserves the right to change
or modify this warranty without notice and disclaims all
other warranties, express or implied.
(b) Limitations- HORIZON MAKES NO WARRANTY
OR REPRESENTATION, EXPRESS OR IMPLIED,
ABOUT NON-INFRINGEMENT, MERCHANTABILITY
OR FITNESS FOR A PARTICULAR PURPOSE OF THE
PRODUCT. THE PURCHASER ACKNOWLEDGES
THAT THEY ALONE HAVE DETERMINED THAT
THE PRODUCT WILL SUITABLY MEET THE
REQUIREMENTS OF THE PURCHASER’S INTENDED
USE.
(c) Purchaser Remedy- Horizon’s sole obligation
hereunder shall be that Horizon will, at its option, (i)
repair or (ii) replace, any Product determined by Horizon
to be defective. In the event of a defect, these are the
Purchaser’s exclusive remedies. Horizon reserves the
right to inspect any and all equipment involved in a
warranty claim. Repair or replacement decisions are at
the sole discretion of Horizon. This warranty does not
cover cosmetic damage or damage due to acts of God,
accident, misuse, abuse, negligence, commercial use, or
modication of or to any part of the Product. This warranty
does not cover damage due to improper installation,
operation, maintenance, or attempted repair by anyone
other than Horizon. Return of any goods by Purchaser
must be approved in writing by Horizon before shipment.
Damage Limits:
HORIZON SHALL NOT BE LIABLE FOR SPECIAL,
INDIRECT OR CONSEQUENTIAL DAMAGES, LOSS
OF PROFITS OR PRODUCTION OR COMMERCIAL
LOSS IN ANY WAY CONNECTED WITH THE
PRODUCT, WHETHER SUCH CLAIM IS BASED IN
CONTRACT, WARRANTY, NEGLIGENCE, OR STRICT
LIABILITY. Further, in no event shall the liability of
Horizon exceed the individual price of the Product on
which liability is asserted. As Horizon has no control
over use, setup, nal assembly, modication or misuse,
no liability shall be assumed nor accepted for any
resulting damage or injury. By the act of use, setup or
assembly, the user accepts all resulting liability.
If you as the Purchaser or user are not prepared
to accept the liability associated with the use of
this Product, you are advised to return this Product
immediately in new and unused condition to the place
of purchase.
Law: These Terms are governed by Illinois law (without
regard to conict of law principals).
Safety Precautions:
This is a sophisticated hobby Product and not a toy.
It must be operated with caution and common sense
and requires some basic mechanical ability. Failure to
operate this Product in a safe and responsible manner
could result in injury or damage to the Product or
other property. This Product is not intended for use by
children without direct adult supervision. The Product
manual contains instructions for safety, operation
and maintenance. It is essential to read and follow all
the instructions and warnings in the manual, prior to
assembly, setup or use, in order to operate correctly
and avoid damage or injury.
Questions, Assistance, and Repairs:
Your local hobby store and/or place of purchase
cannot provide warranty support or repair. Once
assembly, setup or use of the Product has been started,
you must contact Horizon directly. This will enable
Horizon to better answer your questions and service
you in the event that you may need any assistance.
For questions or assistance, please direct your
email to productsupport@horizonhobby.com, or call
877.504.0233 toll free to speak to a service technician.
Inspection or Repairs
If this Product needs to be inspected or repaired, please
call for a Return Merchandise Authorization (RMA).
Pack the Product securely using a shipping carton.
Please note that original boxes may be included, but
are not designed to withstand the rigors of shipping
without additional protection. Ship via a carrier that
provides tracking and insurance for lost or damaged
parcels, as Horizon is not responsible for merchandise
until it arrives and is accepted at our facility. A Service
Repair Request is available at www.horizonhobby.com
on the “Support” tab. If you do not have internet access,
please include a letter with your complete name, street
address, email address and phone number where
you can be reached during business days, your RMA
number, a list of the included items, method of payment
for any non-warranty expenses and a brief summary of
the problem. Your original sales receipt must also be
included for warranty consideration. Be sure your name,
address, and RMA number are clearly written on the
outside of the shipping carton.
Warranty Inspection and Repairs
To receive warranty service, you must include your
original sales receipt verifying the proof-of-purchase
date. Provided warranty conditions have been met,
your Product will be repaired or replaced free of
charge. Repair or replacement decisions are at the sole
discretion of Horizon Hobby.
Non-Warranty Repairs
Should your repair not be covered by warranty the
repair will be completed and payment will be required
without notication or estimate of the expense unless
the expense exceeds 50% of the retail purchase cost.
By submitting the item for repair you are agreeing to
payment of the repair without notication. Repair
estimates are available upon request. You must
include this request with your repair. Non-warranty
repair estimates will be billed a minimum of ½ hour of
labor. In addition you will be billed for return freight.
Please advise us of your preferred method of payment.
Horizon accepts money orders and cashiers checks,
as well as Visa, MasterCard, American Express, and
Discover cards. If you choose to pay by credit card,
please include your credit card number and expiration
date. Any repair left unpaid or unclaimed after 90 days
will be considered abandoned and will be disposed of
accordingly. Please note: non-warranty repair is only
available on electronics and model engines.

Produktspezifikationen

Marke: E-flite
Kategorie: Funkgesteuertes Spielzeug
Modell: EFLG100

Brauchst du Hilfe?

Wenn Sie Hilfe mit E-flite EFLG100 benötigen, stellen Sie unten eine Frage und andere Benutzer werden Ihnen antworten


Bedienungsanleitung Funkgesteuertes Spielzeug E-flite

E-flite

E-flite Beechcraft D18 1.5m Bedienungsanleitung

3 September 2024
E-flite

E-flite Opterra 2M Wing PNP Bedienungsanleitung

21 August 2024
E-flite

E-flite EC-1500 Twin Bedienungsanleitung

21 August 2024
E-flite

E-flite EFLG100 Bedienungsanleitung

21 August 2024
E-flite

E-flite UMX Radian BNF Bedienungsanleitung

21 August 2024
E-flite

E-flite UMX F4U Corsair Bedienungsanleitung

21 August 2024
E-flite

E-flite T-28 1.2m BNF Basic Bedienungsanleitung

21 August 2024
E-flite

E-flite UMX Habu 180 DF BNF Bedienungsanleitung

21 August 2024
E-flite

E-flite UMX Spacewalker Bedienungsanleitung

21 August 2024
E-flite

E-flite EFLU2600IC Bedienungsanleitung

21 August 2024

Bedienungsanleitung Funkgesteuertes Spielzeug

Neueste Bedienungsanleitung für -Kategorien-

Proline

Proline Trencher Bedienungsanleitung

4 Oktober 2024
Futaba

Futaba 12Z Bedienungsanleitung

4 Oktober 2024
Graupner

Graupner 33718.XT60 Bedienungsanleitung

3 Oktober 2024
Amewi

Amewi Hyper Go Bedienungsanleitung

1 Oktober 2024
Carson

Carson Drift Burner Bedienungsanleitung

1 Oktober 2024
Carson

Carson Micro X-Warrior 2.0 Bedienungsanleitung

1 Oktober 2024
Biltema

Biltema 45-8119 Bedienungsanleitung

1 Oktober 2024
Traxxas

Traxxas Stampede Bedienungsanleitung

29 September 2024
Hobbywing

Hobbywing XeRun XR10 Pro WP Bedienungsanleitung

25 September 2024
Hobbywing

Hobbywing XeRun XR10 Stock Spec G2 Bedienungsanleitung

25 September 2024
