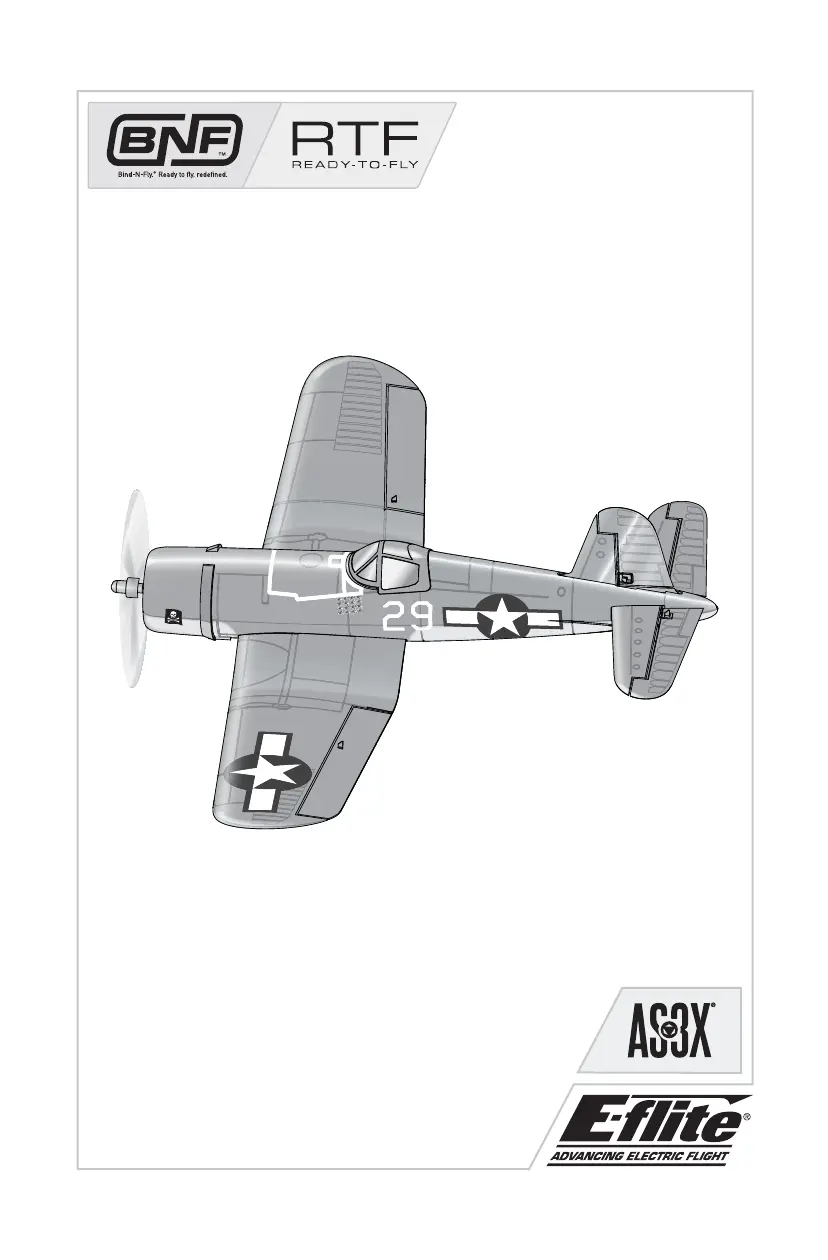

Seite 1/22
Instruction Manual
Bedienungsanleitung
Manuel d’utilisation
Manuale di Istruzioni
UMX™ F4U Corsair
LT.JG. KEPFORD
LT.JG. KEPFORD
2
EN
WARNING: Read the ENTIRE instruction manual to become familiar with the features of the
product before operating. Failure to operate the product correctly can result in damage to the product,
personal property and cause serious injury.
This is a sophisticated hobby product. It must be operated with caution and common sense and requires
some basic mechanical ability. Failure to operate this product in a safe and responsible manner could
result in injury or damage to the product or other property. This product is not intended for use by
children without direct adult supervision. Do not use with incompatible components or alter this product
in any way outside of the instructions provided by Horizon Hobby, LLC. This manual contains instructions
for safety, operation and maintenance. It is essential to read and follow all the instructions and warnings
in the manual, prior to assembly, setup or use, in order to operate correctly and avoid damage or
serious injury.
Safety Precautions and Warnings
• Always keep a safe distance in all directions
around your model to avoid collisions or injury.
This model is controlled by a radio signal subject
to interference from many sources outside your
control. Interference can cause momentary loss
of control.
• Always operate your model in open spaces away
from full-size vehicles, traffi c and people.
• Always carefully follow the directions and
warnings for this and any optional support equip-
ment (chargers, rechargeable battery packs, etc.).
• Always keep all chemicals, small parts and
anything electrical out of the reach of children.
• Always avoid water exposure to all equipment
not specifi cally designed and protected for this
purpose. Moisture causes damage to electronics.
• Never place any portion of the model in your
mouth as it could cause serious injury or
even death.
• Never operate your model with low transmitter
batteries.
• Always keep aircraft in sight and under control.
• Always use fully charged batteries.
• Always keep the transmitter powered on while
aircraft is powered.
• Always remove batteries before disassembly.
• Always keep moving parts clean.
• Always keep parts dry.
• Always let parts cool after use before touching.
• Always remove batteries after use.
• Always ensure failsafe is properly set
before fl ying.
• Never operate aircraft with damaged wiring.
• Never touch moving parts.
Age Recommendation: Not for children under 14 years. This is not a toy.
NOTICE
All instructions, warranties and other collateral documents are subject to change at the sole discretion
of Horizon Hobby, LLC. For up-to-date product literature, visit www.horizonhobby.com and click on the
support tab for this product.
Meaning of Special Language:
The following terms are used throughout the product literature to indicate various levels of potential
harm when operating this product:
NOTICE: Procedures, which if not properly followed, create a possibility of physical property damage
AND little or no possibility of injury.
CAUTION: Procedures, which if not properly followed, create the probability of physical property
damage AND a possibility of serious injury.
WARNING: Procedures, which if not properly followed, create the probability of property damage,
collateral damage, and serious injury OR create a high probability of superfi cial injury.
3
EN
T
hank you for purchasing the E-fl ite
® UMX™ F4U Corsair, featuring trim schemes from two of the most
prolifi c pilots to fl y the prized Corsair, Gregory “Pappy” Boyington and Ira “Ike” Kepford. Now featuring
AS3X® technology, the Ultra Micro F4U Corsair provides the smooth, locked-in fl ight performance that
makes this bent-wing warbird feel like a much larger model. True to its roots, the ultra micro F4U Corsair
is capable of basic aerobatics yet is suitable for small fl ying areas thanks to its size. Before you take the
fi rst fl ight, please take time to read through this manual. It has important prefl ight information that will help
ensure your fi rst fl ight and every one after is a success.
Please be sure to read through this manual carefully so that you are equipped to successfully enjoy all the
benefi ts this outstanding ultra micro model has to offer.
To register your product online, go to www.e-fl iterc.com
12.8 in (326mm)
15.9 in (405mm)
1.60 oz
(44 g)
Table of Contents
Specifi cations
Installed Installed 8.5mm Brushed Motor
Installed Installed DSM2®/DSMX® AS3X
Receiver/ESC
Installed Installed
(2) Servo
SPMSA2030LO
(Ailerons)
(2) Servo
SPMSA2030L ( On the
Receiver/ESC board)
Included Included 150mAh 3.7V 25C
Li-Po battery
Included Included 1S 3.7V Li-Po Battery
Charger
Included Needed to
Complete
DSM2/DSMX
4-Channel Transmitter
Prefl ight Checklist ..................................................4
AS3X Stabilization Delivers
Breakthrough Performance ....................................4
Charging Warnings.................................................4
Battery Charging ....................................................5
Transmitter Batteries Installation ............................6
Transmitter and Receiver Binding ...........................6
Digital Trims ...........................................................7
Dual Rate Function ................................................7
Transmitter Control ................................................7
Flight Battery Installation and ESC Arming..............8
Center of Gravity (CG) Adjustment .........................8
Control Direction Test .............................................9
Control Centering ................................................10
Control Horn Settings ...........................................10
Dual Rates ...........................................................10
Flying Tips and Repairs ........................................11
Low Voltage Cutoff (LVC) ......................................11
Landing Gear Removal .........................................12
Post Flight Checklist ............................................12
Power Components Service .................................13
Troubleshooting Guide .........................................14
Limited Warranty .................................................15
Warranty and Service Information ........................17
Compliance Information for the European Union ...17
Replacement Parts ...............................................67
Optional Parts and Accessories ............................68
Decal Application .................................................69
