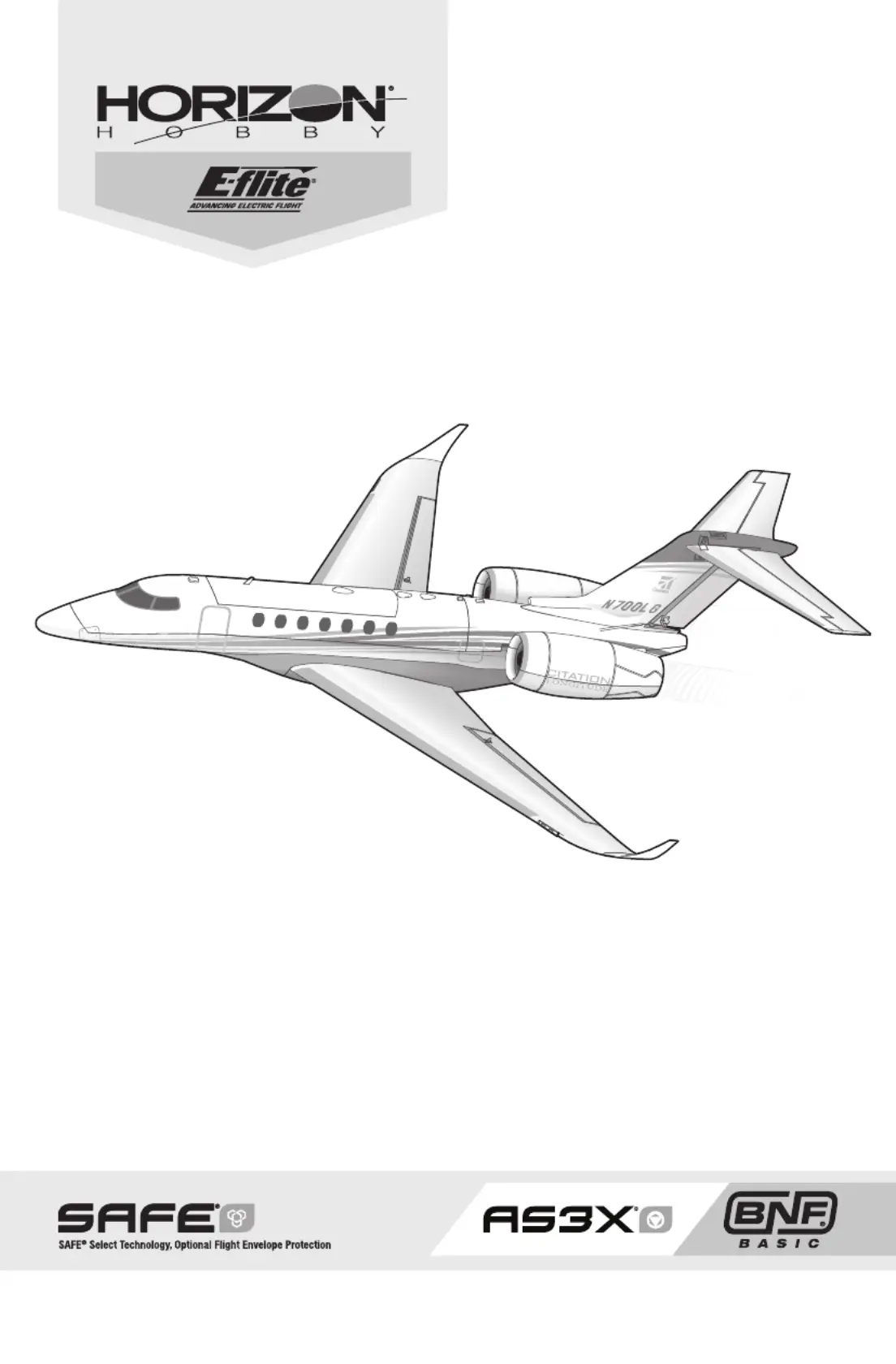

Seite 1/18
Instruction Manual
Bedienungsanleitung
Manuel d’utilisation
Manuale di Istruzioni
UMXâ„¢ Citation Longitude
30mm EDF Twin
2
EN
WARNING: Read the ENTIRE instruction manual to become familiar with the features of the
product before operating. Failure to operate the product correctly can result in damage to the product,
personal property and cause serious injury.
This is a sophisticated hobby product. It must be operated with caution and common sense and requires
some basic mechanical ability. Failure to operate this product in a safe and responsible manner could
result in injury or damage to the product or other property. This product is not intended for use by
children without direct adult supervision. Do not use with incompatible components or alter this product
in any way outside of the instructions provided by Horizon Hobby, LLC. This manual contains instructions
for safety, operation and maintenance. It is essential to read and follow all the instructions and warnings
in the manual, prior to assembly, setup or use, in order to operate correctly and avoid damage or
serious injury.
Safety Precautions and Warnings
• Always keep a safe distance in all directions
around your model to avoid collisions or injury.
This model is controlled by a radio signal subject
to interference from many sources outside your
control. Interference can cause momentary loss
of control.
• Always operate your model in open spaces away
from full-size vehicles, traf c and people.
• Always carefully follow the directions and
warnings for this and any optional support equip-
ment (chargers, rechargeable battery packs, etc.).
• Always keep all chemicals, small parts and
anything electrical out of the reach of children.
• Always avoid water exposure to all equipment
not speci cally designed and protected for this
purpose. Moisture causes damage to electronics.
• Never place any portion of the model in your
mouth as it could cause serious injury or
even death.
• Never operate your model with low transmitter
batteries.
• Always keep aircraft in sight and under control.
• Always use fully charged batteries.
• Always keep the transmitter powered on while
aircraft is powered.
• Always remove batteries before disassembly.
• Always keep moving parts clean.
• Always keep parts dry.
• Always let parts cool after use before touching.
• Always remove batteries after use.
• Always ensure failsafe is properly set
before  ying.
• Never operate aircraft with damaged wiring.
• Never touch moving parts.
Age Recommendation: Not for children under 14 years. This is not a toy.
NOTICE
All instructions, warranties and other collateral documents are subject to change at the sole discretion
of Horizon Hobby, LLC. For up-to-date product literature, visit horizonhobby.com or towerhobbies.com
and click on the support or resources tab for this product.
Meaning of Special Language:
The following terms are used throughout the product literature to indicate various levels of potential
harm when operating this product:
WARNING: Procedures, which if not properly followed, create the probability of property damage,
collateral damage, and serious injury OR create a high probability of super cial injury.
CAUTION: Procedures, which if not properly followed, create the probability of physical property
damage AND a possibility of serious injury.
NOTICE: Procedures, which if not properly followed, create a possibility of physical property damage
AND little or no possibility of injury.
WARNING AGAINST COUNTERFEIT PRODUCTS: If you ever need to replace your Spektrum
receiver found in a Horizon Hobby product, always purchase from Horizon Hobby, LLC or a Horizon
Hobby authorized dealer to ensure authentic high-quality Spektrum product. Horizon Hobby, LLC
disclaims all support and warranty with regards, but not limited to, compatibility and performance of
counterfeit products or products claiming compatibility with DSM or Spektrum technology.
3
EN
24.9 in (632mm)
25.1 in (638mm)
6.6 oz
(188g)
Table of Contents
Speci cations
Pre ight Checklist
Wing Area:
83 sq in
(5.4 sq dm)
1Remove and inspect contents.
2Read the instruction manual thoroughly.
3Charge the  ight battery.
4Program your transmitter.
5Install the fully charged  ight battery in the
aircraft.
6Check the center of gravity (CG).
7Bind the aircraft to your transmitter.
8Make sure all linkages move freely.
9Perform the control direction test.
10 Adjust the  ight controls and transmitter as
needed.
11 Perform a radio system range test.
12 Find a safe open area to  y.
13 Plan  ight for  ying  eld conditions.
Required to Complete
Installed
Motor 8,800Kv Brushless Outrunner
(EFLUM0810)
Fan (2) 30mm EDF Unit (EFLDF30)
(EFLDF30R)
Receiver Spektrum DSMX® 6-Channel
Receiver Dual ESC (SPMAR6430T)
Servo 2.3-Gram Linear Long Throw
Offset Servos (SPMSA2030LO)
Transmitter Spektrum™ DSM2®/DSMX® with
dual-rates (DX4e and up)
Battery 800mAh 3S 11.1 V 30C Li-Po
18AWG JST (EFLB8003SJ30)
Battery Charger S150 AC/DC SMART Charger,
1x50W (SPMXC1070)
Battery Adapter IC3 Battery JST device
(SPMXCA310)
Components
Box Contents
Transmitter Setup ..................................................4
Transmitter and Receiver Binding ...........................4
ESC/Receiver Arming, Battery Installation and
Center of Gravity ....................................................5
SAFE® Select Technology .......................................6
Low Voltage Cutoff (LVC) ........................................6
Control Centering ..................................................7
Control Horn Settings .............................................7
Dual Rates .............................................................7
Control Direction Test .............................................8
AS3X® Control Direction Test ..................................9
Landing Gear Removal .........................................10
Flying Tips and Repairs ........................................11
Post Flight Checklist ............................................11
Power Components Service .................................12
AS3X Troubleshooting Guide ................................13
Troubleshooting Guide .........................................13
Replacement Parts List ........................................14
Recommended Parts List .....................................14
Limited Warranty .................................................15
Warranty and Service Contact Information ...........16
FCC Information ...................................................16
