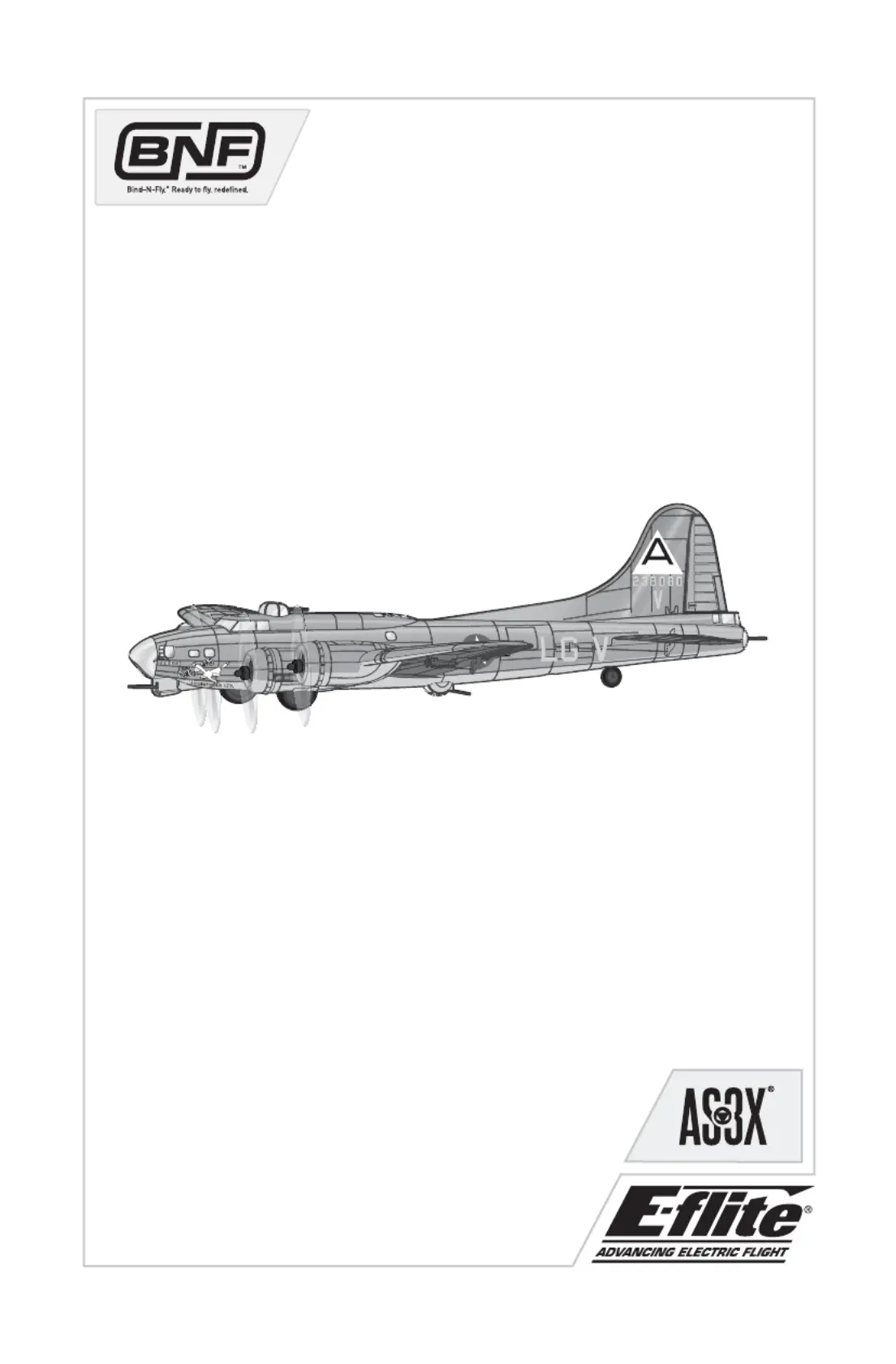

Seite 1/18
Instruction Manual
Bedienungsanleitung
Manuel d’utilisation
Manuale di Istruzioni
Ultra Micro
B-17G Flying Fortress
2
EN
WARNING: Read the ENTIRE instruction manual to become familiar with the features of the
product before operating. Failure to operate the product correctly can result in damage to the product,
personal property and cause serious injury.
This is a sophisticated hobby product. It must be operated with caution and common sense and requires
some basic mechanical ability. Failure to operate this product in a safe and responsible manner could
result in injury or damage to the product or other property. This product is not intended for use by
children without direct adult supervision. Do not use with incompatible components or alter this product
in any way outside of the instructions provided by Horizon Hobby, LLC. This manual contains instructions
for safety, operation and maintenance. It is essential to read and follow all the instructions and warnings
in the manual, prior to assembly, setup or use, in order to operate correctly and avoid damage or
serious injury.
Safety Precautions and Warnings
• Always keep a safe distance in all directions
around your model to avoid collisions or injury.
This model is controlled by a radio signal subject
to interference from many sources outside your
control. Interference can cause momentary loss
of control.
• Always operate your model in open spaces away
from full-size vehicles, traffi c and people.
• Always carefully follow the directions and
warnings for this and any optional support equip-
ment (chargers, rechargeable battery packs, etc.).
• Always keep all chemicals, small parts and
anything electrical out of the reach of children.
• Always avoid water exposure to all equipment
not specifi cally designed and protected for this
purpose. Moisture causes damage to electronics.
• Never place any portion of the model in your
mouth as it could cause serious injury or
even death.
• Never operate your model with low transmitter
batteries.
• Always keep aircraft in sight and under control.
• Always use fully charged batteries.
• Always keep the transmitter powered on while
aircraft is powered.
• Always remove batteries before disassembly.
• Always keep moving parts clean.
• Always keep parts dry.
• Always let parts cool after use before touching.
• Always remove batteries after use.
• Always ensure failsafe is properly set
before fl ying.
• Never operate aircraft with damaged wiring.
• Never touch moving parts.
Age Recommendation: Not for children under 14 years. This is not a toy.
NOTICE
All instructions, warranties and other collateral documents are subject to change at the sole discretion
of Horizon Hobby, LLC. For up-to-date product literature, visit www.horizonhobby.com and click on the
support tab for this product.
Meaning of Special Language:
The following terms are used throughout the product literature to indicate various levels of potential
harm when operating this product:
NOTICE: Procedures, which if not properly followed, create a possibility of physical property damage
AND little or no possibility of injury.
CAUTION: Procedures, which if not properly followed, create the probability of physical property
damage AND a possibility of serious injury.
WARNING: Procedures, which if not properly followed, create the probability of property damage,
collateral damage, and serious injury OR create a high probability of superfi cial injury.
3
EN
To register your product online, go to www.e-fl iterc.com
Installed
Motor: (4) 6mm Brushed Inrunner (Left
and Right Rotation)
Receiver : Spektrum™ AS6410Q DSMX
6Ch UM AS3X Receiver w/Quad motor
ESC (SPMAS6410Q)
Servo: (2) 2.3-Gram Performance
Linear Long Throw Servo Offset
(SPMSA2030LO)
Included
Battery: 250mAh 1S 3.7V 20C Li-Po
(EFLB2501S20)
Battery Charger:
E-fl ite® 1S USB Li-Po Charger, 300mA
(ELFC1008) and adapter (EFLC1009)
Needed to Complete
Recommended Transmitter:
Spektrum™ DSM2®/DSMX® full range
with dual-rates (DX4e and up)
26.0 in (660mm)
18.3 in (465mm)
2.75oz
(78 g)
Wing Area:
87.5 sq in
(5.65 sq dm)
Charger Warnings ..................................................4
Battery Charging ....................................................4
Transmitter and Receiver Binding ...........................5
Low Voltage Cutoff (LVC) ........................................5
ESC/Receiver Arming, Battery Installation
and Center of Gravity .............................................6
Control Direction Tests ...........................................7
Control Centering ..................................................8
Control Horn Settings .............................................8
Dual Rates .............................................................8
Flying Tips and Repairs ..........................................9
Post Flight Checklist ..............................................9
Power Components Service .................................10
Installing the Retracted Landing Gear ...................11
Installing the Landing Gear ..................................11
Troubleshooting Guide .........................................12
Troubleshooting Guide (Continued) .......................13
Limited Warranty .................................................13
Warranty and Service Information ........................15
Compliance Information for the European Union ...15
Replacement Parts ...............................................58
Optional Parts and Accessories ............................59
Table of Contents
Specifi cations
1. Charge fl ight battery.
2. Install fl ight battery in aircraft (once it
has been fully charged).
3. Bind aircraft to transmitter.
4. Make sure linkages move freely.
5. Perform Control Direction Test with
transmitter.
6. Perform AS3X Control Direction Test with
aircraft.
7. Set dual rates.
8. Adjust center of gravity.
9. Perform a radio system Range Check.
10. Find a safe and open area.
11. Plan fl ight for fl ying fi eld conditions.
12. Set fl ight timer for 5 minutes for fi rst
fl ight.
Prefl ight Checklist

Produktspezifikationen

Marke: E-flite
Kategorie: Funkgesteuertes Spielzeug
Modell: UMX B-17G Flying Fortress BNF

Brauchst du Hilfe?
