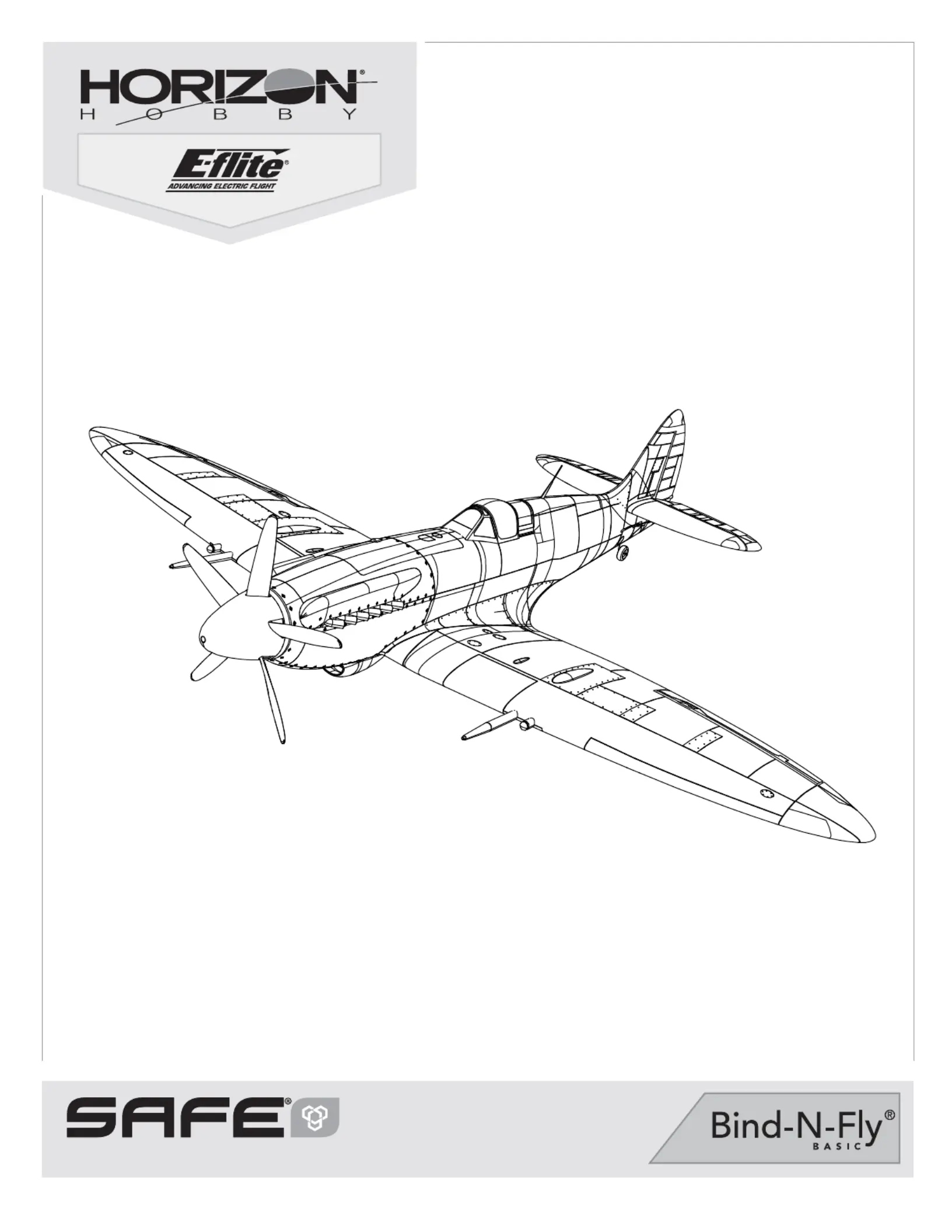

Spitfire Mk XIV 1.2m
Instruction Manual
Bedienungsanleitung
Manuel d’utilisation
Manuale di Istruzioni
SAFE® Select Technology, Optional Flight Envelope Protection
EN
Spitfire Mk XIV 1.2m
As the user of this product, you are solely responsible for operating in a man-
ner that does not endanger yourself and others or result in damage to the
product or the property of others.
• Always keep a safe distance in all directions around your model to avoid
collisions or injury. This model is controlled by a radio signal subject to
interference from many sources outside your control. Interference can cause
momentary loss of control.
• Always operate your model in open spaces away from full-size vehicles,
traffi c and people.
• Always carefully follow the directions and warnings for this and any optional
support equipment (chargers, rechargeable battery packs, etc.).
• Always keep all chemicals, small parts and anything electrical out of the
reach of children.
• Always avoid water exposure to all equipment not specifi cally designed and
protected for this purpose. Moisture causes damage to electronics.
• Never place any portion of the model in your mouth as it could cause serious
injury or even death.
• Never operate your model with low transmitter batteries.
• Always keep aircraft in sight and under control.
• Always use fully charged batteries.
• Always keep transmitter powered on while aircraft is powered.
• Always remove batteries before disassembly.
• Always keep moving parts clean.
• Always keep parts dry.
• Always let parts cool after use before touching.
• Always remove batteries after use.
• Always ensure failsafe is properly set before fl ying.
• Never operate aircraft with damaged wiring.
• Never touch moving parts.
NOTICE
All instructions, warranties and other collateral documents are subject to change at the sole discretion of Horizon Hobby, LLC. For up-to-date product
literature, visit www.horizonhobby.com and click on the support tab for this product.
Meaning of Special Language:
The following terms are used throughout the product literature to indicate various levels of potential harm when operating this product:
WARNING: Procedures, which if not properly followed, create the probability of property damage, collateral damage, and serious injury OR create a high
probability of superfi cial injury.
CAUTION: Procedures, which if not properly followed, create the probability of physical property damage AND a possibility of serious injury.
NOTICE: Procedures, which if not properly followed, create a possibility of physical property damage AND little or no possibility of injury.
WARNING: Read the ENTIRE instruction manual to become familiar with the features of the product before operating. Failure to operate the product
correctly can result in damage to the product, personal property and cause serious injury.
This is a sophisticated hobby product. It must be operated with caution and common sense and requires some basic mechanical ability. Failure to oper-
ate this Product in a safe and responsible manner could result in injury or damage to the product or other property. This product is not intended for use by
children without direct adult supervision. Do not use with incompatible components or alter this product in any way outside of the instructions provided by
Horizon Hobby, LLC. This manual contains instructions for safety, operation and maintenance. It is essential to read and follow all the instructions and warn-
ings in the manual, prior to assembly, setup or use, in order to operate correctly and avoid damage or serious injury.
Safety Precautions and Warnings
14+AGE RECOMMENDATION:
Not for children under 14
years. This is not a toy.
WARNING AGAINST COUNTERFEIT PRODUCTS: If you ever need to replace your Spektrum receiver found
in a Horizon Hobby product, always purchase from Horizon Hobby, LLC or a Horizon Hobby authorized dealer
to ensure authentic high-quality Spektrum product. Horizon Hobby, LLC disclaims all support and warranty with
regards, but not limited to, compatibility and performance of counterfeit products or products claiming compatibility
with DSM or Spektrum technology.
2
EN
To register your product online, visit www.e-fl iterc.com
Box Contents
Quick Start Information
Transmitter
Setup
Set up your transmitter using the
transmitter setup chart
Dual Rates
Hi Rate Low Rate
Ail 20mm
18mm
15mm
12mm
Ele 12mm 9mm
Rud 25mm 18mm
Flaps Landing
=30mm
Takeoff
=15mm
Center of
Gravity (CG)
78mm back from leading edge
of wing at the fuselage.
Flight Timer
Setting 5 minutes
Table of Contents
53.5 OZ
(1515 g)
42.32 in (1070mm)
(47.25 in 1200mm)
Specifi cations
Motor: BL15 Brushless Outrunner
850Kv (EFLM4115) Installed
ESC: 40 AMP Brushless ESC
(EFLA1140W) Installed
9 gram servo (SPMSA330) Installed
Receiver: Spektrum™ AR636A
6-Channel Sport Receiver
(SMPAR636)
Installed
Recommended Battery:
11.1V 3S 2200mAh 30C Li-Po
(EFLB22003S30)
Required to
Complete
Recommended Battery Charger:
3-cell Li-Po battery balancing
charger
Required to
Complete
Recommended Transmitter:
Full-Range 6 channel (or more)
2.4GHz with Spektrum
DSM2®
/DSMX® technology with
adjustable Dual Rates
Required to
Complete
T
416.9 Sq In
(26.9 Sq Dm
SAFE Select Technology ..................................................................4
Prefl ight ..........................................................................................4
Transmitter Setup ...........................................................................4
Model Assembly ........................................................................ 5–7
Transmitter and Receiver Binding/
Switching ON and OFF SAFE Select ...............................................8
SAFE Select Switch Designation......................................................9
Control Horn and Servo Arm Settings ..............................................9
Battery Installation and ESC Arming ..............................................10
Center of Gravity (CG) ...................................................................11
AS3X Control Direction Test ..........................................................11
In Flight Trimming .........................................................................12
Flying Tips and Repairs .................................................................12
Post Flight ....................................................................................13
Motor Service ...............................................................................13
Troubleshooting Guide AS3X .........................................................13
Troubleshooting Guide ..................................................................14
AMA National Model Aircraft Safety Code ......................................15
Limited Warranty ..........................................................................16
Contact Information ......................................................................17
FCC Information ............................................................................17
IC Information ...............................................................................17
Compliance Information for the European Union ............................17
Replacement Parts ........................................................................63
Optional Parts ...............................................................................63
As of this printing, you may be required to register with the FAA if you own this
product.
For up-to-date information on how to register with the FAA,
visit https://registermyuas.faa.gov/.
For additional assistance on regulations and guidance on UAS usage,
visit knowbeforeyoufl y.org/.
3
