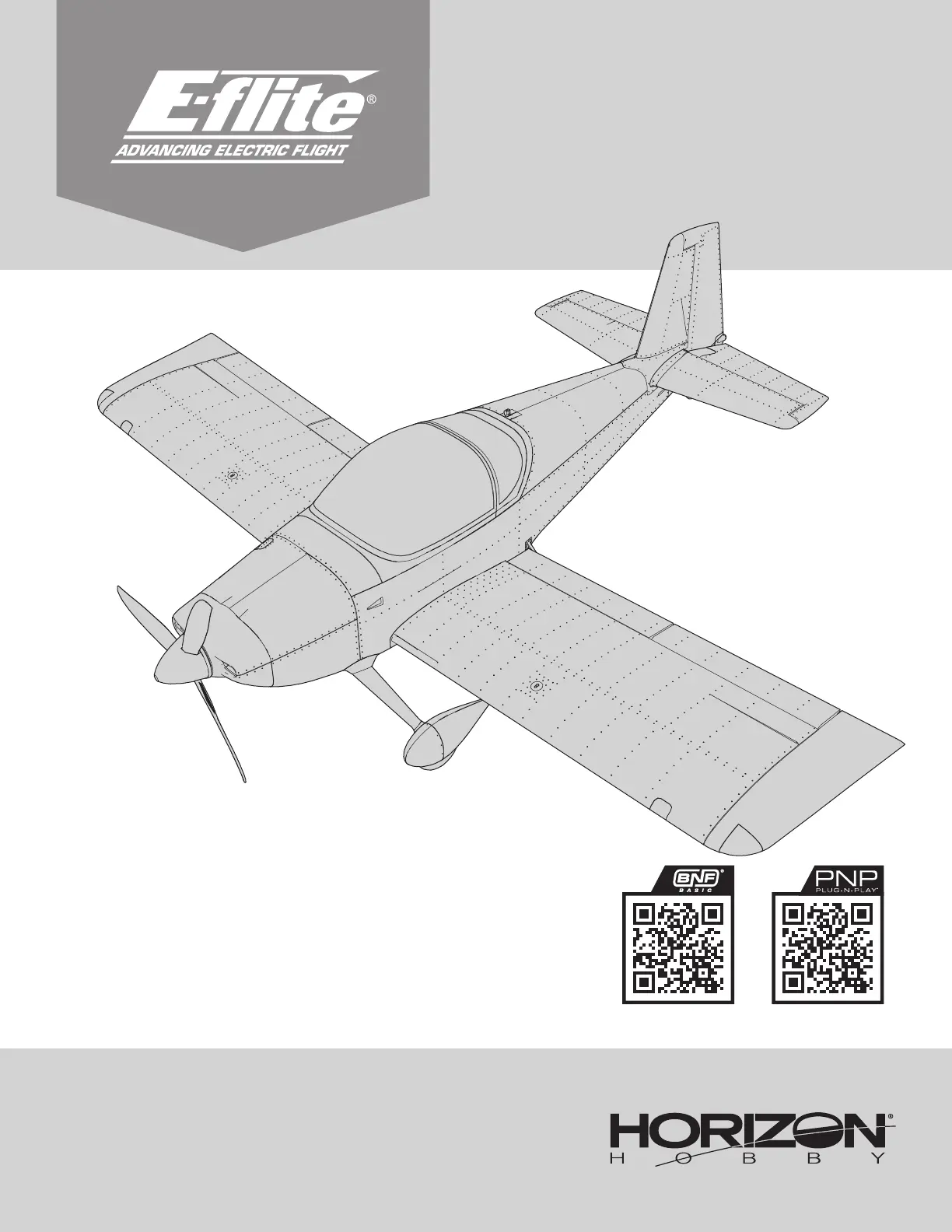

RV-7 1.1m
Instruction Manual
Bedienungsanleitung
Manuel d’utilisation
Manuale di Istruzioni
Scan the QR code and select the Manuals and Support quick links from
the product page for the most up-to-date manual information.
Scannen Sie den QR-Code und wählen Sie auf der Produktseite
die Quicklinks Handbücher und Unterstützung, um die aktuellsten
Informationen zu Handbücher.
Scannez le code QR et sélectionnez les liens rapides Manuals and Support
sur la page du produit pour obtenir les informations les plus récentes sur
le manuel.
Scannerizzare il codice QR e selezionare i Link veloci Manuali e Supporto
dalla pagina del prodotto per le informazioni manuali più aggiornate. EFL01875EFL01850
EN
2RV-7 1.1m
Safety Precautions and Warnings
NOTICE
All instructions, warranties and other collateral documents are subject to change at the sole discretion of Horizon Hobby, LLC. For up-to-date product literature, visit
horizonhobby.com or towerhobbies.com and click on the support or resources tab for this product.
AGE RECOMMENDATION: Not for children under 14 years. This is not a toy.
MEANING OF SPECIAL LANGUAGE
The following terms are used throughout the product literature to indicate various levels of potential harm when operating this product:
WARNING: Procedures, which if not properly followed, create the probability of property damage, collateral damage, and serious injury OR create a high probability of
superficial injury.
CAUTION: Procedures, which if not properly followed, create the probability of physical property damage AND a possibility of serious injury.
NOTICE: Procedures, which if not properly followed, create a possibility of physical property damage AND little or no possibility of injury.
WARNING: Read the ENTIRE instruction manual to become familiar with the features of the product before operating. Failure to operate the product correctly can
result in damage to the product, personal property and cause serious injury.
This is a sophisticated hobby product. It must be operated with caution and common sense and requires some basic mechanical ability. Failure to operate this Product
in a safe and responsible manner could result in injury or damage to the product or other property. This product is not intended for use by children without direct adult
supervision. Do not use with incompatible components or alter this product in any way outside of the instructions provided by Horizon Hobby, LLC. This manual contains
instructions for safety, operation and maintenance. It is essential to read and follow all the instructions and warnings in the manual, prior to assembly, setup or use, in
order to operate correctly and avoid damage or serious injury.
As the user of this product, you are solely responsible for operating in a manner that does not endanger yourself and others or result in damage to the product or the
property of others.
• Always keep a safe distance in all directions around your model to avoid
collisions or injury. This model is controlled by a radio signal subject to
interference from many sources outside your control. Interference can cause
momentary loss of control.
• Always operate your model in open spaces away from full-size vehicles, traffic
and people.
• Always carefully follow the directions and warnings for this and any optional
support equipment (chargers, rechargeable battery packs, etc.).
• Always keep all chemicals, small parts and anything electrical out of the reach
of children.
• Always avoid water exposure to all equipment not specifically designed and
protected for this purpose. Moisture causes damage to electronics.
• Never place any portion of the model in your mouth as it could cause serious
injury or even death.
• Never operate your model with low transmitter batteries.
• Always keep aircraft in sight and under control.
• Always use fully charged batteries.
• Always keep transmitter powered on while aircraft is powered.
• Always remove batteries before disassembly.
• Always keep moving parts clean.
• Always keep parts dry.
• Always let parts cool after use before touching.
• Always remove batteries after use.
• Always ensure failsafe is properly set before flying.
• Never operate aircraft with damaged wiring.
• Never touch moving parts.
WARNING AGAINST COUNTERFEIT PRODUCTS: If you ever need to replace your Spektrum receiver found in a Horizon Hobby product, always purchase from
Horizon Hobby, LLC or a Horizon Hobby authorized dealer to ensure authentic high-quality Spektrum product. Horizon Hobby, LLC disclaims all support and
warranty with regards, but not limited to, compatibility and performance of counterfeit products or products claiming compatibility with DSM or Spektrum technology.
EN
3
Box Contents
Table of Contents
Specifications
Wi thout battery: 41.6oz (1.18kg)
Wi th 4S 2200mAh battery: 49.8oz (1.41kg)
Safety Precautions and Warnings 2 ...........................................................................
Specifications 3 ........................................................................................................
Box Contents 3 .........................................................................................................
Table of Contents 3 ...................................................................................................
SAFE® Select Technology BNF ................................................................................4
Preflight 4 .................................................................................................................
Transmitter Setup 4BNF ...........................................................................................
Model Assembly ....................................................................................................5
Receiver Selection and Installation 8PNP .................................................................
Step Installation (optional) 8 .....................................................................................
General Binding Tips and Failsafe 9BNF ...................................................................
Transmitter and Receiver Binding / Enabling and Disabling SAFE Select ..........9BNF
Control Surface Centering 10 ...................................................................................
Battery Installation and ESC Arming 10 .....................................................................
Integrated ESC Telemetry .....................................................................................11
SAFE® Select Switch Designation 11BNF .................................................................
Center of Gravity (CG) 12 .........................................................................................
Control Surface Direction 12 .....................................................................................
AS3X® Control Response Test 13BNF .......................................................................
Dual Rates and Control Throws 13 ............................................................................
Propeller Installation 13 ............................................................................................
Flying Tips and Repairs 14 ........................................................................................
SAFE Select Flying Tips .................................................................................14BNF
In Flight Trimming BNF .........................................................................................15
Post Flight............................................................................................................15
Motor Service 15 ......................................................................................................
Troubleshooting Guide AS3X BNF .........................................................................15
Troubleshooting Guide 16 .........................................................................................
Replacement Parts 17 ...............................................................................................
AMA National Model Aircraft Safety Code 17 .............................................................
Recommended Items 17 ...........................................................................................
Optional Items 17 .....................................................................................................
Limited Warranty .................................................................................................18
Contact Information 18 .............................................................................................
FCC Information 19 ...................................................................................................
IC Information 19 ......................................................................................................
Compliance Information for the European Union 19 ...................................................
35.4in (900mm)
43.3in (1100mm)
If you own this product, you may be required to register with the FAA.
For up-to-date information on how to register with the FAA, please visit
https://registermyuas.faa.gov/.
For additional assistance on regulations and guidance on UAS usage,
visit knowbeforeyoufly.org/.
Quick Start Information
Transmitter Setup
1. Blank (Acro) Model
2. Wing Type: 1 Aileron, 1 Flap
3. Servo Reversing: All Channels Normal
4. Travel Adjust (All Surfaces): 100%
Dual Rates*
High Rate Low Rate
Aileron p = 16mm
q = 16mm
p = 12mm
q = 12mm
Elevator p = 14mm
q = 14mm
p = 10mm
q = 10mm
Rudder = 32mm
= 32mm
= 22mm
= 22mm
Flap Travel Half = 15mm Full = 25mmq q
Flap/Elevator
Compensation -2% 2%
Exponential
High Rate Low Rate
Aileron 10% 5%
Elevator 10% 5%
Rudder 10% 5%
Center of Gravity (CG) 56mm back from the leading edge of the wing
Flight Timer Setting 5 minutes
Motor: 3536 Brushless Outrunner, 850Kv, 14 pole,
(SPMXAM1800)
Installed Installed
ESC: Avian™ 45 Amp Brushless Smart-Lite ESC, 3S-4S,
IC3
® (SPMXAE45A)
Installed Installed
Servos: Aileron (2), Elevator, Rudder, Flap (2): 9-gram
digital servo, 7in (180mm) servo lead (SPMSA334)
Installed Installed
Receiver: Spektrum
™ AR631 DSMX 6-Channel AS3X®
Telemetry Receiver (SPMAR631)
Installed Required to
Complete
Recommended Battery: 14.8V 2200mAh 30C or higher
4SLiPo with IC3
®/EC3™ connector
Required to
Complete
Required to
Complete
Recommended Battery Charger:
3-4-cell Li-Po battery balancing charger
Required to
Complete
Required to
Complete
Recommended Transmitter:
6+ channel, Full-Range 2.4GHz with Spektrum
™
DSM2®/DSMX® technology and adjustable dual rates
Required to
Complete
Required to
Complete
