Seite 1/27

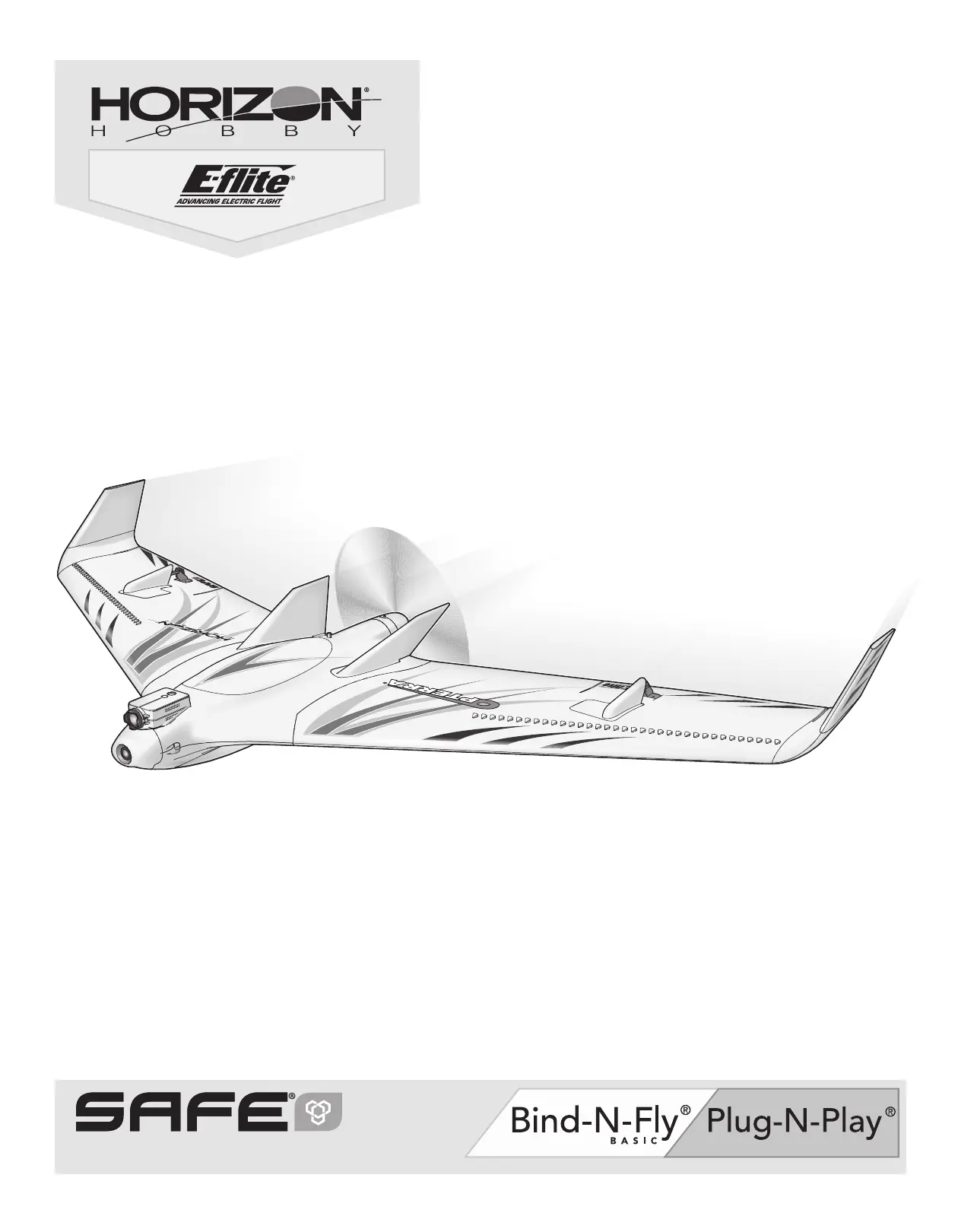

Instruction Manual
Bedienungsanleitung
Manuel d’utilisation
Manuale di Istruzioni
SAFE® Select Technology, Optional Flight Envelope Protection
Opterra® 1.2m
EN
2Opterra® 1.2M
As the user of this product, you are solely responsible for operating in a
manner that does not endanger yourself and others or result in damage to the
product or the property of others.
• Always keep a safe distance in all directions around your model to avoid
collisions or injury. This model is controlled by a radio signal subject to
interference from many sources outside your control. Interference can
cause momentary loss of control.
• Always operate your model in open spaces away from full-size vehicles,
traffi c and people.
• Always carefully follow the directions and warnings for this and any
optional support equipment (chargers, rechargeable battery packs, etc.).
• Always keep all chemicals, small parts and anything electrical out of the
reach of children.
• Always avoid water exposure to all equipment not specifi cally designed
and protected for this purpose. Moisture causes damage to electronics.
• Never place any portion of the model in your mouth as it could cause
serious injury or even death.
• Never operate your model with low transmitter batteries.
• Always keep aircraft in sight and under control.
• Always use fully charged batteries.
• Always keep transmitter powered on while aircraft is powered.
• Always remove batteries before disassembly.
• Always keep moving parts clean.
• Always keep parts dry.
• Always let parts cool after use before touching.
• Always remove batteries after use.
• Always ensure failsafe is properly set before fl ying.
• Never operate aircraft with damaged wiring.
• Never touch moving parts.
NOTICE
All instructions, warranties and other collateral documents are subject to change at the sole discretion of Horizon Hobby, LLC. For up-to-date product
literature, visit www.horizonhobby.com and click on the support tab for this product.
Meaning of Special Language:
The following terms are used throughout the product literature to indicate various levels of potential harm when operating this product:
WARNING: Procedures, which if not properly followed, create the probability of property damage, collateral damage, and serious injury OR create a high
probability of superfi cial injury.
CAUTION: Procedures, which if not properly followed, create the probability of physical property damage AND a possibility of serious injury.
NOTICE: Procedures, which if not properly followed, create a possibility of physical property damage AND little or no possibility of injury.
WARNING: Read the ENTIRE instruction manual to become familiar with the features of the product before operating. Failure to operate the product
correctly can result in damage to the product, personal property and cause serious injury.
This is a sophisticated hobby product. It must be operated with caution and common sense and requires some basic mechanical ability. Failure to operate this
Product in a safe and responsible manner could result in injury or damage to the product or other property. This product is not intended for use by children
without direct adult supervision. Do not use with incompatible components or alter this product in any way outside of the instructions provided by Horizon
Hobby, LLC. This manual contains instructions for safety, operation and maintenance. It is essential to read and follow all the instructions and warnings in the
manual, prior to assembly, setup or use, in order to operate correctly and avoid damage or serious injury.
Safety Precautions and Warnings
14+AGE RECOMMENDATION:
Not for children under 14
years. This is not a toy.
WARNING AGAINST COUNTERFEIT PRODUCTS: If you ever need to replace your Spektrum receiver
found in a Horizon Hobby product, always purchase from Horizon Hobby, LLC or a Horizon Hobby
authorized dealer to ensure authentic high-quality Spektrum product. Horizon Hobby, LLC disclaims all support
and warranty with regards, but not limited to, compatibility and performance of counterfeit products or products
claiming compatibility with DSM or Spektrum technology.
If you are operating the BNF with FPV version of this product (EFL11460) in North America, you are required to have an Amateur Radio (HAM) license.
Visit www.arrl.org for more information.
EN
3
SAFE® Plus Technology (BNF with FPV) ..........................................................4
Transmitter Setup (BNF) .................................................................................4
CRSF compatibility .........................................................................................4
Transmitter Setup (PNP) .................................................................................5
Transmitter and Receiver Binding ...................................................................5
Model Assembly ............................................................................................6
Battery Installation and ESC Arming ...............................................................7
Compass Calibration Procedure (BNF with FPV) ..............................................8
Choose a Flying Field .....................................................................................8
Video System (BNF with FPV) .........................................................................9
Using the Video Transmitter ..........................................................................10
Install the Propeller ......................................................................................11
Center of Gravity (CG) .................................................................................11
AS3X/SAFE Control Direction Test ...............................................................11
Flight Preparation ........................................................................................12
Trimming the Aircraft ...................................................................................12
Flying ..........................................................................................................13
Virtual Fence Flight Modes (BNF with FPV only) ............................................13
Virtual Fence Mode (BNF with FPV) ..............................................................14
GPS Initialization (BNF with FPV) ..................................................................15
LED Display (BNF with FPV only) ..................................................................15
Throttle Cut in GPS modes (BNF with FPV only) ............................................15
Flight Patterns (BNF with FPV) ......................................................................16
Landing .......................................................................................................17
Deactivating GPS (BNF with FPV) .................................................................18
Service and Repairs .....................................................................................19
Upgrading PNP and BNF Basic ....................................................................19
Trouble Shooting Guide ................................................................................20
AMA National Model Aircraft Safety Code .....................................................21
Limited Warranty .........................................................................................22
Contact Information .....................................................................................22
FCC Information ...........................................................................................23
IC Information ..............................................................................................23
Compliance Information for the European Union ...........................................23
Recommended Receivers ............................................................................86
Replacement Parts .......................................................................................87
Optional Parts ..............................................................................................88
If you own this product, you may be required to register with the FAA. For up-to-date information on how to register with the FAA, visit
https://registermyuas.faa.gov/. For additional assistance on regulations and guidance on UAS usage, visit knowbeforeyoufl y.org/.
To receive product updates, special offers and more, register your
product online at www.e-fl iterc.com
Box Contents
Table of Contents
47 in (1200mm)
21 in (525mm)
35oz
(990g)
with FPV
EFL11460* EFL11450 EFL11475
Motor: Brushless
Motor: 1.2M Opterra
(EFL11407)
Installed Installed Installed
ESC: Installed Installed Installed30A (EFLA1030B)
Servos:
2 Aileron Servos,
(EFLR7155)
Installed Installed Installed
Receiver: SPM4647
Flight Controller:
SPMA3235
Installed Installed Not
Included
GPS module:
SPMA3173 Installed Not
included
Not
Included
FPV Camera:
SPMVC602 Installed Not
included
Not
included
Video transmitter:
SPMVT1001 Installed Not
included
Not
included
Battery: 3S 2200mAh
Li-Po (EFLB22003S20)
Required to
Complete
Required to
Complete
Required to
Complete
Battery Charger:
Li-Po battery balancing
charger
Required to
Complete
Required to
Complete
Required to
Complete
Recommended
Transmitter:
Full-Range 6 channel
2.4GHz with Spektrum
DSMX® technology
Required to
Complete
Required to
Complete
Required to
Complete
*The Opterra 1.2m S+ BNF with FPV (EFL11460) is not available in Europe
The operating frequency of the aircraft is 2404-2476 MHz
SPMVT1001 Analog VTX is 5.8GHz (1mw-600mw adjustable) and requires an
amateur radio license in North America (installed in EFL11460 BNF with FPV).
SPMVT1001EU is an Analog 5.8GHz device (1mw-25mw adjustable) and is
certifi ed for use without a license in Europe (available separately).
