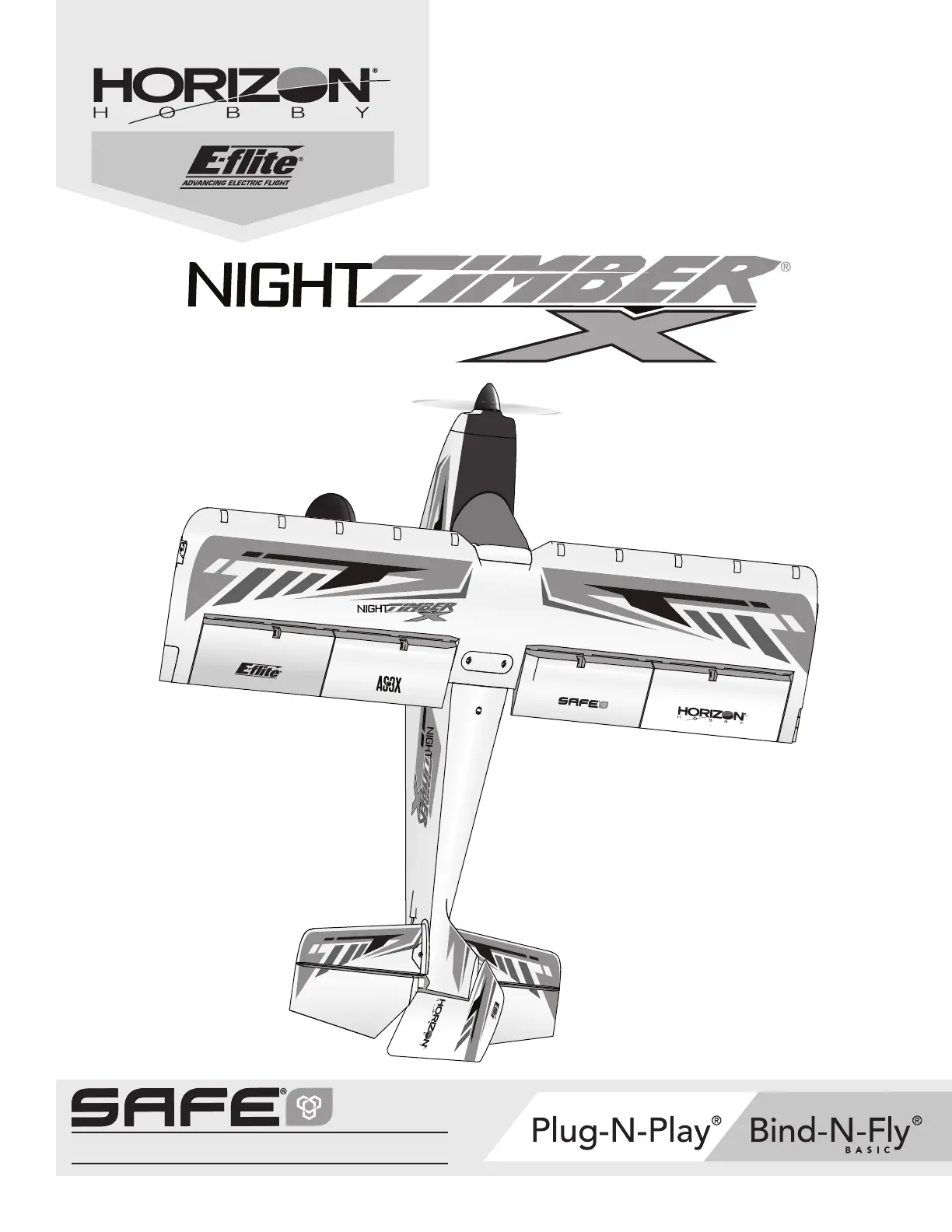

Instruction Manual
Bedienungsanleitung
Manuel d’utilisation
Manuale di Istruzioni
SAFE® Select Technology, Optional Flight Envelope Protection
EN
2Night Timber X 1.2m
Safety Precautions and Warnings
AGE RECOMMENDATION: Not for children under 14 years. This is not a toy.
As the user of this product, you are solely responsible for operating in a manner that does not endanger yourself and others or result in damage to the product or the
property of others.
• Always keep a safe distance in all directions around your model
to avoid collisions or injury. This model is controlled by a radio
signal subject to interference from many sources outside your
control. Interference can cause momentary loss of control.
• Always operate your model in open spaces away
from full-size vehicles, traf c and people.
• Always carefully follow the directions and warnings for this and any
optional support equipment (chargers, rechargeable battery packs, etc.).
• Always keep all chemicals, small parts and anything
electrical out of the reach of children.
• Always avoid water exposure to all equipment not speci cally designed
and protected for this purpose. Moisture causes damage to electronics.
• Never place any portion of the model in your mouth as
it could cause serious injury or even death.
• Never operate your model with low transmitter batteries.
• Always keep aircraft in sight and under control.
• Always use fully charged batteries.
• Always keep transmitter powered on while aircraft is powered.
• Always remove batteries before disassembly.
• Always keep moving parts clean.
• Always keep parts dry.
• Always let parts cool after use before touching.
• Always remove batteries after use.
• Always ensure failsafe is properly set before  ying.
• Never operate aircraft with damaged wiring.
• Never touch moving parts.
NOTICE
All instructions, warranties and other collateral documents are subject to change at the sole discretion of Horizon Hobby, LLC. For up-to-date product literature,
visit www.horizonhobby.com or towerhobbies.com and click on the support or resources tab for this product.
MEANING OF SPECIAL LANGUAGE:
The following terms are used throughout the product literature to indicate various levels of potential harm when operating this product:
WARNING: Procedures, which if not properly followed, create the probability of property damage, collateral damage, and serious injury OR create a high
probability of super cial injury.
CAUTION: Procedures, which if not properly followed, create the probability of physical property damage AND a possibility of serious injury.
NOTICE: Procedures, which if not properly followed, create a possibility of physical property damage AND little or no possibility of injury.
WARNING: Read the ENTIRE instruction manual to become familiar with the features of the product before operating. Failure to operate the product
correctly can result in damage to the product, personal property and cause serious injury.
This is a sophisticated hobby product. It must be operated with caution and common sense and requires some basic mechanical ability. Failure to operate this
Product in a safe and responsible manner could result in injury or damage to the product or other property. This product is not intended for use by children
without direct adult supervision. Do not use with incompatible components or alter this product in any way outside of the instructions provided by Horizon
Hobby, LLC. This manual contains instructions for safety, operation and maintenance. It is essential to read and follow all the instructions and warnings in the
manual, prior to assembly, setup or use, in order to operate correctly and avoid damage or serious injury.
14+
WARNING AGAINST COUNTERFEIT PRODUCTS: If you ever need to replace your Spektrum receiver found in a Horizon Hobby product, always purchase
from Horizon Hobby, LLC or a Horizon Hobby authorized dealer to ensure authentic high-quality Spektrum product. Horizon Hobby, LLC disclaims all
support and warranty with regards, but not limited to, compatibility and performance of counterfeit products or products claiming compatibility with DSM or
Spektrum technology.
EN
3
Box Contents
Quick Start Information
Transmitter
Setup
Set up your transmitter using the
transmitter setup chart
Dual Rates
(Measure in
AS3X mode
only)
Hi Rate Low Rate
Ail 45mm
45mm
35mm
35mm
Ele 55mm
55mm
45mm
45mm
Rud 55mm 40mm
Flaps Full
=55mm
Half
=30mm
Center of
Gravity (CG)
89mm-102mm back from leading edge
of wing at the fuselage.
Flight Timer
Setting 4 minutes
Table of Contents
57-60 oz
(1613-1698g)
41.5 in (1055mm)
(47.5 in 1200mm)
Speci cations
527.3 sq/in
(34 sq/dm)
SAFE® Select Technology (BNF Basic) ................................................4
Pre ight .............................................................................................4
Transmitter Setup (BNF Basic) ............................................................4
Model Assembly ................................................................................5
Battery Installation and ESC Arming ...................................................8
Center of Gravity (CG) .......................................................................8
Control Horn and Servo Arm Settings ...............................................11
AS3X Control Direction Test (BNF Basic) ..........................................13
In Flight Trimming (BNF Basic) .........................................................13
Flying Tips and Repairs ....................................................................14
SAFE Select Flying ...........................................................................15
PNP Receiver Selection and Installation ...........................................15
Post Flight .......................................................................................15
Motor Service ..................................................................................15
Troubleshooting Guide AS3X ............................................................16
Troubleshooting Guide .....................................................................16
Slat Installation (optional) .................................................................17
Thrust Reversing (optional) ..............................................................17
Float Installation (optional) ...............................................................17
BNF advanced receiver setup (optional) ...........................................18
AMA National Model Aircraft Safety Code .........................................21
Limited Warranty .............................................................................22
Contact Information .........................................................................22
RECEIVER BIND INFORMATION
Channels 6
Frequency 2402 – 2478 MHz
Compatibility DSM2 and DSMX
Motor: 10BL Brushless outrunner 900Kv
(EFLM17533) Installed Installed
ESC: AvianTM
smart 60A, (SPMXAE1060) Installed Installed
Servo: 9 gram metal geared servo
(5 x SPMSA332) (1 x SPMSA332R) Installed Installed
Receiver: AR637TA 6CH SAFE and AS3X
Telemetry Receiver (SPMAR637T) Installed Required to
Complete
Recommended Battery: 11.1V–14.8V
3S–4S 2200mAh 30C Li-Po (SPMX22003S30 or
SPMX22004S30*)
Required to
Complete
Required to
Complete
Recommended Battery Charger: 3 or 4-cell
SMART Li-Po battery balancing charger
(SPMXC1070).
Required to
Complete
Required to
Complete
Recommended Transmitter:
Full-Range 5-7 channel 2.4GHz with Spektrum
DSMX® technology with adjustable Dual Rates.
Required to
Complete
Required to
Complete
If you own this product, you may be required to register with the FAA.
For up-to-date information on how to register with the FAA, please visit
https://registermyuas.faa.gov/. For additional assistance on regulations and
guidance on UAS usage, visit knowbeforeyoufl y.org/.
