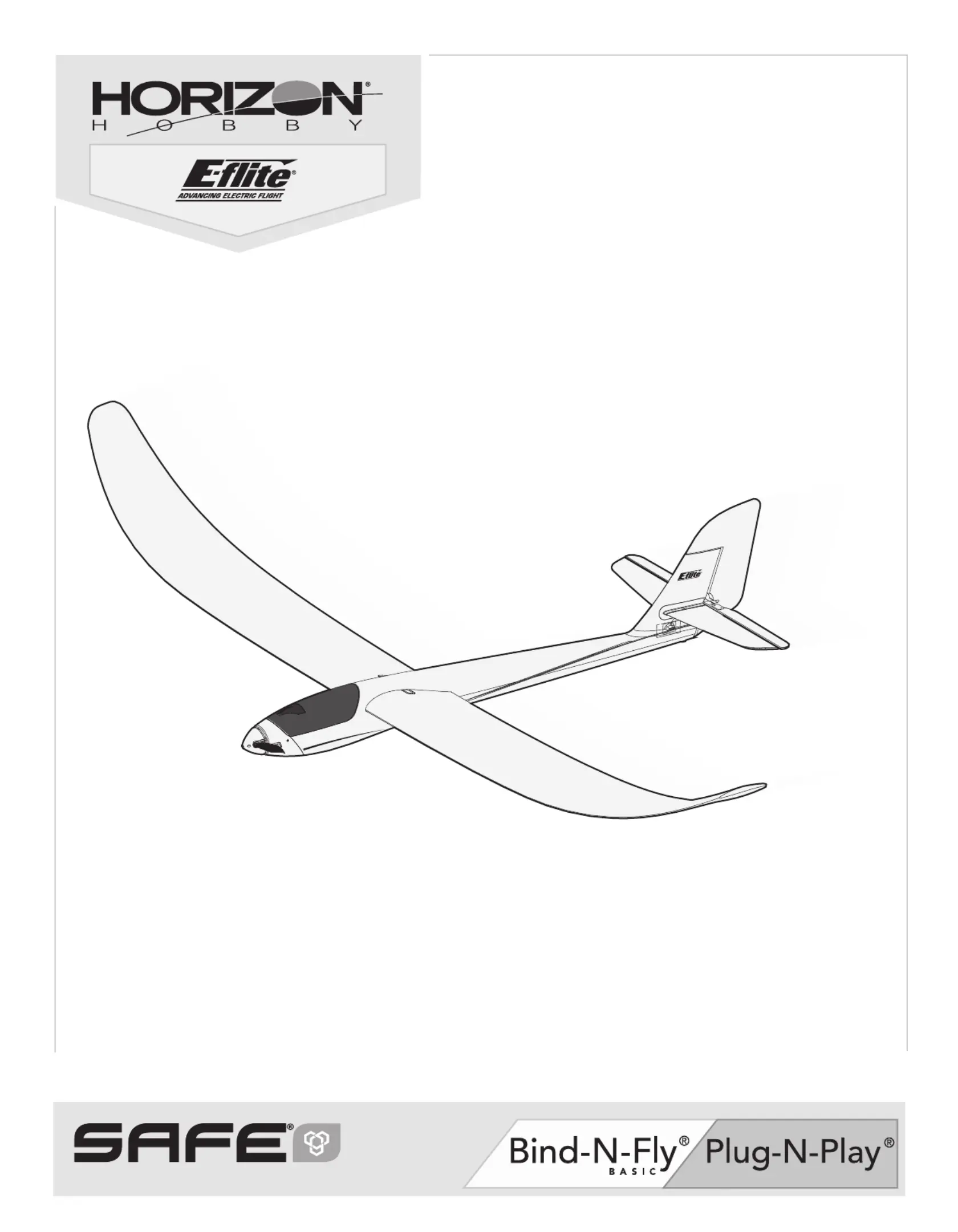

Night Radian® FT 2.0m
Instruction Manual
Bedienungsanleitung
Manuel d’utilisation
Manuale di Istruzioni
SAFE® Select Technology, Optional Flight Envelope Protection
EN
Night Radian FT
As the user of this product, you are solely responsible for operating in a man-
ner that does not endanger yourself and others or result in damage to the
product or the property of others.
• Always keep a safe distance in all directions around your model to avoid
collisions or injury. This model is controlled by a radio signal subject to
interference from many sources outside your control. Interference can cause
momentary loss of control.
• Always operate your model in open spaces away from full-size vehicles,
traf c and people.
• Always carefully follow the directions and warnings for this and any optional
support equipment (chargers, rechargeable battery packs, etc.).
• Always keep all chemicals, small parts and anything electrical out of the
reach of children.
• Always avoid water exposure to all equipment not speci cally designed and
protected for this purpose. Moisture causes damage to electronics.
• Never place any portion of the model in your mouth as it could cause serious
injury or even death.
• Never operate your model with low transmitter batteries.
• Always keep aircraft in sight and under control.
• Always use fully charged batteries.
• Always keep transmitter powered on while aircraft is powered.
• Always remove batteries before disassembly.
• Always keep moving parts clean.
• Always keep parts dry.
• Always let parts cool after use before touching.
• Always remove batteries after use.
• Always ensure failsafe is properly set before  ying.
• Never operate aircraft with damaged wiring.
• Never touch moving parts.
NOTICE
All instructions, warranties and other collateral documents are subject to change at the sole discretion of Horizon Hobby, LLC. For up-to-date product
literature, visit www.horizonhobby.com and click on the support tab for this product.
Meaning of Special Language:
The following terms are used throughout the product literature to indicate various levels of potential harm when operating this product:
WARNING: Procedures, which if not properly followed, create the probability of property damage, collateral damage, and serious injury OR create a high
probability of super cial injury.
CAUTION: Procedures, which if not properly followed, create the probability of physical property damage AND a possibility of serious injury.
NOTICE: Procedures, which if not properly followed, create a possibility of physical property damage AND little or no possibility of injury.
WARNING: Read the ENTIRE instruction manual to become familiar with the features of the product before operating. Failure to operate the product
correctly can result in damage to the product, personal property and cause serious injury.
This is a sophisticated hobby product. It must be operated with caution and common sense and requires some basic mechanical ability. Failure to operate this
Product in a safe and responsible manner could result in injury or damage to the product or other property. This product is not intended for use by children
without direct adult supervision. Do not use with incompatible components or alter this product in any way outside of the instructions provided by Horizon
Hobby, LLC. This manual contains instructions for safety, operation and maintenance. It is essential to read and follow all the instructions and warnings in the
manual, prior to assembly, setup or use, in order to operate correctly and avoid damage or serious injury.
Safety Precautions and Warnings
14+AGE RECOMMENDATION:
Not for children under 14
years. This is not a toy.
WARNING AGAINST COUNTERFEIT PRODUCTS: If you ever need to replace your Spektrum receiver
found in a Horizon Hobby product, always purchase from Horizon Hobby, LLC or a Horizon Hobby
authorized dealer to ensure authentic high-quality Spektrum product. Horizon Hobby, LLC disclaims all support
and warranty with regards, but not limited to, compatibility and performance of counterfeit products or products
claiming compatibility with DSM or Spektrum technology.
2
EN
To register your product online, visit www.e- iterc.com
Box Contents
Quick Start Information
Transmitter
Setup
Blank (Acro) Model
Servo Reversing:
Rudder: Normal
Elevator: Normal
Aileron: Normal
DO NOT Reverse Throttle
Dual Rates
Dual Rates: 100% / 70%
Hi Rate Low Rate
Ele =12mm
=12mm
=8mm
=8mm
Rud =35mm
=35mm
=25mm
=25mm
Center of
Gravity (CG)
2 1/2 inches (63mm) back
from leading edge at the root.
Flight Timer
Setting 7-10 minutes
Table of Contents
31.0 oz
(880 g)
1140mm (44.7 in)
2000mm (78.7 in)
Specifi cations
EFL3650 EFL3675
Motor: 480B BL Outrunner Motor;
960Kv Reverse Shaft PKZ4716 Installed Installed
ESC: 30A Brushless ESC
(EFLA1030B) Installed Installed
Servo: Mini Servo (3W) with
Arms, Short Lead PKZ1060 Installed Installed
Receiver: Spektrum
™ AR636
6-Ch AS3X Sport Receiver
(SPMAR636)
Installed
Required
to
Complete
Recommended Battery:
1350mAh 11.1V 30C Li-Po with
EC3 Connector (EFLB13503S30)
Required
to
Complete
Required
to
Complete
Recommended Battery Char-
ger: 3-cell Li-Po battery balanc-
ing charger
Required
to
Complete
Required
to
Complete
Recommended Transmitter:
Full-Range 4 channel (or more)
2.4GHz with Spektrum
™
DSM2®/DSMX® technology with
adjustable Dual Rates.
Required
to
Complete
Required
to
Complete
T
551 sq in
(35.5 sq dm)
SAFE® Select Technology (BNF Basic) .............................................4
Pre ight ..........................................................................................4
Model Assembly .............................................................................5
Control Horn and Servo Arm Settings ..............................................6
Binding / Switching ON and OFF SAFE Select ..................................7
SAFE® Select Switch Designation ....................................................8
LED Controller .................................................................................8
Battery Installation and ESC Arming ................................................9
Center of Gravity (CG) ..................................................................10
AS3X Control Direction Test ...........................................................10
In Flight Trimming .........................................................................11
Flying Tips and Repairs .................................................................11
Post Flight ....................................................................................12
Motor Service ...............................................................................12
PNP Receiver Selection and Installation ........................................12
Troubleshooting Guide ..................................................................13
AMA National Model Aircraft Safety Code ......................................14
Limited Warranty ..........................................................................15
Contact Information ......................................................................16
FCC Information ............................................................................16
IC Information ...............................................................................16
Compliance Information for the European Union ............................16
Replacement Parts ........................................................................58
Optional Parts ...............................................................................58
Recommended Receivers .............................................................59
RECEIVER BIND INFORMATION
Channels 6
Frequency 2405 – 2476 MHz
Compatibility DSM2 and DSMX
3
