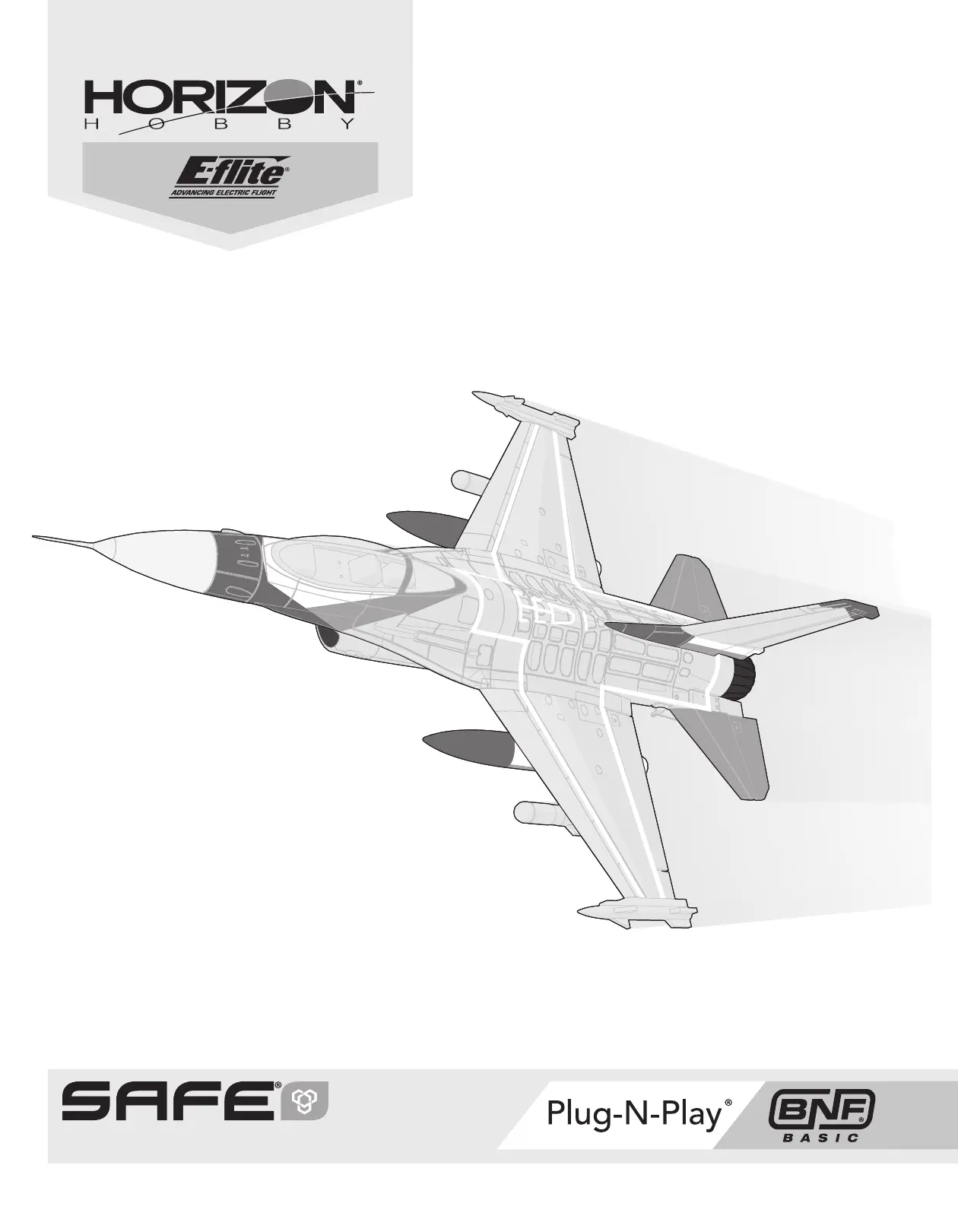

F-16 Falcon 64mm EDF
SAFE® Select Technology, Optional Flight Envelope Protection
EN
F-16 64mm EDF
2
Safety Precautions and Warnings
NOTICE
All instructions, warranties and other collateral documents are subject to change at the sole discretion of Horizon Hobby, LLC. For up-to-date product
literature, visit www.horizonhobby.com or www.towerhobbies.com and click on the support or resources tab for this product.
14+ AGE RECOMMENDATION: Not for children under 14 years. This is not a toy.
MEANING OF SPECIAL LANGUAGE:
The following terms are used throughout the product literature to indicate various levels of potential harm when operating this product:
WARNING: Procedures, which if not properly followed, create the probability of property damage, collateral damage, and serious injury OR create a high probability of
superficial injury.
CAUTION: Procedures, which if not properly followed, create the probability of physical property damage AND a possibility of serious injury.
NOTICE: Procedures, which if not properly followed, create a possibility of physical property damage AND little or no possibility of injury.
WARNING: Read the ENTIRE instruction manual to become familiar with the features of the product before operating. Failure to operate the product correctly can
result in damage to the product, personal property and cause serious injury.
This is a sophisticated hobby product. It must be operated with caution and common sense and requires some basic mechanical ability. Failure to operate this Product
in a safe and responsible manner could result in injury or damage to the product or other property. This product is not intended for use by children without direct adult
supervision. Do not use with incompatible components or alter this product in any way outside of the instructions provided by Horizon Hobby, LLC. This manual contains
instructions for safety, operation and maintenance. It is essential to read and follow all the instructions and warnings in the manual, prior to assembly, setup or use, in
order to operate correctly and avoid damage or serious injury.
As the user of this product, you are solely responsible for operating in a manner that does not endanger yourself and others or result in damage to the product or the property of others.
• Always keep a safe distance in all directions around your model to avoid
collisions or injury. This model is controlled by a radio signal subject to
interference from many sources outside your control. Interference can cause
momentary loss of control.
• Always operate your model in open spaces away from full-size vehicles, traffic
and people.
• Always carefully follow the directions and warnings for this and any optional
support equipment (chargers, rechargeable battery packs, etc.).
• Always keep all chemicals, small parts and anything electrical out of the reach
of children.
• Always avoid water exposure to all equipment not specifically designed and
protected for this purpose. Moisture causes damage to electronics.
• Never place any portion of the model in your mouth as it could cause serious
injury or even death.
• Never operate your model with low transmitter batteries.
• Always keep aircraft in sight and under control.
• Always use fully charged batteries.
• Always keep transmitter powered on while aircraft is powered.
• Always remove batteries before disassembly.
• Always keep moving parts clean.
• Always keep parts dry.
• Always let parts cool after use before touching.
• Always remove batteries after use.
• Always ensure failsafe is properly set before flying.
• Never operate aircraft with damaged wiring.
• Never touch moving parts.
WARNING AGAINST COUNTERFEIT PRODUCTS: If you ever need to replace your Spektrum receiver found in a Horizon Hobby product, always purchase from
Horizon Hobby, LLC or a Horizon Hobby authorized dealer to ensure authentic high-quality Spektrum product. Horizon Hobby, LLC disclaims all support and
warranty with regards, but not limited to, compatibility and performance of counterfeit products or products claiming compatibility with DSM or Spektrum technology.
EN
3
Box Contents
Table of Contents
Specifications
43.3 in (1100mm)
30 – 32.6 oz
(853 - 925g)
Preflight 4 ...............................................................................................................
Model Assembly ..................................................................................................4
Scale Accessories Optional ..................................................................................6
Control Horn and Servo Arm Settings 7 ...................................................................
Receiver Installation (PNP) 8 ...................................................................................
Transmitter Setup (BNF) 8 .......................................................................................
Battery Installation and ESC Arming 9 .....................................................................
Center of Gravity 9 .................................................................................................
SAFE® Select Switch Designation (BNF) 11 .............................................................
Control Surface Centering 11 ..................................................................................
Control Surface Direction 11 ...................................................................................
Dual Rates and Control Throws 12 ..........................................................................
AS3X Control Direction Test (BNF Basic) 12 .............................................................
In Flight Trimming .............................................................................................. 12
Flying Tips and Repairs 13 ......................................................................................
SAFE Select Flying Tips 13 ......................................................................................
Post Flight..........................................................................................................14
Power Components Service 14 ...............................................................................
Troubleshooting Guide AS3X ..............................................................................15
Troubleshooting Guide 15 .......................................................................................
Replacement Parts 16 .............................................................................................
Optional Parts 16 ....................................................................................................
Recommended Receivers (
PNP) 16 ............................................................................
AMA National Model Aircraft Safety Code 17 ...........................................................
Limited Warranty ...............................................................................................18
Warranty and Service Contact Information 18 .........................................................
FCC Information 19 .................................................................................................
IC Information 19 ....................................................................................................
Compliance Information for the European Union 19 .................................................
To receive product updates, special offers and more,
register your product at https://www.horizonhobby.com/content/e-flite-rc
RECEIVER BIND INFORMATION
Channels 6
Frequency 2404 – 2476 MHz
Compatibility DSM2 and DSMX
As of this printing, you may be required to register with the FAA
if you own this product.
For up-to-date information on how to register with the FAA,
please visit https://registermyuas.faa.gov/.
For additional assistance on regulations and guidance on UAS usage,
visit knowbeforeyoufly.org/.
Motor:
Motor 2840- 3150Kv (EFL9787) Installed Installed
Fan Unit:
64mm Ducted Fan Unit (EFL9790) Installed Installed
ESC: 40A Brushless with 230mm Wire (EFLA9891) Installed Installed
Servos: Installed Installed (3; SPMSA330) (1; SPMSA30R) (1; SPMSA354)
Receiver: Spektrum™ AR636B 6-Channel Sport Receiver
(SPMAR636B) Installed Required to
Complete
Recommended Battery: 14.8V 2,200mAh 30C 4S LiPo
with IEC3 or IC3™
connector
Required to
Complete
Required to
Complete
Recommended Battery Charger:
4-cell Li-Po battery balancing charger
Required to
Complete
Required to
Complete
Recommended Transmitter:
Full-Range 2.4GHz with Spektrum
™ DSM2®/DSMX®
technology and adjustable dual rates
Required to
Complete
Required to
Complete
Quick Start Information
Transmitter Setup
1. Blank (Acro) Model
2. Wing Type: Normal
3. Servo Reversing: All Normal
4. Travel Adjust (All Surfaces): 100%
Dual Rates*
High Rate Low Rate
Aileron p = 8mm
q = 8mm
p = 4mm
q = 4mm
Elevator p = 13mm
q = 13mm
p = 7mm
q = 7mm
EXPO
(Soft center)
High Rate Low Rate
Aileron 10% 0%
Elevator 10% 0%
Nose Wheel 30% 10%
Center of Gravity (CG) 90–95mm back from the leading edge, measured at
the wing root
Flight Timer Setting 3 minutes
28.7 in (729mm)
