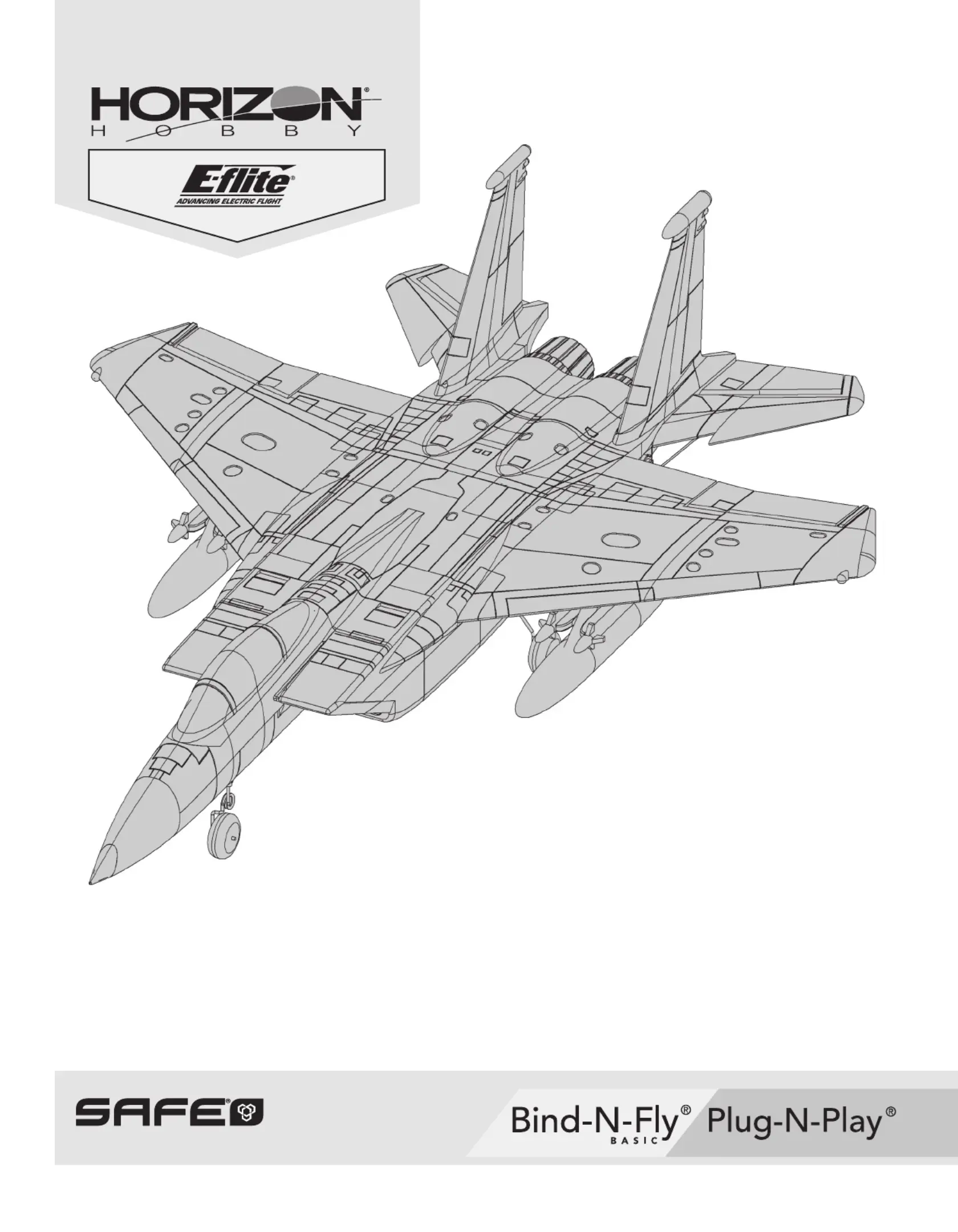

Instruction Manual
Bedienungsanleitung
Manuel d’utilisation
Manuale di Istruzioni
SAFE® Select Technology, Optional Flight Envelope Protection
F-15 Eagle
64mm EDF
EN
2F-15 Eagle 64 mm
As the user of this product, you are solely responsible for operating in a manner that does not endanger yourself and others or result in damage to
the product or the property of others.
• Always keep a safe distance in all directions around your model
to avoid collisions or injury. This model is controlled by a radio
signal subject to interference from many sources outside your
control. Interference can cause momentary loss of control.
• Always operate your model in open spaces away from full-size
vehicles, traffi c and people.
• Always carefully follow the directions and warnings for this and
any optional support equipment (chargers, rechargeable battery
packs, etc.).
• Always keep all chemicals, small parts and anything electrical
out of the reach of children.
• Always avoid water exposure to all equipment not specifi cally
designed and protected for this purpose. Moisture causes
damage to electronics.
• Never place any portion of the model in your mouth as it could
cause serious injury or even death.
• Never operate your model with low transmitter batteries.
• Always keep aircraft in sight and under control.
• Always use fully charged batteries.
• Always keep transmitter powered on while aircraft is powered.
• Always remove batteries before disassembly.
• Always keep moving parts clean.
• Always keep parts dry.
• Always let parts cool after use before touching.
• Always remove batteries after use.
• Always ensure failsafe is properly set before fl ying.
• Never operate aircraft with damaged wiring.
• Never touch moving parts.
NOTICE
All instructions, warranties and other collateral documents are subject to change at the sole discretion of Horizon Hobby, LLC. For up-to-date
product literature, visit www.horizonhobby.com and click on the support tab for this product.
Meaning of Special Language
The following terms are used throughout the product literature to indicate various levels of potential harm when operating this product:
WARNING: Procedures, which if not properly followed, create the probability of property damage, collateral damage, and serious injury OR
create a high probability of superfi cial injury.
CAUTION: Procedures, which if not properly followed, create the probability of physical property damage AND a possibility of serious injury.
NOTICE: Procedures, which if not properly followed, create a possibility of physical property damage AND little or no possibility of injury.
WARNING: Read the ENTIRE instruction manual to become familiar with the features of the product before operating. Failure to operate
the product correctly can result in damage to the product, personal property and cause serious injury.
This is a sophisticated hobby product. It must be operated with caution and common sense and requires some basic mechanical ability. Failure
to operate this Product in a safe and responsible manner could result in injury or damage to the product or other property. This product is not
intended for use by children without direct adult supervision. Do not use with incompatible components or alter this product in any way outside
of the instructions provided by Horizon Hobby, LLC. This manual contains instructions for safety, operation and maintenance. It is essential to
read and follow all the instructions and warnings in the manual, prior to assembly, setup or use, in order to operate correctly and avoid damage
or serious injury.
Safety Precautions and Warnings
14+AGE RECOMMENDATION:
Not for children under
14years. This is not a toy.
WARNING AGAINST COUNTERFEIT PRODUCTS: If you ever need to replace your Spektrum
receiver found in a Horizon Hobby product, always purchase from Horizon Hobby, LLC or a
Horizon Hobby authorized dealer to ensure authentic high-quality Spektrum product. Horizon Hobby, LLC
disclaims all support and warranty with regards, but not limited to, compatibility and performance of
counterfeit products or products claiming compatibility with DSM or Spektrum technology.
EN
3
Safety Precautions and Warnings . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Box Contents . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Components . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Table of Contents . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
SAFE® Select Technology (BNF Basic) . . . . . . . . . . . . . . . . . . . . . . . . 4
Prefl ight . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Transmitter Setup (BNF Basic) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Model Assembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
PNP Receiver Selection and Installation . . . . . . . . . . . . . . . . . . . . . . 8
Transmitter and Receiver Binding / SAFE Select (BNF Basic) . . . . . . . 9
Battery Installation and ESC Arming . . . . . . . . . . . . . . . . . . . . . . . . 10
SAFE® Select Switch Designation . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Clevis Installation and Control Centering . . . . . . . . . . . . . . . . . . . . . 11
Control Horn and Servo Arm Settings . . . . . . . . . . . . . . . . . . . . . . . 11
Center of Gravity (CG) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Control Surface Direction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
AS3X Control Direction Test (BNF Basic) . . . . . . . . . . . . . . . . . . . . . 12
In Flight Trimming (BNF Basic) . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Flying Tips and Repairs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Post Flight . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Power Components Service . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Troubleshooting Guide AS3X . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Troubleshooting Guide . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
AMA National Model Aircraft Safety Code . . . . . . . . . . . . . . . . . . . . 16
Limited Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Contact Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
FCC Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
IC Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
Compliance Information for the European Union . . . . . . . . . . . . . . . 18
Replacement Parts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 67
Optional parts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 67
If you own this product, you may be required to register with the FAA.
For up-to-date information on how to register with the FAA,
visit https://registermyuas.faa.gov/.
For additional assistance on regulations and guidance on UAS usage,
visit knowbeforeyoufl y.org/.
To receive product updates, special offers and more,
visit www.horizonhobby.com/content/e-fl ite-rc
Box Contents
Quick Start Information
Transmitter Setup Set up your transmitter using the
transmitter setup chart
Travel and
Dual Rates
Hi Rate Low Rate
Aileron 15mm 12mm
Elevator 18mm 14mm
Center of Gravity (CG) 88mm +/-3mm back from leading
edge of wing at the fuselage.
Flight Timer Setting
3 minutes
Table of Contents
Components
28.4 in (720 mm)
38.6 in (977mm)
33 – 38 oz
(935 –1077g)
RECEIVER BIND INFORMATION
Channels 6
Frequency 2405 – 2476 MHz
Compatibility DSM2 and DSMX
Motor: Brushless Outrunner
2840-3150 (EFL9787) Installed Installed
ESC: Installed Installed 40A ESC (EFL9791)
Servo: Installed Installed9 gram servo
Receiver: Spektrum™ AR636 6-Channel
Sport Receiver (SPMAR636) Installed
Required
to
Complete
Recommended Battery: 11.1-14.8V
3S or 4S 2200-2600mAh 30C Li-Po
(EFLB22003S30, EFLB22004S30)
Required
to
Complete
Required
to
Complete
Recommended Battery Charger: 3-4
cell Li-Po battery balancing charger
Required
to
Complete
Required
to
Complete
Recommended Transmitter:
Full-Range 6 channel (or more) 2.4GHz
with Spektrum
DSM2®/DSMX® technology with
adjustable Dual Rates
Required
to
Complete
Required
to
Complete
