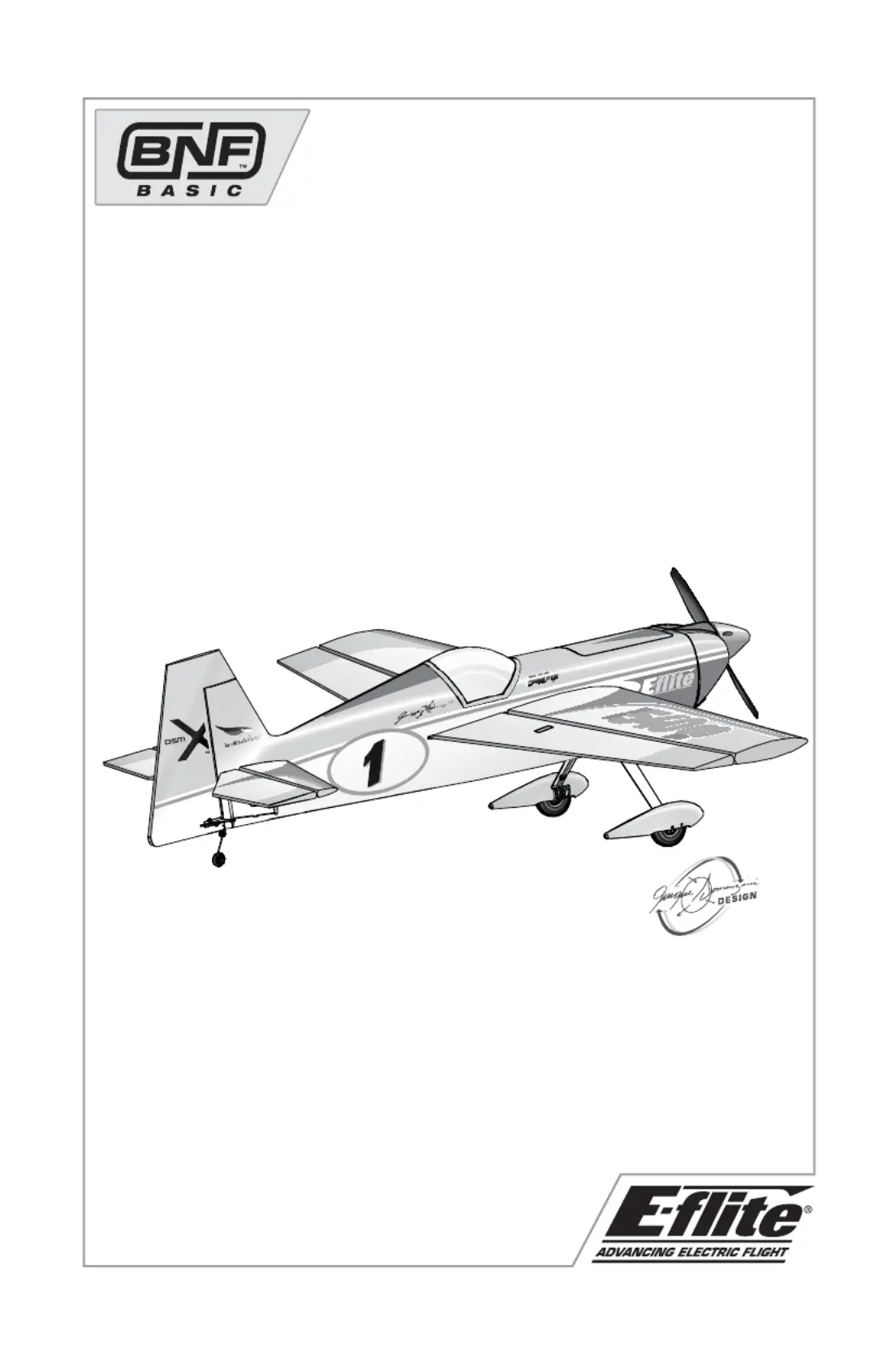

Instruction Manual
Bedienungsanleitung
Manuel d’utilisation
Manuale di Istruzioni
EDGE 540QQ 280
2
EN
WARNING: Read the ENTIRE instruction manual to become familiar with the features of the
product before operating. Failure to operate the product correctly can result in damage to the product,
personal property and cause serious injury.
This is a sophisticated hobby product. It must be operated with caution and common sense and requires
some basic mechanical ability. Failure to operate this product in a safe and responsible manner could
result in injury or damage to the product or other property. This product is not intended for use by
children without direct adult supervision. Do not use with incompatible components or alter this product
in any way outside of the instructions provided by Horizon Hobby, Inc. This manual contains instructions
for safety, operation and maintenance. It is essential to read and follow all the instructions and warnings
in the manual, prior to assembly, setup or use, in order to operate correctly and avoid damage or serious
injury.
Meaning of Special Language:
The following terms are used throughout the product literature to indicate various levels of potential
harm when operating this product:
NOTICE: Procedures, which if not properly followed, create a possibility of physical property damage AND
little or no possibility of injury.
CAUTION: Procedures, which if not properly followed, create the probability of physical property damage
AND a possibility of serious injury.
WARNING: Procedures, which if not properly followed, create the probability of property damage,
collateral damage, and serious injury OR create a high probability of superfi cial injury.
NOTICE
All instructions, warranties and other collateral documents are subject to change at the sole discretion
of Horizon Hobby, Inc. For up-to-date product literature, visit www.horizonhobby.com and click on the
support tab for this product.
Age Recommendation: Not for children under
14 years. This is not a toy.
Safety Precautions and Warnings
• Always keep a safe distance in all directions
around your model to avoid collisions or injury.
This model is controlled by a radio signal subject
to interference from many sources outside your
control. Interference can cause momentary loss
of control.
• Always operate your model in open spaces away
from full-size vehicles, traffi c and people.
• Always carefully follow the directions and
warnings for this and any optional support equip-
ment (chargers, rechargeable battery packs, etc.).
• Always keep all chemicals, small parts and
anything electrical out of the reach of children.
• Always avoid water exposure to all equipment
not specifi cally designed and protected for this
purpose. Moisture causes damage to electronics.
• Never place any portion of the model in your
mouth as it could cause serious injury or even
death.
• Never operate your model with low transmitter
batteries.
• Always keep aircraft in sight and under control.
• Always use fully charged batteries.
• Always keep transmitter powered on while
aircraft is powered.
• Always remove batteries before disassembly.
• Always keep moving parts clean.
• Always keep parts dry.
• Always let parts cool after use before touching.
• Always remove batteries after use.
• Always ensure failsafe is properly set
before fl ying.
• Never operate aircraft with damaged wiring.
• Never touch moving parts.
3
EN
he E-fl ite® Edge 540QQ 280 BNF Basic, designed by world champion Quique Somenzini, has been
Tspecifi cally built to provide exceptional precision scale and 3D aerobatic performance so that you can
fl y from practically anywhere, such as a park or small fi eld. Beyond the advanced composite-reinforced
foam construction, you’ll appreciate how its expert-approved control and power system components are
installed, making it possible for you to get fl ying faster. Along with your favorite DSM2
®/DSMX® compatible
transmitter, you can further assure the value of this model is maintained by considering a quality 11.1V
Li-Po fl ight battery, such as the E-fl ite
® 450mAh 3S 11.1V 30C Li-Po, 18AWG JST (EFLB4503SJ30), and a
reliable charger, such as the E-fl ite® Celectra™ 80W AC/DC Multi-Chemistry Battery Charger (EFLC3025).
Please be sure to read through this manual carefully so that you can successfully enjoy all the benefi ts this
outstanding E-fl ite model has to offer.
To register your product online, go to www.e-fl iterc.com
Table of Contents
Low Voltage Cutoff (LVC) .......................................4
Transmitter and Receiver Binding .........................4
Prefl ight Checklist .................................................4
Installing the Flight Battery ..................................5
Arming the ESC ....................................................6
Installing the Wing ................................................7
Control Direction Test ...........................................8
Control Centering ..................................................8
Settings for Servo Arms ........................................8
Dual Rates and Expos ...........................................9
Adjusting Center of Gravity (CG) ..........................10
Applying Decals ..................................................10
Removing the Landing Gear ................................11
Flying Tips and Repairs .......................................12
Post Flight Checklist ...........................................12
Service of Power Components ............................13
Troubleshooting Guide ........................................14
Limited Warranty ................................................15
Warranty and Service Information .......................16
Compliance Information for the European Union ..16
Replacement Parts ..............................................62
Optional Replacement and Accessories ...............63
Parts Contact Information ...................................63
Installed
Motor: BL 280 Outrunner Motor,
1800Kv (EFLM7010)
BL Controller, 10A (EFLA7300)
AR6310 DSMX Nanolite 6Ch Rx, Air
(SPMAR6310)
(3) 3.5 g Digital Servo (EFLR7100)
Needed to Complete
Recommended Battery: 450mAh 3S
11.1V 30C LiPo, 18AWG JST
(EFLB4503SJ30)
Recommended Battery Charger:
Celectra™ 80W AC/DC Multi-Chemistry
Battery Charger (EFLC3025)
Recommended Transmitter: Full Range
DSM2®/DSMX® with adjustable Dual rate and
Adjustable exponential (DX6I and up)
24.1 in (612mm)
26 in (660mm)
8.3oz
(235 g)
Box Contents
