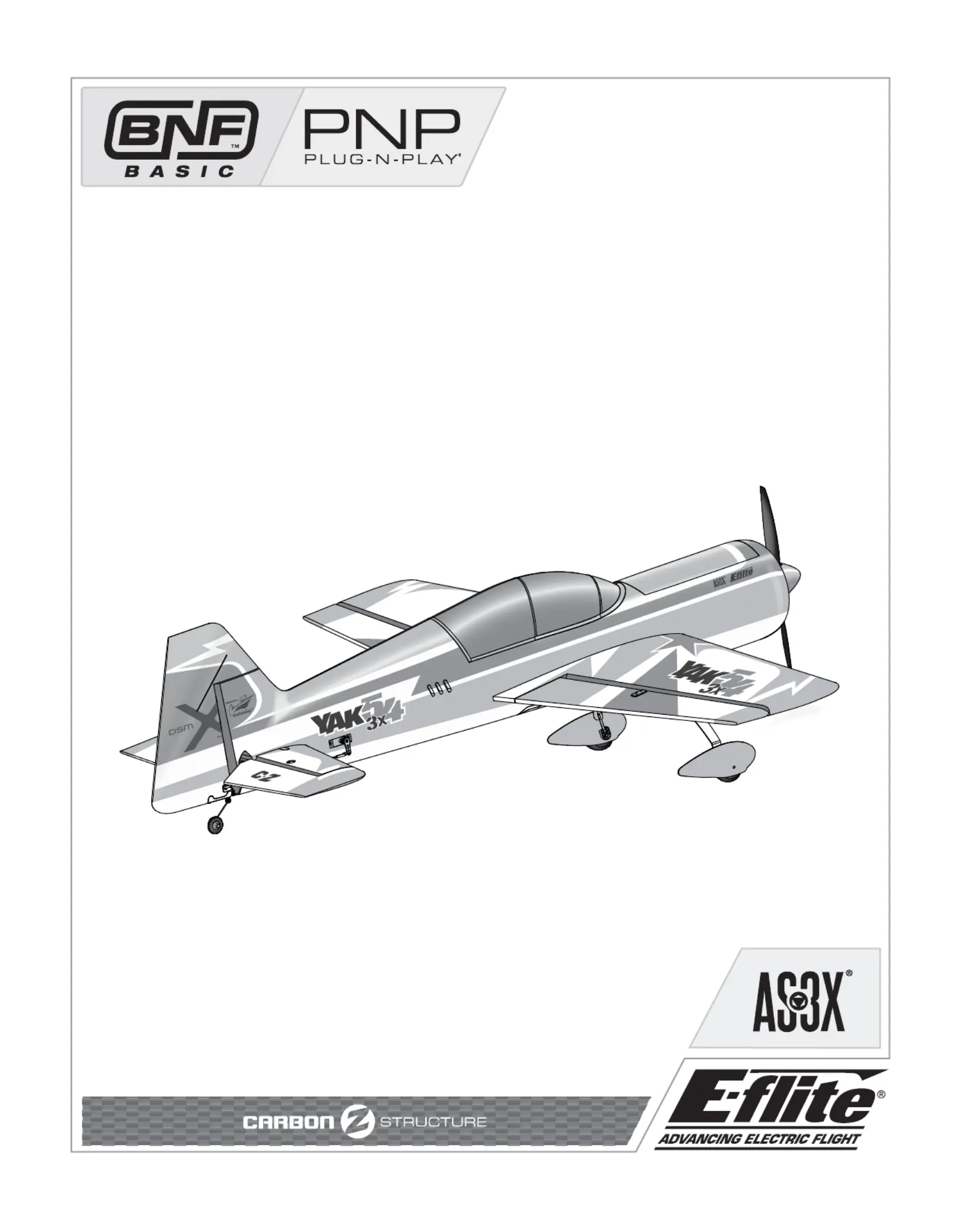

Carbon-Z® Yak 54 3X

Instruction Manual

Bedienungsanleitung

Manuel d’utilisation

Manuale di Istruzioni

Safety Precautions and Warnings

As the user of this product, you are solely responsible for operating in a man-

ner that does not endanger yourself and others or result in damage to the

product or the property of others.

• Always keep a safe distance in all directions around your airplanes to avoid

collisions or injury. This airplanes is controlled by a radio signal subject to

interference from many sources outside your control. Interference can cause

momentary loss of control

• Always operate your airplanes in open spaces away from full-size vehicles,

trafﬁ c and people.

• Always carefully follow the directions and warnings for this and any optional

support equipment (chargers, rechargeable battery packs, etc.).

• Always keep all chemicals, small parts and anything electrical out of the

reach of children.

• Always avoid water exposure to all equipment not speciﬁ cally designed and

protected for this purpose. Moisture causes damage to electronics.

• Never place any portion of the airplanes in your mouth as it could cause

serious injury or even death.

• Never operate your airplanes with low transmitter batteries.

• Always keep aircraft in sight and under control.

• Always use fully charged batteries.

• Always keep transmitter powered on while aircraft is powered.

• Always remove batteries before disassembly.

• Always keep moving parts clean.

• Always keep parts dry.

• Always let parts cool after use before touching.

• Always remove batteries after use.

• Always ensure failsafe is properly set before ﬂ ying.

• Never operate aircraft with damaged wiring.

• Never touch moving parts.

Age Recommendation: Not for children under 14 years. This is not a toy.

NOTICE

All instructions, warranties and other collateral documents are subject to change at the sole discretion of Horizon Hobby, Inc. For up-to-date product

literature, visit www.horizonhobby.com and click on the support tab for this product.

Meaning of Special Language:

The following terms are used throughout the product literature to indicate various levels of potential harm when operating this product:

NOTICE: Procedures, which if not properly followed, create a possibility of physical property damage AND little or no possibility of injury.

CAUTION: Procedures, which if not properly followed, create the probability of physical property damage AND a possibility of serious injury.

WARNING: Procedures, which if not properly followed, create the probability of property damage, collateral damage, and serious injury OR create a high

probability of superﬁ cial injury.

WARNING: Read the ENTIRE instruction manual to become familiar with the features of the product before operating. Failure to operate the product

correctly can result in damage to the product, personal property and cause serious injury.

This is a sophisticated hobby product. It must be operated with caution and common sense and requires some basic mechanical ability. Failure to oper-

ate this Product in a safe and responsible manner could result in injury or damage to the product or other property. This product is not intended for use by

children without direct adult supervision. Do not use with incompatible components or alter this product in any way outside of the instructions provided by

Horizon Hobby, Inc. This manual contains instructions for safety, operation and maintenance. It is essential to read and follow all the instructions and warn-

ings in the manual, prior to assembly, setup or use, in order to operate correctly and avoid damage or serious injury.

Charging Warnings

CAUTION: All instructions and warnings must be followed exactly.

Mishandling of Li-Po batteries can result in a ﬁ re, personal injury, and/or

property damage.

• By handling, charging or using the included Li-Po battery, you assume all

risks associated with lithium batteries.

• If at any time the battery begins to balloon or swell, discontinue use im-

mediately. If charging or discharging, discontinue and disconnect. Continuing

to use, charge or discharge a battery that is ballooning or swelling can result

in ﬁ re.

• Always store the battery at room temperature in a dry area for best results.

• Always transport or temporarily store the battery in a temperature range of

40–120º F (5–49º C). Do not store battery or aircraft in a car or direct sun-

light. If stored in a hot car, the battery can be damaged or even catch ﬁ re.

• Always charge batteries away from ﬂ ammable materials.

• Always inspect the battery before charging and never charge dead or dam-

aged batteries.

• Always disconnect the battery after charging, and let the charger cool

between charges.

• Always constantly monitor the temperature of the battery pack while charg-

ing.

• ONLY USE A CHARGER SPECIFICALLY DESIGNED TO CHARGE LI-PO BATTER-

IES. Failure to charge the battery with a compatible charger may cause ﬁ re

resulting in personal injury and/or property damage.

• Never discharge Li-Po cells to below 3V under load.

• Never cover warning labels with hook and loop strips.

• Never leave charging batteries unattended.

• Never charge batteries outside recommended levels.

• Never attempt to dismantle or alter the charger.

• Never allow minors under the age of 14 to charge battery packs.

• Never charge batteries in extremely hot or cold places (recommended be-

tween 40–120° F or 5–49° C) or place in direct sunlight.

WARNING AGAINST COUNTERFEIT PRODUCTS: If you ever need to replace your Spektrum receiver found in a Horizon Hobby product, always purchase

from Horizon Hobby, Inc. or a Horizon Hobby authorized dealer to ensure authentic high-quality Spektrum product. Horizon Hobby, Inc. disclaims all support and

warranty with regards, but not limited to, compatibility and performance of counterfeit products or products claiming compatibility with DSM or Spektrum.

Ch i W i

•

ct the batte

bef

dead

To register your product online, visit www.e-ﬂ iterc.com

Table of Contents

3.75-3.81 lb

(1.7-1.73 kg)

48.5 in (1230mm)

48 in (1220mm)

Box Contents

AS3X System .......................................................................................4

Receiver Selection and Installation .......................................................4

Transmitter and Receiver Binding .........................................................5

Battery Installation ...............................................................................6

Low Voltage Cutoff (LVC) ......................................................................6

Arming the ESC and Receiver...............................................................7

Rudder Installation ...............................................................................8

Landing Gear Installation .....................................................................9

Horizontal Tail Installation ....................................................................9

Wing Installation ................................................................................10

Servo Arm Settings ............................................................................10

Center of Gravity (CG) .......................................................................11

Control Direction Test .........................................................................11

Control Surface Centering ..................................................................12

AS3X Control Direction Test ..............................................................12

Transmitter Setup .............................................................................13

Dual Rates and Expos ........................................................................13

Preﬂ ight Preparation ..........................................................................13

Flying Tips and Repairs ......................................................................14

Power Component Service .................................................................15

AMA National Model Aircraft Safety Code ...........................................16

Troubleshooting Guide AS3X .............................................................17

Troubleshooting Guide .......................................................................18

Limited Warranty ...............................................................................19

Contact Information ...........................................................................20

FCC Information .................................................................................20

Compliance Information for the European Union .................................20

Replacement parts ............................................................................74

Optional parts ....................................................................................75

525 in²

(34 dm²)

The E-flite® Carbon-Z® Yak 54 3X

Congratulations on your purchase of the E-ﬂ ite

® Carbon-Z® Yak 54 3X. Based on the groundbreaking original, the Carbon-Z Yak 54 3X is the next generation

Carbon-Z Yak 54 that offers better performance and is an even more ideal “next step” for pilots looking to develop 3D proﬁ ciency skills. The entire airframe

features strength enhancements that increase durability and the ability to withstand aggressive 3D maneuvers better than ever. Using the same E-ﬂ ite 25-size

outrunner motor, the 3X includes an upgraded ESC with a robust BEC so the complement of upgraded digital servos consistently deliver peak precision. The

landing gear is now longer. Even its propeller has been reﬁ ned to deliver greater efﬁ ciency and smoother power. Better still, included with the Bind-N-Fly

® Basic

version is the renowned Spektrum™ AR635 sport AS3X

® receiver, which gives the Carbon-Z Yak 54 3X unmatched control agility and the stability to explore a new

performance envelope that can help you ﬂ y like a pro.

A 4-channel, DSM2®/DSMX® compatible aircraft transmitter with dual rates and expo capability is recommended. Please be sure to charge the recommended

E-ﬂ ite 2800mAh 4S 14.8V 45C Li-Po (EFLB28004S30), included with the BNF Basic version with a dependable battery maintenance system such as the E-ﬂ ite

CelectraTM 80W AC/DC Multi-Chemistry Battery Charger (EFLC3025).
