Seite 1/22

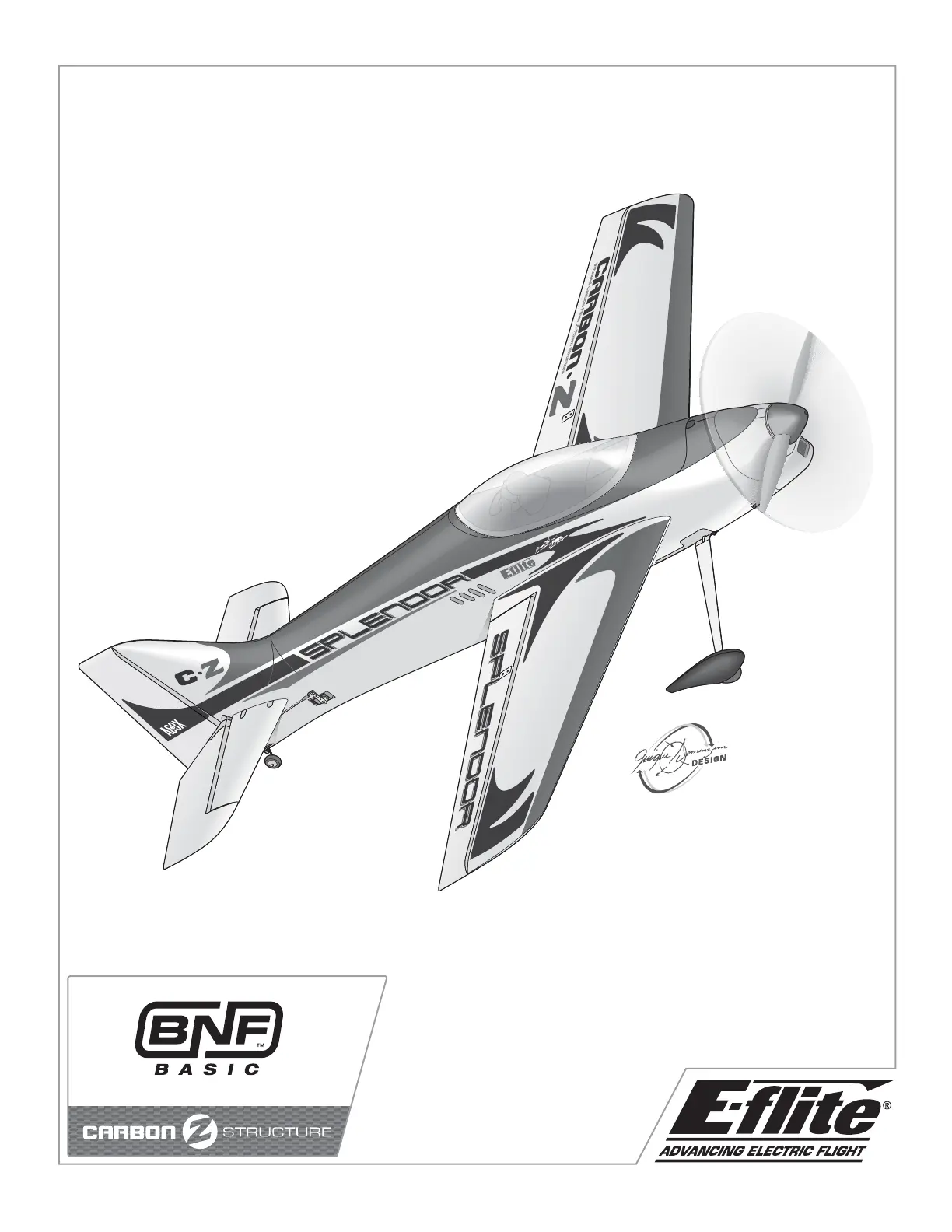

Carbon-ZTM SplendorTM
Instruction Manual - Bedienungsanleitung - Manuel dāutilisation - Manuale di Istruzioni
EN
To register your product online, visit www.e-ļ¬iterc.com
WARNING: Read the ENTIRE instruction manual to become familiar with the features of the product before operating. Failure to operate the product
correctly can result in damage to the product, personal property and cause serious injury.
This is a sophisticated hobby product. It must be operated with caution and common sense and requires some basic mechanical ability. Failure to operate this
Product in a safe and responsible manner could result in injury or damage to the product or other property. This product is not intended for use by children
without direct adult supervision. Do not use with incompatible components or augment product in any way without the approval of Horizon Hobby, Inc. This
manual contains instructions for safety, operation and maintenance. It is essential to read and follow all the instructions and warnings in the manual, prior to
assembly, setup or use, in order to operate correctly and avoid damage or serious injury.
NOTICE
All instructions, warranties and other collateral documents are subject to change at the sole discretion of Horizon Hobby, Inc. For up-to-date product
literature, visit www.horizonhobby.com and click on the support tab for this product.
Meaning of Special Language:
The following terms are used throughout the product literature to indicate various levels of potential harm when operating this product:
NOTICE: Procedures, which if not properly followed, create a possibility of physical property damage AND little or no possibility of injury.
CAUTION: Procedures, which if not properly followed, create the probability of physical property damage AND a possibility of serious injury.
WARNING: Procedures, which if not properly followed, create the probability of property damage, collateral damage, and serious injury OR create a high
probability of superļ¬cial injury.
Safety Precautions and Warnings
As the user of this product, you are solely responsible for operating in a man-
ner that does not endanger yourself and others or result in damage to the
product or the property of others.
ā¢ī Always keep a safe distance in all directions around your model to avoid
collisions or injury. This model is controlled by a radio signal subject to
interference from many sources outside your control. Interference can cause
momentary loss of control
ā¢ī Always operate your model in open spaces away from full-size vehicles,
trafļ¬c and people.
ā¢ī Always carefully follow the directions and warnings for this and any optional
support equipment (chargers, rechargeable battery packs, etc.).
ā¢ī Always keep all chemicals, small parts and anything electrical out of the
reach of children.
ā¢ī Always avoid water exposure to all equipment not speciļ¬cally designed and
protected for this purpose. Moisture causes damage to electronics.
ā¢ī Never place any portion of the model in your mouth as it could cause serious
injury or even death.
ā¢ī Never operate your model with low transmitter batteries.
ā¢ī Always keep aircraft in sight and under control.
ā¢ī Always use fully charged batteries.
ā¢ī Always keep transmitter powered on while aircraft is powered.
ā¢ī Always remove batteries before disassembly.
ā¢ī Always keep moving parts clean.
ā¢ī Always keep parts dry.
ā¢ī Always let parts cool after use before touching.
ā¢ī Always remove batteries after use.
ā¢ī Always ensure failsafe is properly set before ļ¬ying.
ā¢ī Never operate aircraft with damaged wiring.
ā¢ī Never touch moving parts.
Age Recommendation: Not for children under 14 years. This is not a toy.
2
EN
Table of Contents
Introduction
Speciļ¬cations
5.50 lb
(2.50 kg)
56.7 inches (1440mm)
54.5 inches (1380mm)
BL50 Brushless Outrunner Motor,
525Kv Installed
60-Amp Pro Switch-Mode BEC Brushless
ESC (V2) Installed
(4) 26 g Digital MG Mini Servo (EFLR7145) Installed
Spektrumā¢ AR635, 6-Channel AS3X Sport
Receiver Installed
Battery: 3200mAh 22.2V 6S 30C Li-Po
(EFLB32006S30)
Needed to
Complete
Battery Charger: 6-cell Li-Po battery
balancing charger
Needed to
Complete
Recommended Transmitter:
Full-Range 2.4GHz with Spektrum
DSM2/DSMX technology with
adjustabel Expo and Dual rate.
Needed to
Complete
Box Contents
Trim Scheme designed by Mirco Pecorari of Aircraft Studio Design.
Speciļ¬cations 3 ................................................................................
Transmitter and Receiver Binding 4 ...................................................
Installing the Battery 5 ......................................................................
Low Voltage Cutoff (LVC) 5 ................................................................
AS3X System 5 .................................................................................
Arming the ESC and Receiver......................................................... 6
Installing Landing Gear 6 ..................................................................
Installing the Horizontal Tail............................................................7
Factory Servo Arm Settings 7 ............................................................
Installing the Wings ....................................................................... 8
Center of Gravity (CG) 8 ...................................................................
AS3X Control Direction Test 9 ...........................................................
Control Direction Test .................................................................... 9
Control Surface Centering, Transmitter and Receiver Operation 9 .....
Transmitter Setup 10 .......................................................................
Dual Rates and Expos 10 ..................................................................
Preļ¬ight Checklist 11 ........................................................................
Flying Tips and Repairs 11 ................................................................
Maintenance After Flying .............................................................11
Guidelines for Precision Flying 12 .....................................................
Service of Power Components 13 .....................................................
AMA National Model Aircraft Safety Code 14 .....................................
Federal Aviation Administration .................................................... 14
Troubleshooting Guide AS3X 15 .......................................................
Troubleshooting Guide 16 .................................................................
Limited Warranty ......................................................................... 17
Contact Information 18 .....................................................................
Parts Contact Information 67 ............................................................
Replacement Parts 67 .......................................................................
Optional Parts 68 ..............................................................................
Flight Log 69 ....................................................................................
Welcome to the cutting edge of electric ļ¬ight! World Aerobatic Champion,
Quique Somenzini, designed your new E-ļ¬iteĀ® Carbon-Zā¢ Splendorā¢
aircraft to deliver everything the world of precision ļ¬ying has to offer. Beautiful
from any angle you look at it, the Carbon-Z Splendor allows you to perform
both elegant F3A aerobatic maneuvers and extreme 3D stunts all in the same
ļ¬ight. In conjunction with rigid Carbon-Z construction, the remarkable AS3XĀ®
technology built into the included Spektrumā¢ AR635 receiver makes it
possible for you to experience a performance envelope thatās wider than ever
before possible. This means that no matter how you like to ļ¬y, youāll enjoy both
rock-solid stability and outrageous maneuverability without any sacriļ¬ce
in precision or control feel. Other outstanding highlights include a custom-
designed power system and high-quality E-ļ¬ite digital servos.
Your Splendor aircraft represents the benchmark of performance and
aerobatic versatility. And itās brought to you with the convenience and value of
Bind-N-FlyĀ® Basic technology. All you have to do next is read and apply the
information presented in this instruction manual, then choose your favorite
Li-Po ļ¬ight battery and DSM2Ā®/DSMXĀ® compatible transmitter.
645 inĀ²
(41.5 dmĀ²)
3
