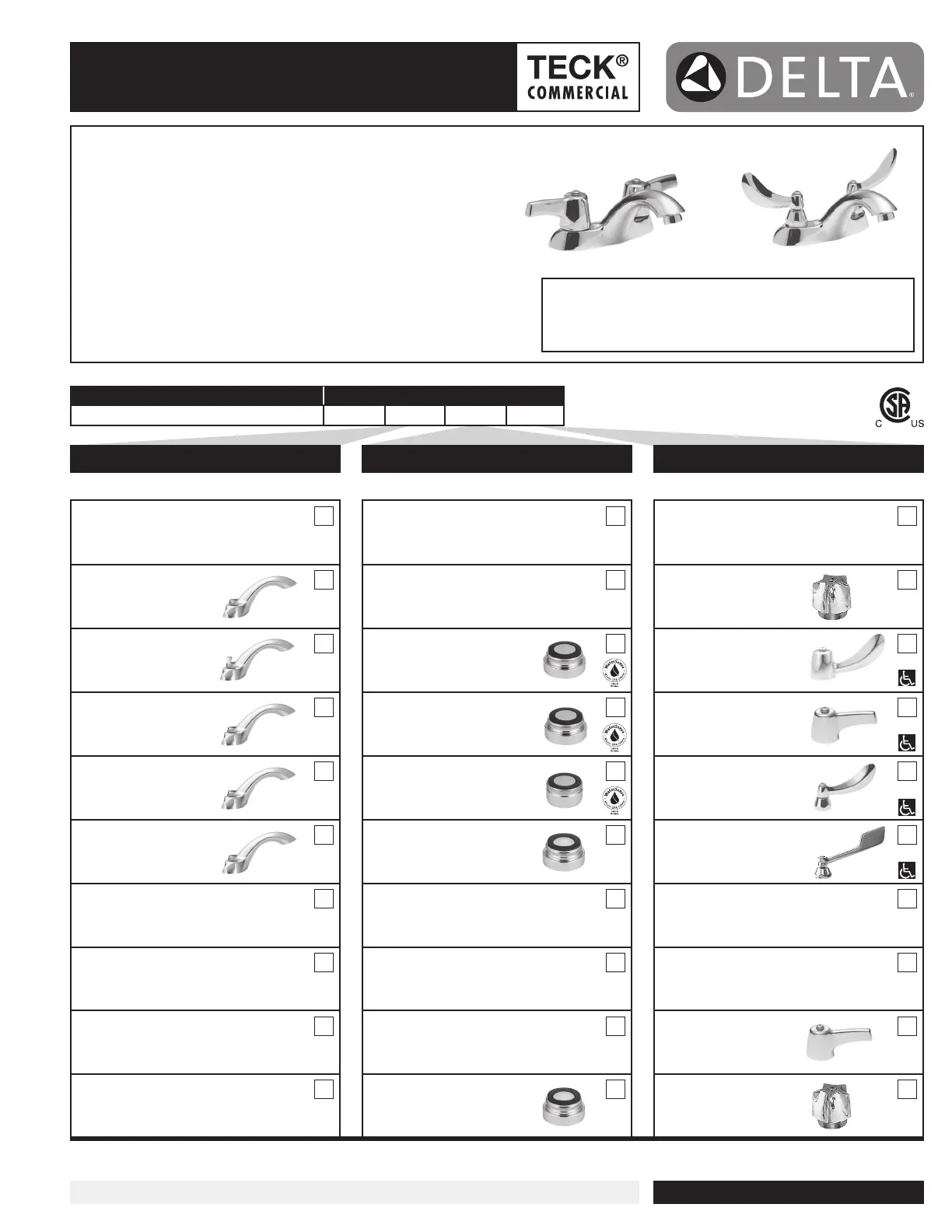

Engineer/Architect Approval
Model Specified:
Approval: Date:
0
1
2
3
4
5
6
7
8
9
0
1
2
3
4
5
6
7
8
9Vandal Resistant
0.35 gpm (1.32 L/min.)
Non-Aerating Spray Outlet
0
1
2
3
4
5
6
7
8
9
Delta reserves the right (1) to make changes in specifications and materials, and (2) to change or discontinue models, both without notice or obligation.
Dimensions are for reference only. See current full-line price book or www.specselect.com for finish options and product availability.
See Series 27C4, 27C5 for 4" Gooseneck Spout Centersets. –TI(1) H & C Temperature Indicator available. Add suffix . Flow Rates are at 60 PSI.
Refer to www.specselect.com for individual models. Note: Use this page front and back as a product submittal sheet.
Specification: (example)
• HEAVY DUTY CAST BRASS centerset faucet
• 102mm (4") centers, two handle
• Polished chrome plated finish with polished underspout
• Metal hold-down package
• Color indexed metal handles with
vandal resistant screws
• CER-TECK® 1/4 turn ceramic structures
and … with … (add product variation required)
with … (add outlet required)
with … (add handle required)
with … (add suffix if required – See Back Page)-TI
Cast Centerset Faucets
4" Centers
21C144
21C143
HANDLE
OUTLET
PRODUCT VARIATION
Standard Product
With Chain Stay
Less Plug & Chain
Standard Product
Less Pop-up
(No Pop-up Hole)
Standard Product
With Pop-upMetal
Standard Product
with Open Cast
Grid Strainer
(No Pop-up Hole)
Standard Product
With ADA Offset
Open Grid Strainer
(No Pop-up Hole)
Vandal Resistant
1.5 gpm (5.7 L/min.)
Laminar w/Agion
®
Antimicrobial
Vandal Resistant
1.5 gpm (5.7 L/min.)
Flow Control Aerator
Standard
1.5 gpm (5.7 L/min.)
Flow Control Aerator
Vandal Resistant
0.5 gpm (1.9 L/min.)
Non-Aerating Spray Outlet
Five Flute Handles
102mm (4")
Hooded Blade
Handles (1)
76mm (3")
Hooded Lever
Handles (1)
102mm (4")
Blade Handles,
Sanitary Hoods (1)
152mm (6")
Wrist Handles,
Sanitary Hoods
76mm (3")
Self-Closing Hooded
Lever Handles
Five Flute
Self-Closing Handles
DESCRIPTION PRODUCT NO.
4" Centerset Faucet 21C
®
DSP–21C Rev. C
Delta reserves the right (1) to make changes in specifications and materials, and (2) to change or discontinue models, both without notice or obligation.
Dimensions are for reference only. See current full-line price book or www.specselect.com for finish options and product availability.
Note: Measurements may vary ± 6mm (0.25")
Refer to www.specselect.com for individual models. Note: Use this page front and back as a product submittal sheet.
Cast Centerset Faucets
4" Centers
35mm
(1.375")
Dia.
86mm
(3.375")
118mm
(4.625")
42mm (1.625")
to
61mm (2.375")
32mm
(1.25")
Dia.
54mm
(2.125")
Dia.
SIDE VIEW
OPEN GRID STRAINER
(supplied with Product Variation 3) OFFSET OPEN GRID STRAINER
(supplied with Product Variation 4)
FRONT VIEW
FLOW RATE vs PRESSURE
No. 2 Laminar Flow Outlet
2.5
2
1.5
1
.5
00
0
1
2
3
4
5
6
7
8
9
10 20 30 40 50 60 70 80
Spout Outlets
Line Pressure (psig)
FLOW
(L/min.)
FLOW
(GPM)
No. 3 & 4 Aerator
No. 5 Outlet No. 9 Outlet
Outlet Flow Rates
130mm
(5.1")194mm
(7.63")
282mm
(11.0")
51mm
(2.0") MAX
32mm
(1.25")
57mm
(2.25")
DIA.
23
91mm
(3.6")
130mm
(5.1")
D
56mm
(2.2")
66mm
(2.6")
216mm
(8.5")
57mm
(2.25") MAX.
57mm
(2.25")
32mm
(1.25")
DIA.
85mm
(3.4")
76mm
(3.0")
76mm
(3.0")
25mm
(1") DIA. MIN.
169mm
(6.64")
44mm
(1.75")
MAX. DECK
THICKNESS
102mm
(4.0")
117mm
(4.6")
89mm
(3.5")
102mm
(4.0")
1/2"-14 NPSM
CAST
SPOUT “D”
OUTLET NO. mm in.
2 11 0.45
3 11 0.45
4 11 0.45
5 11 0.45
9 11 0.45
INLET FOR 3/8" OR 1/2" FLEXIBLE RISER
OR 1/2-14 NPSM COUPLING NUT
(NOT SUPPLIED)
141mm
(5.5")
135mm
(5.3")
152mm
(6.0")
HANDLE TEMPERATURE
INDICATORS
❏
Add suffix to Product Number for “-TI”
handle temperature indicators “H” (red),
“C” (blue). Availaible on handle options
2, 3 or 4 only.
5
4
1 9&
96mm
(3.77")
95mm
(3.7")
102mm
(4.0")
2
3 8&
METAL POP-UP
(supplied with Product Variation 2)
Approvals:
• CSA certified
• Complies to ASME A112.18.1/CSA B125.1
•
Handles No. 2, 3, 4 and 5
Indicates compliance to ICC/ANSI A117.1
•
Outlet options 2, 3 and 4 are
EPA WaterSense listed
• Verified compliant with 0.25% weighted
average Pb content regulations
( Contact Delta Representative for State and/or
Local Approvals.)
DSP–21C Rev. C
