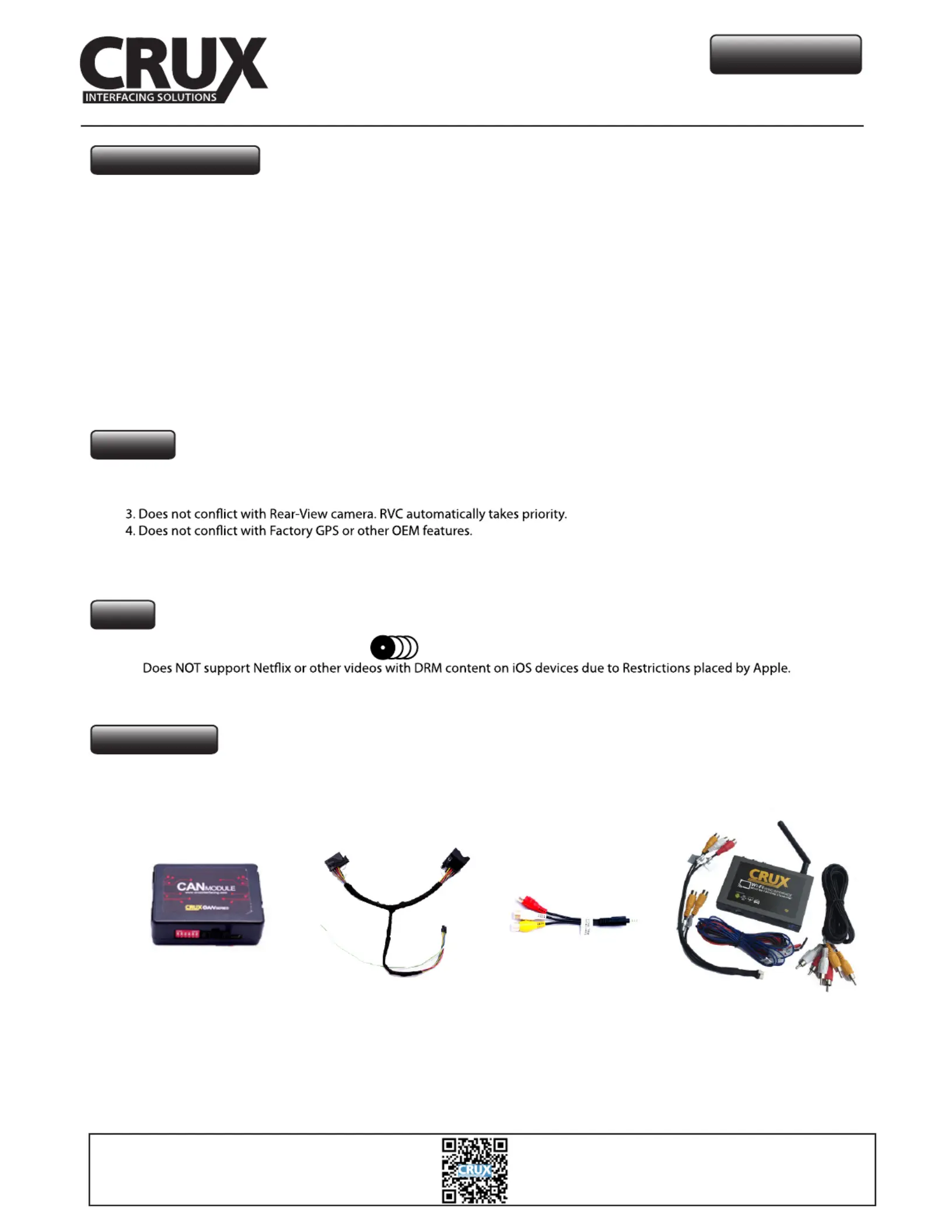

Seite 1/6
MERCEDES BENZ
2013 - 13 B-class (W246)20
2012 - 13 lass (W204)20 C-c
2012 - 13 lass (C204)20 C-c
2012 - 13 E-class (W212)20
2012 - 14 E-class (C207)20
2012 - 13 CLS (C218)20
2011 - 13 GLK (W204)20
2012 - 13 ML (W166)20
2012 - 13 SLK (R172)20
2013 - 13 SL (R231)20
Crux Interfacing Solutions
www.cruxinterfacing.com
tel. #: (818) 609-9299
fax #: (818) 996-8188
Wi-Fi Connectivity and Audio/Video Interface for
Select Vehicles with APS NTG4.5 Navigation System MERCEDES BENZ
WVIMB-06
Vehicle Applications Now Streams YouTube Videos from iOS Devices!
Features
1. Works on NTG4.5 Navigation Radios.
2. Built-in VIM capability for A/V sources.
5. Online navigation via Smartphone Mirroring.
6. WiFi module includes 2 video outputs for multiple screen applications.
Parts Included
Notes
3. Crux part# VCIP5 cable may be utilized for accessing these Apps (Sold Separately).
WVIMB-06 Module MB-06 Harness AV Adapter WVI-X WiFi Module
2.
1. Radio MUST have Multi Changer icon.
1 / 6 rev.082816
8-PIN
(male plug)
4 5 6
ON
1 2 3
16-PIN
(male plug)
16-PIN
(female plug)
OPTIONAL /
TOGGLE SWITCH
ENABLEDISABLE
STATUS LEDs
WHITE / +12V OUTPUT
TO FACTORY
HARNESS
GREEN / VIDEO UNLOCK
Tap RED wire
Tap BLACK wire
TO FACTORY
RADIO
Crux Interfacing Solutions
www.cruxinterfacing.com
tel. #: (818) 609-9299
fax #: (818) 996-8188
Wi-Fi Connectivity and Audio/Video Interface for
Select Vehicles with APS NTG4.5 Navigation System MERCEDES BENZ
WVIMB-06
FACTORY
A/V INPUT
TO FACTORY
A/V INPUT
Wi-Fi
INTERFACE
HDMI OUTPUT
RED = +12V ACC
BLACK = GROUND
BLUE = A/V TRIGGER*
A/V INPUT
VIDEO
OUTPUTS
*Connect BLUE wire to +12V
to toggle A/V INPUT
A/V OUTPUT
A/V CABLE
4 5 6
ON
1 2 3
DIP 1 = ON
2
3
4
5
DIP 6
OFF
ACTIVATE
VIDEO
IN-MOTION
DIP SWITCHES OVERVIEW
RADIO MUST HAVE MULTI HANG ICON-DISC C ER
MULTI-DISC
CHANGER ICON
2 / 6 rev.082816
CONNECT THE INTERFACEING
Step 1 - Remov the fa ory ra o n ac ss o the factory 16-Pin onn tor. e ct di to gai ce t c ec
Disconnec th ctory 16-Pin con o fro the ra o.t e fa nect r m di
Step 2 - On the factory 16-Pin connector, remove the factory FIBER OPTIC cables from the harness.
With the Fiber Optic cables removed, re-insert them into the our 16-Pin T-Harness male connector.
(See location below)
RE-INSERT
HERE
Crux Interfacing Solutions
www.cruxinterfacing.com
tel. #: (818) 609-9299
fax #: (818) 996-8188
Wi-Fi Connectivity and Audio/Video Interface for
Select Vehicles with APS NTG4.5 Navigation System MERCEDES BENZ
WVIMB-06
Step 3 - te the T-Harness to the fa or ar s en to the radio de. Ma ct y h nes , th si
Be sur k he har ss or a ur onn t n.e to loc t ne f sec e c ec io
3 / 6 rev.082816
