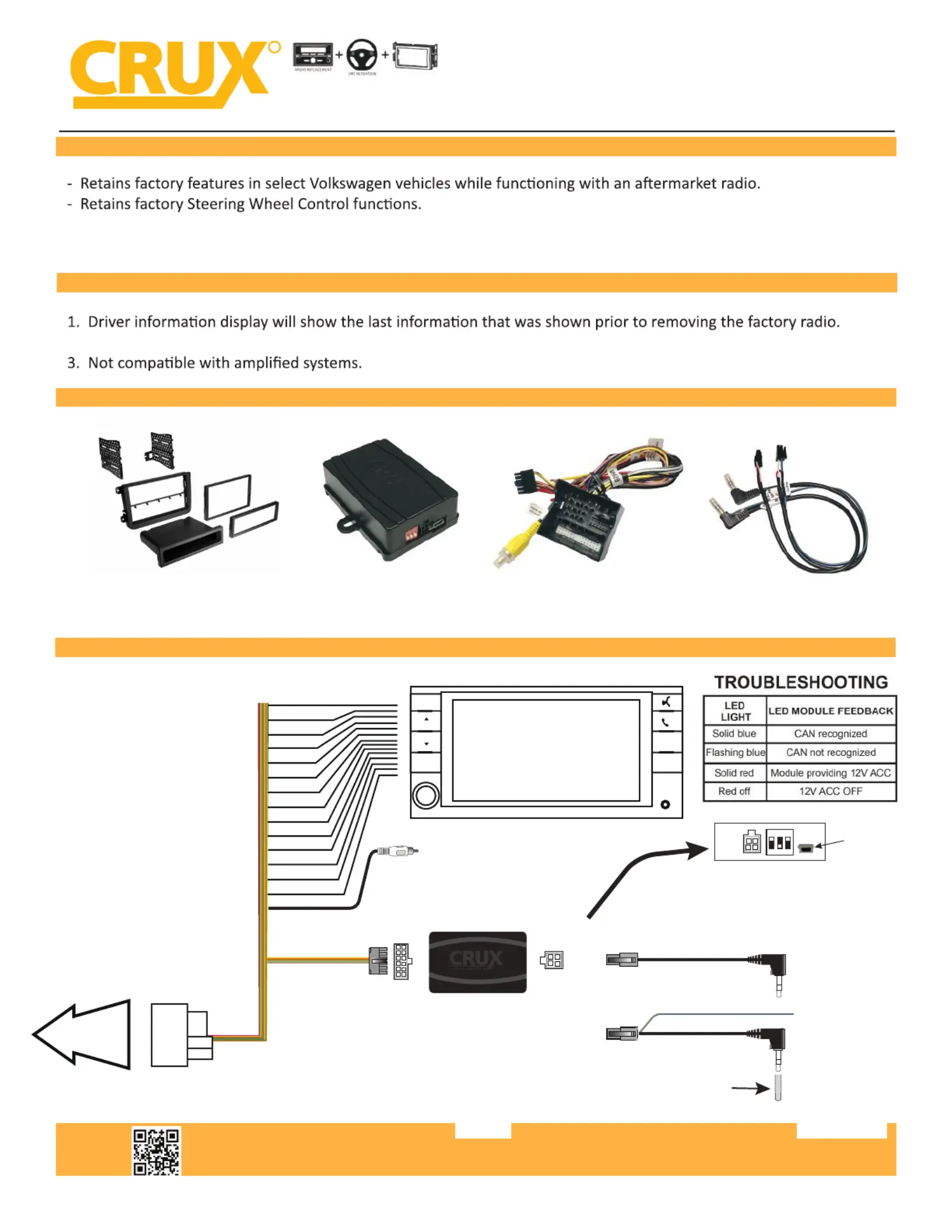

Seite 1/4
Crux Interfacing Solutions • 21541 Nordhoff St., Unit C, Chatsworth, CA 91311
phone: (818) 609-9299 • fax: (818) 996-8188 • www.cruxinterfacing.com
PRODUCT FEATURES:
- Retains factory backup camera.
2. This interface does not retain the factory Bluetooth or Sirius Satellite Radio.
PARTS INCLUDED:
SWRVW-52B Module SWRVW-52B Harness SWC Cables
rev.072322
1 of 4
NOTES:
INSTALLATION DIAGRAM:
AFTERMARKET
RADIO
+12V Constant Yellow
+12V ACC Red
Ground Black
Illuminaon (+) Orange
Vehicle Speed Sense Purple/White
Reverse Gear Signal Red/White
Right Front (+) Gray
Right Front (-) Gray/Black
Le Front (+) White
Le Front (-) White/Black
Right Rear (+) Purple
Rig ht Rear (-) Purple/Black
Le Rear (+) Green
Le Rear (-) Green/Black
Backup Camera Input Yellow RCA
TO FACTORY
HARNESS
12-Pin
Connector
1 2 3
ON
4-Pin
Connector
3.5MM SWC CABLES (Option A or B)
Use the proper 3.5MM to 4-Pin cable for your radio.
Plug in the selected 3.5MM SWC cable to the 4-pin
port on the module. See “DIP SWITCH SETTINGS” section.
mini USB
Not Used
Option A:
Option B:
Cap or insulate if
not being used
BLUE / YELLOW FOR JVC & KENWOOD
AUDIO
MENU
SEEK
SEEK
RADIO
MEDIA
VOLUME
OPEN
CLOSE
Backup camera input
To aftermarket
radio SWC wire
or 3.5mm port
DKVW-52B
Radio Replacement with Steering Wheel Control Retention
R
INTERFACING SOLUTIONS
and Dash Kit for Select VW Vehicles
- Includes Single DIN/ISO with pocket or Double DIN Dash Kit.
Single DIN/ISO with pocket
or Double DIN Dash Kit
Crux Interfacing Solutions • 21541 Nordhoff St., Unit C, Chatsworth, CA 91311
phone: (818) 609-9299 • fax: (818) 996-8188 • www.cruxinterfacing.com
rev.072322
SETTING THE AFTERMARKET RADIO BRAND
corresponding radio listed below.
2 of 4
VOLKSWAGEN
2016 – 2018 Beetle
2016 – 2018 Passat
2016 – 2017 Tiguan
VEHICLE APPLICATIONS:
2017 Beetle Radio
RADIO BRAND: DIP#: 1 2 3
Atoto, Dual, Fahrenheit, Jensen
Pioneer, Power Acoustik, Soundstream
Alpine
Clarion
Kenwood
JVC
Boss, Old Sony
New Sony
OFF ON ON
OFF ON ON
OFF ON ON
OFF OFF OFF
ON ON OFF
ON ON ON
ON OFF ON
ON OFF OFF
OFF ON OFF
SWC MODULE
DIP SWITCH
1 2 3
ON
NOTE:
check the aftermarket radio’s manual to see if the SWC buttons need to be pro ammed.gr
4-PIN SWC CABLE
OPTION A is used for ALPINE, CLARION. For JVC and KENWOOD use the Blue/Yellow wire.
OPTION B is used for ATOTO, BLAUPUNKT, BOSS, DUAL, FARENHEIT, JENSEN, POWER ACOUSTIK,
NOTE: Cap or insulate the 3.5mm plug or Blue/Yellow wire if not being used.
RED to SWC Key 1
WHITE to SWC Key 2
SHIELD to SWC Ground
SWC wires as follows:
Note that there are some radios that only have SWC1 and SWC2, in this case “shield” does not need to be connected.
DKVW-52B
Radio Replacement with Steering Wheel Control Retention
R
INTERFACING SOLUTIONS
and Dash Kit for Select VW Vehicles
DOUBLE DIN
MOUNTING FRAME
DOUBLE DIN
TRIM RING
CUT
CUT
Crux Interfacing Solutions • Chatsworth, CA 91311
phone: (818) 609-9299 • fax: (818) 996-8188 • www.cruxinterfacing.com
rev.072322
2 of 4
DKVW-52B
Radio Replacement with Steering Wheel Control Retention
R
INTERFACING SOLUTIONS
DASH KIT ASSEMBLY DIAGRAM
and Dash Kit for Select VW Vehicles
DDMB RIGHT
DDMB LEFT
REMOVE SHADED POCKET
SUPPORT TABS ON LEFT
AND RIGHT BRACKET.
DOUBLE DIN INSTALLATION
1. Remove the leand right pocket support tabs.
2.Aach the le and right (DDMB) Double din mounng bracket
to the mounng frame.
3. Remove the center pocket bracket on the mounng frame.
4. Insert the (DDTR) double din trim ring into the mounng frame.
5. Insert the aermarket radio and adjust to desired fit and
ghten screws.
