WVICH-03M MODULE WVICH-03M HARNESS
Crux Interfacing Solutions • Chatsworth, CA 91311
phone: (818) 609-9299 • fax: (818) 996-8188 • www.cruxinterfacing.com
rev.0312211 of 5
- Enables wireless (Wi-Fi) Audio/Video mirroring from mobile devices to the OEM screen.
- Provides an audio/video input which can also be used to add a camera.
- Includes a USB input to play audio and video les.
- Provides a virtual remote control via a smartphone wi connection.
- Dual band (5GHz and 2.4GHz) Wi capability for clear connection.
- Includes HMDI output for high quality video.
- Works with Facetime, Maps, Skype, YouTube, and other apps.
PRODUCT FEATURES:

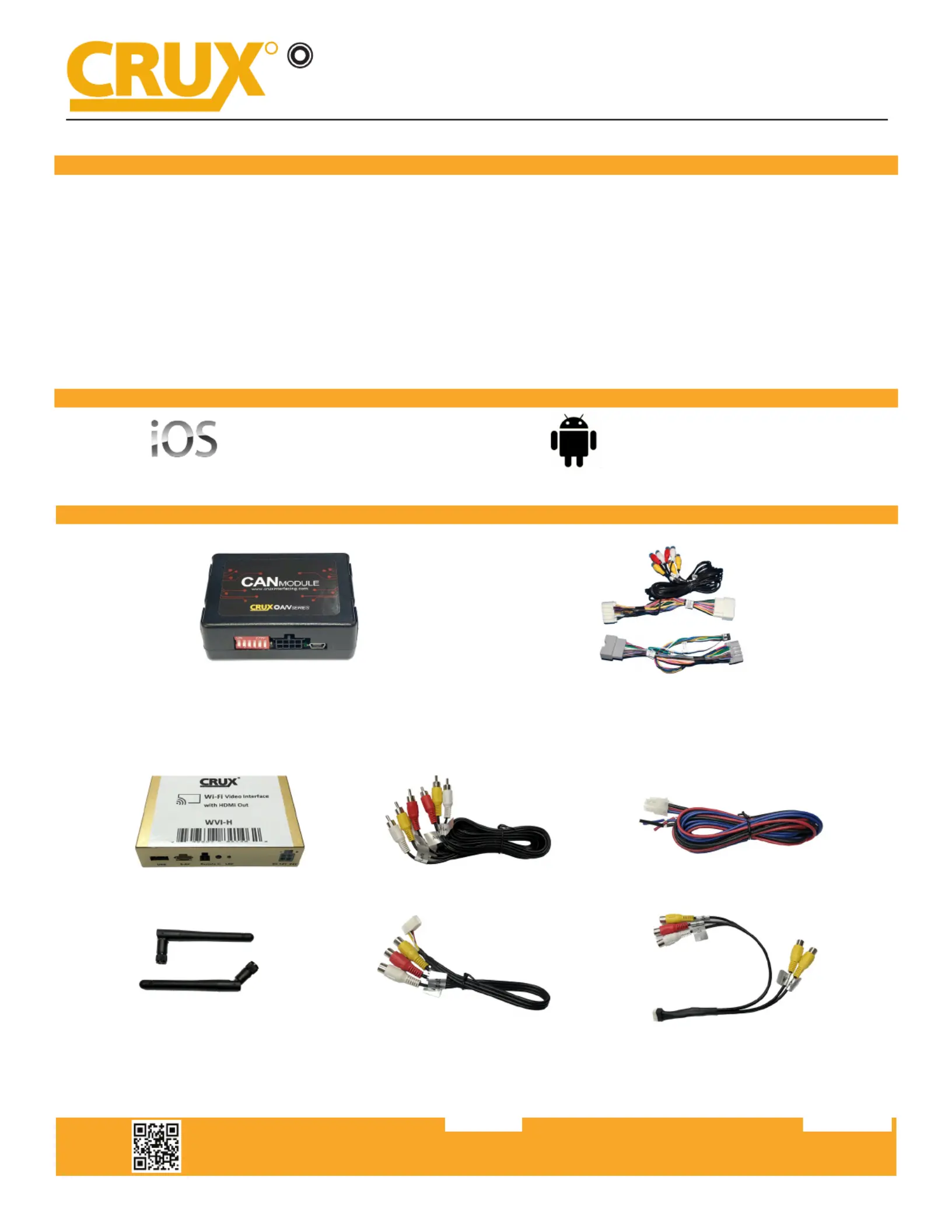

PARTS INCLUDED:
WVICH-03M
Wi Connectivity Integration and Audio Video Interface
for Select Chrysler, Dodge & Jeep Vehicles with MyGig Radio
R
INTERFACING SOLUTIONS
A/V
SERIES
WVI-H WiFi Module Extension AV Cable Power Harness
Dual Antennas WiFi AV Out Harness AV In / Video Out Harness
WORKS WITH:
iOS 7 and newer OS 4.2 and newer
Crux Interfacing Solutions • Chatsworth, CA 91311
phone: (818) 609-9299 • fax: (818) 996-8188 • www.cruxinterfacing.com
rev.0312212 of 5
INSTALLATION DIAGRAM:
INSTALLATION INSTRUCTIONS:
THE AV INTERFACE:
1. Remove the factory radio from the dashboard.
2. Unplug the factory connectors from behind the factory radio.
3. Mate the WVICH-03M T-Harness connecons to the factory connectors. (Make sure all connectors are
properly seated into the interface and into the radio.)
4. On the CAN Module, set DIP switch number 1 to ON to enable AV Input.
5. Switch to the new AV input by pressing the MEDIA buon on the radio then select VES. If the radio does
not have a MEDIA buon use the GREEN wire opon to toggle the AV source by connecng it to +12V. We
recommend using a toggle switch to use this feature.
WVICH-03M
Wi Connectivity Integration and Audio Video Interface
for Select Chrysler, Dodge & Jeep Vehicles with MyGig Radio
R
INTERFACING SOLUTIONS
A/V
SERIES
22-PIN
(female plug)
4 5 6
ON
1 2 3
S TATUS LED’S
22-PIN
(male plug)
8-PIN
(male plug)
22-PIN
(female plug)
22-PIN
(male plug)
GRAY
WHITE
GREEN / VIDEO UNLOCK
OPTIONAL /
TOGGLE SWITCH
ENABLEDISABLE
AUDIO/VIDEO
INPUTS
AUDIO/VIDEO
OUTPUTS
WHITE WIRE +12V
Wi-Fi
INTERFACE
HDMI OUTPUT
A/V INPUT
BLUE = A/V TRIGGER*
RED = +12V ACC
BLACK = GROUND
*Connect BLUE A/V Trigger
to +12V to toggle A/V INPUT
A/V Extension
Cable
Video Out
(to extension monitors)
Video Input (or Camera)
Right Audio Input
Left Audio Input
USB Input
1. Connect the 18-Pin power/video cable to the Wi-Fi Interface module.
2. Connect the antenna leads to the module.
3. Connect the RED power lead to +12V ACC and the BLACK wire to Ground.
4. Connect the BLUE A/V Input wire to +12V to trigger the oponal A/V input feature. The video input can
also be connected to a camera source instead. A toggle switch (not included), wired between the BLUE
wire and +12V can be used to switch ON or OFF the A/V input feature.
5. If the USB input feature will be used, you can use the virtual remote control on your smartphone to
control the USB funcons. See VIRTUAL REMOTE secon for details. Extended a USB cable to an easily
accessible locaon.
6. Plug in the Composite RCA output of the WVI-H harness to the WVICH-03 AV input.
7. Switch to the new AV input by pressing the BACK buon on the radio or the middle buon on the SWC.
(See below)
8. Test the interface and re-install the radio into the dash.
Crux Interfacing Solutions • Chatsworth, CA 91311
phone: (818) 609-9299 • fax: (818) 996-8188 • www.cruxinterfacing.com
rev.0312213 of 5
THE WIFI INTERFACE:
WVICH-03M
Wi Connectivity Integration and Audio Video Interface
for Select Chrysler, Dodge & Jeep Vehicles with MyGig Radio
R
INTERFACING SOLUTIONS
A/V
SERIES
DIP SWITCH SETTINGS ON THE MODULES:
Make sure the DIP#1 is set to the ON posion. This sets the programming to the vehicle.
1 2 3 4 5 6
ON DIP 1 SET TO ON
DIP 2 OFF Not Used
DIP 3 OFF Not Used
DIP 4 OFF Not Used
DIP 5 OFF Not Used
DIP 6 OFF Not Used
Press the MEDIA buon once to switch to the AV source.
Select to enter the AV mode.VES
NOTE: If there is no video signal owing through the
AV input, there will be a BLUE screen present. To exit,
simply press the MEDIA buon again.
VES
SWITCHING TO THE VIDEO INPUT:
