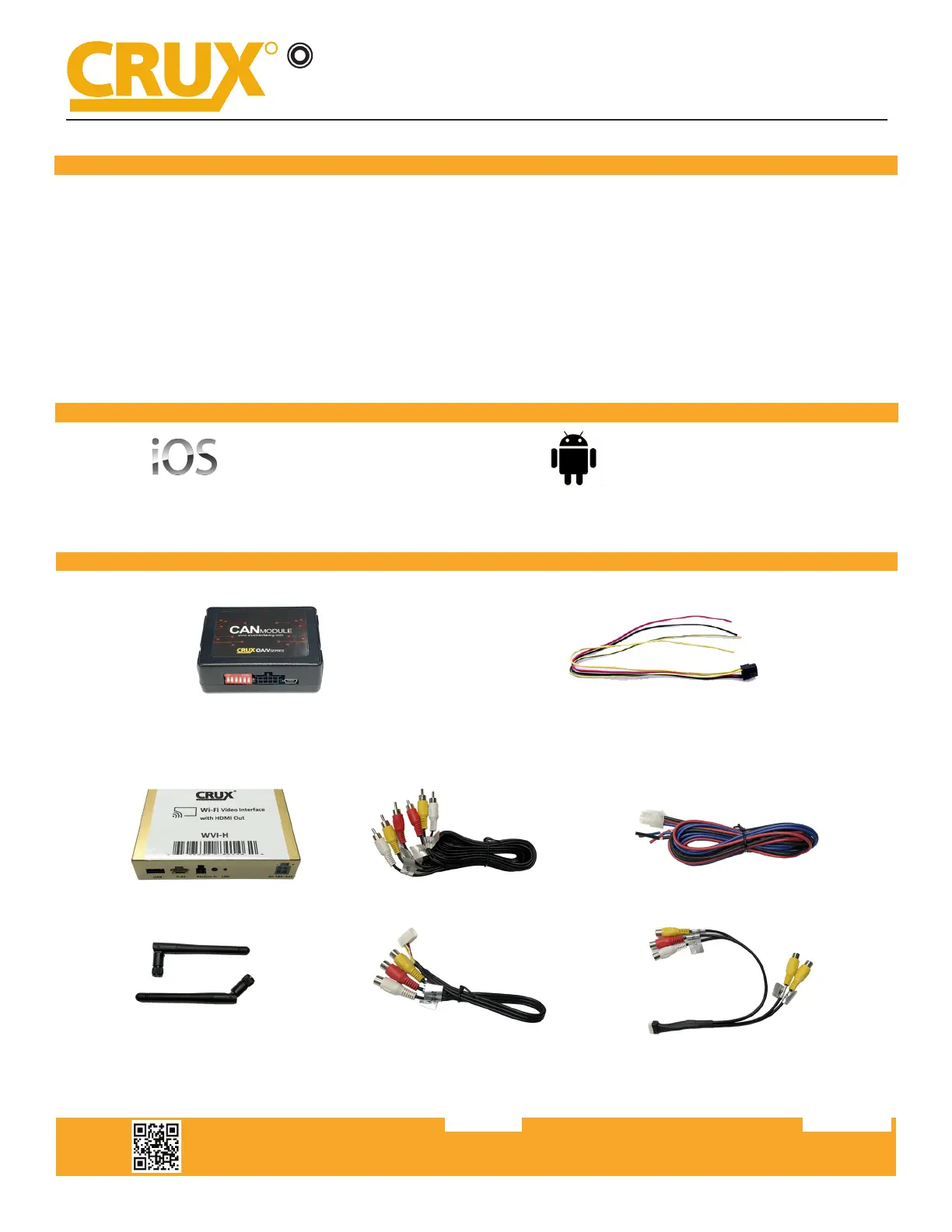

Seite 1/8
Crux Interfacing Solutions • Chatsworth, CA 91311
phone: (818) 609-9299 • fax: (818) 996-8188 • www.cruxinterfacing.com
rev.0312211 of 8
- Enables wireless (Wi-Fi) Audio/Video mirroring from mobile devices to the OEM display screen for shared
linking of functions from most Smartphones to the OEM Screen.
- Includes a USB input to play Audio and Video îš¿les.
- Provides a virtual remote control via a smartphone wiîš¿ connection.
- Dual band (5GHz and 2.4GHz) Wiîš¿ capability for clear connection.
- Includes HMDI output for high quality video.
- Works with Facetime, Navigation apps, Skype, E-mail, text, and other apps.
- Streams Youtube® videos.
PRODUCT FEATURES:
PARTS INCLUDED:
WVIGM-04M CAN Module WVIGM-04M A/V Harness
WVIGM-04M
Wi Connectivity Integration for
Select Cadillac, Chevrolet & GM Vehicles 2013-Up
R
INTERFACING SOLUTIONS
A/V
SERIES
WVI-H WiFi Module Extension AV Cable Power Harness
Dual Antennas WiFi AV Out Harness AV In / Video Out Harness
WORKS WITH:
iOS 7 and newer OS 4.2 and newer
Crux Interfacing Solutions • Chatsworth, CA 91311
phone: (818) 609-9299 • fax: (818) 996-8188 • www.cruxinterfacing.com
rev.0312212 of 8
INSTALLATION DIAGRAM:
8-PIN
(male plug)
4 5 6
ON
1 2 3
S TATUS LED’S
CAR SIDE
CUT WIRE YELLOW/BLACK / CAR SIDE
YELLOW / RADIO SIDE
4 5 6
ON
1 2 3
DIP 1 = ON
2
3
4
5
DIP 6
OFF
ACTIVATE
VIDEO
IN-MOTION
FACTORY
A/V INPUT
CUT THE WIRE ON PIN 14
TO INTERCEPT THE DATA
WIRE VIEW
MUST use the factory A/V Input
HDMI OUTPUT
Wi-Fi
INTERFACE
A/V INPUT
RED = +12V ACC
BLACK = GROUND
BLUE = A/V TRIGGER*
*Connect BLUE A/V Trigger
to +12V to toggle A/V INPUT
A/V Extension
Cable
Video Out
(to extension monitors)
Video Input (or Camera)
Right Audio Input
Left Audio Input
USB Input
DIP Switches Overview
Factory cigarette
lighter socket
WVIGM-04M
Wi Connectivity Integration for
Select Cadillac, Chevrolet & GM Vehicles 2013-Up
R
INTERFACING SOLUTIONS
A/V
SERIES
Crux Interfacing Solutions • Chatsworth, CA 91311
phone: (818) 609-9299 • fax: (818) 996-8188 • www.cruxinterfacing.com
rev.0312213 of 8
WVIGM-04M
Wi Connectivity Integration for
Select Cadillac, Chevrolet & GM Vehicles 2013-Up
R
INTERFACING SOLUTIONS
A/V
SERIES
INSTALLATION INSTRUCTIONS:
Remove the RADIO panel to gain access to the factory 20-PIN Harnesses. You will need to locate the CAN wire
on the vehicle. The Installaon Overview on page 1 will give you details on how to connect.
Using the provided 8-Pin harness, you will need to connect the DATA wire from the vehicle harness to the
module. The CAN wire is located on the factory tuner’s 20-pin connector. The tuner is located below or behind
the factory screen.
