VRFVW-73C
Front and Rear View Integration Interface
for VOLKSWAGEN Vehicles with MIB/MIB2 Systems
R
INTERFACING SOLUTIONS
Crux Interfacing Solutions • 21541 Nordhoff St., Unit C, Chatsworth, CA 91311
phone: (818) 609-9299 • fax: (818) 996-8188 • www.cruxinterfacing.com
rev.0924191 of 12
PRODUCT FEATURES:

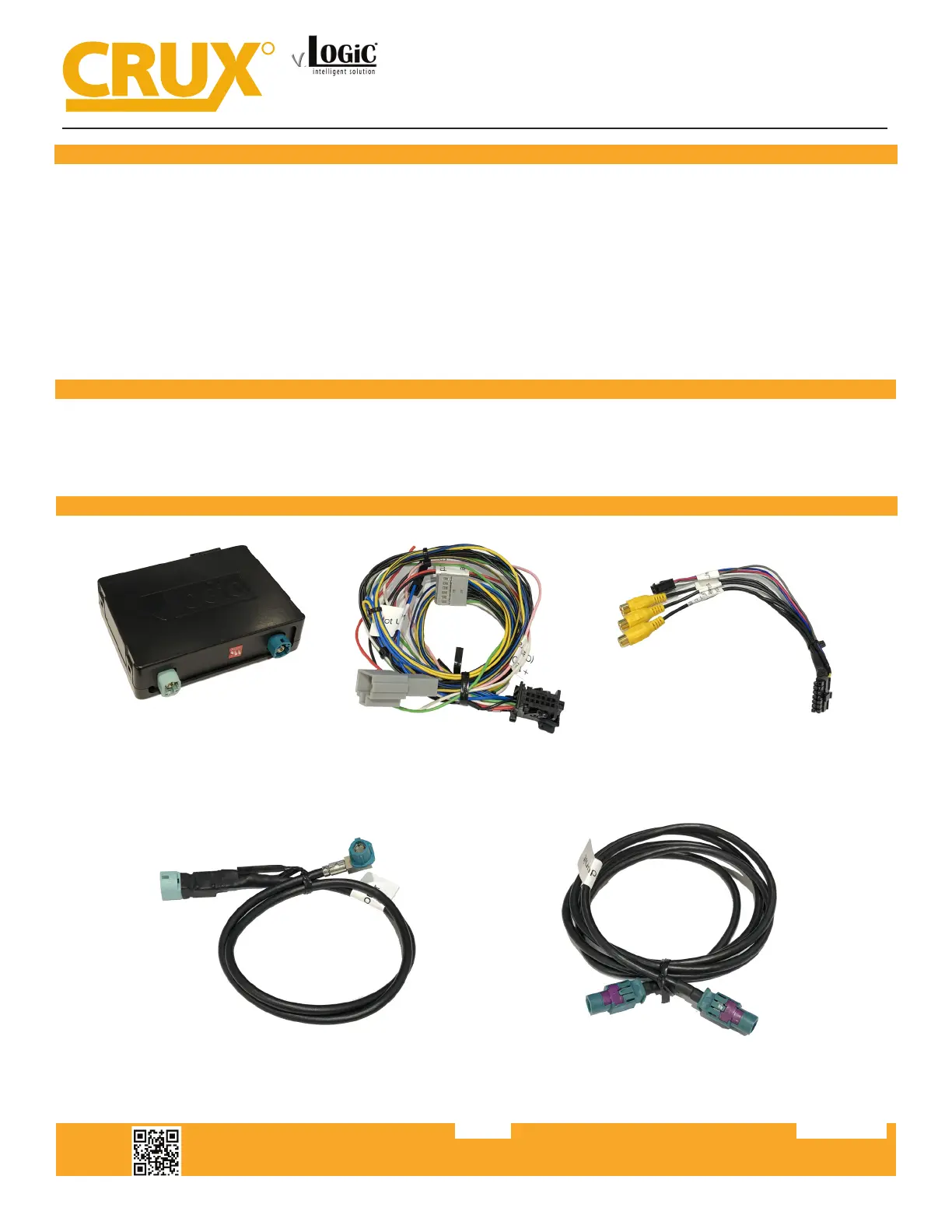

PARTS INCLUDED:
VRFVW-73C Module VRFVW-73C Harness Video Harness
LVDS1 Cable (to vehicle) LVDS 2 Cable (to radio)
- Adds front and back up camera inputs plus an extra video input1.
- Uses the steering wheel control buîž©ons or radio buîž©ons to toggle between the inputs.
- Picture-in-picture mode combining aer-market rear-view and front camera picture(s) with factory parking sensor
graphics.
- Interacîžźve parking guide lines with calibraîžźon funcîžźon.
- Simultaneous use of picture-in-picture factory parking sensor graphics and interacîžźve lane lines
- Built-in on-screen display and setup.
- 2 trigger outputs (+12V max. 1A), separately adjustable switching events (CAN, ACC, camera, reverse gear)
1. Factory Audio Aux Input is required if video input will be used for AV sources.
2. The VRFVW-73C connects at the mulîžźmedia player located in the glove box.
NOTES:
Crux Interfacing Solutions • 21541 Nordhoff St., Unit C, Chatsworth, CA 91311
phone: (818) 609-9299 • fax: (818) 996-8188 • www.cruxinterfacing.com
rev.0924192 of 12
INSTALLATION DIAGRAM:
R
INTERFACING SOLUTIONS
DIP SWITCH SETTINGS:
VEHICLE MONITOR SIZE DIP 1 DIP 2 DIP 3
VW Golf 7 / Sportsvan 6.5” OFF OFFON
VW Passat (B8) 6.5” OFF ON ON
VW Passat (B8) 8” OFFON ON
VRFVW-73C
Front and Rear View Integration Interface
for VOLKSWAGEN Vehicles with MIB/MIB2 Systems
in HSD
male LVDS Vehicle Harness
AV Sources*
Front Cam Video In
+12V Power Output 2 (Green)
Connect to AV Source Power
Crux Interfacing Solutions • 21541 Nordhoff St., Unit C, Chatsworth, CA 91311
phone: (818) 609-9299 • fax: (818) 996-8188 • www.cruxinterfacing.com
rev.092419
3 of 12
R
INTERFACING SOLUTIONS
VRFVW-73C
Front and Rear View Integration Interface
for VOLKSWAGEN Vehicles with MIB/MIB2 Systems
INSTALLATION INSTRUCTIONS:
1. Installaîžźon is done behind the media
player in the glove compartment.
2. Remove the dashboard side panel. 3. Remove the screw that holds the
glove compartment.
4. Remove the other screws holding
the glove compartment.
5. Pull down the glove compartment to
show the media player.
6. Remove the media player to gain
access to the connectors on the back.
The sample installaîžźon instrucîžźons below is on a 2017 Audi A3. The installaîžźon of the VRFVW-73C on a Volkswagen is similar to
the Audi. The unit is also plugged in at the media player which is in the glove compartment.
