VRFPR-66C
Front and Rear View Camera Integration Interface
for Select PORSCHE Vehicles with PCM4 Systems
R
INTERFACING SOLUTIONS
Crux Interfacing Solutions • 6860 Canby Ave., Suite 104, Reseda, CA 91335
phone: (818) 609-9299 • fax: (818) 996-8188 • www.cruxinterfacing.com
rev.0115191 of 11
PRODUCT FEATURES:

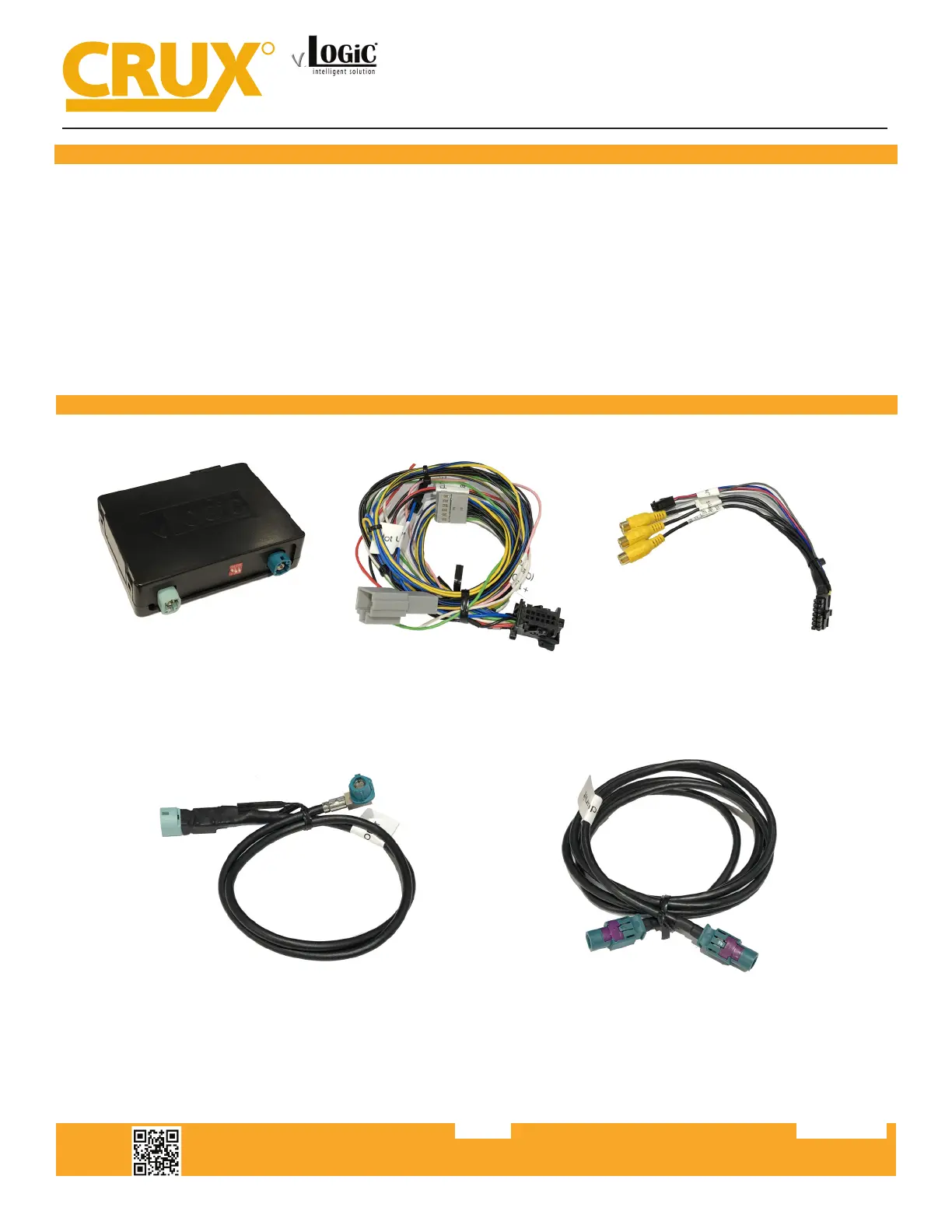

PARTS INCLUDED:
VRFPR-66C Module VRFPR-66C Harness Video Harness
LVDS1 Cable LVDS 2 Cable
- Adds front and back up camera inputs plus an extra video input*.
- Uses the steering wheel control buîž©ons or radio buîž©ons to toggle between the inputs.
- Picture-in-picture mode combining aer-market rear-view and front camera picture(s) with factory parking sensor
graphics.
- Interacîžźve parking guide lines with calibraîžźon funcîžźon.
- Simultaneous use of picture-in-picture factory parking sensor graphics and interacîžźve lane lines
- Built-in on-screen display and setup.
- 2 trigger outputs (+12V max. 1A), separately adjustable switching events (CAN, ACC, camera, reverse gear)
*Factory Audio Aux Input is required if video input will be used for AV sources.
Crux Interfacing Solutions • 6860 Canby Ave., Suite 104, Reseda, CA 91335
phone: (818) 609-9299 • fax: (818) 996-8188 • www.cruxinterfacing.com
rev.0115192 of 11
INSTALLATION DIAGRAM:
R
INTERFACING SOLUTIONS
DIP SWITCH SETTINGS:
VEHICLE MONITOR SIZE DIP 1 DIP 2 DIP 3
Porsche Cayenne/Boxster 7” OFFON ON
VRFPR-66C
Front and Rear View Camera Integration Interface
for Select PORSCHE Vehicles with PCM4 Systems
in HSD
male LVDS Vehicle Harness
AV Sources*
Front Cam Video In
+12V Power Output 2 (Green)
Connect to AV Source Power
Crux Interfacing Solutions • 6860 Canby Ave., Suite 104, Reseda, CA 91335
phone: (818) 609-9299 • fax: (818) 996-8188 • www.cruxinterfacing.com
rev.011519
3 of 11
R
INTERFACING SOLUTIONS
VRFPR-66C
Front and Rear View Camera Integration Interface
for Select PORSCHE Vehicles with PCM4 Systems
INSTALLATION INSTRUCTIONS:
1. Installaîžźon is done behind the radio. 2. Remove the radio to gain access to
the connectors.
3. Unplug the Gray connector from the
Quadlock connector.
4. Plug in the Gray connector to the
mate on the VRFPR-66C harness.
5. Locate the Pink LVDS connector and
unplug this.
6. Plug the Pink LVDS cable to the LVDS
1 cable. Plug the other end of the LVDS
1 cable to the module LVDS OUT.
7. Plug one end of the LVDS 2 cable to
the Pink LVDS port on the media player.
Plug the other end of the LVDS 2 cable
to the module LVDS IN.
8. Tap the Red and Black wires of
the VRFPR-66C harness to power &
ground: Red to RED/YELLOW
Black to BROWN
9. Tape the connecîžźons well to avoid
short circuits.
