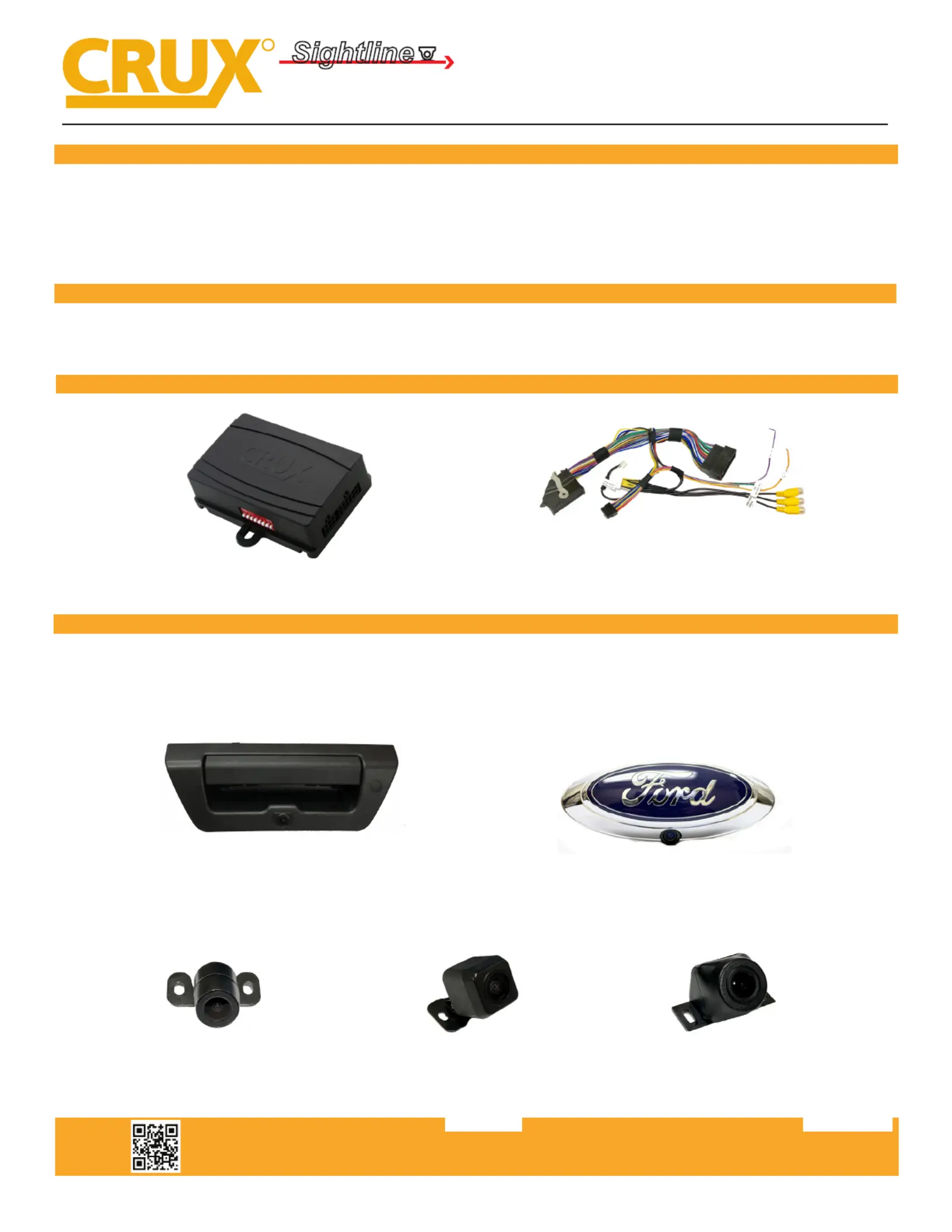

Seite 1/4
CFD-15KL Tailgate Handle Camera CFD-03E Emblem Camera
VRFFD-79D
Front & Rear + 1 Video Camera Integration Interface
for Select Ford Vehicles with Sync 3 System
R
INTERFACING SOLUTIONS
Sightline
Multi View Integration
- Adds front and aermarket backup camera inputs.
- Adds an extra video input.
- Uses the steering wheel control buîž©ons to toggle between the sources.
PRODUCT FEATURES:
PARTS INCLUDED:
VRFFD-79D Module VRFFD-79D Harness
OPTIONAL ADD-ON CAMERAS:
Oponal aermarket add on cameras are available for the VRFFD-79D. Cameras available and sold separately
include: (More cameras can be found at www.cruxinterfacing.com)
CFF-01 Bullet Type Front Camera
(Recommended)
CFF-02 Square Body Front Camera CFF-03 Grille Mount Front Camera
Crux Interfacing Solutions • Chatsworth, CA 91311
phone: (818) 609-9299 • fax: (818) 996-8188 • www.cruxinterfacing.com
1 of 4 rev.12032021
NOTE:
Please use with RVCFD-79O (sold separately) if there is no factory backup camera present.
INSTALLATION DIAGRAM:
R
INTERFACING SOLUTIONS
Sightline
Multi View Integration
DIP SWITCH SETTINGS:
VRFFD-79D
Front & Rear + 1 Video Camera Integration Interface
for Select Ford Vehicles with Sync 3 System
Front Camera Input
Aftermarket Backup Camera Input
Video Input
Front and Rear Camera Power Output +12V (purple/white)
Video Input Power Output +12V (orange/white)
To Vehicle Harness
Connect this 6-pin plug if OEM
backup camera is being used
To Radio
Crux Interfacing Solutions • Chatsworth, CA 91311
phone: (818) 609-9299 • fax: (818) 996-8188 • www.cruxinterfacing.com
2 of 4
DIP# ON OFF
1No Funcon – Leave OFF
2 Front Camera ON Front Camera OFF
3 Set to OFF
4 Set to OFF
5Video Input ON Video Input OFF
6 Set to OFF
7 Set to OFF
8 Set to ON
rev.12032021
R
INTERFACING SOLUTIONS
Sightline
Multi View Integration
VRFFD-79D
Front & Rear + 1 Video Camera Integration Interface
for Select Ford Vehicles with Sync 3 System
VRFFD-79D module installaon: (Note: Sample installaon is with a 4” screen radio. Installaon is similar with an 8” screen.
1. Li the rubber mat on the dashboard upper tray and
remove the 2 screws.
2. Remove the tray and remove the 2 screws holding the
radio bezel.
3. Carefully pull out the radio bezel. This is held by mulîžźple
clips.
4. Remove the radio, unplug the connector and plug it
into the VRFFD-79D T-harness. Plug the other end of the
T-harness to the radio.
5. Install the cameras and run the video and power cables
towards the radio. Make the video and power connecîžźons.
The VRFFD-79D provides +12V power to the cameras.
6. Plug the white, 18-pin connector of the T-harness to the
VRFFD-79D module. Set the DIP switches according to the
chart on page 2.
Crux Interfacing Solutions • Chatsworth, CA 91311
phone: (818) 609-9299 • fax: (818) 996-8188 • www.cruxinterfacing.com
3 of 4 rev.12032021
