CDR-31C Cargo Camera
for RAM Trucks
CDR-02 Tailgate Handle
Camera for RAM Trucks
Jeep Wrangle Spare Tire
Mount Camera
CUB-15 Adjustable
Angle Camera
VRFCH-75Y
Front & Rear + 1 Video Camera Integration Interface with A/V Input for
CHRYSLER, DODGE, JEEP & RAM Vehicles with MyGig Radios
R
INTERFACING SOLUTIONS
Sightline
Multi View Integration
Crux Interfacing Solutions • 21541 Nordhoff St., Unit C, Chatsworth, CA 91311
phone: (818) 609-9299 • fax: (818) 996-8188 • www.cruxinterfacing.com
rev.022019
1 of 5
- Adds front and backup camera input.
- Adds an extra video input for another camera.
- Adds an audio/video input and output.
- Uses the steering wheel control buons to toggle between the sources.
- Retains factory backup camera if present.
PRODUCT FEATURES:

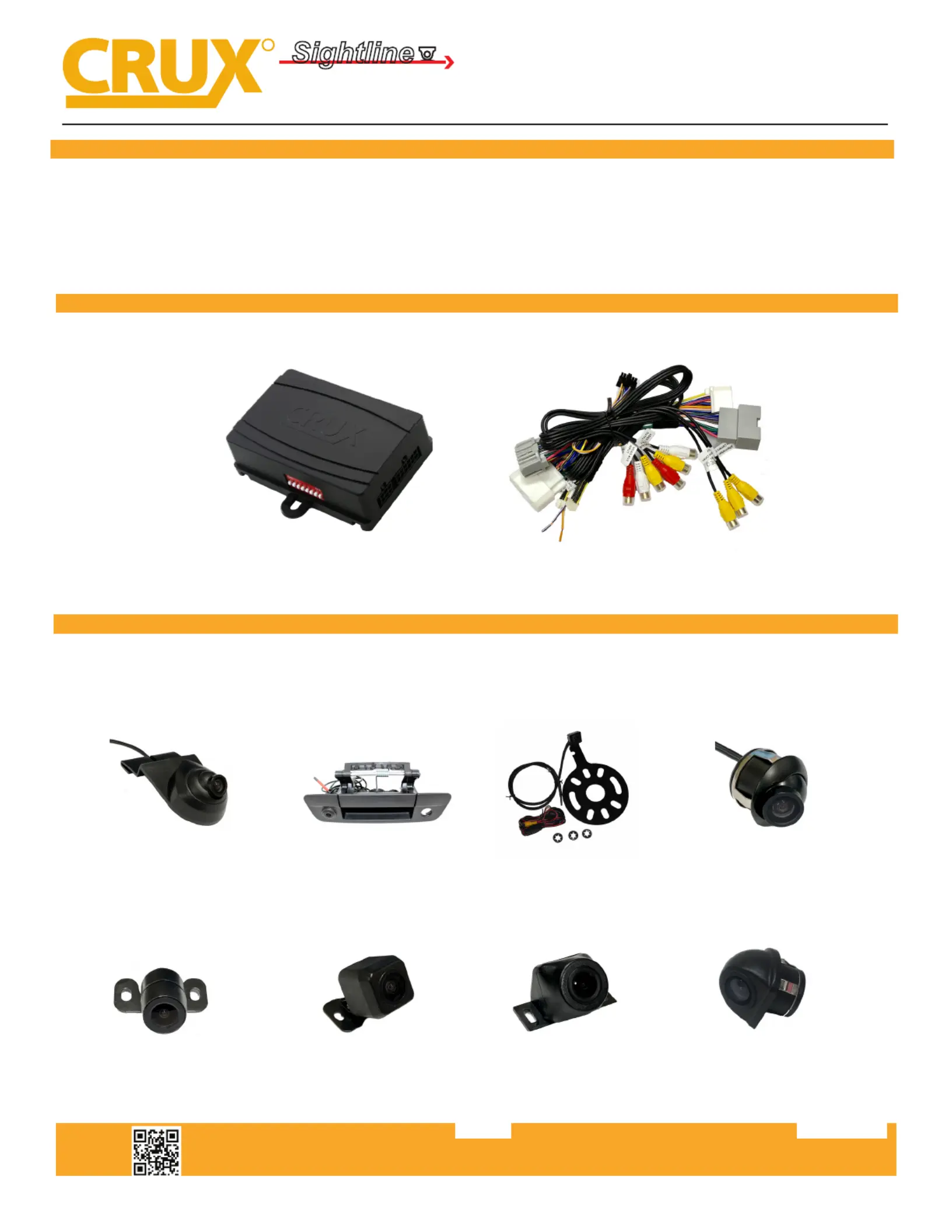

PARTS INCLUDED:
VRFCH-75Y Module VRFCH-75Y Harness
OPTIONAL ADD-ON CAMERAS:
Oponal aermarket add on cameras are available for the VRFCH-75Y. Cameras available and sold separately
include: (More cameras can be found at www.cruxinterfacing.com)
CFF-01 Bullet Type Front
Camera
CFF-02 Square Body Front
Camera
CFF-03 Grille Mount Front
Camera
CUL-16 Universal Lip Mount
Camera
Crux Interfacing Solutions • 21541 Nordhoff St., Unit C, Chatsworth, CA 91311
phone: (818) 609-9299 • fax: (818) 996-8188 • www.cruxinterfacing.com
rev.0220192 of 5
INSTALLATION DIAGRAM:
R
INTERFACING SOLUTIONS
Sightline
Multi View Integration
Front Camera Input
Aftermarket Backup Camera Input
Video Input
Audio/Video
Input
Front and Rear Camera Power Output 12V (purple/white)
Video Input Power Output 12V (orange/white)
Connect this 6-pin plug if OEM
backup camera is being used
Audio/Video
Output
TO RADIO
WHITE
22-PIN
(MALE)
GRAY
22-PIN
(MALE)
WHITE
22-PIN
(FEMALE)
GRAY
22-PIN
(FEMALE)
TO FACTORY
HARNESS
DIP SWITCH SETTINGS:
DIP# ON OFF
1No Funcon – Leave OFF
2 Front Camera ON Front Camera OFF
3 Set to OFF
4 Set to OFF
5 Video Input ON Video Input OFF
6 Set to OFF
7 AUX A/V ON AUX A/V OFF
8 Set to OFF
VRFCH-75Y
Front & Rear + 1 Video Camera Integration Interface with A/V Input for
CHRYSLER, DODGE, JEEP & RAM Vehicles with MyGig Radios
Crux Interfacing Solutions • 21541 Nordhoff St., Unit C, Chatsworth, CA 91311
phone: (818) 609-9299 • fax: (818) 996-8188 • www.cruxinterfacing.com
rev.022019
3 of 5
R
INTERFACING SOLUTIONS
Sightline
Multi View Integration
OPERATION:
VRFCH-75Y
1. Remove the rubber lining on the compartment on the
dashboard. Remove one screw.
2. Carefully pry out the power window switch assembly.
3. Unplug the power window switch connector. 4. Remove the screw behind the power window switch
housing.
5. Remove the lower panel under the steering wheel
column.
6. Remove the screw holding the upper dash trim panel.
Installaon example is on a 2016 Jeep Wrangler. Other vehicle installaon will vary.
Front & Rear + 1 Video Camera Integration Interface with A/V Input for
CHRYSLER, DODGE, JEEP & RAM Vehicles with MyGig Radios

Produktspezifikationen

Marke: CRUX
Kategorie: niet gecategoriseerd
Modell: VRFCH-75Y
