VRFBM-77EF
Front and Rear View Integration Interface
for Select BMW Vehicles with CIC Navigation Systems
R
INTERFACING SOLUTIONS
Crux Interfacing Solutions • 21541 Nordhoff St., Unit C, Chatsworth, CA 91311
phone: (818) 609-9299 • fax: (818) 996-8188 • www.cruxinterfacing.com
rev.0401191 of 12

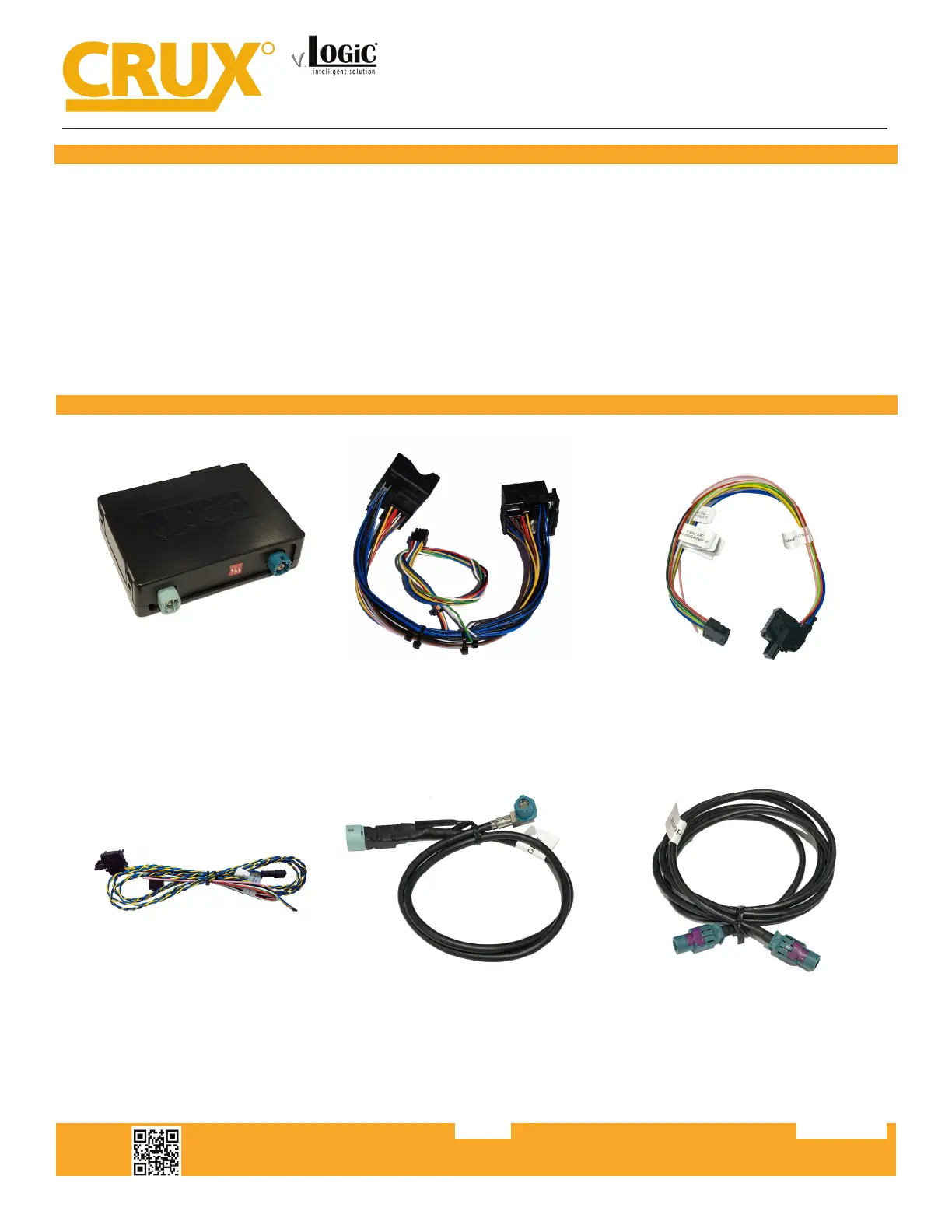

PRODUCT FEATURES:
PARTS INCLUDED:
VRFBM-77EF Module BM-77EF Harness E-Series Power/CAN Harness
• Plug and Play Installaon
• Media Controller with controls by factory infotainment (iDrive)
• Rear-view camera input
• Front camera input
• Front camera input can also be used as an Auxiliary Video Input (Crux part# AUX-ABMP1, Fiber Opc Auxiliary Audio Input
Interface, may be required to create an Auxiliary Audio Input).( Sold separately)
• Manual switching to rear-view camera (only for vehicles with PDC buon)
• Manual return from rear-view and front camera (cancellaon of automac switching)
• 2 trigger outputs (+12V max. 1A), separately adjustable switching events (CAN, ACC, camera, reverse gear)
• Picture-in-picture mode combining aermarket rear-view and front camera picture(s) with factory parking sensor graphics
• Compable with all factory video accessories (e.g. rear-view camera, Top-View Camera System)
F-Series Power/CAN2 Harness LVDS1 Cable (to vehicle) LVDS2 Cable (to radio)
Crux Interfacing Solutions • 21541 Nordhoff St., Unit C, Chatsworth, CA 91311
phone: (818) 609-9299 • fax: (818) 996-8188 • www.cruxinterfacing.com
rev.0401192 of 12
INSTALLATION DIAGRAM:
R
INTERFACING SOLUTIONS
DIP SWITCH SETTINGS:
VEHICLE / SCREEN SIZE DIP 1 DIP 2 DIP 3
CIC-E (E-Series) / 6.5” OFF OFF No Funcon
CIC-E (E-Series) / 8.8” OFF ON No Funcon
CIC-F (F-Series) / 7” ON OFF No Funcon
CIC-F (F- Series) / 10.2” ON ON No Funcon
VRFBM-77EF
Front and Rear View Integration Interface
for Select BMW Vehicles with CIC Navigation Systems
BM-77EF Module
LVDS1 Cable
4-Pin HSD
Female LVDS
Vehicle Harness
BM-77EF
Harness
Power/CAN or
Power/CAN2
Harness
Back of Headunit
+12V Switching
Output 1 (Pink Wire)
Front
Camera
(Not Included)
Rear-View
Camera
(Not Included)
+12V Switching Output 2 (Green Wire)
Reverse Gear Signal Input
+12V (White Wire)
Female Quadlock
Vehicle Harness
OR
DVD Player (Not Included)
Portable
Video
Player
(Not Included)
LVDS2 Cable
You have to execute a power reset of the interface aer each change of DIP switch sengs!
NOTES:
1. The Interface is installed behind the headunit and needs a constant +12V power source.
2. Use the appropriate Power/CAN harness for the applicaon (E or F Series).
Crux Interfacing Solutions • 21541 Nordhoff St., Unit C, Chatsworth, CA 91311
phone: (818) 609-9299 • fax: (818) 996-8188 • www.cruxinterfacing.com
rev.040119
3 of 12
R
INTERFACING SOLUTIONS
VRFBM-77EF
Front and Rear View Integration Interface
for Select BMW Vehicles with CIC Navigation Systems
INSTALLATION INSTRUCTIONS:
Connecng the VRFBM-77EF harness
Female Quadlock
Vehicle Harness
BM-77EF
Harness
Interface Box Front View
Power/CAN or CAN2
Harness
Male Quadlock on
Rear Side of Navigation
1
2
3
4
5
6
Remove the female Quadlock connector of the vehicle harness from the rear of the headunit.
Remove opcal leads from the female Quadlock connector of the vehicle harness and insert them into the female
Quadlock connector of BM-77EF harness at the same posion.
Connect female Quadlock connector of vehicle harness to the male Quadlock connector of BM-77EF harness.
Connect female Quadlock connector of BM-77EF to the male Quadlock connector of the headunit.
Connect female 8 pin molex connector of the BM-77EF harness to the male 8 pin molex connector of the Power/CAN
or Power/CAN2 harness.
Connect the female 12pin Power/CAN or Power/CAN2 harness to the VRFBM-77EF module.
1
2
3
4
5
6
LEDs on the VRFBM-77EF Module
BLUE = Valid Input Source
GREEN = OK
RED = Power
