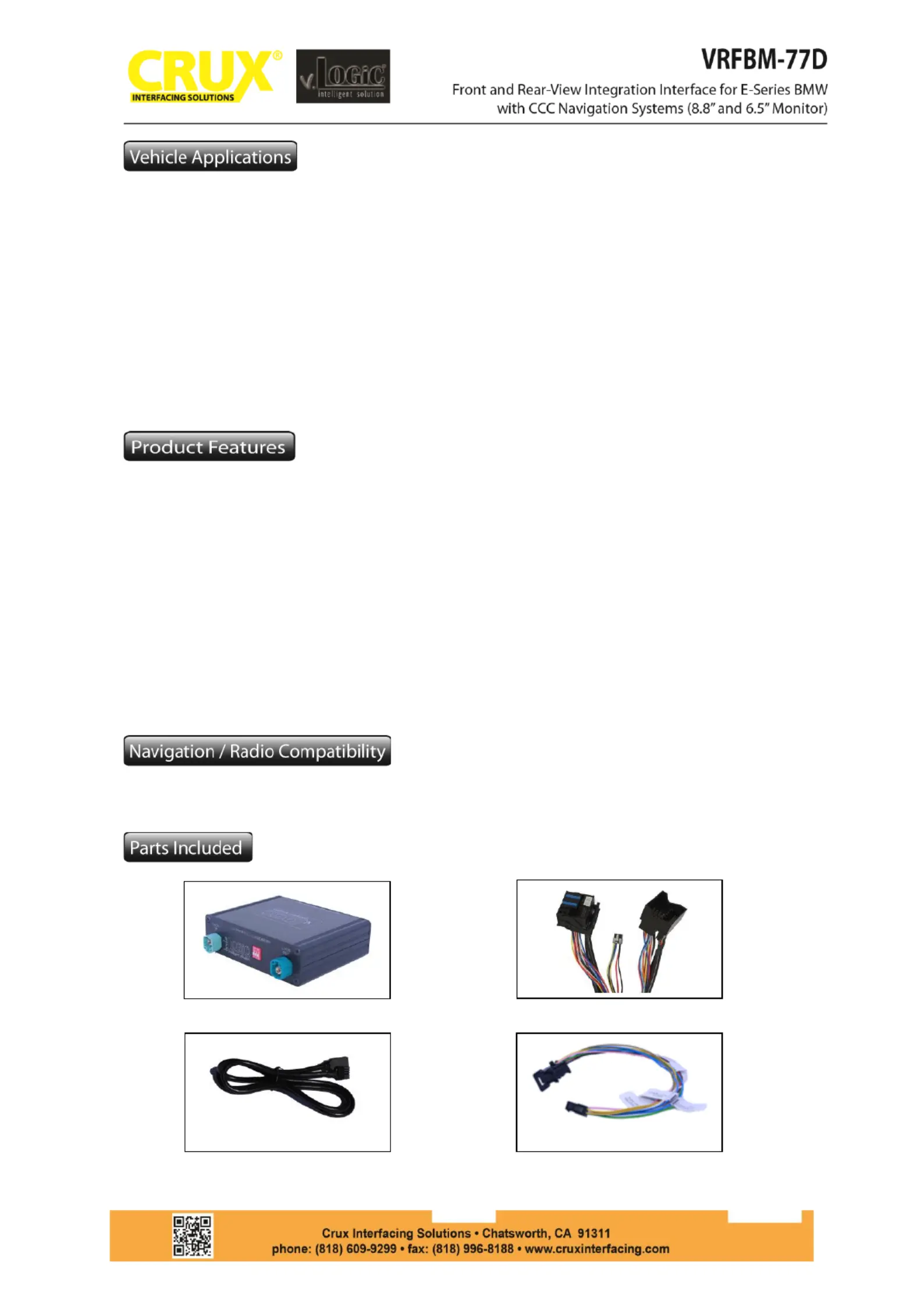

• Plug and Play Installation
• Media Controller with controls by factory infotainment (iDrive)
• Rear-view camera input
• Front camera input
• Front camera input can also be used as an Auxiliary Video Input
• Manual switching to rear-view camera (only for vehicles with PDC button)
• Manual return from rear-view and front camera (cancellation of automatic switching)
• 2 trigger outputs (+12V max. 1A), separately adjustable switching events (CAN, ACC, camera,
reverse gear)
• Picture- -picture mode combining aftermarket rear-view and front camera picture(s) with factory in
parking sensor graphics
• Compatible with all factory video accessories (e.g. rear-view camera, Top-View Camera System)
• E-series with Navigation System or radio with 6.5 8.8 and 10-PIN LVDS Connector“ or “ monitor
• NOT compatible with Alpine made factory screen.
1 / 10
Rev.42121
Interface Box
BM-77D Harness
LVDS Cable 10
See Warning Below
Setting the DIP Switches of the VRFBM- 77D
DIPs and 2 on the back of the interface box are used to set the monitor type The default setting is: 1 .
Vehicle / Navigation
Dip 1
Dip 2
Dip 3
M- Version 1 ASK
OFF
OFF
OFF
M-ASK Version 2
OFF
ON
OFF
CCC Version 1
ON
OFF
OFF
CCC Version 2
ON
OFF
ON
After each change of the DIP Switch settings you have to execute a power reset of the interface!
WARNING:
1. DO NOT connect the Quadlock Connector to Factory Radio CD Headunit UNLESS the 10 Pin LVDS Cable has
been properly and completely connected to factory display and all the other 10 Pin LVDS cable connections have
been made according to the wiring diagram above or the factory display will be damaged;
2. DO NOT connect the 10 Pin LVDS Cable when the Radio is Powering ON or the factory display will be damaged;
3. When the Radio CD Headunit is active (power ON ), DO NOT disconnect any of the 10 pin LVDS Connections ed
or the factory display will be damaged.
2 / 10
Rev.42121
Connecting the Interface Box and Harnesses
Remove the female Quadlock connector of the vehicle harness from the rear of the navigation
computer.
Remove optical leads from the female Quadlock connector of the vehicle harness and insert them into
the female Quadlock connector of -77D harness at the same position. BM
Connect female Quadlock connector of vehicle harness to the male Quadlock connector of -BM 77D
harness.
DO NOT connect the female Quadlock connector of BM- to the male Quadlock connector of the 77D
navigation radio the 10-pin LVDS cables are connected . UNTIL or the factory display will be damaged
See next page for 10-Pin LVDS connection before plugging in the ale Quadlock connector to the fem
radio.
Connect female 8 pin molex connector of the -77D harness to the male 8 pin molex connector of BM
the Power/CAN harness.
Connect the female 12pin Power/CAN harness to the front side of the VRFBM-77D interface box.
LEDs of the Interface B ox
4
1
2
3
5
6
Valid input source
CAN ok
Power
