SWRTY-61J
Radio Replacement with Steering Wheel Control Retention for
LEXUS & TOYOTA Vehicles with JBL Systems
Crux Interfacing Solutions • Chatsworth, CA 91311
phone: (818) 609-9299 • fax: (818) 996-8188 • www.cruxinterfacing.com
RAD IO RE PL ACE MENT
SWC R ETENTIO N
+
R
INTERFACING SOLUTIONS
PRODUCT FEATURES:
- Retains factory features in select Lexus and Toyota vehicles with JBL Harman-Becker Digital-Synthesis Amplier,
including JBL (Pioneer-made) ampliers while funconing with an aermarket radio.
- Pre-programmed to retain factory Steering Wheel Controls.
- Retains factory backup camera (if present).
- Retains OEM 3.5mm Auxiliary Audio Input.
- iPhone Voice Recognion (VR) feature from SWC on select Kenwood, Pioneer, Alpine and JVC radios.
- Variable audio gain adjustment to level match the aermarket radio and factory amplier.
- Supports BT-HF/A2DP/AVRCP prole on select aermarket radio models.
- Supports Pick Up/End Call, Pick up and Toggle between 1st and 2nd incoming call, AVRCP Track, Seek.
- EIA color coded wiring for easy installaon.
1. Le-Right Balance Audio Control is supported. Front-Rear Audio Fading is not supported.
2. Please make sure to set the factory radio volume to 70% and balance and fade opons are centered before
removing the radio.

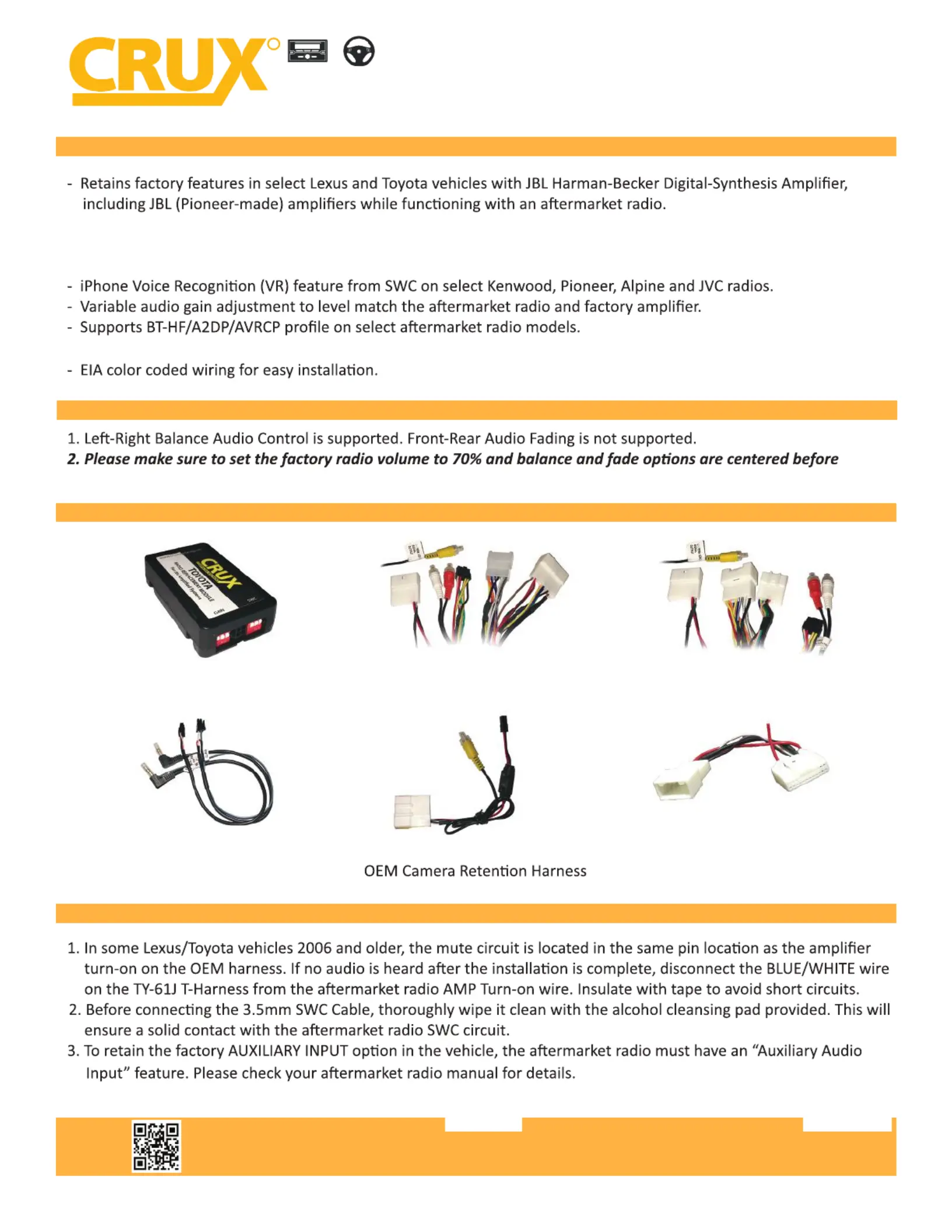

PARTS INCLUDED:
SWRTY-61J Module TY-A Harness
(For Newer Models)
TY-B Harness
(For Older Models)
3.5MM to 4-pin SWC Cables OEM Camera Retenon Harness 16 to 24 Pin Camera Adapter
1. In some Lexus/Toyota vehicles 2006 and older, the mute circuit is located in the same pin locaon as the amplier
turn-on on the OEM harness. If no audio is heard aer the installaon is complete, disconnect the BLUE/WHITE wire
on the TY-61J T-Harness from the aermarket radio AMP Turn-on wire. Insulate with tape to avoid short circuits.
2. Before connecng the 3.5mm SWC Cable, thoroughly wipe it clean with the alcohol cleansing pad provided. This will
ensure a solid contact with the aermarket radio SWC circuit.
3. To retain the factory AUXILIARY INPUT opon in the vehicle, the aermarket radio must have an “Auxiliary Audio
Input” feature. Please check your aermarket radio manual for details.
IMPORTANT INSTALLATION NOTES:
rev.081222
1 of 5
NOTES:
Crux Interfacing Solutions • Chatsworth, CA 91311
phone: (818) 609-9299 • fax: (818) 996-8188 • www.cruxinterfacing.com
RAD IO RE PL ACE MENT
SWC R ETENTIO N
+
R
INTERFACING SOLUTIONS
rev.081222
INSTALLATION DIAGRAM:
SWRTY-61J
Radio Replacement with Steering Wheel Control Retention for
LEXUS & TOYOTA Vehicles with JBL Systems
2 of 5
AFTERMARKET
RADIO
SWRTY-61J MODULE 1 2 3
ON
1 2 3
ON
AFTERMARKET
RADIO SELECTOR
(See Chart)
GAIN
ADJUSTMENT
+12V Constant Yellow
+12V ACC Red
Ground Black
Illumination Output Orange
Amp Turn-On Blue/ White
Antenna Turn On Blue
Vehicle Speed Sense Output Red/Black or Pink
Parking Brake Output Brown
Reverse Gear Output Red
Right Front + Gray
Right Front - Gray/Black
Left Front + White
Left Front - White/Black
Audio Input Red/White RCA
(Retains Factory AUX Input)
12-Pin Black
Connector
Cap or insulate if
not being used
BLUE / YELLOW KENWOOD / JVC SWC WIRED
3.5MM SWC CABLES (Option A or B)
Use the proper 3.5MM to 4-Pin cable for your radio.
Plug in the selected 3.5MM SWC cable to the 4-pin port
on the SWRTY-61J module.
Insulate with tape
if not being used
From SWRTY-61J Harness
To SWRTY-61J Module
SWRTY-61J Module
To Aftermarket Radio Camera Input
To 2 Pin Camera Power Connector
on SWRTY-61J Harness
SWRTY-61J OEM Camera Retention Harness
+12V Constant Yellow
+12V ACC Red
Ground Black
Illumination Output Orange
Amp Turn-On Blue/ White
Antenna Turn On Blue
Right Front + Gray
Right Front - Gray/Black
Left Front + White
Left Front - White/Black
Audio Input Red/White RCA
(Retains Factory AUX Input)
To SWRTY-61J Module
RADIO REPLACEMENT MODULE
TOYOTA
For JBL Amplied Systems
www.cruxint
erfacing.com
SWCGAIN
AFTERMARKET
RADIO
TY-B
Harness
TY-A
Harness
SWRTY-61J OEM Camera
Retention Harness
(See Below)
Yellow RCA
(To Aftermarket Radio Camera Input)
To 24-Pin OEM
Camera Harness
16 to 24 Pin Camera Adapter
The SWRTY-61J includes a camera harness with a 12V to 6V voltage converter to retain the OEM camera (if equipped).
Some older models use a16-Pin OEM camera connector. In this case, use the supplied 16 to 24-Pin Camera Adapter.
24-Pin
Option A:
Alpine, Clarion, JVC and Kenwood units
Option B:
Blaupunkt, Boss, Dual, Farenheit, Jensen, Pioneer,
Power Acoustik, Sony, Soundstream & Most o-brand Radios
NOTE: Aftermarket radio rear speaker output leads are not used on both harnesses. Insulate with tape.
Crux Interfacing Solutions • Chatsworth, CA 91311
phone: (818) 609-9299 • fax: (818) 996-8188 • www.cruxinterfacing.com
RAD IO RE PL ACE MENT
SWC R ETENTIO N
+
R
INTERFACING SOLUTIONS
rev.081222
SWRTY-61J
Radio Replacement with Steering Wheel Control Retention for
LEXUS & TOYOTA Vehicles with JBL Systems
SETTING THE AFTERMARKET RADIO BRAND
This step is done on the SWRTY-61J Module. With the key in the o posion, set the DIP switches to the
corresponding radio listed below.
4-PIN SWC CABLE
Use the proper 3.5MM to 4-Pin SWC cable for the aermarket radio you are using.
OPTION A is used for ALPINE, CLARION. For JVC and KENWOOD use the Blue/Yellow wire.
OPTION B is used for ATOTO, BLAUPUNKT, BOSS, DUAL, FARENHEIT, JENSEN, POWER ACOUSTIK,
PIONEER, SONY, SOUNDSTREAM and Most O-Brand Radios.
NOTE: Cap or insulate the 3.5mm plug or Blue/Yellow wire if not being used.
DIP SETTING dB Volts
OFF OFF OFF
OFF OFF ON
OFF ON OFF
OFF ON ON
ON OFF OFF
ON OFF ON
ON ON OFF
ON ON ON
0 dB
1.7 dB
3.5 dB
5.2 dB
7.2 dB
9.1 dB
11 db
12.9 dB
+7mV
+9mV
+10mV
+15mV
+18mV
+22mV
+27mV
Use the gain adjustment to level match the aermarket radio audio output with the OE amplier input.
GAIN ADJUSTMENTS:
1 2 3
ON
1 2 3
ON
SWRTY-61J
MODULE
GAIN
ADJUSTMENT
RADIO BRAND: DIP: 1 2 3
1 2 3
ON
1 2 3
ON
AFTERMARKET
RADIO SELECTOR
SWRTY-61J
Module
Atoto, Dual, Fahrenheit, Jensen, Pioneer
Power Acoustik, Soundstream
Blaupunkt, Most o brand Radios
Alpine
Clarion
Kenwood
JVC
Sony, Boss
OFF ON ON
OFF ON ON
OFF ON ON
OFF OFF OFF
ON ON OFF
ON ON ON
ON OFF ON
ON OFF OFF
NOTE: For Atoto, Blaupunkt, Dual, Farenheit, Power Acoustik, Soundstream, and most o-brand radios,
check the aftermarket radio’s manual to see if the SWC buttons need to be programmed.
3 of 5
RED to SWC Key 1
WHITE to SWC Key 2
SHIELD to SWC Ground
For aermarket radios that have wires for SWC connecons, cut o the 3.5mm plug on the Crux SWC Cable and connect the
SWC wires as follows:
Note that there are some radios that only have SWC1 and SWC2, in this case “shield” does not need to be connected.
