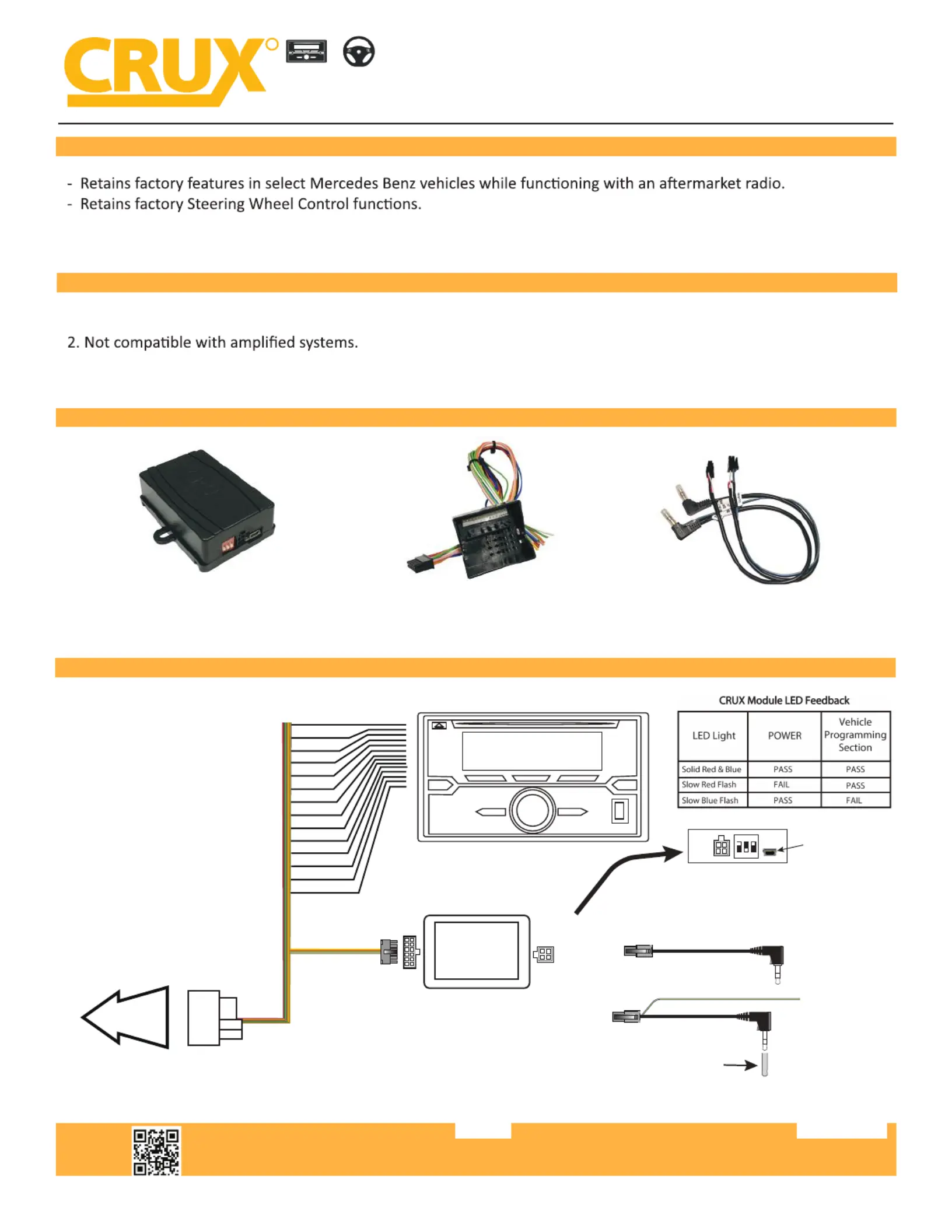

SWRMB-57M
Radio Replacement with Steering Wheel Control Retention for
Select Mercedes Benz Vehicles
Crux Interfacing Solutions • 21541 Nordhoff St., Unit C, Chatsworth, CA 91311
phone: (818) 609-9299 • fax: (818) 996-8188 • www.cruxinterfacing.com
R O P LA TADI RE CEMEN
SW E T TIONC R EN
+
R
INTERFACING SOLUTIONS
PRODUCT FEATURES:
1. This interface does not retain the factory Bluetooth or Sirius Satellite Radio.
PARTS INCLUDED:
SWRMB-57M Module SWRMB-57M Harness SWC Cables
rev.083122
1 of 2
NOTES:
INSTALLATION DIAGRAM:
AFTERMARKET
RADIO
+12V Constant Yellow
+12V ACC Red
Ground Black
Illumin on (+) Orangeaîžź
Vehicle Speed Sense Pink
Reverse Gear Signal Red/White or Purple/White
Right Front (+) G yra
Right Front (-) Gray/Black
L Front (+) Whitee
L Front (-) White/Blacke
Right Rear (+) Purple
Right Rear (-) Purple/Black
L Rear (+) Greene
L Rear (-) Green/Blacke
TO FACTORY
HARNESS
12-Pin
Connector
1 2 3
ON
4-Pin
Connector
3.5MM SWC CABLES (Option A or B)
Use the proper 3.5MM to 4-Pin cable for your radio.
Plug in the selected 3.5MM SWC cable to the 4-pin
port on the module. See “DIP SWITCH SETTINGS” section.
mini USB
Not Used
CRUX
Option A:
Option B:
Cap or insulate if
not being used
BLUE / YELLOW FOR JVC & KENWOOD
Insulate with
tape if not
being used
Crux Interfacing Solutions • 21541 Nordhoff St., Unit C, Chatsworth, CA 91311
phone: (818) 609-9299 • fax: (818) 996-8188 • www.cruxinterfacing.com
R O P LA TADI RE CEMEN
SW E T TIONC R EN
+
R
INTERFACING SOLUTIONS
rev.083122
SWRMB-57M
Radio Replacement with Steering Wheel Control Retention for
Select Mercedes Benz Vehicles
SETTING THE AFTERMARKET RADIO BRAND
corresponding radio listed below.
2 of 2
MERCEDES BENZ
2004 – 2008 E-class (W211)
2005 – 2006 CLS-class (W219)
2005 – 2008 SLK Class (R171)
VEHICLE APPLICATIONS:
RADIO BRAND: DIP#: 1 2 3
Atoto, Dual, Fahrenheit, Jensen
Pioneer, Power Acoustik, Soundstream
Alpine
Clarion
Kenwood
JVC
Boss, Old Sony
New Sony
OFF ON ON
OFF ON ON
OFF ON ON
OFF OFF OFF
ON ON OFF
ON ON ON
ON OFF ON
ON OFF OFF
OFF ON OFF
SWC MODULE
DIP SWITCH
1 2 3
ON
NOTE:
check the aftermarket radio’s manual to see if the SWC buttons need to be programmed.
4-PIN SWC CABLE
OPTION B is used for ATOTO, BLAUPUNKT, BOSS, DUAL, FARENHEIT, JENSEN, POWER ACOUSTIK,
NOTE: Cap or insulate the 3.5mm plug or Blue/Yellow wire if not being used.
RED to SWC Key 1
WHITE to SWC Key 2
SHIELD to SWC Ground
SWC wires as follows:
Note that there are some radios that only have SWC1 and SWC2, in this case “shield” does not need to be connected.
