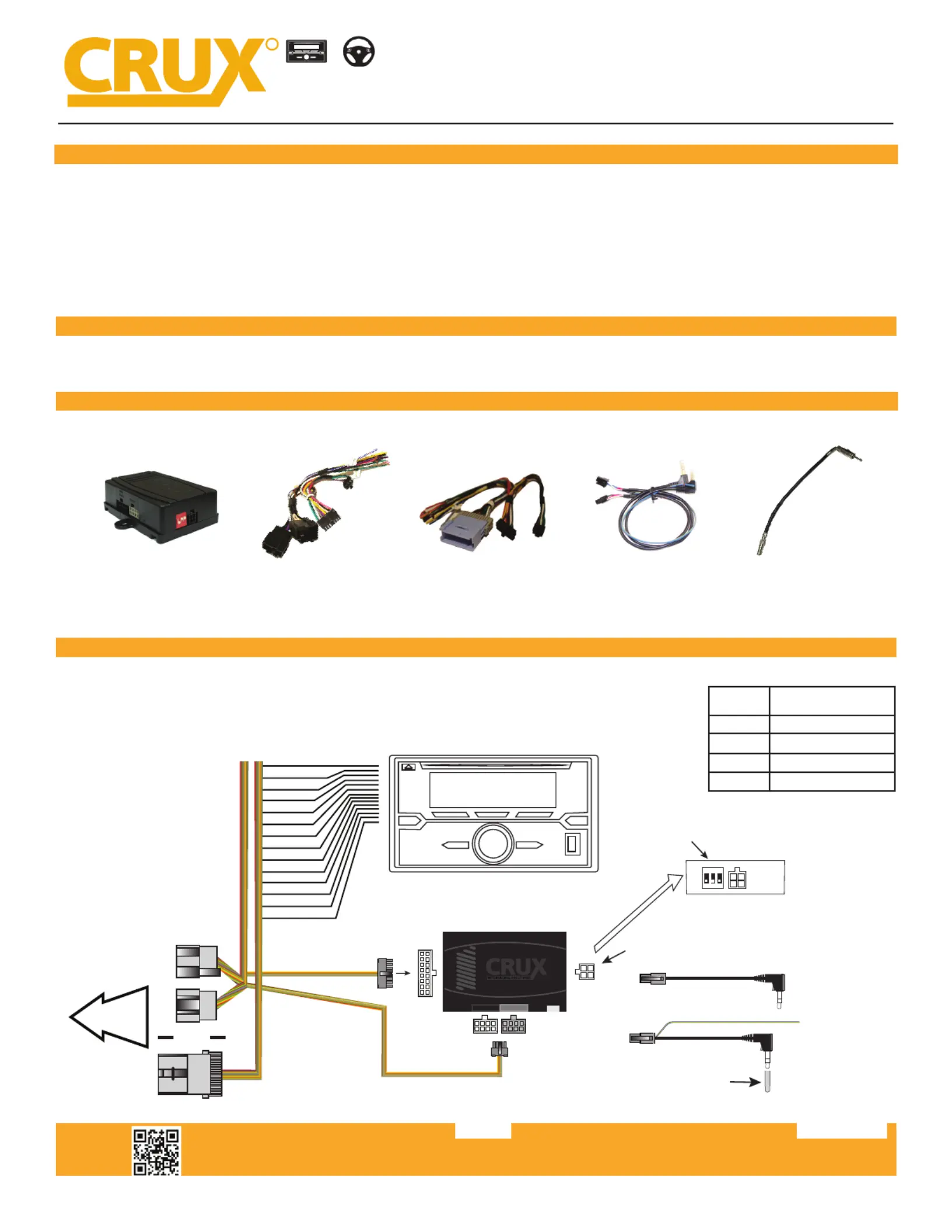

Crux Interfacing Solutions • 21541 Nordhoff St., Unit C, Chatsworth, CA 91311
phone: (818) 609-9299 • fax: (818) 996-8188 • www.cruxinterfacing.com
rev.020420
1 of 3
R O P LA TADI RE CEM EN
SW E T TIONC R EN
+
R
INTERFACING SOLUTIONS
- Retains factory features in select GM LAN 11 Bit vehicles while functioning with an aftermarket radio.
- Pre-programmed to retain factory Steering Wheel Controls.
- Supports Bose, non-Bose and Y-91 audio systems.
- Retains chime functions.
- Retains front and rear parking sensors.
- EIA color coded wiring for easy installation.
PRODUCT FEATURES:
PARTS INCLUDED:
INSTALLATION DIAGRAM:
SWRGM-51 MODULE GM-51A HARNESS GM-51B Harness SWC CABLES Antenna Adapter
AFTERMARKET
RADIO
1 2 3
ON
AFTERMARKET
RADIO SELECTOR
(See Chart)
Reverse Red/White
Illumina on (+) Orange
Amplier Turn-on Blue/ White
+12V Constant Yellow
+12V ACC Red
Ground Black
Right Front (+) G yra
Right Front (-) Gray/Black
Le Front (+) White
Le Front (-) White/Black
Right Rear (+) Violet
Right Rear (-) Violet/Black
Le Rear (+) Green
Le Rear (-) Green/Black
TO FACTORY
HARNESS
16-Pin Black
Connector
3.5MM SWC CABLES (Option A or B)
Non Bose Bose
See page 2 for Audio
connection options
OR
24-Pin
Connector
Harness
16 & 14-Pin
Connector
Harness
Use the proper 3.5MM to 4-Pin cable for your radio.
Plug in the selected 3.5MM SWC cable to the 4-pin port
on the module. See “DIP SWITCH SETTINGS” section.
Option A:
Option B:
Cap or insulate if
not being used
BLUE / YELLOW wire for JVC & KENWOOD Insulate with tape
if not being used
SWRGM-51
Radio Replacement Interface with Steering Wheel Control Retention
for Select GM LAN 11-Bit Vehicles 2006-2012
NOTE:
Does retain OnStar.NOT
TROUBLESHOOTING
LED
LIGHT LED MODULE FEEDBACK
Solid blue
Flashing blue
Solid red Module providing 12V ACC
CAN not recognized
CAN recognized
12V ACC OFFRed off
Crux Interfacing Solutions • 21541 Nordhoff St., Unit C, Chatsworth, CA 91311
phone: (818) 609-9299 • fax: (818) 996-8188 • www.cruxinterfacing.com
rev.020420
SWRGM-51
2 of 3
R O P LA TADI RE CEMEN
SW E T TIONC R EN
+
R
INTERFACING SOLUTIONS
DIP SWITCH SETTINGS:
AFTERMARKET RADIO DIP SWITCH SETTINGS:
RADIO BRAND: DIP#: 1 2 3
Atoto, Dual, Fahrenheit, Jensen
Pioneer, Power Acoustik, Soundstream
Alpine
Clarion
Kenwood
JVC
Boss, Old Sony
New Sony
OFF ON ON
OFF ON ON
OFF ON ON
OFF OFF OFF
ON ON OFF
ON ON ON
ON OFF ON
ON OFF OFF
OFF ON OFF
SWC MODULE
DIP SWITCH
1 2 3
ON
NOTE:
check the aftermarket radio’s manual to see if the SWC buttons need to be programmed.
4-PIN SWC CABLE
OPTION B is used for ATOTO, BLAUPUNKT, BOSS, DUAL, FARENHEIT, JENSEN, POWER ACOUSTIK,
NOTE: Cap or insulate the 3.5mm plug or Blue/Yellow wire if not being used.
SELECTING THE AUDIO SYSTEM:
the SWRGM-51 has a built-in audio level adaptor that
outputs the proper audio level from the aftermarket radio to
8-pin connector on the SWRGM-51 harness to the GRAY
female 8-pin connector on the SWRGM-51 module. The
module is also labeled “Bose” and “Non Bose” to avoid
confusion. (see picture below)
system, plug in the male 8-pin connector to the BLACK
female 8-pin on the SWRGM-51 module.
BOSE
NON BOSE
Radio Replacement Interface with Steering Wheel Control Retention
for Select GM LAN 11-Bit Vehicles 2006-2012
RED to SWC Key 1
WHITE to SWC Key 2
SHIELD to SWC Ground
SWC wires as follows:
Note that there are some radios that only have SWC1 and SWC2, in this case “shield” does not need to be connected.
Crux Interfacing Solutions • 21541 Nordhoff St., Unit C, Chatsworth, CA 91311
phone: (818) 609-9299 • fax: (818) 996-8188 • www.cruxinterfacing.com
rev.020420
SWRGM-51
3 of 3
R O P LA TADI RE CEMEN
SW E T TIONC R EN
+
R
INTERFACING SOLUTIONS
volume. It is set at half way by default. To adjust the volume,
clockwise to increase the volume and counter-clockwise to
decrease the volume.
Chime
Volume
Adjustment
CHIME VOLUME ADJUSTMENT:
VEHICLE APPLICATIONS:
CHEVROLET
2007-2010
2006-2011
2008-2012
PONTIAC
2007-2010
2006-2010
SATURN
2007-2010
2007
2007-2009
Cobalt
HHR
Malibu
G5
Aura
Ion
Sky
CHEVROLET
2005-2006
2004-2007
PONTIAC
2005-2009
Cobalt
Malibu
G6
Radio Replacement Interface with Steering Wheel Control Retention
for Select GM LAN 11-Bit Vehicles 2006-2012
16 and 14 PIN CONNECTORS 24 PIN CONNECTOR
