Crux Interfacing Solutions • Chatsworth, CA 91311
phone: (818) 609-9299 • fax: (818) 996-8188 • www.cruxinterfacing.com
rev.072022
1 of 3
- Retains chime functions.
- Pre-programmed to retain factory Steering Wheel Controls
- RAP (Retained Accessory Power).
- Provides illumination, parking brake, reverse, and speed sense outputs.
PRODUCT FEATURES:
PARTS INCLUDED:

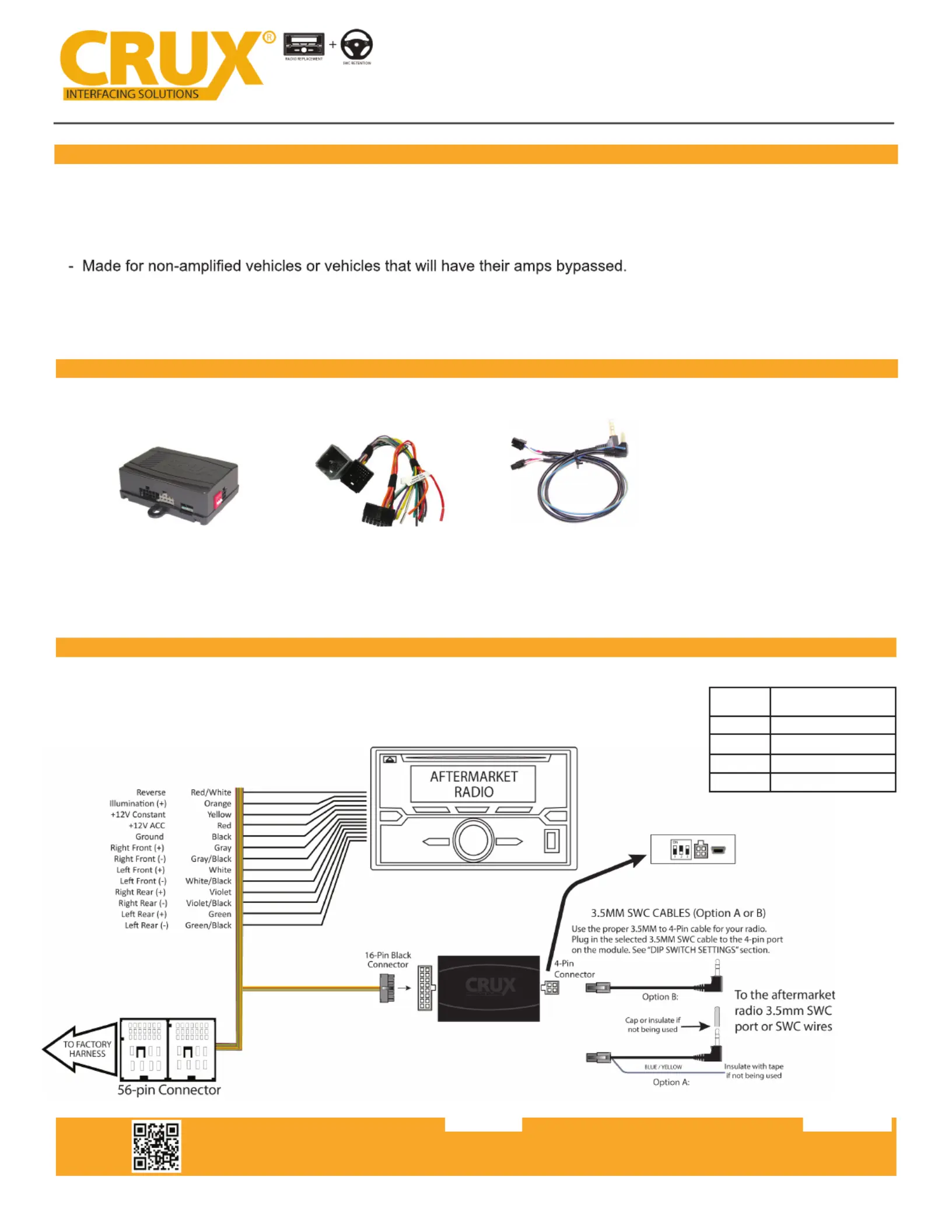

INSTALLATION DIAGRAM:
SWRGM-49S MODULE SWRGM-49S HARNESS SWC CABLE
SWRGM-49S
Radio Replacement Interface with Steering Wheel Control
Retention for GM Vehicles 2019 - Up
TROUBLESHOOTING
LED
LIGHT LED MODULE FEEDBACK
Solid blue
Flashing blue
Solid red Module providing 12V ACC
CAN not recognized
CAN recognized
12V ACC OFFRed off
Crux Interfacing Solutions • Chatsworth, CA 91311
phone: (818) 609-9299 • fax: (818) 996-8188 • www.cruxinterfacing.com
SWRGM-49S
Radio Replacement Interface with Steering Wheel Control
Retention for GM Vehicles 2019 - Up
2 of 3
volume. It is set at half way by default. To adjust the volume,
clockwise to increase the volume and counter-clockwise to
decrease the volume.
Chime
Volume
Adjustment
CHIME VOLUME ADJUSTMENT:
DIP SWITCH SETTINGS:
AFTERMARKET RADIO DIP SWITCH SETTINGS:
NOTE: Cap or Insulate the 3.5mm plug and Blue/Yellow wire if not being used.
3.5MM SWC CABLE
Plug in the 3.5MM to 4-Pin SWC cable to the SWC module.
and connect the SWC wires as follows:
Note that there are some radios that only have SWC1 and SWC2, in this case “shield” does not need to be connected.
rev.072022
Crux Interfacing Solutions • Chatsworth, CA 91311
phone: (818) 609-9299 • fax: (818) 996-8188 • www.cruxinterfacing.com
SWRGM-49S
Radio Replacement Interface with Steering Wheel Control
Retention for GM Vehicles 2019 - Up
3 of 3
VEHICLE APPLICATIONS:
2019-Up
2019-Up
2019-UP
2019-Up
2019-Up
2019-Up
2019
Chevrolet
Blazer*
Camaro*
Colorado
Equinox*
Malibu*
Silverado*
Volt
2019-Up
2019-Up
2019-Up
2019-Up
GMC
Acadia*
Canyon
Sierra 1500*
Terrain*
rev.072022
2019-Up
Cadillac
XT4
NOTES:
- Does not retain OnStar.
IOS, IOT, or IOU
NOTE: The radio code can be found in the Glove Box.
*USE GM49S-EXT, 5 foot Extension Harness is used with GM IOU or IOS in cases where the Radio Control Module is located
at front passenger side (by the door hinge). Sold separately.
