SWRGM-49N Module SWRGM-49N Harness SWC Cables
Harness
Antenna Adapter
Crux Interfacing Solutions • Chatsworth, CA 91311
phone: (818) 609-9299 • fax: (818) 996-8188 • www.cruxinterfacing.com
rev.0720221 of 2
R O P LA TADI RE CEMEN
SW E T IONC R ENT
+
R
INTERFACING SOLUTIONS
- Retains factory Steering Wheel Controls.
- Retains RAP (Retained Accessory Power).
- Includes antenna adapter.
PRODUCT FEATURES:
PARTS INCLUDED:

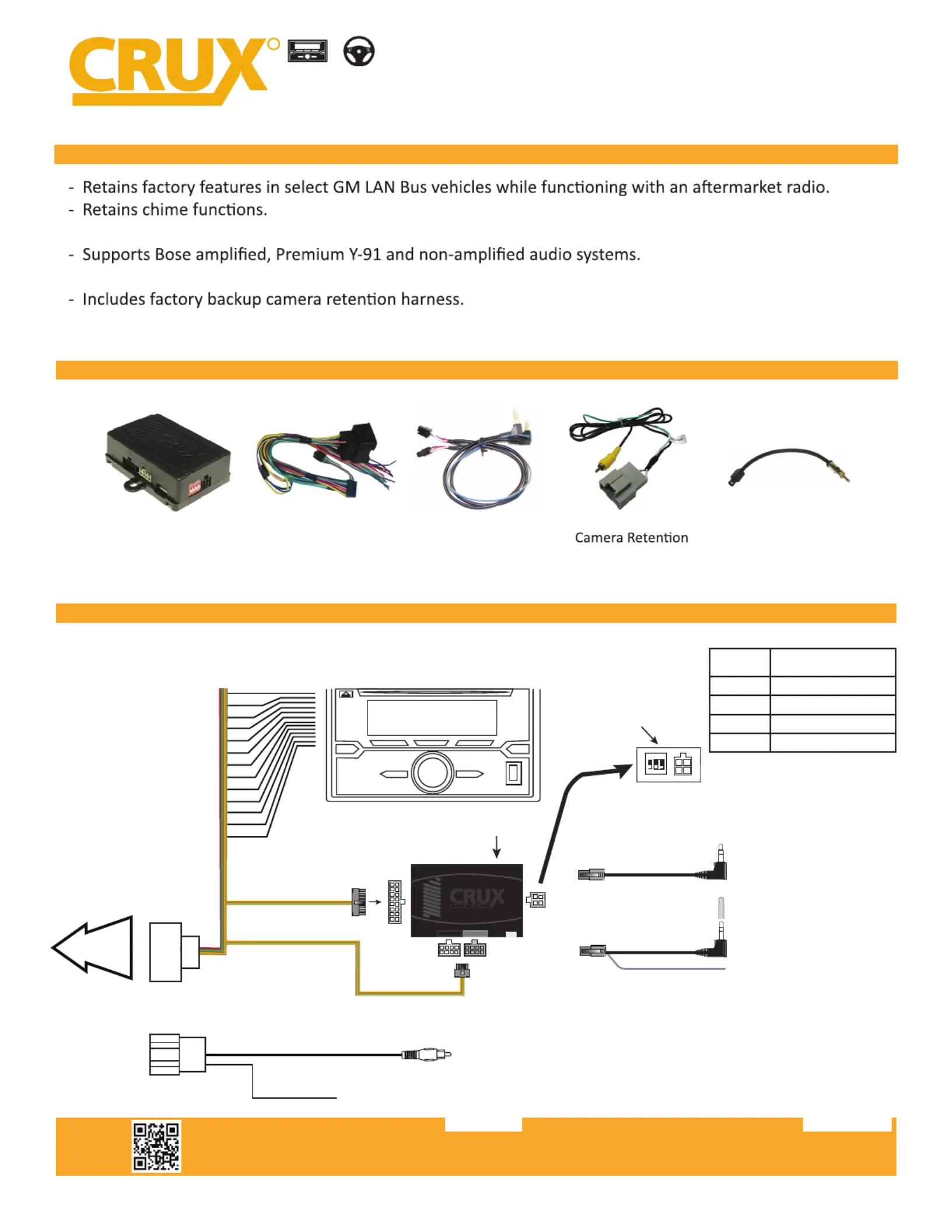

INSTALLATION DIAGRAM:
AFTERMARKET
RADIO
Reverse Gear Purple/White
Illumina on (+) Orange
+12V Constant Yellow
+12V ACC Red
Ground Black
Right Front (+) G yra
Right Front (-) Gray/Black
Le Front (+) White
Le Front (-) White/Black
Le Rear (+) Green
Le Rear (-) Green/Black
Right Rear (+) Violet
Right Rear (-) Violet/Black
TO FACTORY
HARNESS
3.5MM SWC CABLE
Plug in the 3.5MM SWC cable to the 4-pin port
on the module. See “DIP SWITCH SETTINGS” section.
1 2 3
ON
AFTERMARKET
RADIO SELECTOR
(See Chart)
Chime volume
adjustment
44-PIN
CONNECTOR
To aftermarket
Radio SWC Input
16-Pin Black
Connector
Non Bose Bose
See page 2 for Audio
connection options
To Aftermarket
Radio Rear Camera Input
To OEM Camera
Harness
Gray 16-Pin
Connector
Vehicle Speed Sense
(Green/White)
Option A:
Option B:
BLUE / YELLOW
(for Kenwood or JVC)
Insulate with tape
if not being used
OR
SWRGM-49N
Radio Replacement Interface with Steering Wheel Control
Retention for Select GM LAN Bus Vehicles 2010-2017
TROUBLESHOOTING
LED
LIGHT LED MODULE FEEDBACK
Solid blue
Flashing blue
Solid red Module providing 12V ACC
CAN not recognized
CAN recognized
12V ACC OFFRed off
volume. It is set at half way by default. To adjust the volume,
clockwise to increase the volume and counter-clockwise to
decrease the volume.
Chime
Volume
Adjustment
CHIME VOLUME ADJUSTMENT:
Crux Interfacing Solutions • Chatsworth, CA 91311
phone: (818) 609-9299 • fax: (818) 996-8188 • www.cruxinterfacing.com
rev.072022
SWRGM-49N
Radio Replacement Interface with Steering Wheel Control
Retention for Select GM LAN Bus Vehicles 2010-2017
2 of 2
R O P LA TAD I RE CE MEN
SW E T IONC R E NT
+
R
INTERFACING SOLUTIONS
VEHICLE APPLICATIONS:
DIP SWITCH SETTINGS:
AFTERMARKET RADIO DIP SWITCH SETTINGS:
RADIO BRAND: DIP#: 1 2 3
Atoto, Dual, Fahrenheit, Jensen, Nakamichi,
Pioneer, Power Acoustik, Soundstream
Alpine
Clarion
Kenwood
JVC
Boss, Old Sony
New Sony (with CarPlay)
OFF ON ON
OFF ON ON
OFF ON ON
OFF OFF OFF
ON ON OFF
ON ON ON
ON OFF ON
ON OFF OFF
OFF ON OFF
SWC MODULE
DIP SWITCH
1 2 3
ON
NOTE:
check the aftermarket radio’s manual to see if the SWC buttons need to be pro ammed.gr
NOTES:
- Does not retain OnStar. Use Crux part# SOOGM-19N in ead.st
BUICK
2017 Cascada
2015-2016 Encore
CHEVROLET
2011-2015 Cruze
2016 Cruze Classic
2010-2016 Equinox
2013-2015 Malibu*
2016 Malibu Classic*
2012-2015 Sonic
2012-2015 Spark
2016 Spark Classic
2015-2016 Trax
2015 Volt
GMC
2010-2017 Terrain
4-PIN SWC CABLE
OPTION B is used for ATOTO, BLAUPUNKT, BOSS, DUAL, FARENHEIT, JENSEN, NAKAMICHI, POWER ACOUSTIK,
NOTE: Cap or insulate the 3.5mm plug or Blue/Yellow wire if not being used.
RED to SWC Key 1
WHITE to SWC Key 2
SHIELD to SWC Ground
and connect the SWC wires as follows:
Note that there are some radios that only have SWC1 and SWC2, in this case “shield” does not need to be connected.
