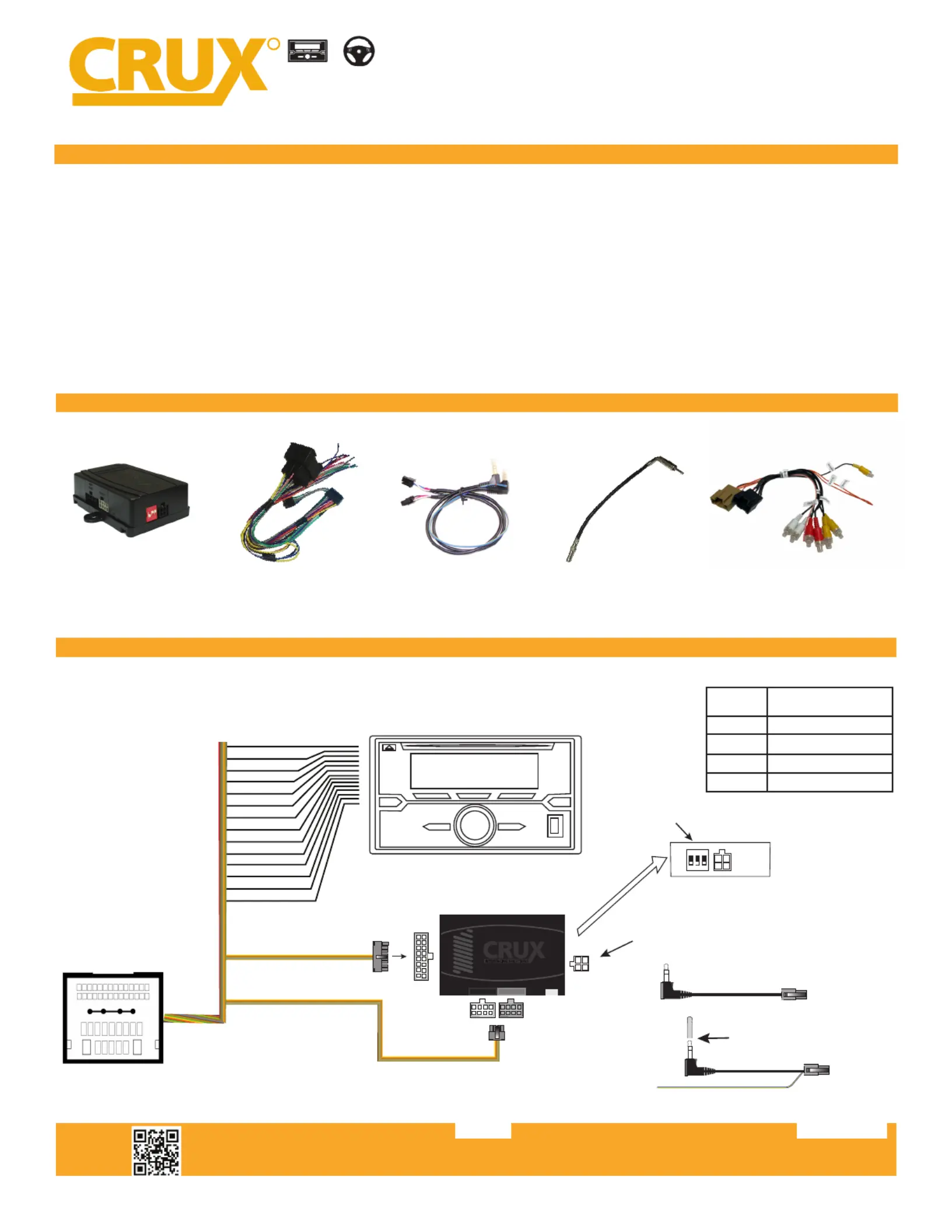

Seite 1/3
Crux Interfacing Solutions • 21541 Nordhoff St., Unit C, Chatsworth, CA 91311
phone: (818) 609-9299 • fax: (818) 996-8188 • www.cruxinterfacing.com
1 of 3
R O P LA TAD I RE CE MEN
SW E T IONC R ENT
+
R
INTERFACING SOLUTIONS
- Retains factory features in select GM LAN 29 Bit trucks and SUVs while functioning with an aftermarket radio.
- Pre-programmed to retain factory Steering Wheel Controls.
- iPhone Voice Recognition (VR) feature from SWC on select Kenwood, Pioneer, Alpine and JVC radios.
- Supports Pick Up/End Call, Pick up and Toggle between 1st and 2nd incoming call, AVRC Track, Seek.P
- Supports Bose, non-Bose and Y-91 audio systems.
- Retains chime functions.
- Provides Factory Rear Seat Entertainment Activation. Requires Cable #CRUX2444 .A included in kit
- Retains factory back-up camera.
- EIA color coded wiring for easy installation.
PRODUCT FEATURES:
PARTS INCLUDED:
INSTALLATION DIAGRAM:
SWRGM-49A MODULE SWRGM-49A HARNESS SWC CABLES ANTENNA ADAPTER BACKUP CAMERA &
RSE RETENTION HARNESS
AFTERMARKET
RADIO
1 2 3
ON
AFTERMARKET
RADIO SELECTOR
(See Chart)
Reverse Red/White
Illumina on (+) Orangeti
Amplier Turn-on Blue/ White
+12V Constant Yellow
+12V ACC Red
Ground Black
Right Front (+) G yra
Right Front (-) Gray/Black
Le Front (+) Whiteft
Le Front (-) White/Blackft
Right Rear (+) Violet
Right Rear (-) Violet/Black
Le Rear (+) Greenft
Le Rear (-) Green/Blackft
Option A:
Option B:
16-Pin Black
Connector
Cap or insulate if
not being used
BLUE / YELLOW
3.5MM SWC CABLES (Option A or B)
Use the proper 3.5MM to 4-Pin cable for your
radio. Plug in the selected 3.5MM SWC cable
to the 4-pin port on the module. See “DIP
SWITCH SETTINGS” section.
Insulate with tape
if not being used
Non Bose Bose
See page 2 for Audio
connection options
SWRGM-49A
Radio Replacement Interface with Steering Wheel Control
Retention for GM LAN 29-Bit Trucks & SUVs 2012-2014
TROUBLESHOOTING
LED
LIGHT LED MODULE FEEDBACK
Solid blue
Flashing blue
Solid red Module providing 12V ACC
CAN not recognized
CAN recognized
12V ACC OFFRed off
44 Pin Connector
rev.03282023
Crux Interfacing Solutions • 21541 Nordhoff St., Unit C, Chatsworth, CA 91311
phone: (818) 609-9299 • fax: (818) 996-8188 • www.cruxinterfacing.com
SWRGM-49A
Radio Replacement Interface with Steering Wheel Control
Retention for GM LAN 29-Bit Trucks & SUVs 2012-2014
2 of 3
R O P LA TAD I RE CE MEN
SW E T IONC R ENT
+
R
INTERFACING SOLUTIONS
DIP SWITCH SETTINGS:
AFTERMARKET RADIO DIP SWITCH SETTINGS:
RADIO BRAND: DIP#: 1 2 3
Atoto, Dual, Fahrenheit, Jensen
Pioneer, Power Acoustik, Soundstream
Alpine
Clarion
Kenwood
JVC
Boss, Old Sony
New Sony
OFF ON ON
OFF ON ON
OFF ON ON
OFF OFF OFF
ON ON OFF
ON ON ON
ON OFF ON
ON OFF OFF
OFF ON OFF
SWC MODULE
DIP SWITCH
1 2 3
ON
NOTE:
check the aftermarket radio’s manual to see if the SWC buttons need to be programmed.
4-PIN SWC CABLE
OPTION B is used for ATOTO, BLAUPUNKT, BOSS, DUAL, FARENHEIT, JENSEN, POWER ACOUSTIK,
NOTE: Cap or insulate the 3.5mm plug or Blue/Yellow wire if not being used.
SELECTING THE AUDIO SYSTEM:
the SWRGM-49A has a built-in audio level adaptor that
outputs the proper audio level from the aftermarket radio to
8-pin connector on the SWRGM-49A harness to the GRAY
female 8-pin connector on the SWRGM-49A module. The
module is also labeled “Bose” and “Non Bose” to avoid
confusion. (see picture below)
system, plug in the male 8-pin connector to the BLACK
female 8-pin on the SWRGM-49A module.
BOSE
NON BOSE
RED to SWC Key 1
WHITE to SWC Key 2
SHIELD to SWC Ground
connect the SWC wires as follows:
Note that there are some radios that only have SWC1 and SWC2, in this case “shield” does not need to be connected.
rev.03282023
Crux Interfacing Solutions • 21541 Nordhoff St., Unit C, Chatsworth, CA 91311
phone: (818) 609-9299 • fax: (818) 996-8188 • www.cruxinterfacing.com
rev.03282023
SWRGM-49A
Radio Replacement Interface with Steering Wheel Control
Retention for GM LAN 29-Bit Trucks & SUVs 2012-2014
3 of 3
R O P LA TAD I RE CE MEN
SW E T IONC R ENT
+
R
INTERFACING SOLUTIONS
volume. It is set at half way by default. To adjust the volume,
clockwise to increase the volume and counter-clockwise to
decrease the volume.
Chime
Volume
Adjustment
CHIME VOLUME ADJUSTMENT:
BACKUP CAMERA CONNECTION:
You can retain the factory back-up camera by using the CRUX 2444 harness included in the kit.
1. Connect the 20-pin back-up camera harness to the vehicle’s 16-pin factory backup camera connector.
3. Test the video feed before in alling the radio back into the dashboard.st
VEHICLE APPLICATIONS:
CHEVROLET
2012-2013 Avalanche
2012-2014 Silverado 1500-3500 Pickup
2012-2014 Suburban
2012-2014 Tahoe
GMC
2012-2013 Sierra 1500-3500 Pickup
2012-2014 Yukon
NOTES:
2. Supports Rear Entertainment System with special order harness # A 2444
3. DOES NOT retain ONSTA .R please use part SOOGM-16W to retain Onstar
4. If Dask Kit complete packaged kit is required purchase DKGM-49A.
CAMERA
MIC +
MIC
VSS
To Factory
20-Pin
Connector
