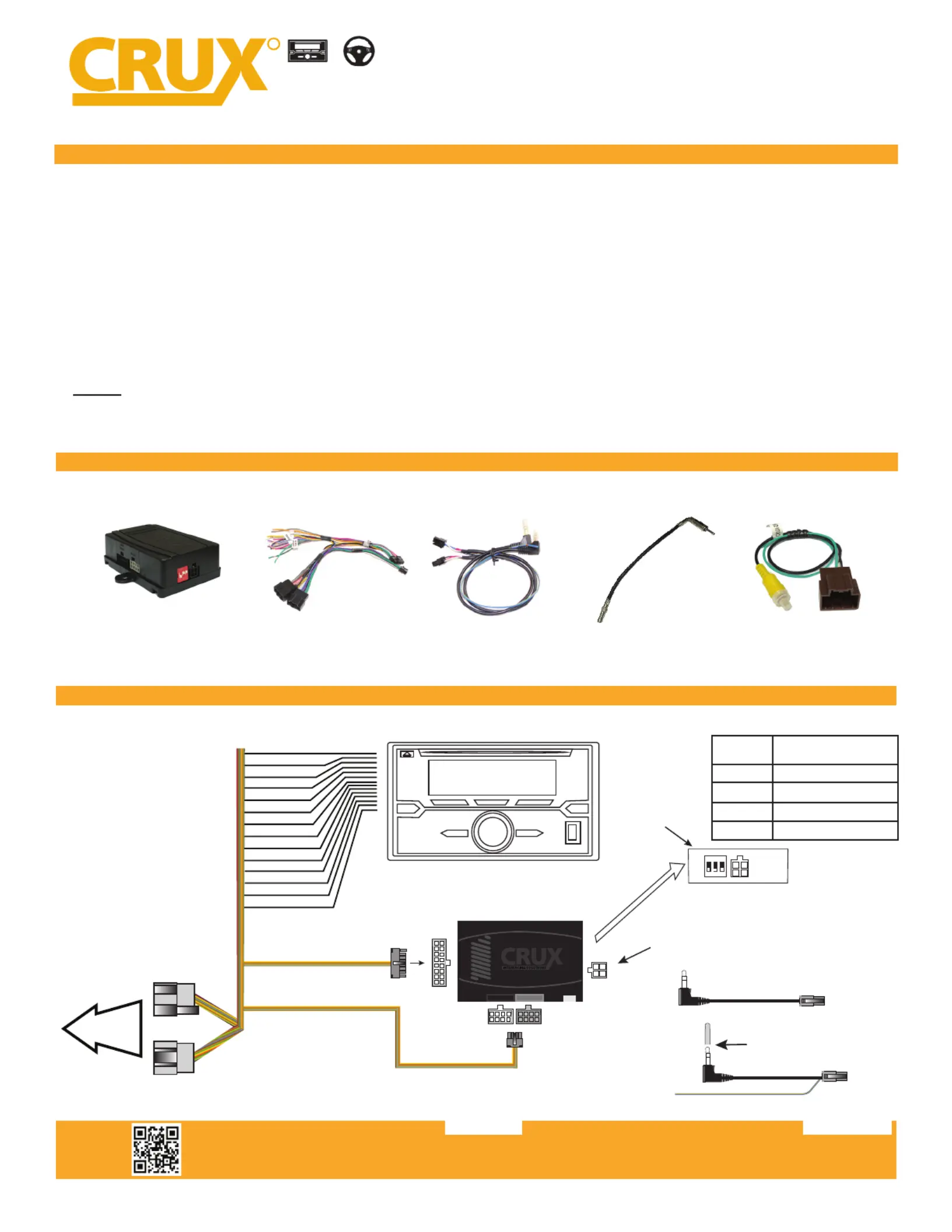

Seite 1/3
Crux Interfacing Solutions • Chatsworth, CA 91311
phone: (818) 609-9299 • fax: (818) 996-8188 • www.cruxinterfacing.com
rev.0720221 of 3
R O P LA TADI RE CEMEN
SW E T IONC R ENT
+
R
INTERFACING SOLUTIONS
- Retains factory features in select GM LAN 29 Bit vehicles while functioning with an aftermarket radio.
- Pre-programmed to retain factory Steering Wheel Controls.
- iPhone Voice Recognition (VR) feature from SWC on select radios.
- Supports Pick Up/End Call, Pick up and Toggle between 1st and 2nd incoming call, AVRC Track, Seek.P
- Supports Bose, non-Bose and Y-91 audio systems.
- Retains chime functions.
- Provides Factory Rear Seat Entertainment Activation. Requires Cable #CRUX2333A (sold separately).
- Retains factory backup camera.*
- Retains factory backup sensors / park assist system.
- EIA color coded wiring for easy installation.
PRODUCT FEATURES:
PARTS INCLUDED:
INSTALLATION DIAGRAM:
SWRGM-49 MODULE SWRGM-49 HARNESS SWC CABLES ANTENNA ADAPTER Backup Camera Harness
AFTERMARKET
RADIO
1 2 3
ON
AFTERMARKET
RADIO SELECTOR
(See Chart)
Reverse Red/White
Illumina on (+) Orange
Amplier Turn-on Blue/ White
+12V Constant Yellow
+12V ACC Red
Ground Black
Right Front (+) G yra
Right Front (-) Gray/Black
Le Front (+) White
Le Front (-) White/Black
Right Rear (+) Violet
Right Rear (-) Violet/Black
Le Rear (+) Green
Le Rear (-) Green/Black
Option A:
Option B:
TO FACTORY
HARNESS
16-Pin Black
Connector
Cap or insulate if
not being used
BLUE / YELLOW
3.5MM SWC CABLES (Option A or B)
Use the proper 3.5MM to 4-Pin cable for your
radio. Plug in the selected 3.5MM SWC cable
to the 4-pin port on the module. See “DIP
SWITCH SETTINGS” section.
Insulate with tape
if not being used
Non Bose Bose
See page 2 for Audio
connection options
SWRGM-49
Radio Replacement Interface with Steering Wheel Control
Retention for GM LAN 29-Bit Vehicles 2006-2015
NOTE:
Does not retain the factory backup camera on models that show the camera image on the rearview mirror.
TROUBLESHOOTING
LED
LIGHT LED MODULE FEEDBACK
Solid blue
Flashing blue
Solid red Module providing 12V ACC
CAN not recognized
CAN recognized
12V ACC OFFRed off
Crux Interfacing Solutions • Chatsworth, CA 91311
phone: (818) 609-9299 • fax: (818) 996-8188 • www.cruxinterfacing.com
rev.072022
SWRGM-49
Radio Replacement Interface with Steering Wheel Control
Retention for GM LAN 29-Bit Vehicles 2006-2015
2 of 3
R O P LA TAD I RE CE MEN
SW E T IONC R E NT
+
R
INTERFACING SOLUTIONS
DIP SWITCH SETTINGS:
AFTERMARKET RADIO DIP SWITCH SETTINGS:
RADIO BRAND: DIP#: 1 2 3
Atoto, Dual, Fahrenheit, Jensen
Pioneer, Power Acoustik, Soundstream
Alpine
Clarion
Kenwood
JVC
Boss, Old Sony
New Sony
OFF ON ON
OFF ON ON
OFF ON ON
OFF OFF OFF
ON ON OFF
ON ON ON
ON OFF ON
ON OFF OFF
OFF ON OFF
SWC MODULE
DIP SWITCH
1 2 3
ON
NOTE:
check the aftermarket radio’s manual to see if the SWC buttons need to be programmed.
4-PIN SWC CABLE
OPTION B is used for ATOTO, BLAUPUNKT, BOSS, DUAL, FARENHEIT, JENSEN, POWER ACOUSTIK,
NOTE: Cap or insulate the 3.5mm plug or Blue/Yellow wire if not being used.
SELECTING THE AUDIO SYSTEM:
the SWRGM-49 has a built-in audio level adaptor that
outputs the proper audio level from the aftermarket radio to
8-pin connector on the SWRGM-49 harness to the GRAY
female 8-pin connector on the SWRGM-49 module. The
module is also labeled “Bose” and “Non Bose” to avoid
confusion. (see picture below)
system, plug in the male 8-pin connector to the BLACK
female 8-pin on the SWRGM-49 module.
BOSE
NON BOSE
RED to SWC Key 1
WHITE to SWC Key 2
SHIELD to SWC Ground
connect the SWC wires as follows:
Note that there are some radios that only have SWC1 and SWC2, in this case “shield” does not need to be connected.
Crux Interfacing Solutions • Chatsworth, CA 91311
phone: (818) 609-9299 • fax: (818) 996-8188 • www.cruxinterfacing.com
rev.072022
SWRGM-49
Radio Replacement Interface with Steering Wheel Control
Retention for GM LAN 29-Bit Vehicles 2006-2015
3 of 3
R O P LA TAD I RE CE MEN
SW E T IONC R E NT
+
R
INTERFACING SOLUTIONS
volume. It is set at half way by default. To adjust the volume,
clockwise to increase the volume and counter-clockwise to
decrease the volume.
Chime
Volume
Adjustment
CHIME VOLUME ADJUSTMENT:
BACKUP CAMERA CONNECTION:
You can retain the factory back-up camera by using the CRUX 2543 harness included in the kit.
1. Connect the 16-pin back-up camera harness to the vehicle’s 16-pin factory backup camera connector.
3. Test the video feed before in alling the radio back into the dashboard.st
VEHICLE SPEED SENSE (VSS)
VEHICLE APPLICATIONS:
BUICK
2008-2017 Enclave
2006-2011 Lucerne
CADILLAC
2007-2014 Escalade
2007-2009 SRX
CHEVROLET
2007-2013 Avalanche*
2007-2008 Equinox
2008-2016 Express Van**
2006-2013 Impala / Impala SS
2014-2016 Impala Classic
2006-2007 Monte Carlo
2007-2013 Silverado 1500-3500 Pickup*
2007-2014 Suburban*
2007-2014 Tahoe*
2009-2017 Traverse
GMC
2007-2016 Acadia
2017 Acadia Classic
2008-2017 Savana**
2007-2013 Sierra 1500-3500 Pickup*
2007-2014 Yukon*
HUMMER
2008-2009 H2
PONTIAC
2007-2009 Torrent
SATURN
2007-2009 Outlook
2008-2009 Vue
SUZUKI
2007-2008 XL7
NOTE:
Does not retain the factory backup camera on models that show the camera image on the rearview mirror.
