CRUX SWRGM-48 Bedienungsanleitung

CRUX niet gecategoriseerd SWRGM-48

Lesen Sie kostenlos die 📖 deutsche Bedienungsanleitung für CRUX SWRGM-48 (6 Seiten) in der Kategorie niet gecategoriseerd. Dieser Bedienungsanleitung war für 8 Personen hilfreich und wurde von 2 Benutzern mit durchschnittlich 4.5 Sternen bewertet

Download PDF
Seite 1/6
Crux Interfacing Solutions • Chatsworth, CA 91311
phone: (818) 609-9299 • fax: (818) 996-8188 • www.cruxinterfacing.com
rev.09282021
1 of 6
RAD IO RE PLAC E ME NT
SWC RE TE NTIO N
+
R
INTERFACING SOLUTIONS
- Retains factory features in select GM Class II Data Bus vehicles while functioning with an aftermarket radio.
- Pre-programmed to retain factory Steering Wheel Controls.
- Voice Recognition Command from factory SWC.
- Supports Bose, non-Bose and Y-91 audio systems.
- Retains chime functions.
- Built-in chime volume adjustment.
- EIA color coded wiring for easy installation.
PRODUCT FEATURES:
PARTS INCLUDED:

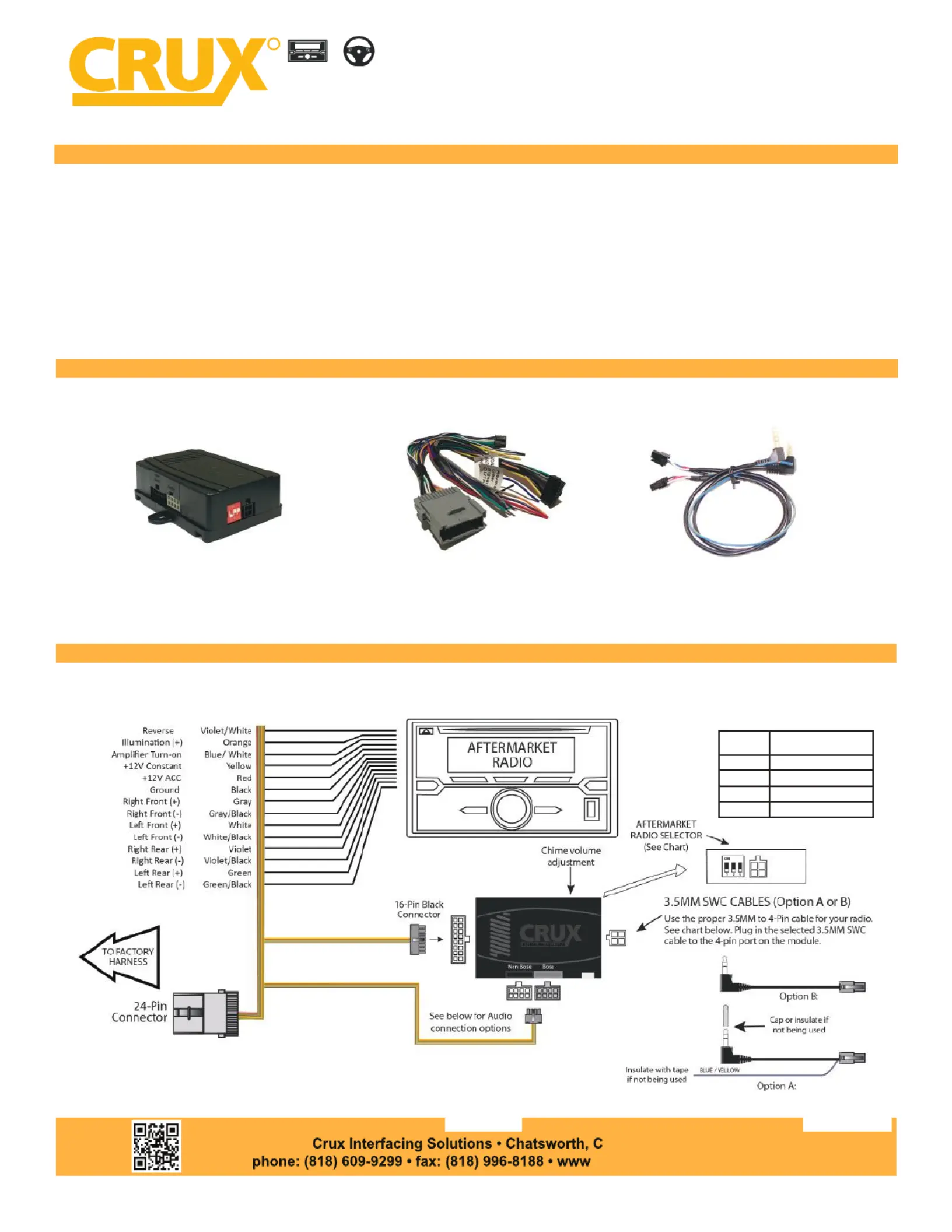

INSTALLATION DIAGRAM:
SWRGM-48 MODULE SWRGM-48 HARNESS SWC CABLE
SWRGM-48
Radio Replacement Interface with Steering Wheel Control
Retention for select GM Class II Vehicles
Crux Interfacing Solutions • Chatsworth, CA 91311
phone: (818) 609-9299 • fax: (818) 996-8188 • www.cruxinterfacing.com
SWRGM-48
Radio Replacement Interface with Steering Wheel Control
Retention for select GM Class II Vehicles
2 of 6
RAD IO RE PLAC E ME NT
SWC RE TE NTIO N
+
R
INTERFACING SOLUTIONS
DIP SWITCH SETTINGS:
AFTERMARKET RADIO DIP SWITCH SETTINGS:
RADIO BRAND: DIP#: 1 2 3
Atoto, Dual, Fahrenheit, Jensen, Nakamichi,
Pioneer, Power Acoustik, Soundstream
Blaupunkt, Most o-brand Radio
Alpine
Clarion
Kenwood
JVC
Boss, Old Sony
New Sony (with CarPlay)
OFF ON ON
OFF ON ON
OFF ON ON
OFF OFF OFF
ON ON OFF
ON ON ON
ON OFF ON
ON OFF OFF
OFF ON OFF
SWC MODULE
DIP SWITCH
1 2 3
ON
NOTE: For Atoto, Blaupunkt, Dual, Farenheit, Nakamichi, Power Acoustik, Soundstream, and most o-brand radios,
check the aftermarket radio’s manual to see if the SWC buttons need to be programmed.
4-PIN SWC CABLE
Use the proper 3.5MM to 4-Pin SWC cable for the aermarket radio you are using.
OPTION A is used for ALPINE, CLARION. Use the Blue/Yellow wire for JVC and KENWOOD units.
OPTION B is used for ATOTO, BLAUPUNKT, BOSS, DUAL, FARENHEIT, JENSEN, POWER ACOUSTIK,
PIONEER, SONY, SOUNDSTREAM and Most O-Brand Radios.
NOTE: Cap or insulate the 3.5mm plug or Blue/Yellow wire if not being used.
SELECTING THE AUDIO SYSTEM:
If the vehicle is equipped with an amplied audio system,
the SWRGM-48 has a built-in audio level adaptor that
outputs the proper audio level from the aftermarket radio to
the factory amplier. To use this feature, plug in the male
8-pin connector on the SWRGM-48 harness to the GRAY
female 8-pin connector on the SWRGM-48 module. The
module is also labeled “Bose” and “Non Bose” to avoid
confusion. (see picture below)
If the vehicle is NOT equipped with a factory amplied
system, plug in the male 8-pin connector to the BLACK
female 8-pin on the SWRGM-48 module.
BOSE
(Amplied)
Connecon
NON BOSE
(Non-Amplied)
Connecon
RED to SWC Key 1
WHITE to SWC Key 2
SHIELD to SWC Ground
For aermarket radios that have wires for SWC connecons, cut o the 3.5mm plug on the Crux SWC Cable (opon B) and
connect the SWC wires as follows:
Note that there are some radios that only have SWC1 and SWC2, in this case “shield” does not need to be connected.
rev.09282021
Crux Interfacing Solutions • Chatsworth, CA 91311
phone: (818) 609-9299 • fax: (818) 996-8188 • www.cruxinterfacing.com
SWRGM-48
Radio Replacement Interface with Steering Wheel Control
Retention for select GM Class II Vehicles
3 of 6
RAD IO RE PLAC E ME NT
SWC RE TE NTIO N
+
R
INTERFACING SOLUTIONS
The SWRGM-48 has a potenometer to adjust the chime
volume. It is set at half way by default. To adjust the volume,
simply use a suitable screw driver and turn the potenometer
clockwise to increase the volume and counter-clockwise to
decrease the volume.
Chime
Volume
Adjustment
CHIME VOLUME ADJUSTMENT:
STEERING WHEEL CONTROL BUTTON FUNCTIONS:
SWC Buon SHORT PRESS LONG PRESS
VOL +
VOL -
AM/FM
Preset
NOTES:
Step Increment
Step Decrement
Source
Acvate VR /
To Deacvate VR =
on Pioneer, press “PRESET”
on JVC = say “Cancel”
Connuous VOL +
Connuous VOL –
Pick Up Call
End Call
To Deacvate VR =
on Kenwood, long press of PRESET
4 BUTTON SWC
SWC Buon SHORT PRESS LONG PRESS
ALPINE
VOL +
VOL -
Seek Up p
Seek Down q
Source Up
Source Down
Prog
Voice
Step Increment
Step Decrement
Seek Up
Seek Down
Pick up Call
Source
Connuous VOL +
Connuous VOL –
N/A
N/A
End Call
N/A
4 BUTTON SWC
SWC Buon SHORT PRESS LONG PRESS
CLARION
VOL +
VOL -
Seek Up p
Seek Down q
Source Up
Source Down
Prog
Voice
Step Increment
Step Decrement
Preset Up
Preset Down
Pick up Call
Source
Mute
Mute
Connuous VOL +
Connuous VOL –
N/A
N/A
End Call
N/A
N/A
N/A
rev.09282021
