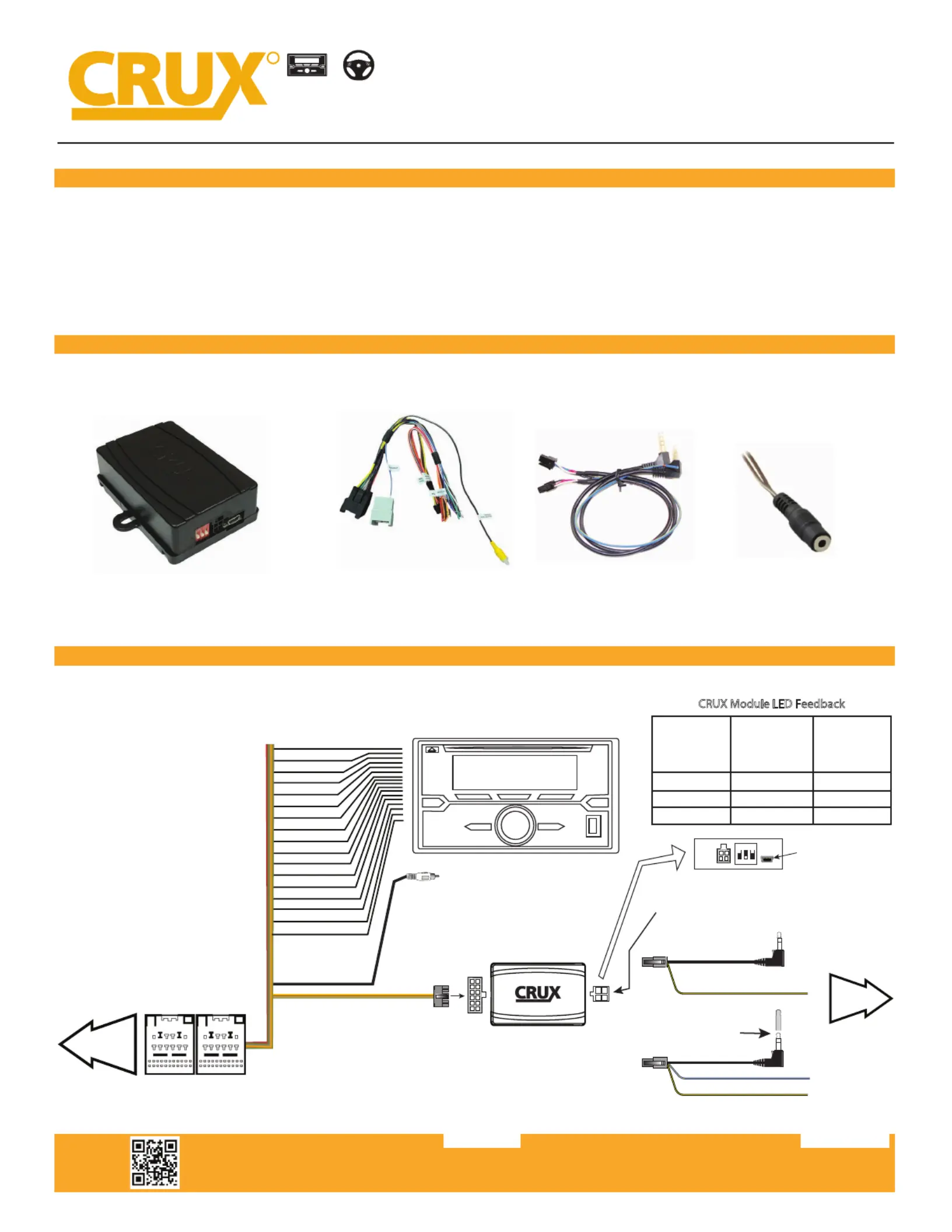

R I R A T AD O EPL CE MEN
S RE T TION WC EN
+
R
INTERFACING SOLUTIONS
Crux Interfacing Solutions • Chatsworth, CA 91311
phone: (818) 609-9299 • fax: (818) 996-8188 • www.cruxinterfacing.com
rev.08312022
SWRFD-60T
Radio Replacement with Steering Wheel Control Retention for
Select 2020 and Up Ford Vehicles
1 of 2
PRODUCT FEATURES:
PARTS INCLUDED:
- Retains Features in Select Ford Vehicles. Factory
- Retains Steering Wheel Controls via Built-in Pre-programmed Interface. Factory
- Made for Non Amplied Vehicles.
- Provides Accessory Power (2A max).
- Provides Illuminaon Output.
- Provides Reverse Signal.
S SWRFD-60T HARN SS SWC Cables WRFD-60T MODULE E
INSTALLATION DIAGRAM:
AFTERMARKET
RADIO
Illumination (+) Orange
Vehicle Speed Sense
AMP TURN ON Blue/White
+12V Constant Yellow
+12V ACC Red
Ground Black
Reverse Gear
Right Front (+) Gray
Right Front (-) Gray/Black
Left Front (+) White
Left Front (-) White/Black
Right Rear (+) Violet
Right Rear (-) Violet/Black
Left Rear (+) Green
Left Rear (-) Green/Black
Yellow RCA
To Retain Factory Back Up Camera
33 Pin Connectors
TO FACTORY
HARNESS
Option A:
Option B:
Cap or insulate if
not being used
BLUE / YELLOW FOR JVC & KENWOOD
3.5MM SWC CABLES (Option A or B)
CRUX Module LED Feedback
Insulate with
tape if not
being used
12-Pin
Connector
Use the proper 3.5MM to 4-Pin cable for your
radio. Plug in the selected 3.5MM SWC cable
to the 4-pin port on the module. See “DIP
SWITCH SETTINGS” section.
1 2 3
ON mini USB
Not Used
INTERFACING SOLUTIONS
Red/White or Violet/White
Pink or Red/Black
Univeral Radio
Key A Key B SWC
LED Light
Solid Red & Blue PASS
FAIL
FAILPASS
PASS
PASS
Slow Red Flash
Slow Blue Flash
Vehicle
Programming
Section
POWER
R I R A T AD O EPL CE MEN
S RE T TION WC EN
+
R
INTERFACING SOLUTIONS
Crux Interfacing Solutions • Chatsworth, CA 91311
phone: (818) 609-9299 • fax: (818) 996-8188 • www.cruxinterfacing.com
rev.08312022
SWRFD-60T
Radio Replacement with Steering Wheel Control Retention for
Select 2020 and Up Ford Vehicles
BROWN/WHITE to SWC Key 2
2 of 2
VEHICLE APPLICATIONS:
AFTERMARKET RADIO DIP SWITCH SETTINGS:
RADIO BRAND: DIP#: 1 2 3
Atoto, Dual, Fahrenheit, Jensen, Nakamichi,
Pioneer, Power Acoustik, Soundstream
Alpine
Clarion
Kenwood
JVC
Boss, Old Sony
New Sony (with CarPlay)
OFF ON ON
OFF ON ON
OFF ON ON
OFF OFF OFF
ON ON OFF
ON ON ON
ON OFF ON
ON OFF OFF
OFF ON OFF
SWC MODULE
DIP SWITCH
1 2 3
ON
NOTE:
check the aftermarket radio’s manual to see if the SWC buttons need to be pro ammed. gr
3.5MM SWC CABLE
Plug in the 3.5MM to 4-Pin SWC cable to the SWC module or use the Blue/White wire for JVC and Kenwood.
DIP SWITCH SETTINGS:
NOTE:
Does not retain Sync.
FORD
RED to SWC Key 1
WHITE to SWC Key 2
SHIELD to SWC Ground
Universal Radios
BROWN to SWC Key 1
B) and connect the SWC wires as follows:
Note that there are some radios that only
have SWC1 and SWC2, in this case “shield”
does not need to be connected.
2021 - Up E Series
2020 - Up Eco Sport
2020 - Up Escape
2020 - Up F250/F350/F450/F550
2020 - Up Transit
2020 - Up Transit Connect
