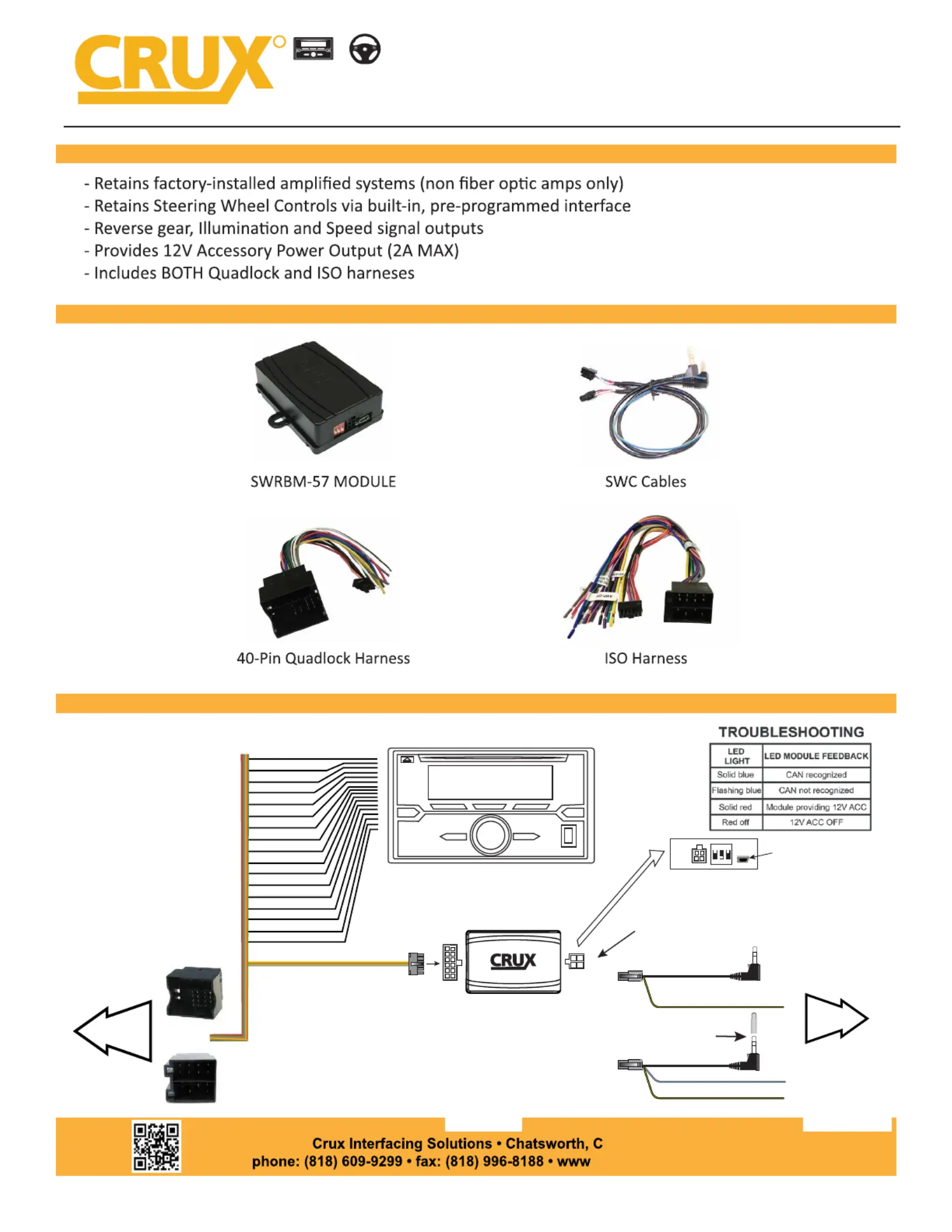

RAD IO R EP LAC EME NT
SWC R ETE NTI ON
+
R
INTERFACING SOLUTIONS
Crux Interfacing Solutions • Chatsworth, CA 91311
phone: (818) 609-9299 • fax: (818) 996-8188 • www.cruxinterfacing.com
rev.072322
SWRBM-57
Radio Replacement with Steering Wheel Control Retention for
Select BMW, Mercedes Benz and Porsche Vehicles
1 of 2
PRODUCT FEATURES:
PARTS INCLUDED:
- Retains factory-installed amplied systems (non ber opc amps only)
- Retains Steering Wheel Controls via built-in, pre-programmed interface
- Reverse gear, Illuminaon and Speed signal outputs
- Provides 12V Accessory Power Output (2A MAX)
- Includes BOTH Quadlock and ISO harneses
SWRBM-57 MODULE SWC Cables
40-Pin Quadlock Harness ISO Harness
INSTALLATION DIAGRAM:
AFTERMARKET
RADIO
Illumination (+) Orange
Vehicle Speed Sense Purple/White
Reverse Red/White
Amp Turn on Blue
+12V Constant Yellow
+12V ACC Red
Ground Black
Right Front (+) Gray
Right Front (-) Gray/Black
Left Front (+) White
Left Front (-) White/Black
Right Rear (+) Violet
Right Rear (-) Violet/Black
Left Rear (+) Green
Left Rear (-) Green/Black
TO FACTORY
HARNESS
Option A:
Option B:
Cap or insulate if
not being used
BLUE / YELLOW FOR JVC & KENWOOD
3.5MM SWC CABLES (Option A or B)
Insulate with
tape if not
being used
12-Pin
Connector
OR Use the proper SWRBM-57 harness
that corresponds to the OEM
harness in the vehicle
40-pin Quadlock
17-pin Slide-Lock
Use the proper 3.5MM to 4-Pin cable for your
radio. Plug in the selected 3.5MM SWC cable
to the 4-pin port on the module. See “DIP
SWITCH SETTINGS” section.
1 2 3
ON mini USB
Not Used
INT ERFAC ING SOL UTI ONS
RAD IO R EP LAC EME NT
SWC R ETE NTI ON
+
R
INTERFACING SOLUTIONS
Crux Interfacing Solutions • Chatsworth, CA 91311
phone: (818) 609-9299 • fax: (818) 996-8188 • www.cruxinterfacing.com
rev.072322
SWRBM-57
Radio Replacement with Steering Wheel Control Retention for
Select BMW, Mercedes Benz and Porsche Vehicles
2 of 2
VEHICLE APPLICATIONS:
AFTERMARKET RADIO DIP SWITCH SETTINGS:
RADIO BRAND: DIP#: 1 2 3
Atoto, Dual, Fahrenheit, Jensen
Pioneer, Power Acoustik, Soundstream
Blaupunkt, Most o-brand Radio
Alpine
Clarion
Kenwood
JVC
Boss, Old Sony
New Sony
OFF ON ON
OFF ON ON
OFF ON ON
OFF OFF OFF
ON ON OFF
ON ON ON
ON OFF ON
ON OFF OFF
OFF ON OFF
SWC MODULE
DIP SWITCH
1 2 3
ON
NOTE: For Atoto, Blaupunkt, Dual, Farenheit, Power Acoustik, Soundstream, and most o-brand radios,
check the aftermarket radio’s manual to see if the SWC buttons need to be programmed.
3.5MM SWC CABLE
Plug in the 3.5MM to 4-Pin SWC cable to the SWC module or use the Blue/White wire for JVC and Kenwood.
DIP SWITCH SETTINGS:
BMW
2007 – 2013 1 Series (E81/82/87/88)
2006 3 Series (E90/91) Sedan/Wagon
2007 – 2012 3 Series (E90/91/92/93)
MERCEDES BENZ
2004 – 2010 A Class (W169) with Quadlock
2004 – 2010 B Class (W245) with Quadlock
2007 – 2014 C Class (W204)
2005 – 2006 C Class (W203)
2005 – 2009 CLK Class (W209)
2004 – 2010 CLS Class (W219)
2010 – 2017 E Coupe (W207)
2009 – 2012 E Class (W212)
2005 – 2011 M Class (W164)
2016 Metris (W447)
2006 – 2011 R Class (W251)
2004 – 2008 SLK (R171) Non Fiber-Opc
2009 – 2011 SLK (R171)
2014 – 2018 Sprinter (W906)*
2019 – 2020 Sprinter(W907/W910)
MINI
2013 Cooper S
PORSCHE**
2004 – 2011 911
2004 – 2016 Boxster
2004 – 2012 Cayman
2010 – 2016 Panamera
MERCEDES BENZ
2004 – 2010 A Class (W169) with Audio5
2004 – 2010 B Class (W245) with Audio5
2000 – 2004 C Class (W203)
1999 – 2002 CLK Class (W208)
2003 – 2004 CLK (W209)
1999 – 2000 E Class (W210)
2001 – 2002 E Class (W211)
2001 – 2004 SL Class (R230)
*To retain the factory Sprinter camera aer replacing the radio,
use Crux part# FAK-RCAM (sold separately)
** Does not retain ber opc amplier.
TYPE A: 40 Pin Quadlock Connector TYPE B: ISO Connectors
RED to SWC Key 1
WHITE to SWC Key 2
SHIELD to SWC Ground
For aermarket radios that have wires for SWC connecons, cut o the 3.5mm plug on the Crux SWC Cable (opon B) and
connect the SWC wires as follows:
Note that there are some radios that only have
SWC1 and SWC2, in this case “shield” does not
need to be connected.
