SWR-100
Universal Steering Wheel Control Retention Interface
R
INTERFACING SOLUTIONS
SWC RETENTION
Crux Interfacing Solutions • 21541 Nordhoff St., Unit C, Chatsworth, CA 91311
phone: (818) 609-9299 • fax: (818) 996-8188 • www.cruxinterfacing.com
rev.071619
- Retains Steering Wheel Controls via built-in, pre-programmed interface.
- Provides +12 volt accessory output.
- Auto detect on CAN Bus vehicles.
- Retains VR Command (Voice Recognion) funcon on select OEM steering wheel controls to acvate
CarPlay and Android Auto compable devices.
- Works on the new generaon Sony Radio with CarPlay funcon.
PRODUCT FEATURES:
SWR-100 Module SWR-100 Harness SWC Cable
PARTS INCLUDED:

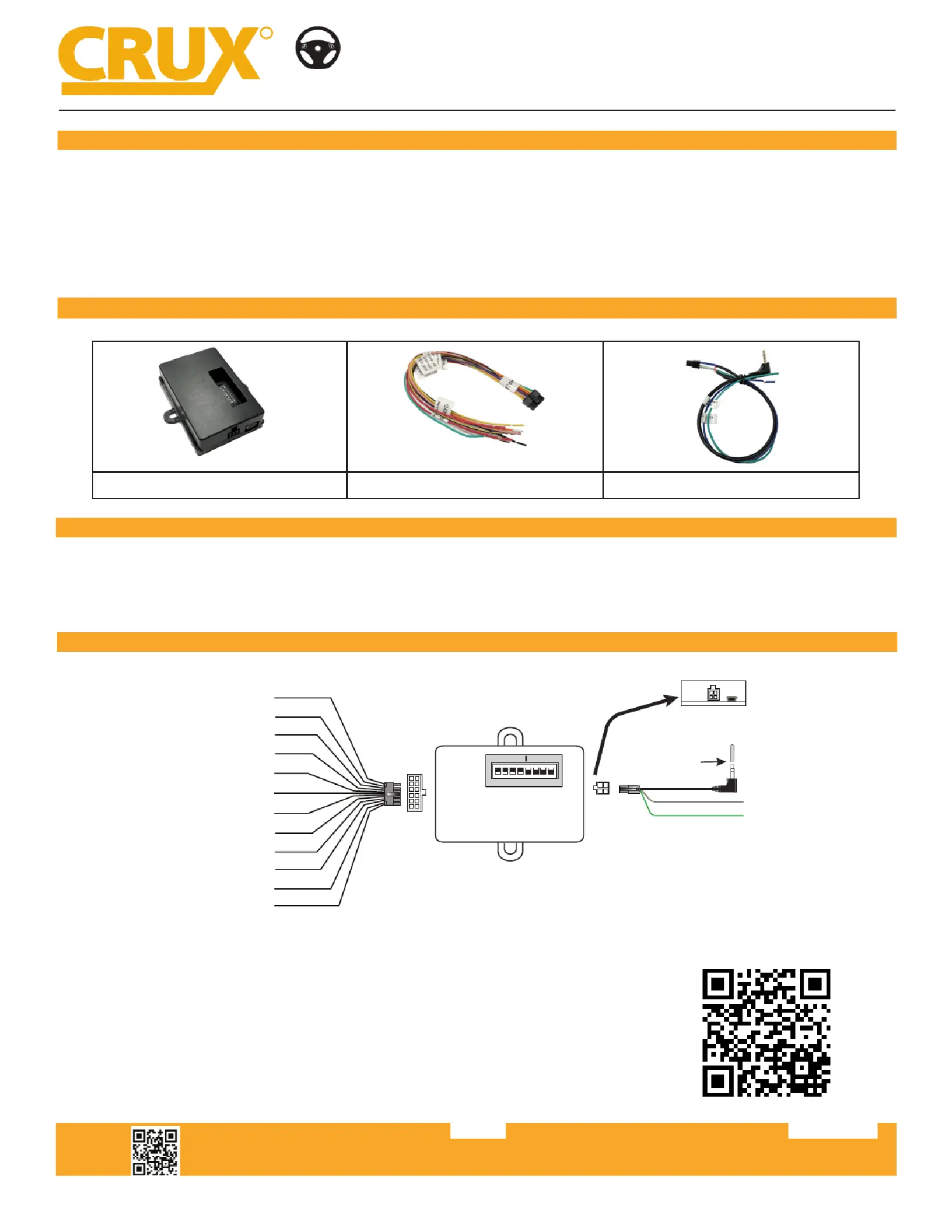

INSTALLATION DIAGRAM:
For vehicle specic wiring diagram and connecon, please visit:
www.cruxinterfacing.com/wiring or click on the QR code.
ON RADIO VEHICLE
1 2 3 4 5 6 7 8
4-Pin
Connector
Cap or insulate if
not being used
Kenwood/JVC (BLUE / YELLOW)
Insulate with tape
if not being used
3.5MM SWC CABLE
Plug in the 3.5MM SWC cable to the 4-pin port
on the module. See below for DIP switch settings.
LIN BUS (Green)
Ground
CAN Low
iBus & GM LIN
ACC In
ACC Out
SWC Ground
+12V Constant
CAN High
Class II
SWC 1
SWC 2
SWC 3
Black
Pink/Black
White/Red
Red/White*
Red
Black
Yellow
Pink
Violet/White
Orange/Black
Yellow/Black
Green/White
*For vehicles with analog SWC, connect the Red/White wire to ACC to power the module.
SUPPORTED RADIOS:
Alpine
Boss
Blaupunkt
Clarion
Dual
Fahrenheit
Jensen
JVC
Kenwood
Pioneer
Power Acousk
Sony
Soundstream
Most O-Brand Radios
1 of 2
SWR-100
Universal Steering Wheel Control Retention Interface
R
INTERFACING SOLUTIONS
SWC RETENTION
Crux Interfacing Solutions • 21541 Nordhoff St., Unit C, Chatsworth, CA 91311
phone: (818) 609-9299 • fax: (818) 996-8188 • www.cruxinterfacing.com
rev.042318
2 of 2
Kenwood/JVC (BLUE / YELLOW )
LIN BUS (Green)
SWC CABLE
Vehicle GREEN/BLACK Wire
Located beneath the steering wheel column
Kenwood/JVC (BLUE / YELLOW)
LIN BUS (Green)
RED to SWC Key 1
WHITE to SWC Key 2
SHIELD to SWC Ground
SWC CABLE
(included in kit)
For aermarket radios with a 3.5mm jack for the SWC, use the SWC cable below.
(Old Sony, New Sony (with CarPlay/Android Auto), Pioneer, Jensen, Dual, Fahrenheit, New Soundstream)
For GM vehicles with LIN Bus, tap the GREEN (LIN Bus) wire to the GREEN/BLACK wire on the factory SWC.
For radios with wires (2 or 3 wire) connecons for SWC, use the female 3.5mm adapter.
(Boss, Power Acousk, select Sounstream)
For Kenwood and JVC radios with a BLUE/YELLOW wire connecon for SWC, tap to the BLUE/YELLOW wire
of the SWC adapter..
BLUE/YELLOW
Kenwood/JVC SWR
Kenwood/JVC
SWR
SWC CONNECTION:
