Crux Interfacing Solutions • Chatsworth, CA 91311
phone: (818) 609-9299 • fax: (818) 996-8188 • www.cruxinterfacing.com
1 of 4
RAD REPLA T IO CE MEN
SWC ENTRE T ION
+
R
INTERFACING SOLUTIONS
PRODUCT FEATURES:

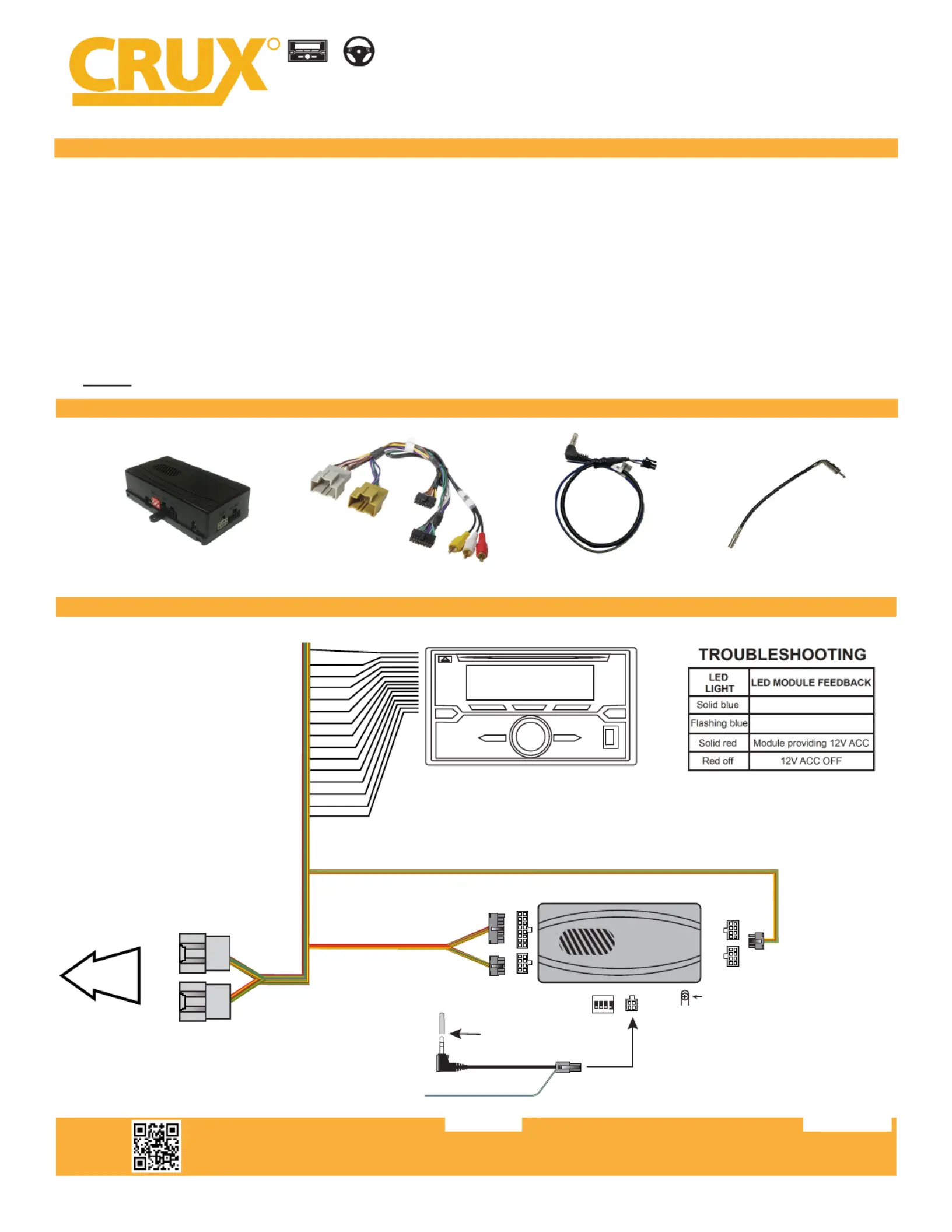

INSTALLATION DIAGRAM:
SOOGM-16K MODULE SOOGM-16K HARNESS SWC CABLES
20-Pin Connector Harness
SOOGM-16K
Radio Replacement Interface with OnStar® & SWC Retention
for Select 7” GM IOA & IOB Vehicles
AFTERMARKET
RADIO
Reverse Purple/White
Illumina on ti Orange
VSS Red/Black
+12V Constant Yellow
+12V ACC Red
Ground Black
Right Front (+) Gray
Right Front (-) Gray/Black
Left Front (+) White
Left Front (-) White/Black
Right Rear (+) Violet
Right Rear (-) Violet/Black
Left Rear (+) Green
Left Rear (-) Green/Black
Parking Brake Yellow/Black
16-Pin
Connector
8-Pin
Connector
BOSE NON
BOSE
8-Pin
Connector SWC DIP SWC
1 2 3 4
ON
Chime Volume
Adjustment
4-Pin
Connector
Cap or insulate if
not being used
3.5MM SWC CABLE
Plug in the 3.5MM SWC cable to the 4-pin port
on the module. See “DIP SWITCH SETTINGS” section.
JVC/Kenwood (Blue / Yellow)
To aftermarket
radio SWC wire or
3.5mm port
LAN Bus not recognized
LAN Bus recognized
ANTENNA ADAPTER
TO FACTORY
HARNESS
- Retains factory features in select GM IOA & IOB vehicles while functioning with an aftermarket radio.
- Pre-programmed to retain factory Steering Wheel Controls.
- iPhone Voice Recognition (VR) feature from SWC on select radios.
- Supports Pick Up/End Call, Pick up and oggle between 1st and 2nd incoming call, T AVRCP Track, Seek.
- Supports Non Amplified Systems
- Retains factory OnStar®
- Retains chime functions.
- Retains factory backup camera* & auxiliary input.
- Retains factory backup sensors / park assist system.
NOTE:
- Use the GM-CAM-HAR-DIS for IOB Build Code vehicles to connect to the original display harness,ensuring
camera signal retention when replacing the factory display.
- Does not retain factory Bose amplifier
Red/White A RC
Yellow RCA
(Retain OE Camera)
Rear View Camera Signal
GM-CAM-DIS HARNESS
rev.05 2024 10
PARTS INCLUDED:
Crux Interfacing Solutions • Chatsworth, CA 91311
phone: (818) 609-9299 • fax: (818) 996-8188 • www.cruxinterfacing.com
SOOGM-16K
2 of 4
RAD REPLA T IO CE MEN
SWC ENTRE T ION
+
R
INTERFACING SOLUTIONS
DIP SWITCH SETTINGS:
4-PIN SWC CABLE
OPTION B is used for BLAUPUNKT, BOSS, DUAL, FARENHEIT, JENSEN, POWER ACOUSTIK, PIONEER,
NOTE: Cap or insulate the 3.5mm plug or Blue/Yellow wire if not being used.
use the Blue/Yellow wire for JVC and Kenwood radios.
SELECTING THE AUDIO SYSTEM:
Radio Replacement Interface with OnStar® & SWC Retention
for Select 7” GM IOA & IOB Vehicles
RADIO BRAND: DIP#: 1 2 3 4
Atoto, Dual, Fahrenheit, Jensen,
Pioneer, Power Acoustik, Soundstream
Alpine
Clarion
Kenwood
JVC
Boss, Old Sony
New Sony
NOTE:
check the aftermarket radio’s manual to see if the SWC buttons need to be programmed.
SWC MODULE
DIP SWITCH
1 2 3 4
ON
OFF OFF ON ON
OFF OFF ON ON
OFF OFF ON ON
OFF OFF OFF OFF
OFF ON ON OFF
OFF ON ON ON
OFF ON OFF ON
OFF ON OFF OFF
OFF OFF ON OFF
SOOGM-16K
AFTERMARKET RADIO DIP SWITCH SETTINGS:
rev.05 2024 10
This interface is designed for use with non-amplified audio
systems only. It includes a built-in audio level adapter that
ensures the proper audio level from the aftermarket radio to
the vehicle's audio system.
To install, connect the male 8-pin connector from the SOOGM-16K
harness to the black female 8-pin connector on the SOOGM-16K
module. This port is specifically for non-amplified systems.
Note: This product is not compatible with factory amplified
audio systems. Do not connect to the gray 8-pin connector,
as it is intended for systems that will not be supported.
BOSE
NON BOSE
Crux Interfacing Solutions • Chatsworth, CA 91311
phone: (818) 609-9299 • fax: (818) 996-8188 • www.cruxinterfacing.com
SOOGM-16K
3 of 4
RAD REPLA T IO CE MEN
SWC ENTRE T ION
+
R
INTERFACING SOLUTIONS
Radio Replacement Interface with OnStar® & SWC Retention
for Select 7” GM IOA & IOB Vehicles
BACKUP CAMERA TROUBLESHOOTING:
20 Pin Radio Display Connector (Top View) 20 Pin Radio Display Connector (Pin Side View)
Pin 5 Camera + from Camera
Pin 6 Camera - from Camera
Pin 7 Camera + to SOOGM-16K HAR
Pin 8 Camera - to SOOGM-16K HAR
9
20
1
8 7 6 5
1 2 3 4 5 6 7 813 14 15Pin Position
GM-CAM-DIS
567
8
Problem: The aftermarket radio does not show the reverse camera image when the vehicle is in reverse.
NOTE: In some GM (IOB) vehicles, the reverse camera image is first displayed on the radio display before
appearing on the radio.
Solution: Connect the camera input and output wires together using the Crux GM-CAM-DIS display harness.
1. Locate the gray 20-pin connector at the rear of the radio display unit.
2. Utilize the new loop connector to simplify the camera retention process.
3. Connect the loop connector directly to the specified pins on the 20-pin connector.
4. Ensure the loop connector is firmly attached to facilitate the transmission of the
camera signal to the aftermarket radio.
5. There is no need to cut or splice wires; the loop connector creates the necessary
circuit to retain the reverse camera image on the aftermarket radio.
rev.05 2024 10
